Help CenterSENSE CSM-10 CO2 Sensor Module

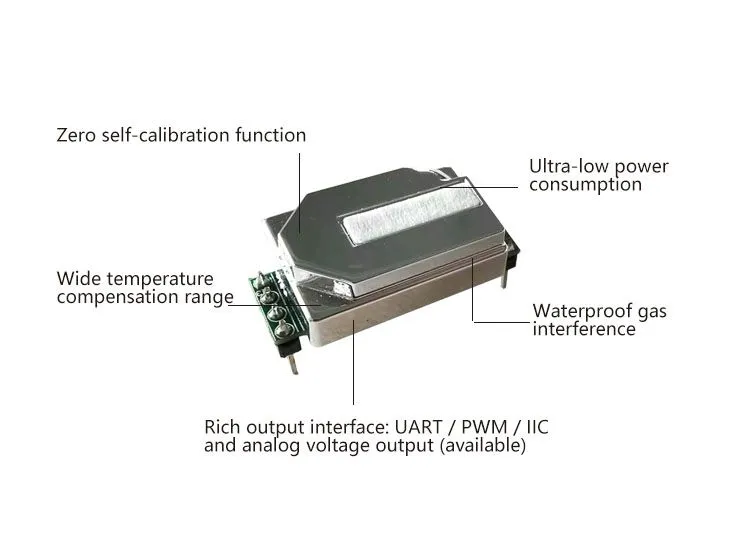

Product Spotlights
2. Ultra-low power consumption
3. Rich output interfaces: UART, PWM, IIC and adjustable analog voltage output
4. Wide temperature compensation range
5. Resistance to water vapor interference
Related Products
-
Amphenol T6703 CO2 Sensor ModuleUS$ 21.5 - 22.8MOQ: 10 Pieces -
ZyTemp ZG09 Double Channel NDIR CO2 Sensor ModuleUS$ 22.5 - 23.6MOQ: 10 Pieces
-
ZyTemp ZG09S NDIR CO2 Sensor ModuleUS$ 22.5 - 23.6MOQ: 10 Pieces
-
SENSEAIR K33 ICB-F CO2 Sensor Module for Bio ApplicationsUS$ 139.8 - 143.6MOQ: 10 Pieces
-
PLANTOWER DS-CO2-20A NDIR CO2 Sensor ModuleUS$ 15.9 - 21.3MOQ: 10 Pieces
Description:

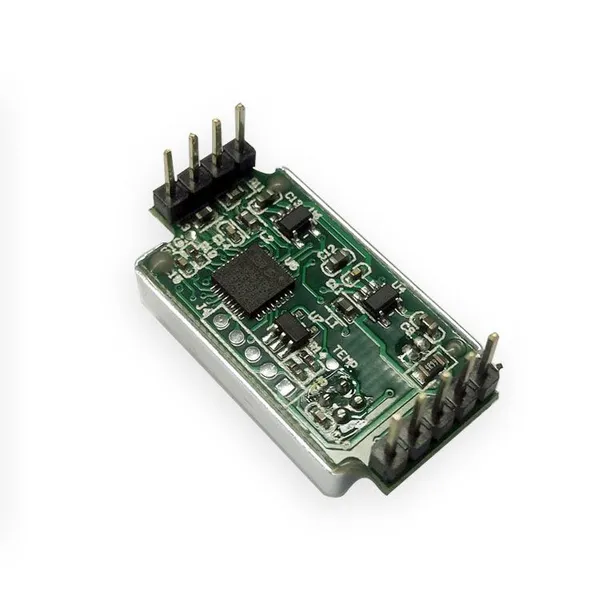

CSM-10 is a gas detection module based on NDIR infrared absorption principle, which uses a single light source and a single channel detector, and the cavity adopts diffusion air intake mode. CSM-10 is suitable for detecting the concentration of carbon dioxide in indoor and outdoor air.
CSM-10 has multiple output modes such as digital UART, IIC, analog voltage and PWM waveform output, which is convenient for customers to choose; CSM-10 has the functions of automatic zero calibration, sensitivity calibration and clean air calibration, and provides MCDL pins for manual calibration, which is convenient for customers to calibrate the relative zero of the sensor module with outdoor free flowing clean air.
CSM-10 can be widely used in the air conditioning and fresh air control, indoor air quality monitoring, agricultural and animal husbandry production process monitoring, and can be installed in intelligent buildings, ventilation systems, controllers, wall mounted applications, robots, cars and other applications, as well as other narrow space air quality monitoring.
