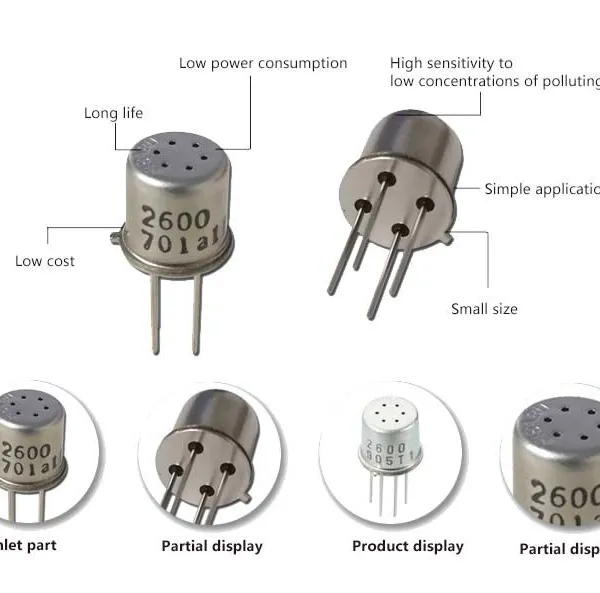

Help CenterFIGARO TGS2600 VOC Sensor for The Detection of Air Contaminants
Product Spotlights
2.High sensitivity to gaseous air contaminants
3.Long life and low cost
4.Uses simple electrical circuit
5.Small size
Related Products
-
FIGARO TGS2602 VOC Sensor for The Detection of Air ContaminantsUS$ 4.53 - 4.76MOQ: 100 Pieces -
ScioSense ENS160 Digital Metal Oxide Multi-Gas Sensor VOC SensorUS$ 3.5 - 3.8MOQ: 100 Pieces
-
PLANTOWER DS-HCHO Formaldehyde SensorUS$ 16.4 - 16.8MOQ: 10 Pieces
-
DART WZ-H3-NK Formaldehyde SensorUS$ 15.2 - 15.6MOQ: 10 Pieces
-
PLANTOWER PMS3003 PM2.5 Sensor ModuleUS$ 9.2 - 9.8MOQ: 100 Pieces

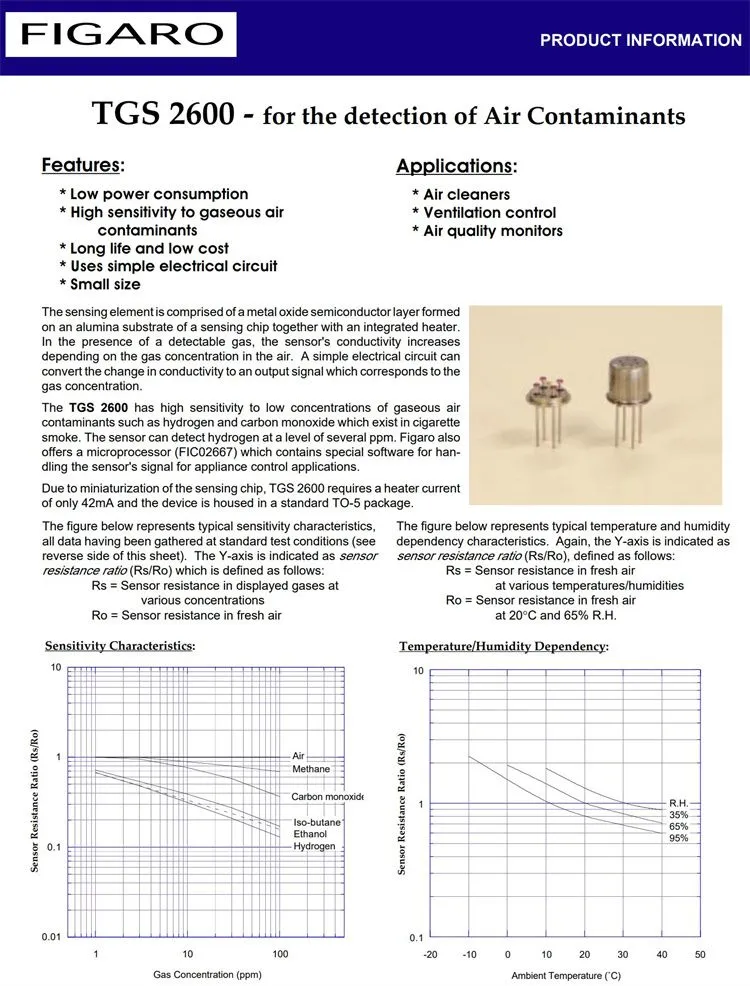

General Description:
The sensing element is comprised of a metal oxide semiconductor layer formed on an alumina substrate of a sensing chip together with an integrated heater. In the presence of a detectable gas, the sensor's conductivity increases depending on the gas concentration in the air. A simple electrical circuit can convert the change in conductivity to an output signal which corresponds to the gas concentration.
The TGS 2600 has high sensitivity to low concentrations of gaseous air contaminants such as hydrogen and carbon monoxide which exist in cigarette smoke. The sensor can detect hydrogen at a level of several ppm. Figaro also offers a microprocessor (FIC02667) which contains special software for handling the sensor's signal for appliance control applications. Due to miniaturization of the sensing chip, TGS 2600 requires a heater current of only 42mA and the device is housed in a standard TO-5 package.
