Overview
Our DIN Type Pneumatic Ball Valve is a high-performance automated flow control component, designed and manufactured in strict accordance with DIN EN 1983 and EN 1092-1 standards. It combines the advantages of quick pneumatic actuation and reliable sealing, widely used in industrial pipelines, marine systems, chemical plants, water treatment, and oil & gas industries. As a key component for automated flow control, this valve realizes fast on-off and stable regulation of various media, helping enterprises improve production efficiency and reduce manual operation costs.
Material & Structure

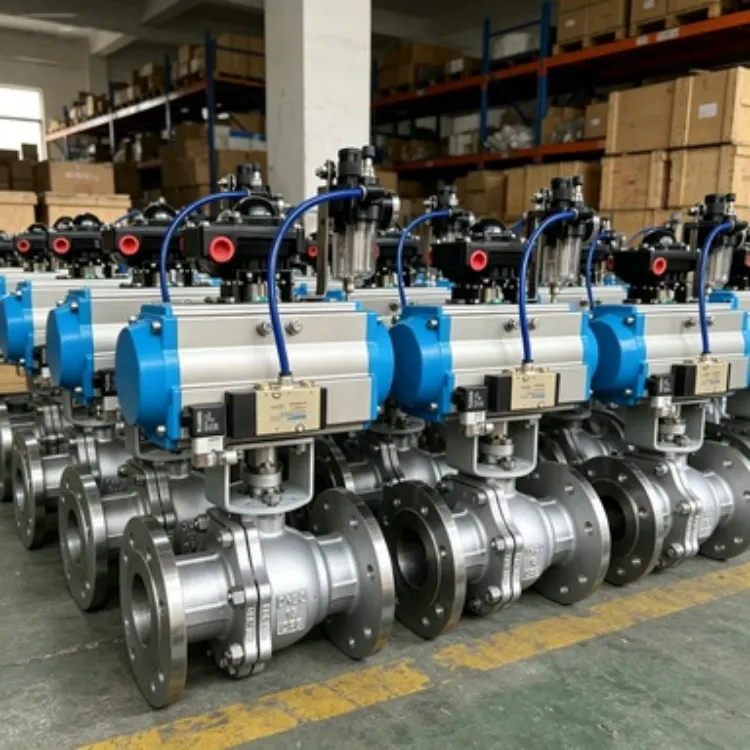

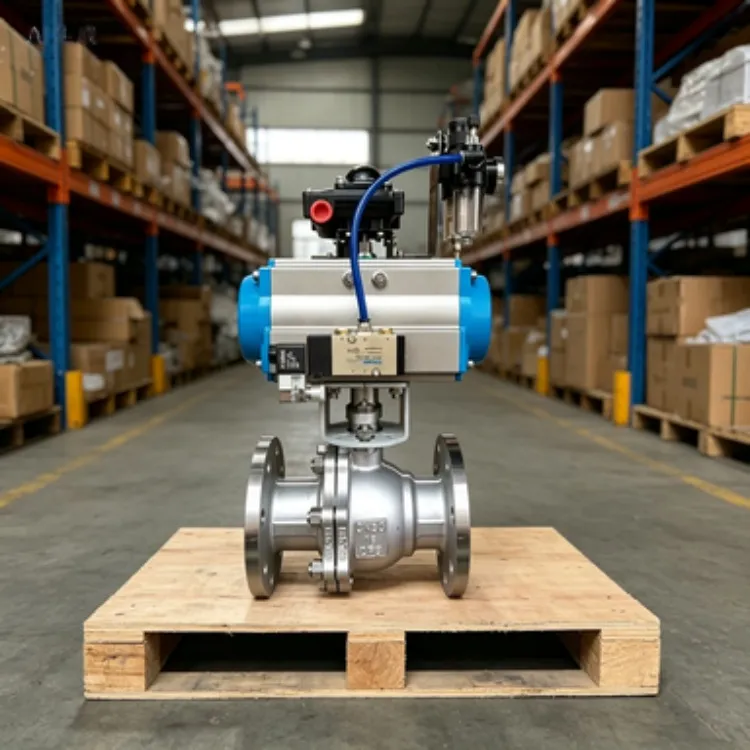

The DIN pneumatic ball valve adopts a 2PC or 3PC floating ball structure, with the valve body made of high-quality 316L/304 stainless steel, carbon steel, or cast iron, ensuring excellent corrosion resistance and mechanical strength. The ball and seat are precision machined, with PTFE/EPDM soft seal for zero leakage and metal hard seal for high-temperature and high-pressure working conditions. The pneumatic actuator is equipped with a reliable spring return or double-acting design, IP67 protection grade, effectively preventing dust and water ingress, suitable for harsh industrial and marine environments.
Performance & Advantage
With 90° rotary pneumatic actuation, the valve achieves quick on-off (response time 1-3 seconds), which is more efficient than manual valves and suitable for automated production lines. It supports full port or reduced port design: full port ensures unobstructed flow and low pressure loss, while reduced port saves cost for general working conditions. The valve has strong adaptability, with pressure rating PN10-PN40 and temperature range -20℃ to 200℃, compatible with water, oil, gas, chemical solution and other media, meeting diverse industrial needs.
Specification & Application
This DIN type pneumatic ball valve covers nominal diameter DN15-DN200, with flange connection (DIN EN 1092-1) or thread connection optional. It is widely applied in industrial automation systems, marine ballast and fuel pipelines, chemical processing, water treatment plants, food and beverage industries, and oil & gas transmission. The valve can be equipped with a solenoid valve, positioner, or limit switch according to customer needs, realizing remote control and position feedback, perfectly matching automated control systems.
Quality & Service
All DIN pneumatic ball valves undergo strict quality inspection before leaving the factory, including hydrostatic pressure test, air tightness test, and actuator performance test, to ensure each product meets DIN standards and customer requirements. We support OEM/ODM customization, including material, size, pressure rating, and actuator configuration. With professional R&D and production team, we provide fast delivery, competitive pricing, and comprehensive after-sales service, including installation guidance and maintenance support, to be your reliable partner for pneumatic flow control solutions.
