As a trusted ISO9001-certified manufacturer since 2016, Shanghai Zhibang Valve Manufacture Co., Ltd. specializes in delivering high-performance industrial valves to global markets. Our Stainless Steel 316 Marine DIN Flanged 3-Way Ball Valve with PTFE Seals is engineered for critical applications requiring exceptional corrosion resistance and reliable flow control in marine, chemical processing, and industrial systems.

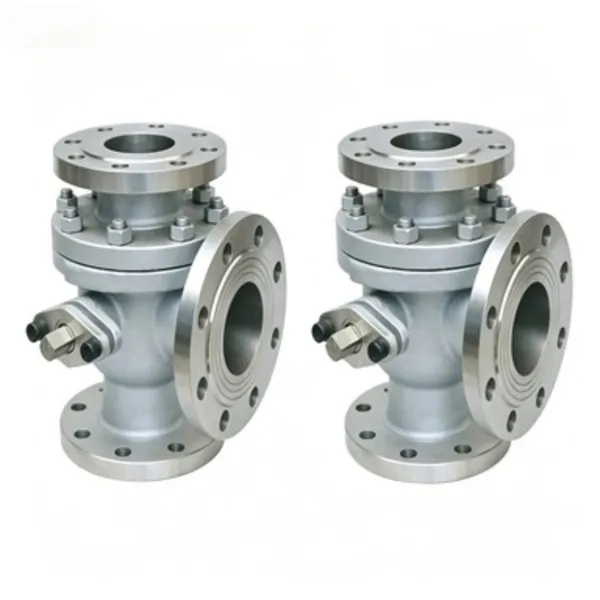

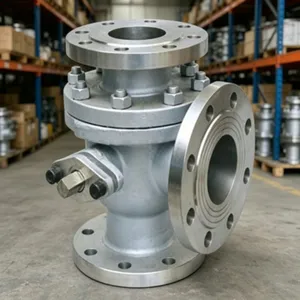

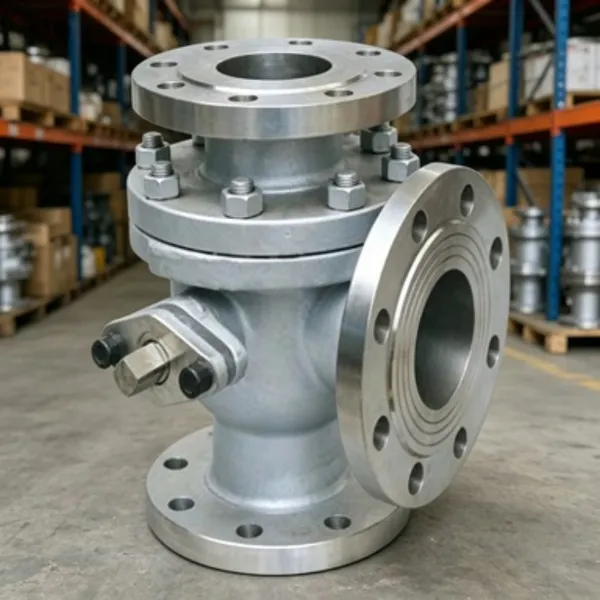

This valve features a robust 316 stainless steel construction that withstands harsh saline environments, combined with precision-machined PTFE seals for leak-proof operation. The DIN-standard flanged design ensures seamless integration with European system specifications, while the 3-way configuration provides versatile flow direction options for complex piping networks.
With over $1.5 million in annual exports to five continents, our valves meet rigorous international quality standards. We offer flexible shipping options from major Chinese ports including Shanghai, Guangzhou, and Hong Kong.
Technical Specifications:
- Material Integrity: ASTM A351 CF8M body with 316 stainless steel components offers superior resistance to pitting and crevice corrosion
-
Flow Control: Precision-machined ball with T-port or L-port configurations enables:
- Flow diversion between two outlets
- Mixing of media from two inlets
- Complete shut-off capability
- Sealing System: Reinforced PTFE seat seals maintain integrity under thermal cycling (-10°C to 200°C)
| Parameter | Specification |
|---|---|
| Pressure Rating | PN16 standard (PN25 available) |

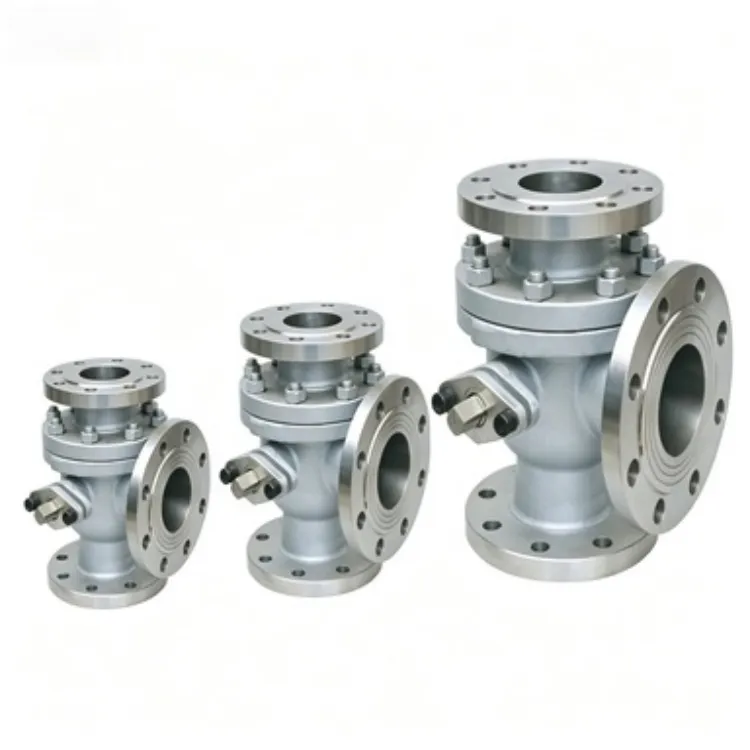

| Size Range | DN15 to DN100 (1/2" to 4") |
| Flange Standard | DIN EN 1092-1 (DIN 2635) |
| Test Standards | API 598 / EN 12266-1 |
Operational Advantages:
- Maintenance-Friendly: Full-bore design minimizes pressure drop and allows for pigging
- Fire-Safe Option: Metal-to-metal secondary sealing available for critical services
- Position Indication: Lever handle with visual open/close indicators
Backed by our ISO9001 quality management system and serving clients across North America, Europe, Asia, and Oceania, this valve delivers uncompromising performance. Our annual export volume exceeding $1 million demonstrates global trust in Zhibang valves. Contact us today to discuss how our marine-grade ball valves can optimize your fluid systems with:
- Extended service life in corrosive environments
- Reduced maintenance downtime
- Custom configuration options
Frequently Asked Questions:
-
Q: Why choose 316 stainless steel for marine applications?
A: SS316 contains molybdenum (2-3%) which significantly improves resistance to chloride-induced corrosion compared to 304 stainless steel, making it ideal for seawater systems. -
Q: Can this valve handle high-viscosity fluids?
A: Yes, the full-bore design and PTFE seals accommodate fluids up to 600 cSt viscosity. For higher viscosities, special seat materials can be specified. -
Q: Are different flange face types available?
A: Standard supply includes RF (Raised Face) flanges. FF (Flat Face) and RTJ (Ring Type Joint) configurations are available upon request. -
Q: What maintenance is required?
A: These valves are designed for minimal maintenance. Periodic lubrication of the stem (annually) and visual inspection of seals (every 3-5 years) is recommended. -
Q: Is locking capability available?
A: Yes, we offer lever handles with padlock provisions to prevent unauthorized operation in critical processes. -
Q: Can you provide actuated versions?
A: Electric, pneumatic, and hydraulic actuators can be mounted with ISO 5211 adapter pads. Please specify torque requirements. -
Q: What is the lead time for DN80 valves?
A: Standard sizes (DN15-DN100) ship within 30 days. Larger sizes may require 45-60 days. Expedited production is available. -
Q: Do you provide test reports?
A> All valves include factory test certificates per EN 12266-1 standards. Third-party inspection and certification available upon request.
