I. Overview

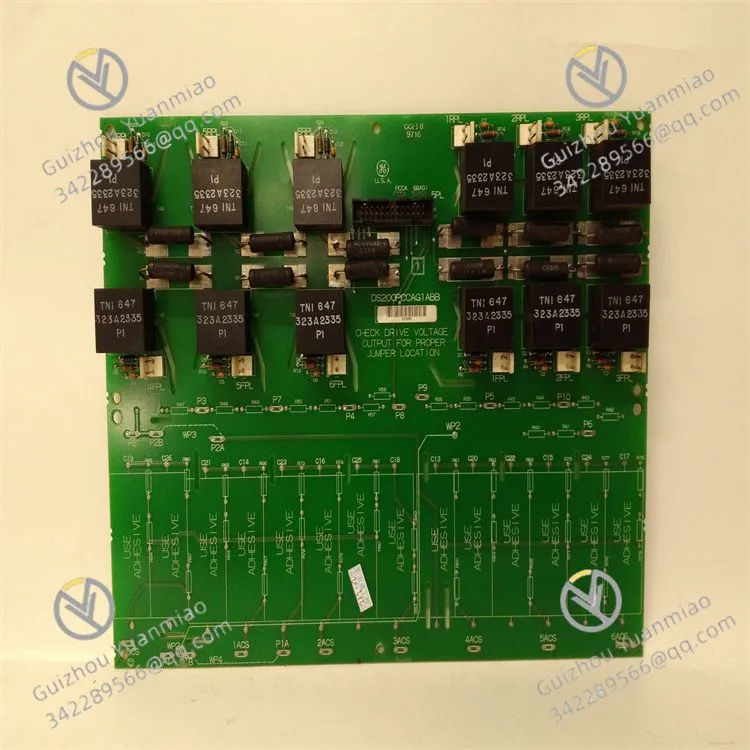

GE DS200PCCAG5ACB is an industrial-grade Power Connection Card (PCCA). It acts as a critical intermediate connecting unit between the SCR power bridge and drive control circuits in large industrial equipment control systems. Its core functions include signal transmission and power connection between the two units. It feeds gate driver signals to the SCR bridge through pulse transformers, while providing signal isolation and circuit protection. Compatible with high-horsepower industrial controllers, it is an essential component for ensuring the stable operation of power drive loops in GE industrial control systems.
Its main functions cover gate pulse signal transmission, connection between SCR power bridges and drive control circuits, circuit protection and inter-device communication. Equipped with 12 onboard plug connectors, it transmits forward and reverse gate pulse signals to the SCR bridge and supports communication with DCFB power boards. Adopting a buffer-free and attenuation-string-free design, it integrates related components into other system positions to optimize circuit layout.
Featuring rugged industrial construction, compact size and strong compatibility, this card delivers excellent electromagnetic interference resistance and wide temperature adaptability to withstand harsh industrial conditions. It is widely used in power generation, petrochemical, metallurgy and industrial drive industries, providing stable and reliable connection and signal transmission for power control and drive loops of large industrial equipment.
This module must be used in conjunction with GE Mark V series high-horsepower controllers, SCR power bridges and DCFB power boards and cannot operate independently. GE has discontinued official technical support for this board, yet it remains widely deployed in industrial sites as an indispensable power connection component for Mark V control systems.
II. Product Parameters
| Parameter Name | Specifications |
|---|---|
| Model | GE DS200PCCAG5ACB |
| Manufacturer | General Electric |
| Product Series | GE Mark V Series |
| Product Type | Industrial-grade Power Connection Card (PCCA), for connection and signal transmission between SCR power bridges and drive control circuits |
| Compatible Devices | Matches GE Mark V high-horsepower controllers and SCR power bridges; supports communication with DCFB power boards; connects to power control loops of large industrial drive equipment |
| Core Components | Built-in pulse transformer (for gate driver signal transmission), 12 plug connectors; buffer-free and attenuation-string-free design |
| Connector Specifications | 12 plug connectors for forward/reverse gate pulse output to SCR bridge; 1 dedicated communication plug for power board connection |
| Power Supply | 24VDC / 110–220VAC dual power input; universal input range: 2–240V AC/DC; converts to 24VDC logic signal for control units; maximum current consumption: 1A |
| Communication | Supports Modbus RTU, Profibus DP and other industrial protocols; equipped with RS485 interface for high-speed data interaction with system modules |
| Environmental Parameters | Operating Temperature: -20℃ ~ +55℃ (standard), -20℃ ~ +60℃ (partial versions); Storage Temperature: -40℃ ~ +85℃; Relative Humidity: 5%–95% (non-condensing) |
| Physical Specifications | Dimension: approx. 160mm×80mm×40mm; Weight: approx. 0.5kg; industrial PCB design, compact structure for cabinet mounting |
| Core Functions | SCR bridge & drive circuit connection, gate pulse transmission, circuit protection, DCFB power board communication, signal isolation, onboard fault self-diagnosis |
III. Technical Features
Dedicated Power Connection & Signal Transmission: Specially designed for SCR power bridges and drive control circuits, it precisely transmits gate driver signals via pulse transformers, stabilizes pulse output, ensures normal operation of SCR units, and meets high-horsepower industrial control requirements.
Optimized Circuit Design: The unique buffer-free and attenuation-string-free structure simplifies onboard hardware, optimizes overall circuit layout, reduces signal loss, improves power transmission efficiency, and enhances system operational stability.
Versatile Connection & Communication: 12 integrated plugs flexibly output forward and reverse gate pulses to adapt to diverse working conditions. With dedicated communication ports and standard RS485 interface, it realizes seamless data exchange with peripheral system devices and improves collaborative control performance.
Industrial High Reliability: Manufactured with premium industrial components and advanced craftsmanship, it features strong EMC resistance and environmental tolerance. The wide-temperature design adapts to high/low temperature and high-humidity harsh conditions, with low failure rate and long MTBF for continuous system operation.
Flexible Compatibility & Easy Maintenance: Supports dual 24VDC / 110–220VAC power supply with wide input voltage coverage. Compact and rack-mountable for Mark V cabinets, it enables fast installation, debugging and seamless integration into existing control systems.
Comprehensive Protection & Diagnosis: Built-in fault self-diagnosis monitors real-time operating status and feeds back fault alarms to shorten troubleshooting and downtime. Integrated overcurrent, overvoltage and surge protection safeguards the module and peripheral electrical equipment.
IV. Application Scenarios
1. Power Generation Industry
Commonly used in generator set control systems for thermal power and gas power plants. As the core connection unit of SCR power loops, it undertakes gate pulse transmission and power interface tasks for high-horsepower controllers, ensuring stable operation of generator drive loops and realizing precise monitoring and equipment protection for power units.
2. Petrochemical Industry
Applied to power control loops of large compressors, pump units and reaction vessels in petrochemical plants. It maintains stable signal transmission under high-temperature, high-humidity and dusty industrial environments, guarantees accurate power regulation of core equipment, and secures continuous and safe chemical production.
3. Metallurgy Industry
Deployed in control systems of blast furnaces, converters and other large smelting equipment in iron and non-ferrous metallurgy. It efficiently connects SCR power bridges and drive circuits, stably transmits control pulses, ensures reliable operation of smelting power units, and improves production efficiency and product quality.
4. Industrial Drive Field
Suitable for control systems of high-horsepower industrial equipment such as large motors and frequency converters. It stabilizes signal and power transmission of drive loops through optimized circuit design, improves the reliability of industrial drive systems, and adapts to complex heavy-duty industrial application conditions.
V. Precautions
This module must be matched with GE Mark V high-horsepower controllers, SCR power bridges and DCFB power boards. Independent operation is prohibited. Verify equipment compatibility before installation to avoid signal abnormality or hardware damage.
Confirm that the input power voltage (24VDC or 110–220VAC) meets on-site requirements. Strictly follow wiring specifications, especially for the 12 plug connectors, to prevent wrong connection and permanent damage to the module or SCR bridge.
Due to the buffer-free and attenuation-string-free design, ensure that external buffer components in the system are correctly installed and functional; otherwise, the stability of the entire power drive loop will be affected.
This board contains high-energy circuits. Do not touch terminals or internal components while powered on. Cut off all power sources and implement lockout-tagout procedures before maintenance to prevent electric shock hazards.
Regularly check the tightness of plug connectors to avoid loose wiring caused by equipment vibration. Keep the PCB surface clean and remove dust periodically only after power disconnection to prevent insulation degradation and signal failure.
Unauthorized disassembly, modification or repair of internal components is prohibited. GE has stopped official support for this legacy board; all faults shall be handled by professional industrial control maintenance technicians to prevent fault escalation.
Install the module in a stable, well-ventilated cabinet. Keep away from direct sunlight, heat sources, humid, smoky and dusty environments to extend service life and maintain long-term stability.
When wiring signal cables, strip approximately 0.5 inches of insulation and fully insert bare conductors into terminals to avoid poor contact caused by insufficient stripping length.
