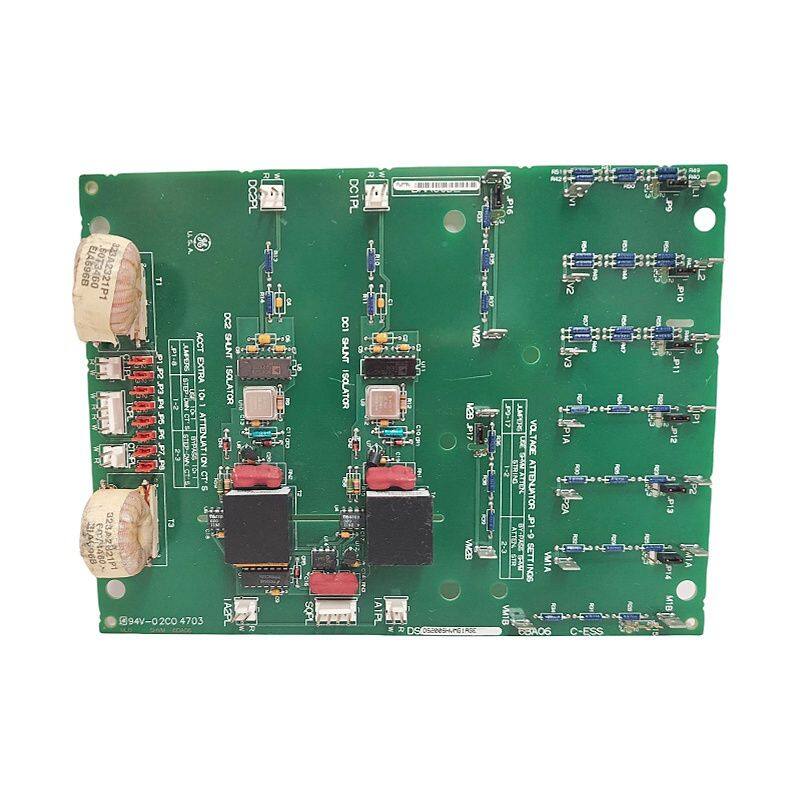

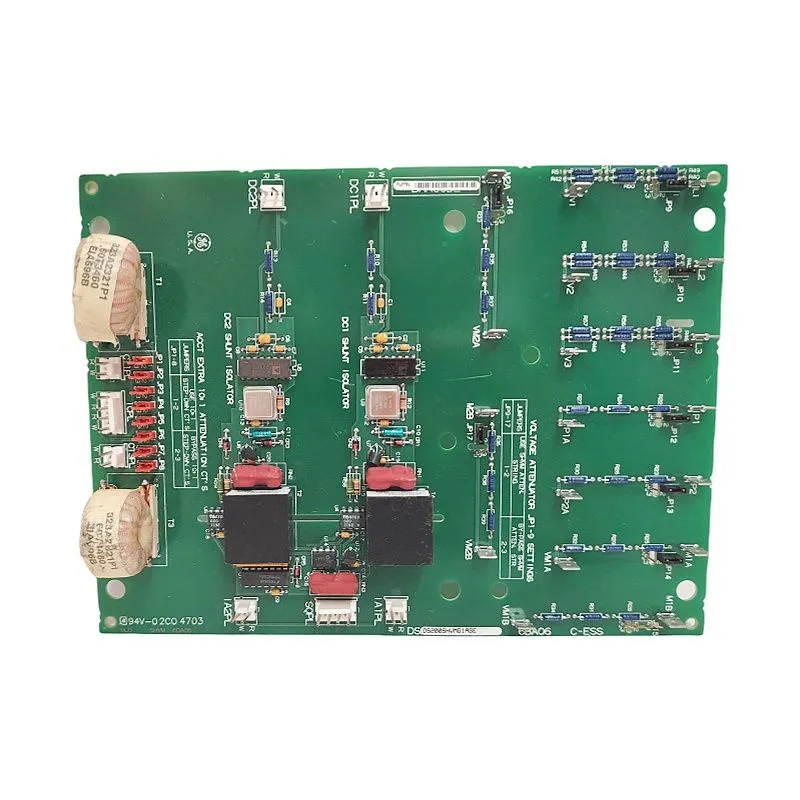

Help CenterGE DS200SHVMG1AGE High Voltage M-Frame Interface Board
Related Products
-
GE T35E00HAHF8FH6AM8HP6EUXXWXX Control ModuleNegotiableMOQ: 1 Piece -
GE DS200TCPDG2BEC Power Distribution BoardNegotiableMOQ: 1 Piece
-
GE IS230SNRTH2A Resistance Temperature Detector Input BoardNegotiableMOQ: 1 Piece
-
GE 531X307LTBAFG1 LAN I/O Terminal BoardNegotiableMOQ: 1 Piece
-
GE IS200EGDMH1ADF Exciter Gate Driver ModuleNegotiableMOQ: 1 Piece
GE DS200SHVMG1AGE is a core component of the Mark V series control system, defined as a High-Voltage M-Frame Interface Board (also functioning as an SCR silicon controlled rectifier interface module). It is specially designed for the control and monitoring of high-voltage equipment such as gas turbines, steam turbines, large motors and transformers. Its core function is to realize the conversion, isolation and transmission of high-voltage signals, build a key communication bridge between on-site high-voltage equipment and the Mark V control system, and ensure stable and accurate operation of the control system in industrial high-voltage scenarios. It is widely applied in power, energy, industrial automation and other fields that demand strict equipment reliability.
1. Product Positioning & Functions
High-Voltage Signal Conversion & ProcessingCore functions include signal conversion and attenuation. It converts shunt signals of -500 ~ 500 mV into differential frequency outputs of 0 ~ 5 kHz (some parameters indicate 0 ~ 500 kHz), achieving precise signal conversion via an on-board Voltage Controlled Oscillator (VCO) circuit. It also supports 10× current attenuation. The input signal amplitude can be adjusted by series connection of DC positive and negative resistors to match system processing requirements, realizing safe conversion from high-voltage to low-voltage signals.
High-Voltage Interface & Drive ControlIt features robust SCR high-voltage M-frame interface capability, dedicated to connecting and controlling high-voltage equipment such as large motors and transformers. It can seamlessly match GE series exciters and drivers to realize precise drive and control of high-voltage equipment, ensuring operational stability and safety.
Communication & IntegrationSupports standard industrial communication protocols such as Modbus and Profibus, enabling smooth communication with the control system through the Mark V series backplane. Equipped with 8 plug connectors to provide sufficient connection points, it can be matched with system power boards (DCFB / SDCI) and connection cards (PCCA) to realize flexible cross-driver interface communication and system integration.
Condition Monitoring & ProtectionBuilt-in voltage monitoring function tracks generator or busbar voltage, timely identifies abnormal conditions such as overvoltage and undervoltage, and outputs alarm or trip signals according to preset thresholds to provide safety protection for high-voltage equipment. Some models are fitted with power and fault detection LED indicators to reflect real-time board operating status and facilitate rapid fault location.
2. Technical Features & Specifications
2.1 Technical Architecture
GE DS200SHVMG1AGE belongs to the GE Mark V series with a modular, compact design for easy installation and maintenance. Its core architecture centers on high-voltage signal processing and interface communication, adopting high-voltage isolation design to enable safe signal transmission in high-voltage environments. It supports firmware configurability; parameters can be adjusted via GE proprietary software to adapt to different application scenarios. Meanwhile, it delivers excellent EMI/RFI anti-interference performance for stable operation in harsh industrial environments.
2.2 Technical Specifications
Product Type: High-Voltage M-Frame Interface Board, SCR Silicon Controlled Rectifier Interface Module, belonging to GE Mark V series.
Signal Parameters: Converts -500 ~ 500 mV signals to 0 ~ 5 kHz (partial range 0 ~ 500 kHz) differential signals; supports 10× current attenuation; configurable voltage monitoring range, typically 120VAC / 240VAC at adjustable 50/60 Hz.
Power & Connection: Input voltage 110–220 VDC/VAC (redundant input); adopts 5-pin Phoenix terminal with 5.08mm pitch; alarm port adopts 3-pin Phoenix terminal with 5.08mm pitch, rated 250VAC / 220VDC 2A; equipped with 8 plug connectors for multi-channel signal connection.
Environmental Adaptability: Industrial-grade component design; operating temperature: -40℃ ~ +70℃; excellent EMI/RFI immunity, suitable for humid, dusty and strong electromagnetic interference harsh industrial environments for long-term stable operation.
Physical & Communication: Weight approx. 0.1kg, compact structure; supports Fast Ethernet (3 slots, 8 ports per slot, optional optical/electrical interface), Gigabit Ethernet (4 × 1000Base SFP slots), RS232 (RJ45) console port; communicates with the control system via Mark V backplane and complies with industry standard protocols.
Compatibility: Seamlessly integrated with other GE Mark V series components, compatible with a full range of GE exciters and drivers (DCFB, SDCI, PCCA), suitable for upgrading and expansion of existing industrial control systems.
3. Application Scenarios
Power & Energy Industry: Mainly used in power plants to monitor and control generators, gas turbines, steam turbines and other equipment, realizing high-voltage signal conversion, voltage monitoring and equipment protection. It is also applied to the control and status monitoring of high-voltage switchgears and transformers in power stations to ensure stable operation of the power system.
Industrial Automation: Applied in production line automation, robot control and process control. It connects and controls high-voltage equipment such as large motors, realizes safe processing and transmission of high-voltage signals, and adapts to complex working conditions in metallurgy, chemical, petroleum and other industries.
High-Voltage Equipment Control: Specially used for interface connection and control of large motors, transformers and other high-voltage equipment. It plays a core role in scenarios requiring high-precision signal conversion and high-voltage isolation, such as high-voltage equipment management in heavy industry production lines and power control of large mechanical equipment.
Other Fields: Applicable to power management of industrial plants and key parameter monitoring in process control (e.g., high-voltage equipment matching temperature, pressure and flow control), supporting safe and efficient operation of high-voltage equipment in various industrial scenarios.
4. Product Advantages & Core Competitiveness
High Reliability & Environmental AdaptabilityAdopted industrial-grade components with wide operating temperature range and outstanding anti-electromagnetic interference capability. It can operate stably for a long time in harsh industrial environments, reduce equipment downtime and maintenance costs, and adapt to complex working conditions with high voltage and strong interference.
Precise Signal Processing & High-Voltage ControlProfessional signal conversion and attenuation functions realize safe and accurate conversion from high-voltage to low-voltage signals. Its SCR high-voltage interface capability enables efficient control of large high-voltage equipment to meet high-precision control requirements.
Strong Compatibility & FlexibilityAs part of the GE Mark V series, it can be seamlessly integrated with other series components, GE exciters and drivers. It supports configurable firmware and multiple communication protocols to adapt to parameter requirements of different scenarios, facilitating upgrade and expansion of existing systems.
Modular Design & Convenient O&MModular compact design with light weight (approx. 0.1kg) for easy installation, maintenance and replacement. Equipped with LED status indicators and complete fault monitoring functions to quickly locate faults and lower O&M difficulty and costs.
High Safety ProtectionBuilt-in high-voltage isolation design effectively isolates high-voltage signals and prevents control system damage caused by high-voltage interference. It also provides overvoltage abnormal alarm and trip protection, delivering dual safety guarantee for high-voltage equipment and operators.
5. Precautions
Input voltage exceeding the rated range (110–220 VDC/VAC) is strictly prohibited; otherwise, the board circuit and related components will be damaged and normal equipment operation will be affected.
During installation, ensure reliable contact between the board, Mark V backplane and plug connectors to avoid loose interfaces caused by vibration that affect signal transmission and equipment control.
Confirm the type and amplitude of input signals before wiring, and properly configure signal attenuation parameters to prevent board failure or control errors caused by abnormal signals.
Ensure good cabinet heat dissipation during operation; avoid ambient temperature exceeding the -40℃ ~ +70℃ operating range to prevent accelerated component aging and shortened service life.
Cut off system power and implement electrostatic protection before parameter configuration, board replacement or maintenance. Live operation is forbidden to prevent static electricity or high voltage from damaging electronic devices.
Distinguish alarm port, power port and signal port during wiring to avoid wrong connection and ensure normal communication and function implementation of the board.
