High Efficiency Manufacturers Instant Coffee Powder Production Line
US$ 100000.00
≥1 Box
Key Specifications
Get Latest Price
Voltage:
380v/50hz
brand name:
genyond
place of origin:
Other
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2m2 20kg 3m2 30kg 5m2 50kg Fruit and Vegetable Industrial Lyophilizer Vacuum Freeze Dryer Machine for FoodUS$ 10000 - 50000MOQ: 1 Set -
Commercial Industrial Vacuum Freeze Dryer Machine Lyophilizers Freeze Drying Equipment For Fruit Strawberry Candy Coffee MilkUS$ 24000.00MOQ: 1 Set
-
Complete Arabic Gum Powder Making MachineUS$ 150000.00MOQ: 1 Set
-
100-3000kg Dry Freezes Dried Milk Tablets Freezer Dryer Industrial Vacuum Freeze Drying Machine Dryer for Food FruitUS$ 8500 - 52000MOQ: 1 Set
-
Vegetable Fruit Chips Vacuum Freeze Drying MachineUS$ 20000.00MOQ: 1 Set
brand name
genyond
place of origin
Other
voltage
220v/380v
power(w)
20kw
dimension(l*w*h)
3*5*18m
weight
8t
warranty
2 Years
application fields
Snack Food Factory, Commercial Catering, Fruit Processing Plant, Flour Mill
raw material
Nuts
output product name
Instant coffee powder making machine
After-sales Service Provided
Video technical support
Name
Color Sorter
Application
Food Industry
Function
Multifunction
Usage
Food Industry Equipment
Product name
Instant coffee powder machine
Capacity
150-200KG/H
Material
Stainless Steel
Dimension(L*W*H)
1400*1000*1500mm
Keywords
Instant coffee powder machine
Certification
CE ISO
Applicable Industries
Food & Beverage Factory
Condition
New
Product Description

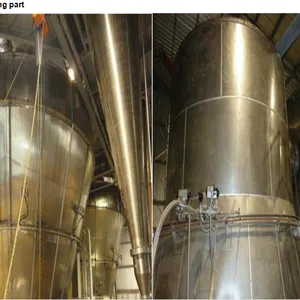

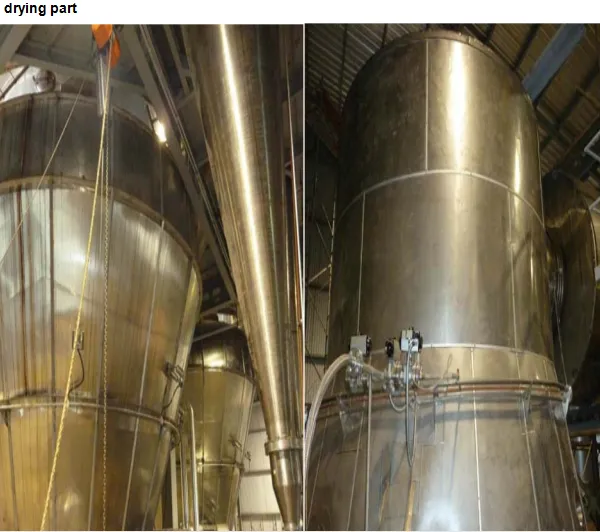

The solution, emulsion, suspension liquid or slurry are sprayed into fine beads in the hot air, going down from the top of the
drying chamber to the bottom, the water will be evaporated to and the product becomes powder or granular product.
Induce hot air from the top of drying tower, at the same time, pump the material liquid to the top of the tower by screw pump or
peristaltic pump, the feeding solution becomes into fine beads or small droplets through the atomizer. When the droplets meet the
high temperature hot air, the water will be evaporated immediately, and the material liquid is dried into dry product in a very
short time, the product is discharged from the bottom of the drying tower, or from the cyclone (depend on the configuration). When
the hot air contacts with the droplets, the temperature declines significantly, and the humidity increases greatly, and then will
be exhausted by exhaust fan. The fine powder in the air will be collected through different separating devices
There’re different fine powder separation and recovery devices, such as cyclone (the common type and various combination type),
bag filter, cyclone + bag filter, cyclone + wet scrubber, and bag filter + wet scrubber etc. We should different fine powder
separation and recovery devices as per the characteristics of product and requirements of customer.
Depend on the product features and requirements, we might install secondary drying and cooling system (such as ZLG vibration fluid
bed or pneumatic transportation), formulation system or powder sieving system etc after the spray dryer, or dehumidifier.

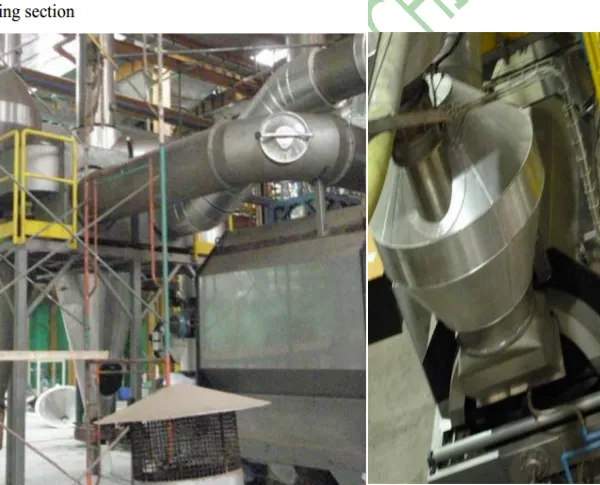

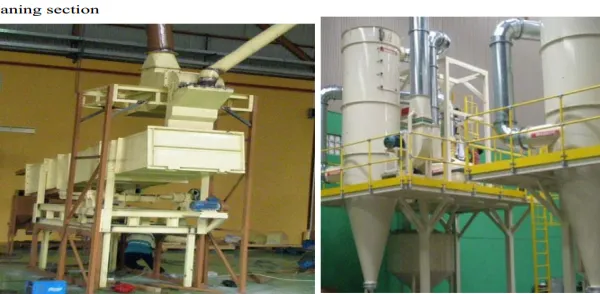

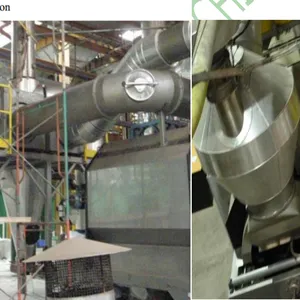

1. 1 Raw coffee beans are delivered to raw material tank by Roots fan after sorting and passing through the vibrating screen.
2. 2Raw coffee beans from raw material tank are weighed and
3. Then enter into baking furnace in order to become ripe coffee bean.
4. 4Ripe coffee beans are delivered into ripe material vessel through cooling plate screen with hole.

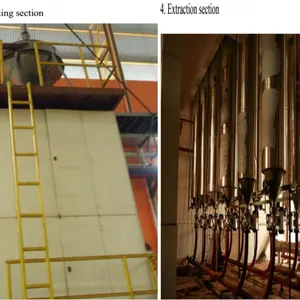

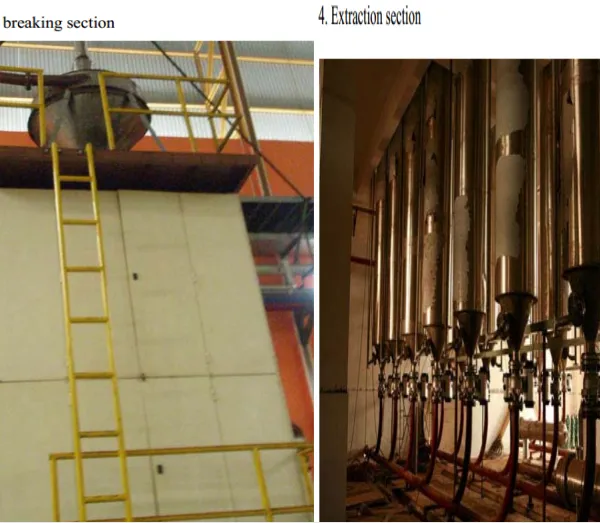

5. After breaking and weighing, the ripe coffee beans are delivered to extraction pot for extracting.
6. Extraction liquid are conveyed to extraction liquid pot through filtering and cooling.

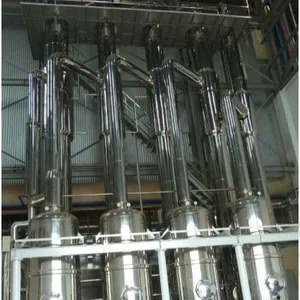

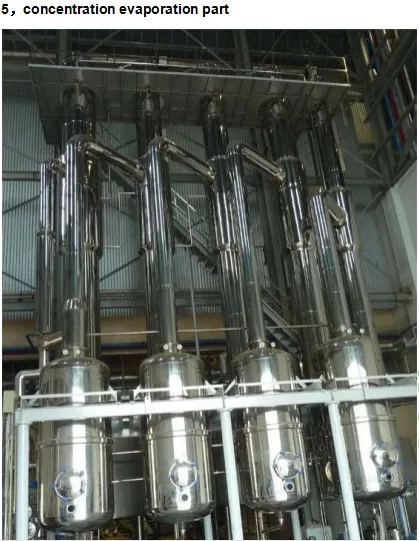

7. To concentrate the extraction liquid through double efficiency concentrator and then to pump them to concentrated liquid
storage pot.
8. To add assistant material to make match material when the concentrated liquid enter into match material pot.
9. After filtering, the well-matched concentrated liquid mixture are pumped into spray dryer fro spray drying by piston pump.(if
want to process the soluble granule , it can use fluidizing granulator to do it )
10. After matching material, to make a inner packing for the Dry power. (For example: packed in small bags or bottles), after
this, to pack the small bags or bottles in cartons and then to storage them in warehouse.
drying chamber to the bottom, the water will be evaporated to and the product becomes powder or granular product.
Induce hot air from the top of drying tower, at the same time, pump the material liquid to the top of the tower by screw pump or
peristaltic pump, the feeding solution becomes into fine beads or small droplets through the atomizer. When the droplets meet the
high temperature hot air, the water will be evaporated immediately, and the material liquid is dried into dry product in a very
short time, the product is discharged from the bottom of the drying tower, or from the cyclone (depend on the configuration). When
the hot air contacts with the droplets, the temperature declines significantly, and the humidity increases greatly, and then will
be exhausted by exhaust fan. The fine powder in the air will be collected through different separating devices
There’re different fine powder separation and recovery devices, such as cyclone (the common type and various combination type),
bag filter, cyclone + bag filter, cyclone + wet scrubber, and bag filter + wet scrubber etc. We should different fine powder
separation and recovery devices as per the characteristics of product and requirements of customer.
Depend on the product features and requirements, we might install secondary drying and cooling system (such as ZLG vibration fluid
bed or pneumatic transportation), formulation system or powder sieving system etc after the spray dryer, or dehumidifier.
process :
1. 1 Raw coffee beans are delivered to raw material tank by Roots fan after sorting and passing through the vibrating screen.
2. 2Raw coffee beans from raw material tank are weighed and
3. Then enter into baking furnace in order to become ripe coffee bean.
4. 4Ripe coffee beans are delivered into ripe material vessel through cooling plate screen with hole.
5. After breaking and weighing, the ripe coffee beans are delivered to extraction pot for extracting.
6. Extraction liquid are conveyed to extraction liquid pot through filtering and cooling.
7. To concentrate the extraction liquid through double efficiency concentrator and then to pump them to concentrated liquid
storage pot.
8. To add assistant material to make match material when the concentrated liquid enter into match material pot.
9. After filtering, the well-matched concentrated liquid mixture are pumped into spray dryer fro spray drying by piston pump.(if
want to process the soluble granule , it can use fluidizing granulator to do it )
10. After matching material, to make a inner packing for the Dry power. (For example: packed in small bags or bottles), after
this, to pack the small bags or bottles in cartons and then to storage them in warehouse.
