Hot Sale Energy Conservation Food Vacuum Drying Machine for Foodstuff Industry
US$ 28500.00
≥1 Set
Key Specifications
Get Latest Price
Type:
Dehydrator
video outgoing-inspection:
Provided
machinery test report:
Provided
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Automatic Instant Powder Spray Dryer Machine Fruit & Vegetable Powder Making Machine Industrial Spray Dryer EquipmentUS$ 3500.00 - 4100.00MOQ: 1 Set -
Best Factory Price Big Industrial Scale Potato Flake Powder Production Line 1000KG/H Productivity MachineUS$ 7800.00 - 8500.00MOQ: 1 Set
-
Complete Fruit Vegetable Powder Production Line Instant Juice Powder Processing Plant Making Machines for SaleUS$ 33700.00 - 38000.00MOQ: 1 Set
-
Potato Flake Powder Production LineUS$ 50000.00MOQ: 1 Set
-
Yam Powder Processing LineUS$ 50000.00MOQ: 1 Set
Type
Dehydrator
video outgoing-inspection
Provided
machinery test report
Provided
core components
PLC
place of origin
Shanghai, China
brand name
GENYOND
type
vacuum dryer
voltage
380V
power(w)
7.9KW
weight
2.7
dimension(l*w*h)
4.8*1.2*2.3M
warranty
12 monthes
Product Overview
In chemical process industries, we are faced with difficulties in drying materials due to high toxic contents,hygroscopic in
nature, heat sensitive.
To solve the above problems, vacuum dryers are used where the boiling point of the materials to be dried is brought down and the entire system is in a closed loop. No contamination occurs, due to the closed arrangement. Any vapours evolved during the drying process is cooled down through a connected Heat Exchanger and collected in a reciever.

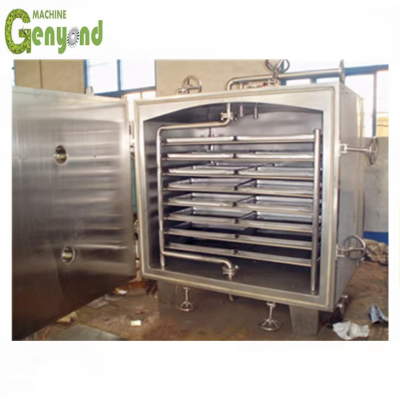

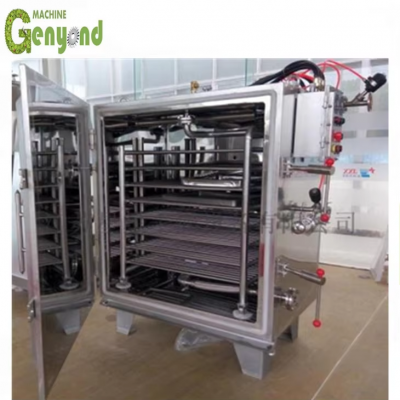

Our YZG/FZG vacuum dryer is basically a tray dryer working under vacuum conditions. It dries on the conduction principle. There are a number of shelves inside the dryer on which the product laden trays are placed. The steam / hot water starts circulating inside the shelves in a serpentine manner. Due to this configuration, the heat transfer from the shelves to the trays is quite fast. The heat is transferred to the product from the shelf on which it is placed due to conduction and from the shelf above due to radiation. The boiling point of the product is brought down considerably due to vacuum.
nature, heat sensitive.
To solve the above problems, vacuum dryers are used where the boiling point of the materials to be dried is brought down and the entire system is in a closed loop. No contamination occurs, due to the closed arrangement. Any vapours evolved during the drying process is cooled down through a connected Heat Exchanger and collected in a reciever.
Our YZG/FZG vacuum dryer is basically a tray dryer working under vacuum conditions. It dries on the conduction principle. There are a number of shelves inside the dryer on which the product laden trays are placed. The steam / hot water starts circulating inside the shelves in a serpentine manner. Due to this configuration, the heat transfer from the shelves to the trays is quite fast. The heat is transferred to the product from the shelf on which it is placed due to conduction and from the shelf above due to radiation. The boiling point of the product is brought down considerably due to vacuum.
Vacuum drying ovens are widely used in research fields such as biochemistry, chemical pharmacy, medical and health, agricultural research, environmental protection, etc., for powder drying, baking and disinfection and sterilization of various glass containers. It is especially suitable for fast and efficient drying of heat sensitive, easily decomposable, oxidizable substances and complex ingredients.
2,Heating method:
(steam heating, hot water heating, heat transfer oil heating, electric heating)
1. Steam heating: The heating pipes are all heated by stainless steel coils. Material: 304, the specifications are 45×3, 32×3,
22×2, the coils are S-shaped, the heating is uniform, and the drying rate is fast.
2, hot water heating: heating pipe is all heated by stainless steel coil, material: 304, specifications are 45 × 3, 32 × 3, 22 ×
2, coil into S-shaped trend, uniform heating, fast drying rate, hot water can The boiler is automatically supplied with water or heated by a water tank, and is circulated by a hot water pump.
3, the heat transfer oil heating tube is all heated by stainless steel coil, material: 304, the specifications are 45×3, 32×3,
22×2, the coil is S-shaped, the heating is uniform, the drying rate is fast, the heat transfer oil can be used in the fuel tank.
Heating, using high temperature pump circulation.
4. Electric heating: The drying car is welded by 30×30×1.5 stainless steel tube. The heating tube material is made of stainless
steel, which is made of W type. Each layer is evenly distributed. It is controlled by intelligent temperature controller, LCD
digital display and small temperature. High steady state accuracy.
PRODUCT SPECIFICATIONS
Description/Specification |
ZG-600 |
YG-1000 |
YG-1400 |
ZG-15 |
external size of drying cabinet(mm) |
1153×810×1020 |
1693×1190×1500 |
2386×1657×1920 |
1513×1924×2060 |
layers of drying holder |
4 |
6 |
8 |
8 |
layer distance(mm) |
81 |
102 |
102 |
122 |
size of drying pallet(mm) |
310×600×45 |
460×640×45 |
460×640×45 |
460×640×45 |
numbers of drying pallet |
4 |
12 |
32 |
32 |
pressure inside the drying pipe(MPa) |
≤0.784 |
≤0.784 |
≤0.784 |
≤0.784 |
