Professional Custom Industrial Cold Press Juicer Apple Juice Belt Type Press
US$ 50000.00
≥20000 Sets
Key Specifications
Get Latest Price
video outgoing-inspection:
Provided
machinery test report:
Provided
core components:
PLC
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Strawberry Mango Pear Apple Blueberry Fruit & Vetable Juicer Machine Filter Cold Squeezer Belt Juice PressUS$ 50000.00MOQ: 20000 Sets -
5 Tons Per Hour Capacity Rock Salt Machine Crude Salt Washing and Crushing Production LineUS$ 380606.00MOQ: 1 Set
-
Grape Stem Removing Machine Grape Processing MachineryUS$ 9000 - 80000MOQ: 1 Set
-
Automatic Fruit Press Belt Equipment Apple Juicer MachineUS$ 16800.00MOQ: 1 Set
-
Easy to Clean Hydraulic Cacao Bean Oil Press Hydraulic Press to Extract Cocoa OilUS$ 5000.00MOQ: 1 Set
video outgoing-inspection
Provided
machinery test report
Provided
core components
PLC
place of origin
Shanghai, China
brand name
GY
type
Press
voltage
220V/380V
power(w)
10kw
weight
3000
dimension(l*w*h)
9*1.8*2m
warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Certification
CE ISO
industria hot sale small scale belt type juice extractor with high rate 75-83%
The belt juicer is used to use two looped mesh belt to clamp the fruit paste and bypass the multistage diameter, and rely on the tension of the mesh belt to make the outer mesh belt around the press roll to produce pressure on the fruit paste sandwiche between the two mesh belts and squeeze out the juice. In order to overcome the shortcoming of low pressing force produced only by the tension of the mesh belt, a linear pressure roller is often added to the end of the roller and the pressure roller is combined. The fruit paste sandwiched in the middle of the two mesh belt is subjected to double pressure from the outer mesh belt and the pressure roller when the squeezing roller meshes with the pressure roller, which is more than the pressure only produced by the mesh tension. The strength of the press is several times higher.
The juicer technology of the Genyond Juicer fully embodies the characteristics of the combined press rolling and pressing, that is, the rolling press with pressure, the pressing force to win the wide adaptability, the high yield of the juice and the low
water content of the fruit residue. In addition to the press of apples and grapes, this type of juicer can also be used to process materials with higher fiber content such as eucalyptus, apple pears and fresh ginger.
The belt juicer is used to use two looped mesh belt to clamp the fruit paste and bypass the multistage diameter, and rely on the tension of the mesh belt to make the outer mesh belt around the press roll to produce pressure on the fruit paste sandwiche between the two mesh belts and squeeze out the juice. In order to overcome the shortcoming of low pressing force produced only by the tension of the mesh belt, a linear pressure roller is often added to the end of the roller and the pressure roller is combined. The fruit paste sandwiched in the middle of the two mesh belt is subjected to double pressure from the outer mesh belt and the pressure roller when the squeezing roller meshes with the pressure roller, which is more than the pressure only produced by the mesh tension. The strength of the press is several times higher.
The juicer technology of the Genyond Juicer fully embodies the characteristics of the combined press rolling and pressing, that is, the rolling press with pressure, the pressing force to win the wide adaptability, the high yield of the juice and the low
water content of the fruit residue. In addition to the press of apples and grapes, this type of juicer can also be used to process materials with higher fiber content such as eucalyptus, apple pears and fresh ginger.

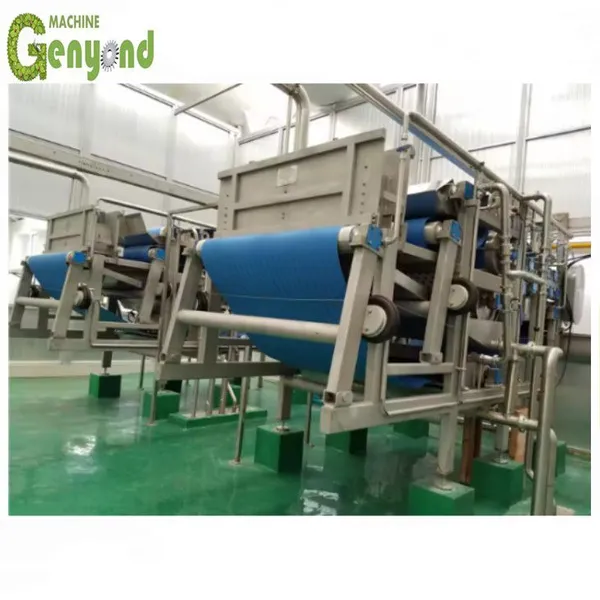

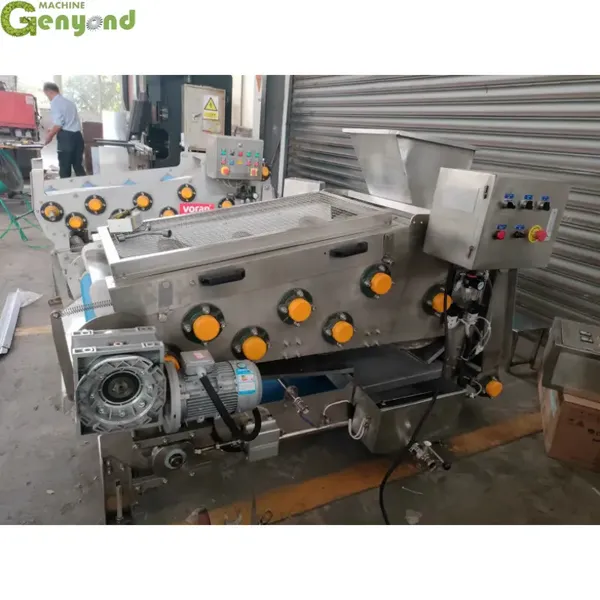

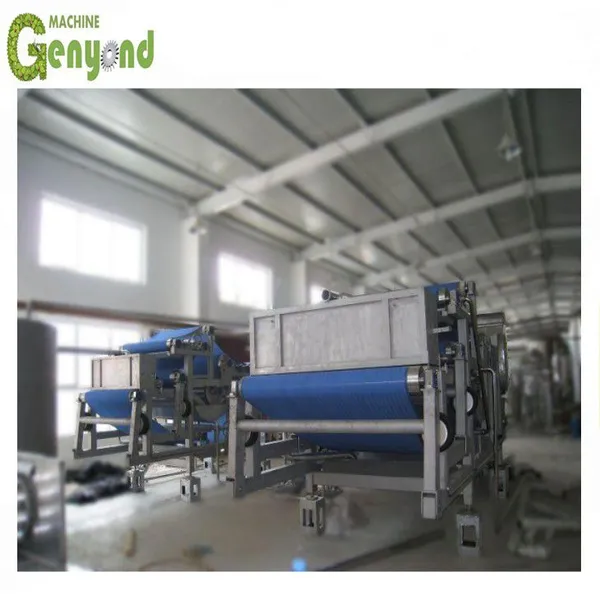

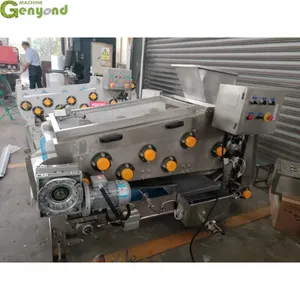

Detail Pictures
Specification
SpecificationBig capacity from 1T to 20T per hour
