Introduction:
Countercurrent circulation ultrasonic extraction unit is widely used in a variety of volatile or non-volatile solvent extraction of natural products active ingredients, suit for medicine, food, health products, cosmetics and other laboratories and production, can also be used for ultrasonic dispersion, emulsification, release slow drugs AMD capsules and nanocapsules Preparation of research use, this is the ideal equipment of schools and research institutes and pharmaceutical companies.

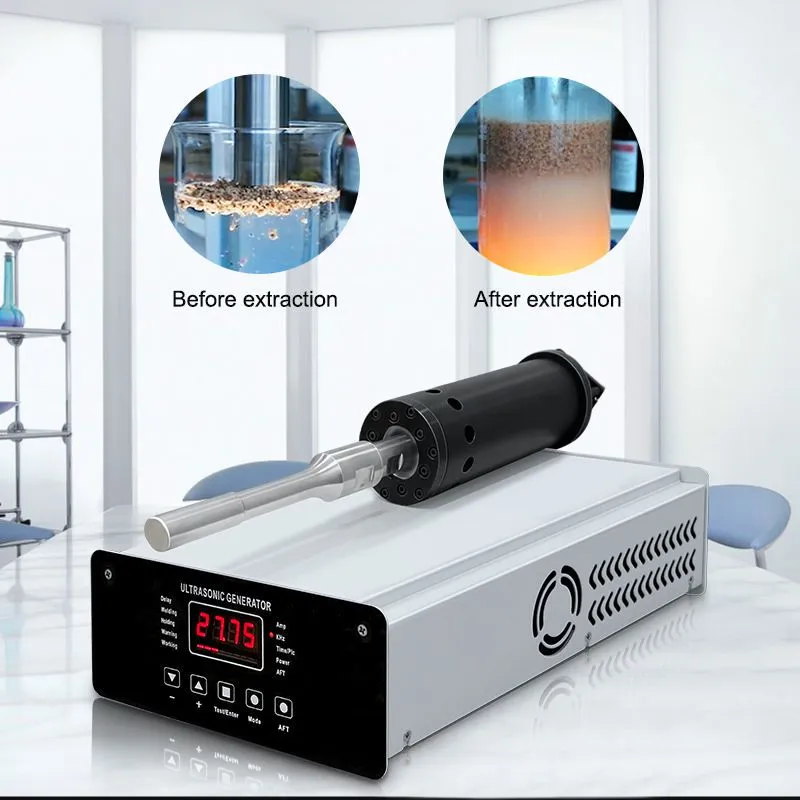

Ultrasonic power: 200W ~ 3000W can be adjusted arbitrarily.
Ultrasonic frequency: 20KHz automatic tracking, ± 0.15KHz.
Random horn (mm): 3.2, 6.3, 9.5 or customized production.
Equipment parameters (100L for reference):
1 Total power: 12.5KW.
2 vacuum pump: 1.75KW, with control valve.
3 mixing system: centrifugal pump liquid circulation mixing system
4 Scraper Motor: 1.5kw (also done CIP cleaning)
5. extraction tank heating area: 0.95M2
Parameter
|
Model |
FY-U10 |
FY-U-30 |
FY-U50 |
FY-U100 |
FY-U300 |
FY-U500 |
|
Capacity (L) |
10 |
35 |
55 |
110 |
220 |
320 |
|
Vacuum pump (kw) |
0.55 |
0.75 |
1.5 |
1.5 |
2.2 |
2.2 |
|
Heating area (M2) |
0.32 |
0.38 |
0.55 |
0.86 |
1.95 |
3.05 |
|
Heating power (kw) |
3 |
6 |
9 |
12 |
24 |
Steam for heating |
|
|
For 300L or below, electricity can be used for heating |
|
||||
|
Interlayer pressure (MPA) |
Atmospheric pressure |
|||||
|
Pressure in tank (MPA) |
-0.09 |
|||||
|
Pressure in tank (MPA) |
Room temperature - 100 (controllable) |
|||||
|
Heating mode |
Electricity or steam |
|||||
|
Ultrasonic frequency |
15khz,20KHz,28KHz,30KHz,35KHz,40KHz,50KHz,60KHz,80KHz |
|||||
