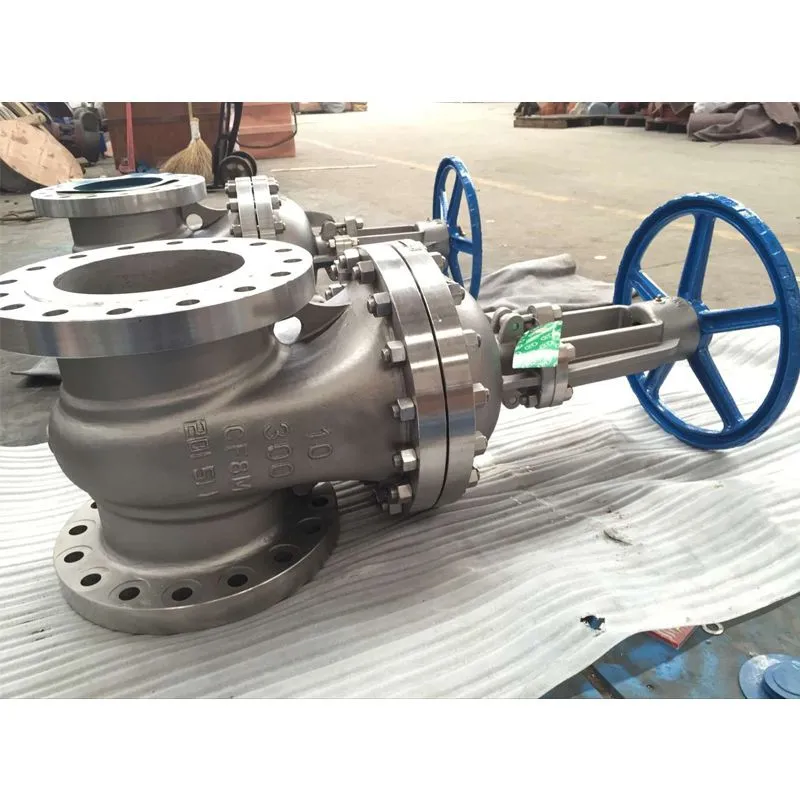

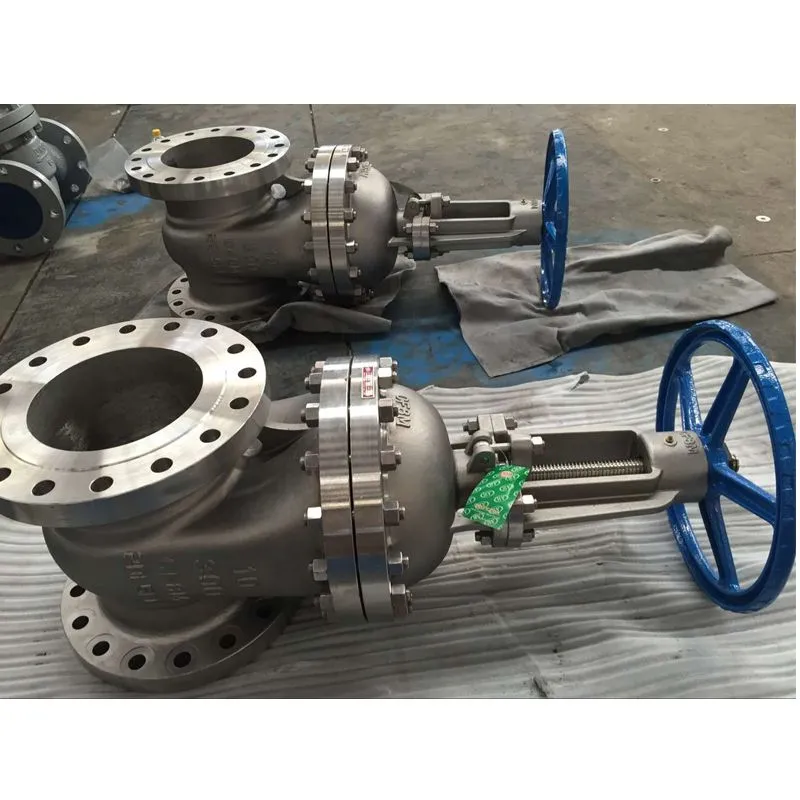

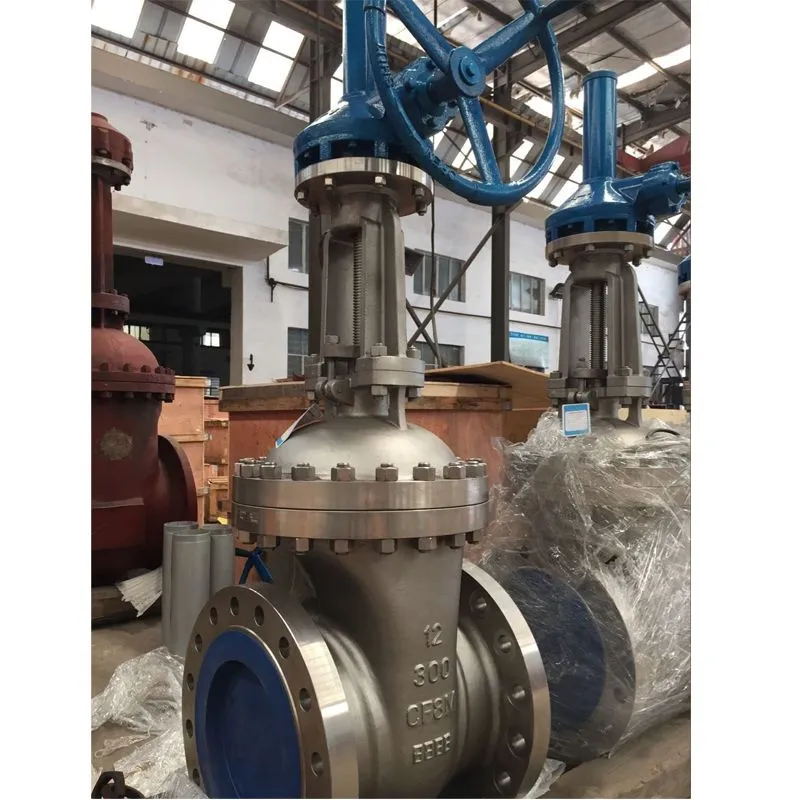

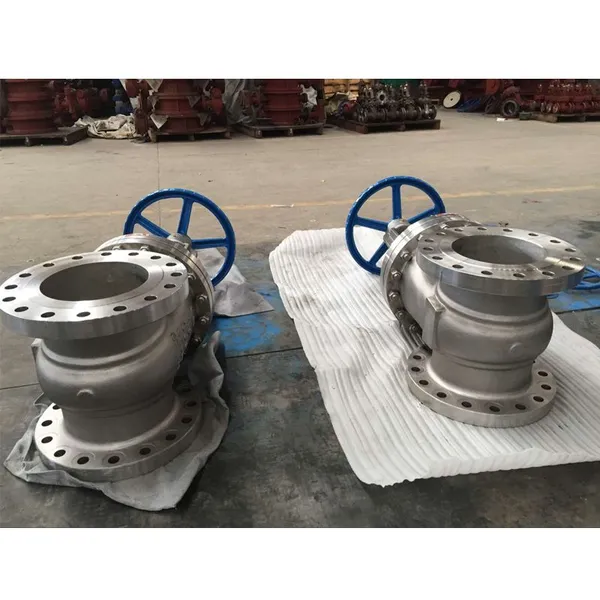

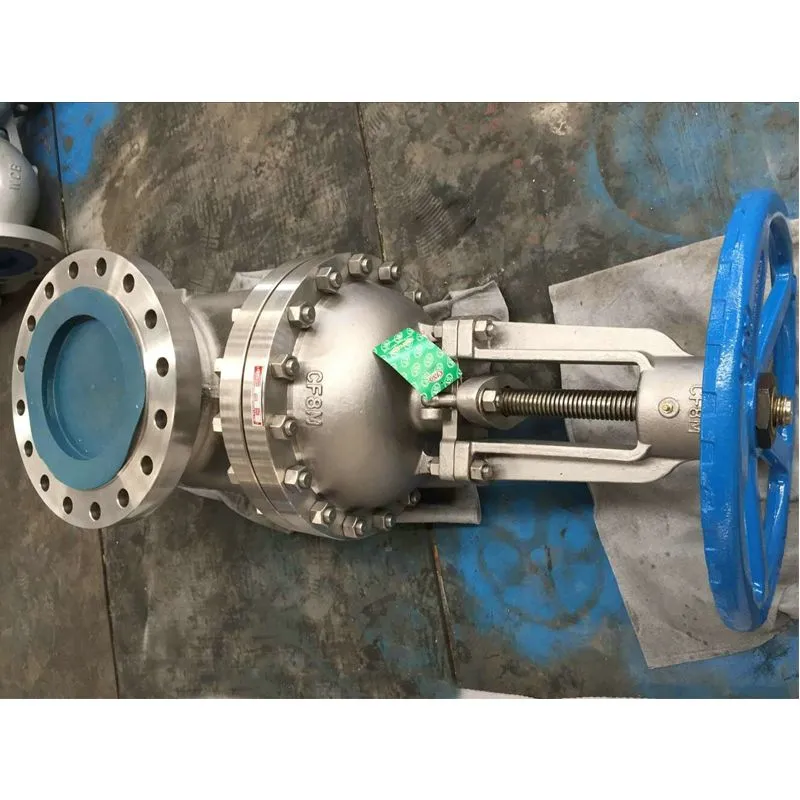

ANSI Stainless Steel Gate Valve
Product Overview
The ANSI Stainless Steel Gate Valve is designed and manufactured in accordance with API600 and API6D standards, ensuring reliable sealing performance and long-term stability. It is widely used in petroleum, chemical, natural gas, power generation, and water treatment industries.
Key Features
High-quality CF3 / CF8 / CF8M stainless steel for excellent corrosion resistance
Strong sealing performance with low leakage risk
Suitable for high-pressure applications (150LB–900LB)
Full bore design for minimal flow resistance
Long service life with low maintenance cost
Easy operation with durable handwheel design
Technical Specifications
| Item | Description |
|---|---|
| Size | 1/2" – 24" (DN40–DN600) |
| Pressure | 150LB, 300LB, 600LB, 900LB |
| Design Standard | API600, API6D |
| Face to Face | ASME B16.34 |
| Flange Standard | ASME B16.10 |
| Testing Standard | ASME B16.25 |
Main Materials
| Part | Material |
|---|---|
| Body | CF3, CF3M, CF8, CF8M |
| Bonnet | CF3, CF3M, CF8, CF8M |
| Stem | 2Cr13 / SS304 / SS316 / Carbon Steel |
| Disc | CF3, CF3M, CF8, CF8M |
| Seat | CF3, CF3M, CF8, CF8M |
| Packing | PTFE |
| Stem Nut | Brass |
| Handwheel | ASTM A536 |
Applications
Oil & Gas Industry
Chemical Processing
Power Plants
Water Supply Systems
Industrial Pipeline Systems
About Our Factory
Our factory is a professional valve manufacturer with more than 30 years of production experience, located in Xingtai, Hebei, China. The factory covers an area of 70,000 square meters, with 400+ employees, and has passed ISO9001 quality management system certification. Our products are exported to more than 50 countries and regions in Europe, America, Southeast Asia, Middle East and Africa, winning high praise from global customers. We adhere to the business philosophy of "Quality First, Customer Supreme", providing customers with high-quality products and professional services. Welcome to contact us for inquiry and cooperation!
✅ International Quality Certification
Our company is certified by ISO 9001 Quality Management System, ensuring strict quality control throughout the production process, and delivering reliable valve products to global customers.
-
🔹 Packaging and Transportation
Packaging：Standard export plywood case / carton, with foam protection to avoid damage during transportation
Delivery Time：3-7 working days for stock, 15-20 working days for customized orders
Shipping Method：Sea freight, air freight, express (DHL, FedEx, etc.)
Customization Support：Accept customized size, pressure, material, logo, etc.
Q&A
Q: What is your lead time for standard and customized orders?
A: Standard orders are usually shipped in 3-5 working days, while customized orders take around 20 days.
Q: Do you provide warranty for your valves?
A: Yes, we offer a 1-year warranty against manufacturing defects.
Q: Which international standards do your valves comply with?
A: Our valves meet multiple standards, including GOST (Russian), ASME/ANSI (American), DIN (German), JIS (Japanese), BS (British), and EN (European) standards.
Q: Are you a manufacturer or a trading company?
A: We are a direct factory with in-house production capabilities, ensuring stable quality and competitive pricing.
Q: Can you customize valves based on specific technical requirements?
A: Yes, we support customized designs, materials, and specifications to meet different project and regional standard needs.
