Product Overview

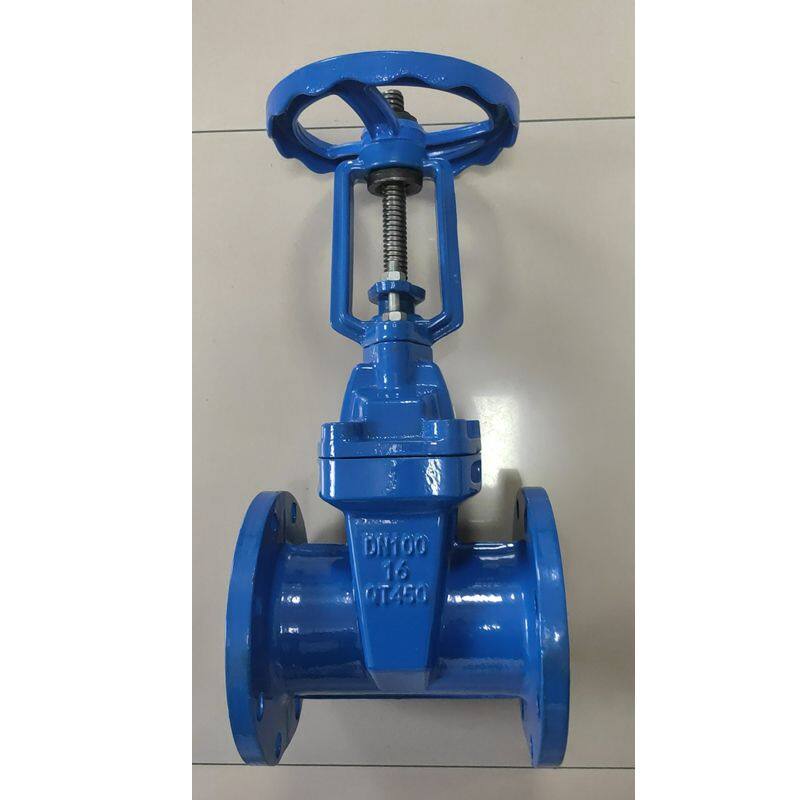

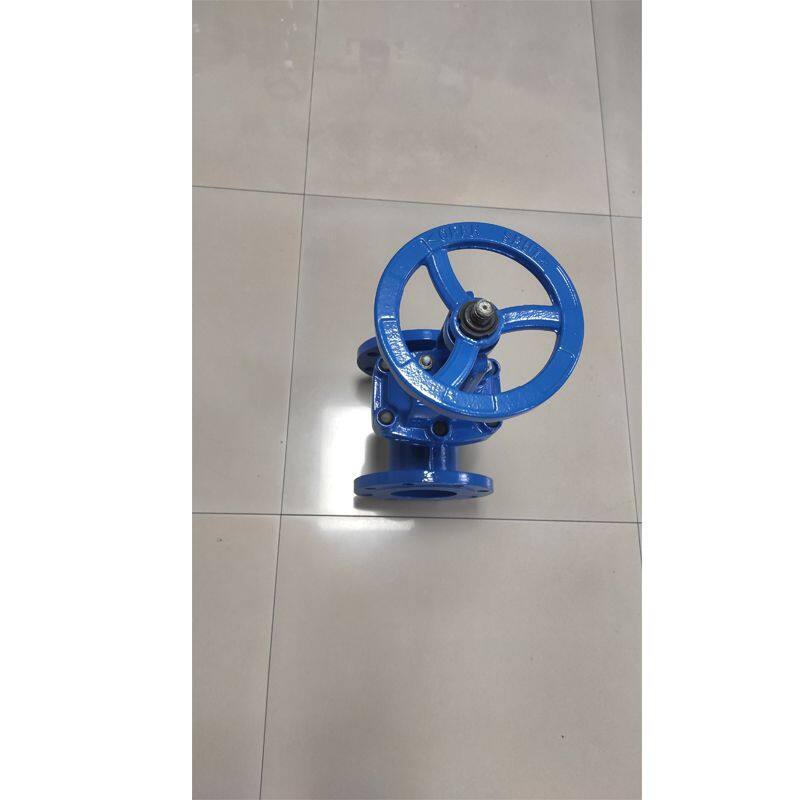

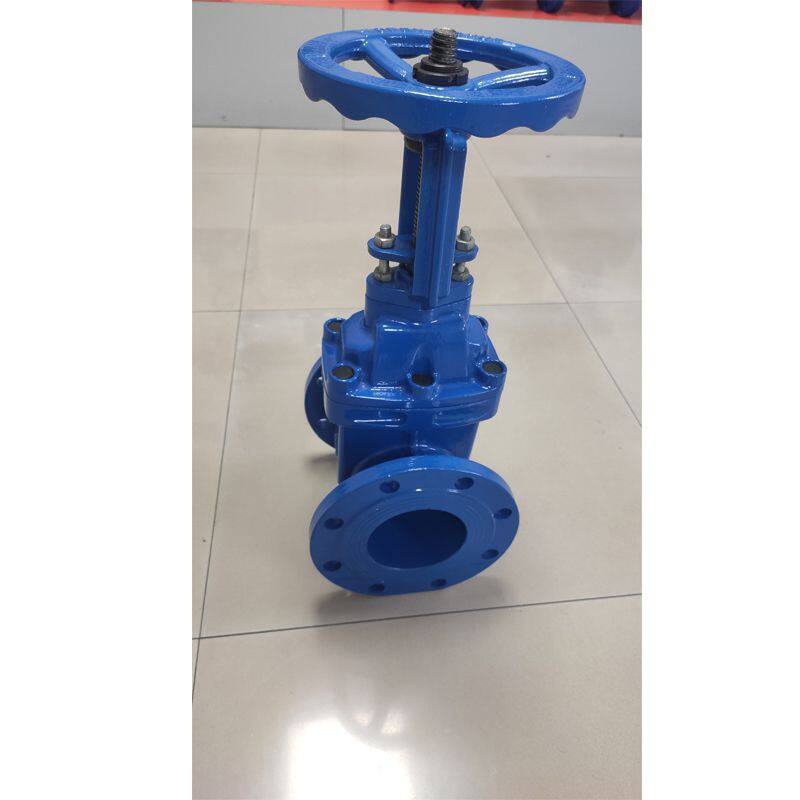

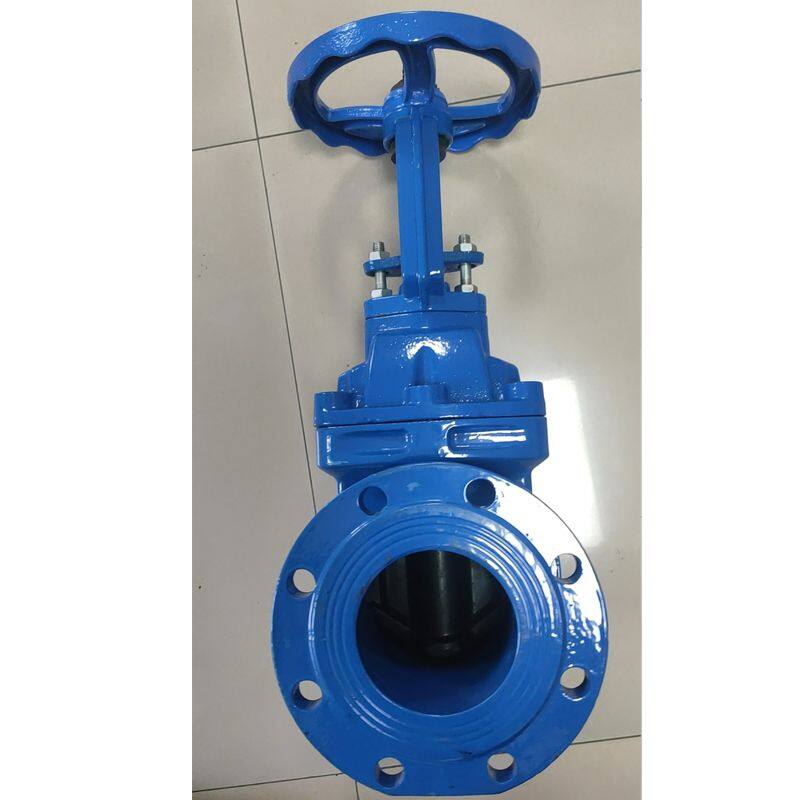

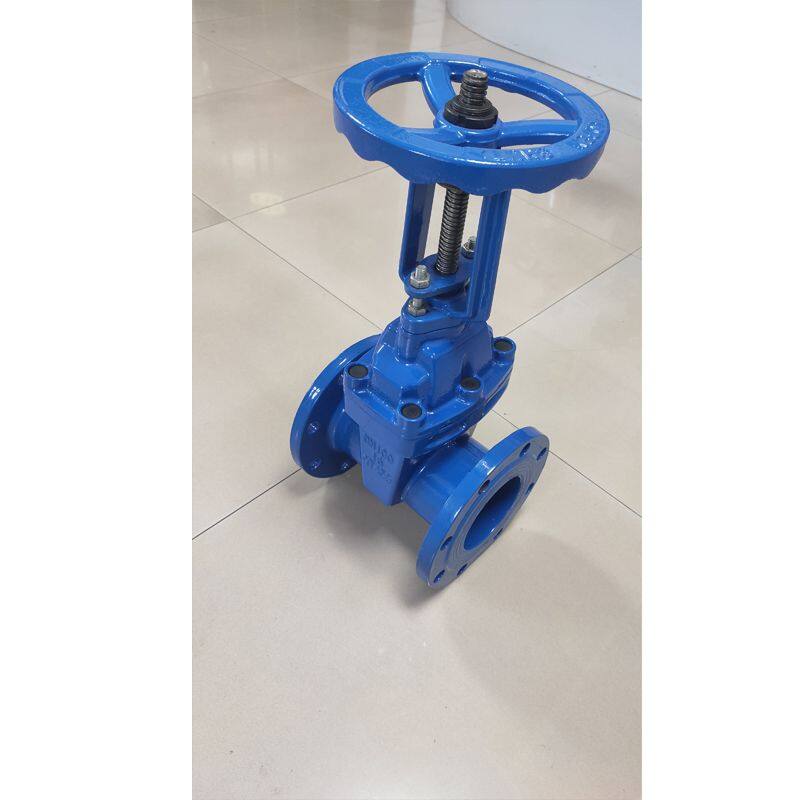

BS Rising Resilient Seat Gate Valve is a typical industrial soft seal gate valve. The gate moves perpendicularly to fluid direction, designed only for fully opening and fully closing to cut off medium, not suitable for flow adjustment and throttling. Adopting wedge double sealing surface design for reliable tight shut-off, widely used in industrial water supply and pipeline systems.
Main Features
Follow BS5163, BS5150 design standard, EN 1092-2 flange standard, ISO 5208 test standard
Rising stem structure, clear opening and closing indication
Resilient soft seat with NBR/EPDM/PTFE, bubble-tight sealing
Premium EN-GJS-500-7 cast iron for body, bonnet and disc, strong corrosion resistance
Brass stem nut with wear resistance, stainless steel stem for long service life
Complete size range: 2"-40", DN50-DN1000, pressure PN10/PN16
Technical Parameters
Product Type: BS Rising Resilient Seat Gate Valve
Size Range: 2''–40'', DN50–DN1000
Pressure Class: PN10, PN16
Design Standard: BS5163, BS5150
Face to Face: BS5150
Flange Standard: EN 1092-2
Test Standard: ISO 5208
Main Material
Body: EN-GJS-500-7
Bonnet: EN-GJS-500-7
Stem: 2Cr13 / SS304 / SS316 / Carbon Steel
Stem Nut: Brass
Disc: EN-GJS-500-7
Seat: NBR, EPDM, PTFE
Bonnet Gasket: Graphite
Packing: NBR, EPDM
Hand Wheel: EN-GJS-500-7
Application
Widely used in water treatment, municipal water supply, chemical, industrial pipeline and other fields for medium cutting off and on-off control.
About Our Factory
Our factory is a professional valve manufacturer with more than 30 years of production experience, located in Xingtai, Hebei, China. The factory covers an area of 70,000 square meters, with 400+ employees, and has passed ISO9001 quality management system certification. Our products are exported to more than 50 countries and regions in Europe, America, Southeast Asia, Middle East and Africa, winning high praise from global customers. We adhere to the business philosophy of "Quality First, Customer Supreme", providing customers with high-quality products and professional services. Welcome to contact us for inquiry and cooperation!
✅ International Quality Certification
Our company is certified by ISO 9001 Quality Management System, ensuring strict quality control throughout the production process, and delivering reliable valve products to global customers.
-
🔹 Packaging and Transportation
Packaging：Standard export plywood case / carton, with foam protection to avoid damage during transportation
Delivery Time：3-7 working days for stock, 15-20 working days for customized orders
Shipping Method：Sea freight, air freight, express (DHL, FedEx, etc.)
Customization Support：Accept customized size, pressure, material, logo, etc.
Q&A
Q: What is your lead time for standard and customized orders?
A: Standard orders are usually shipped in 3-5 working days, while customized orders take around 20 days.
Q: Do you provide warranty for your valves?
A: Yes, we offer a 1-year warranty against manufacturing defects.
Q: Which international standards do your valves comply with?
A: Our valves meet multiple standards, including GOST (Russian), ASME/ANSI (American), DIN (German), JIS (Japanese), BS (British), and EN (European) standards.
Q: Are you a manufacturer or a trading company?
A: We are a direct factory with in-house production capabilities, ensuring stable quality and competitive pricing.
Q: Can you customize valves based on specific technical requirements?
A: Yes, we support customized designs, materials, and specifications to meet different project and regional standard needs.
