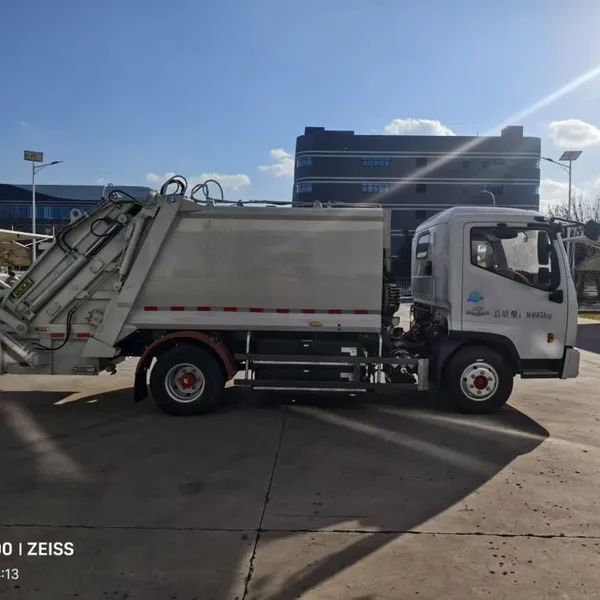

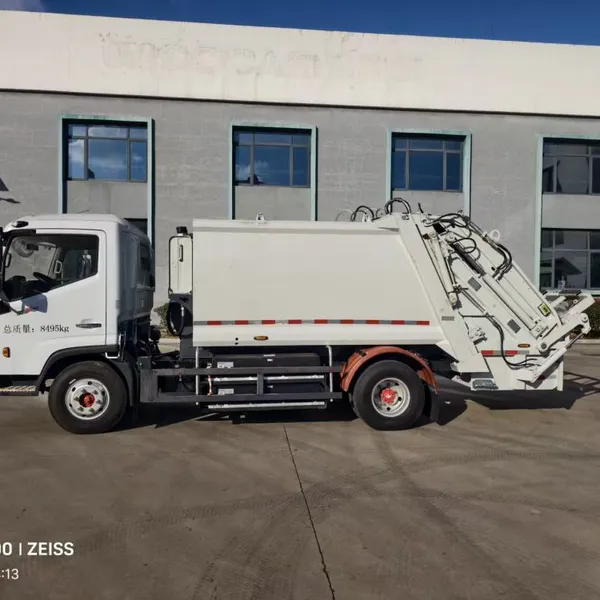

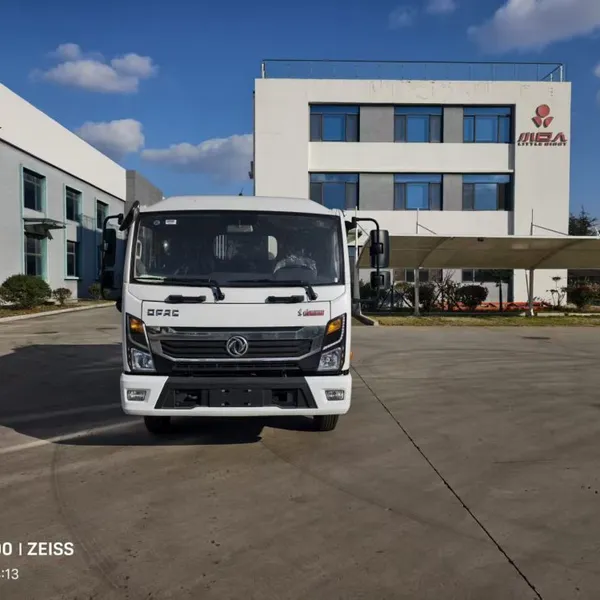

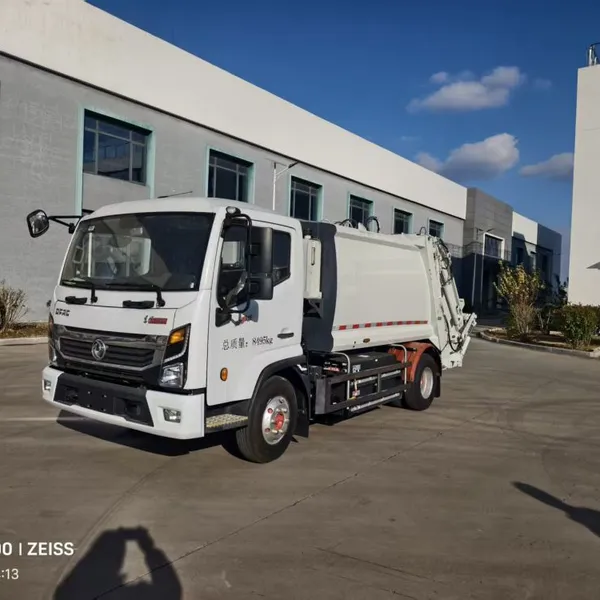

ZTY5080 compressed garbage truck has strong compression capacity, no sewage leakage and secondary pollution, and the rear lifting mechanism can be customized, which is widely applicable to the collection and transportation of domestic waste.
Performance characteristics:
1. Push plate back pressure two-way compression is used, with high compression efficiency and large loading capacity. When unloading, the packer can automatically complete a filling cycle after lifting, and dump the garbage carried. When the packer is lowered, the push plate automatically retracts to prevent the packer from colliding with the push plate.
2. The main structural parts such as garbage cans are integrally welded with high strength steel plates, which are solid and strong in structure, resistant to deformation, good in corrosion resistance and long in service life.
3. The whole vehicle is sealed as a whole, and the sealability is greatly improved through the compensated automatic locking system to prevent secondary pollution of garbage liquid. Cooperating with the guide channel and sewage collection tank can effectively avoid secondary pollution of sewage.
4. According to the needs of users, weighing systems can be installed to meet the needs of customers for garbage weighing and charging.
5. According to the needs of users, a variety of loading mechanisms can be equipped to adapt to various types of garbage cans. (1) Bucket hanging lifting device: It can meet the use requirements of 120L, 240L, 660L and 1100L plastic garbage cans and circular iron cans. (2) Swinging arm lifting mechanism: It can meet the requirements for the use of special garbage cans on the ground and buried special garbage cans. (3) Hopper lifting device: It can meet the docking of garbage collection forms such as small trolleys.
Product Parameters：
| name | Diesel version | Electric version |
| Overall dimensions (length x width x height) (mm) | 6965x227x2700 (standard vehicle) 6760x2125x2485 (turnover rack) 6660x2125x2485 (hopper) | 6710x2145x2520 (bucket hanging) 6590x2145x2520 (bucket) |
| Total mass (kg) | 8275 | 8495 |
| Unlocked mass (kg) | 5410 (standard vehicle) 6130 (turnover rack) 5990 (hopper) | 6280 (bucket hanging) 6560 (bucket) |
| Rated load mass(kg) | 1670 (standard vehicle) 2050 (turnover rack) 2090 (hopper) | 2020 (bucket hanging) 1740 (bucket) |
| Rated power/speed (kw/r/min) | 115/2600 | 60/3180 |
| Maximum torque/speed (N.m/r/min) | 550/100-1900 | / |
| Wheelbase (mm) | 3360 | 3300 |
| Minimum ground clearance (mm) | 200 | 200 |
| Minimum turning diameter (m) | 15.5 | 15.5 |
| Engine displacement (ml) | 3800 | / |
| Fuel type | diesel oil | battery |
| emission standard | Country VI | / |
| Topcoat structural form | Curved plate | Curved plate |
| Chamber volume (m3) | 6 | 7 |
| Volume of sewage tank (L) | 287 | 250 |
| Waste compression mode | Bidirectional compression | Bidirectional compression |
