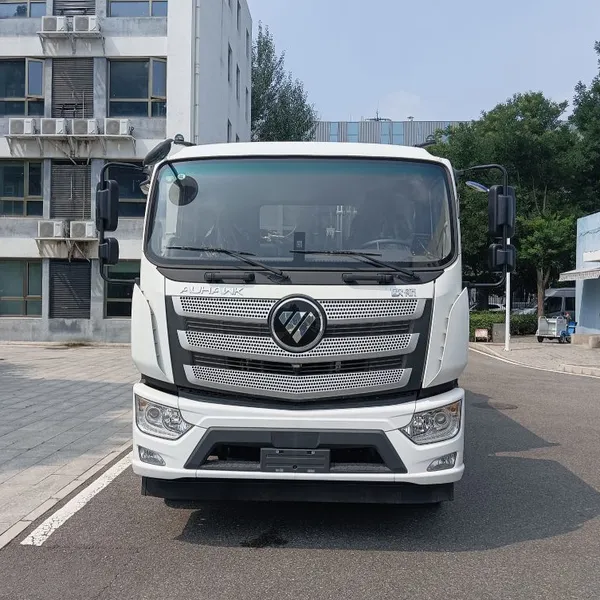

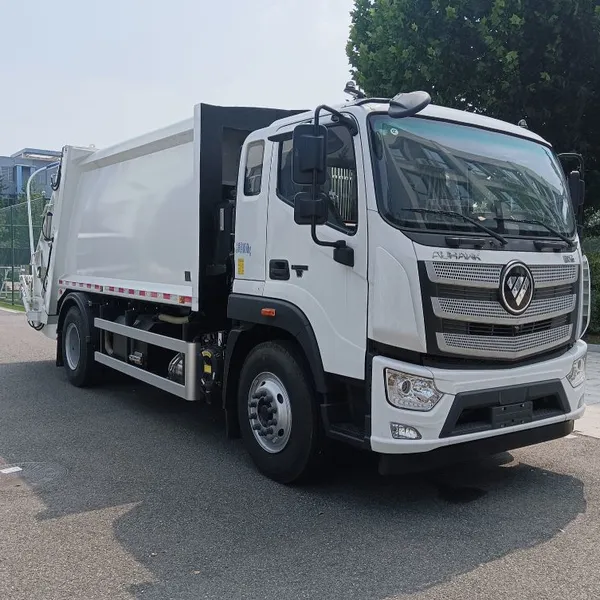

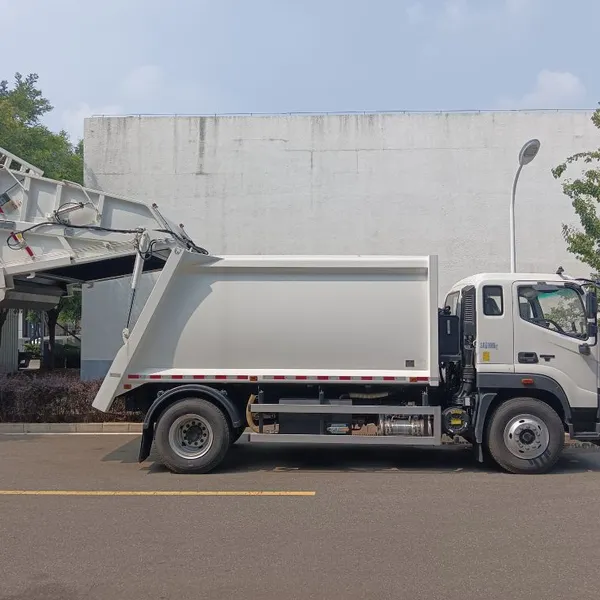

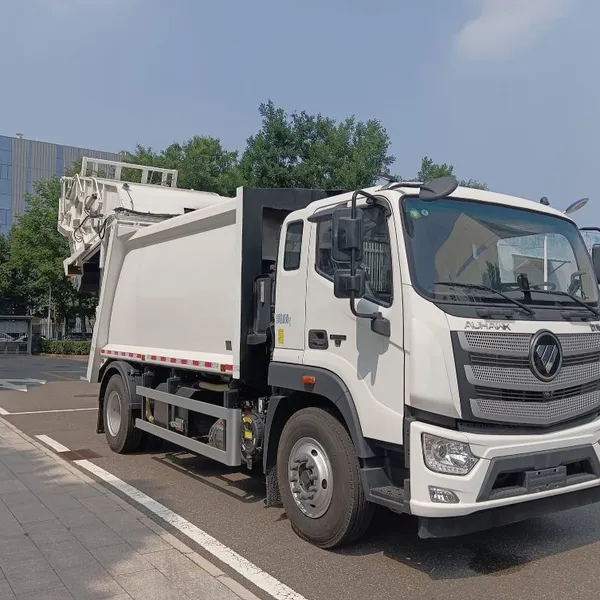

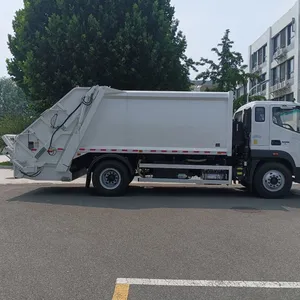

ZTY5180ZYSBJY6 compressed garbage truck has strong compression capacity, no sewage leakage and secondary pollution, and can install various rear lifting mechanisms according to user requirements, which is widely applicable to the collection and transportation of domestic waste.
Performance characteristics:
1. Fully enclosed, zero emission, low noise and high efficiency.
2. Platform and module design, advanced technology and excellent performance.
3. The whole sealing form is adopted, and the automatic locking system can be compensated through the locking hook type, with strong sealing and no dripping.
4. Reasonable and optimized design of moving parts, long service life of friction plates, convenient replacement and stable operation.
5. There are two modes: electric control and manual control, which can be flexibly switched.
6. One button operation of each working mode is simple and convenient.
7. Friendly human-computer interaction interface, high degree of automation and intelligence, simple operation, one key start and one key stop.
Product Parameters：
| name | Diesel version | Electric version |
| Overall dimensions (length x width x height) (mm) | 8980x2500 × 3190 (standard vehicle); 9160 × 2500 × 3190 (turnover rack); 9110 × 2500 × 3190 (hopper) | 8725/9125/9115x2540x3180 |
| Total mass (kg) | 18000 | 18000 |
| Unlocked mass (kg) | 10730 (standard vehicle); 11300 (turnover rack); 11400 (hopper) | 11840 (standard vehicle) 12290 (turnover rack) 12630 (hopper) |
| Rated load mass (kg) | 7140 (standard vehicle) 6570 (turnover rack) 6470 (hopper) | 6040 (standard vehicle) 5580 (turnover rack) 5240 (hopper) |
| Rated power/speed (kw/r/min) | 69/2300 | 80/1270 |
| Wheelbase (mm) | 4500 | 4500 |
| Minimum ground clearance (mm) | 240 | 245 |
| Minimum turning diameter (m) | 19.5 | 18 |
| Engine displacement (mL) | 6200 | / |
| Fuel/Cooling | Diesel/water-cooling | Electricity/water-cooling |
| emission standard | National MI | / |
| Topcoat structural form | Curved plate | Curved plate |
| Chamber volume (m3) | 13.6 | 13 |
| Volume of garbage filling port (L) | 1200 | / |
| Volume of sewage tank (L) | 730 | 3-5 |
| Waste compression mode | Bidirectional compression | / |
| Filling cycle time (s) | 25-30 | 15-20 |
| Unloading cycle time (s) | 45-50 | 45-50 |
Note: Store prices are for reference only. The quotation for this product may vary due to factors such as model, specifications, and configuration. If you need an accurate quotation, please contact customer service and provide detailed specifications, configurations, and purchase quantities. We will provide you with an exclusive quotation sheet. Directly placing an order for payment without shipping.
