ZTY3600 Multi-functional Agricultural and Pastoral, Environmental Sanitation, and Construction Site Operation Vehicle
Product Spotlights
ZTY3600 is a versatile vehicle capable of achieving different work scenarios by switching attachments. It is applied in agriculture, animal husbandry, environmental sanitation, gardening, mining, docks, construction, and more.
US$ 29920
1 - 9 Piece
US$ 29870
10 - 19 Piece
US$ 29820
≥20 Piece
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2018
Factory Size:
3,000-5,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
30 days
Related Products
-
ZFTY5600 Multi-functional Vehicle, Suitable for Landscaping, Construction, Agriculture and Animal Husbandry, and Environmental Sanitation OperationsUS$ 44870 - 44970MOQ: 1 Piece -
ZTY9600 Multi-functional Vehicle, Suitable for Agriculture and Animal Husbandry, Landscaping, Mining and Dock OperationsUS$ 59920 - 60020MOQ: 1 Piece
-
ZFTY7600 Multi-functional Vehicle, Suitable for Landscaping, Construction, Agriculture and Animal Husbandry, and Environmental Sanitation OperationsUS$ 55730 - 55830MOQ: 1 Piece
-
ZTY11600 Multi-functional Vehicle, Suitable for Agriculture and Animal Husbandry, Landscaping, Mining and Dock OperationsUS$ 62600 - 62700MOQ: 1 Piece
-
5022 Multi-functional Washing and Cleaning Vehicle, Pure Electric, High-pressure CleaningUS$ 20056MOQ: 1 Piece

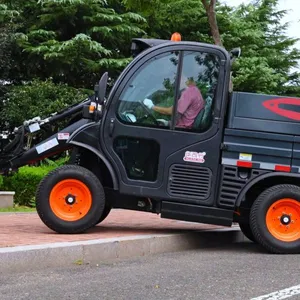

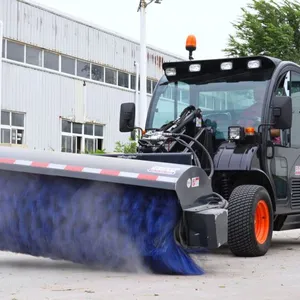

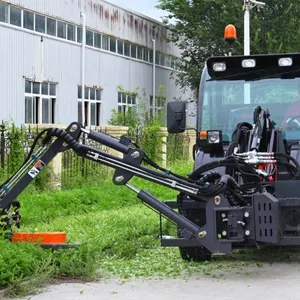

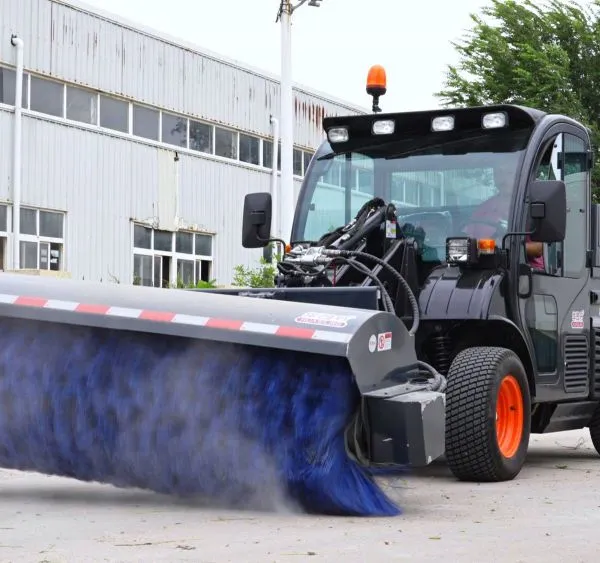

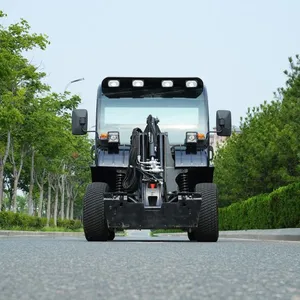

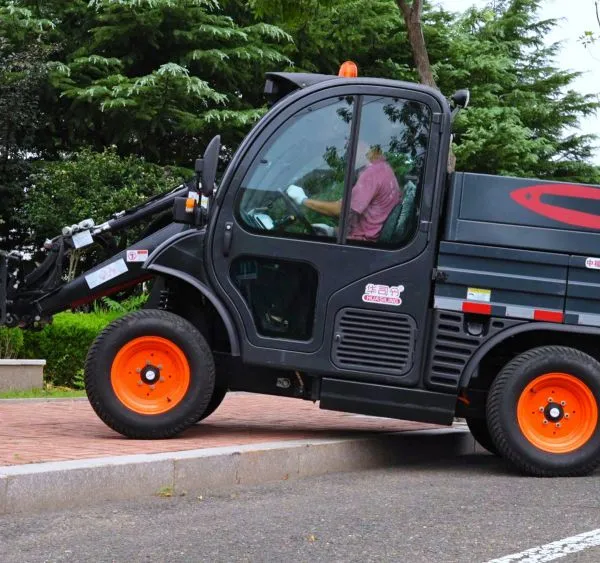

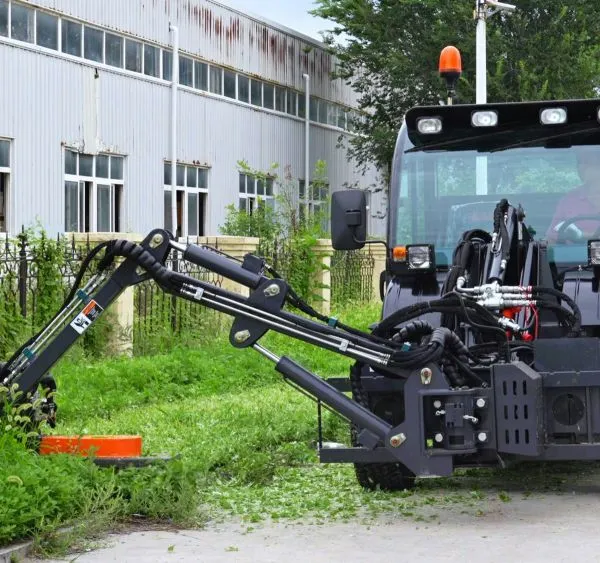

The ZTY3600 multifunctional vehicle is a comprehensive work tool vehicle that can achieve versatility in different work scenarios by switching between various attachments. This vehicle features four-wheel steering, four-wheel drive, and independent suspension, enabling it to be used in a wide range of scenarios, such as agriculture, animal husbandry, environmental sanitation and cleaning, landscaping, mining, docks, construction, roads, and municipal comprehensive maintenance. In work scenarios, it can perform functions such as snow sweeping, de-icing, road milling and leveling, grass cutting, grass forking, soil shoveling, material transporting, wood crushing, land preparation, seeding, plowing, and tilling. It is available in both diesel and electric versions, and can be equipped with an autonomous driving mode.
Product Parameters：
| name | diesel version | electric version |
| Length x Width x Height (mm) | 3619x1550x2195 | 3619x1550x2195 |
| Curb weight (kg) | 2450 | 2450 |
| Maximum total mass (kg) | 3495 | 3495 |
| Speed (forward/reverse) (km/h) | 0-15 | 0-15 |
| Cruise control speed (km/h) | 0-15 | 0-15 |
| Approach angle/departure angle (°) | 31/28 | 31/28 |
| Ground clearance (unladen/laden) (mm) | 255/235 | 255/235 |
| Wheelbase (mm) | 2235 | 2235 |
| Front track/rear track (mm) | 1320/1330 | 1320/1330 |
| Diesel tank capacity (L)/battery capacity (V/AH) | 76 (standard) / 140 (optional) | 554V60AH(standard)/120AH(optional) |
| Cargo box size (mm) | 1549x1321x254 | 1549x1321x254 |
| Rated lifting capacity (kg) | 600 | 600 |
| Lifting height (mm) | 2219 | 2219 |
| Cargo box load capacity (kg) | 700 | 700 |
| Dragging capacity (kg) | 995 | 995 |
| engine | Yanmar Engine | - |
| Rated power (kw/rpm) | 35.5 | - |
| Fuel/Cooling | Diesel/water cooling | Electricity/water-cooling |
| Maximum speed (r/min) | 2400 | - |
| Motor Type | - | Permanent magnetic synchronous motor |
| Rated power of motor (kw) | - | 40 |
| Rotational speed (r/min) drive | - | 2500 |
| drive | Two-wheel drive/four-wheel drive (optional) | 2500 Two-drive/four-drive (optional) |
| steering | Two-wheel drive/four-wheel drive (optional) | Two-drive/four-drive (optional) |
| High hydraulic flow rate (L/min) | 70 | 70 |
| Hydraulic pressure (mpa) | 21 | 21 |
