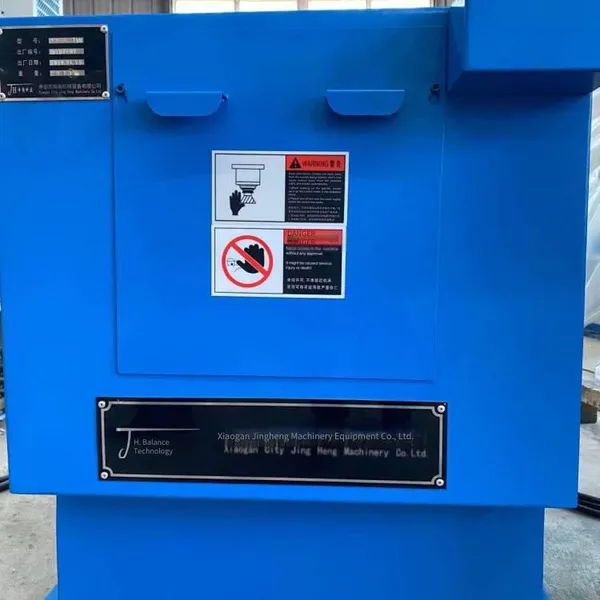

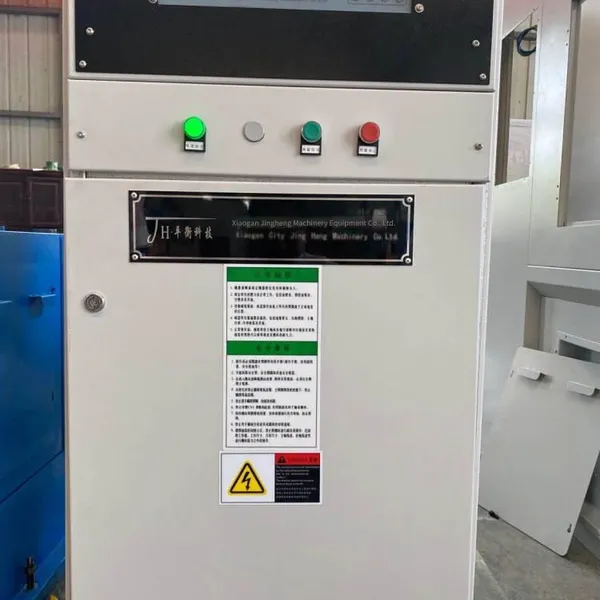

Help CenterSupply Yld Series Vertical Dynamic Balancing Machines, Special Vertical Dynamic Balancing Machines for Pulleys, Flywheels, and Clutches
Related Products
-
Ayld-50 Fully Automatic Riveting Balancing Machine, Jingheng Dynamic Balancing From Xiaogan, HubeiNegotiableMOQ: 0 Unit -
Jingheng Machinery Fully Automatic Brake Drum Drilling and Washing Dual-purpose Dynamic Balancing MachineNegotiableMOQ: 0 Unit
-
Dynamic Balancing MachineUS$ 100 - 10,000MOQ: 1 Set
-
Dynamic Balancing Machine CrankshaftUS$ 6,000 - 10,000MOQ: 1 Unit
-
YYQ-1000A Dynamic Balancing MachineNegotiableMOQ: 1 Set
Xiaogan Jingheng Machinery & Equipment Co., Ltd.

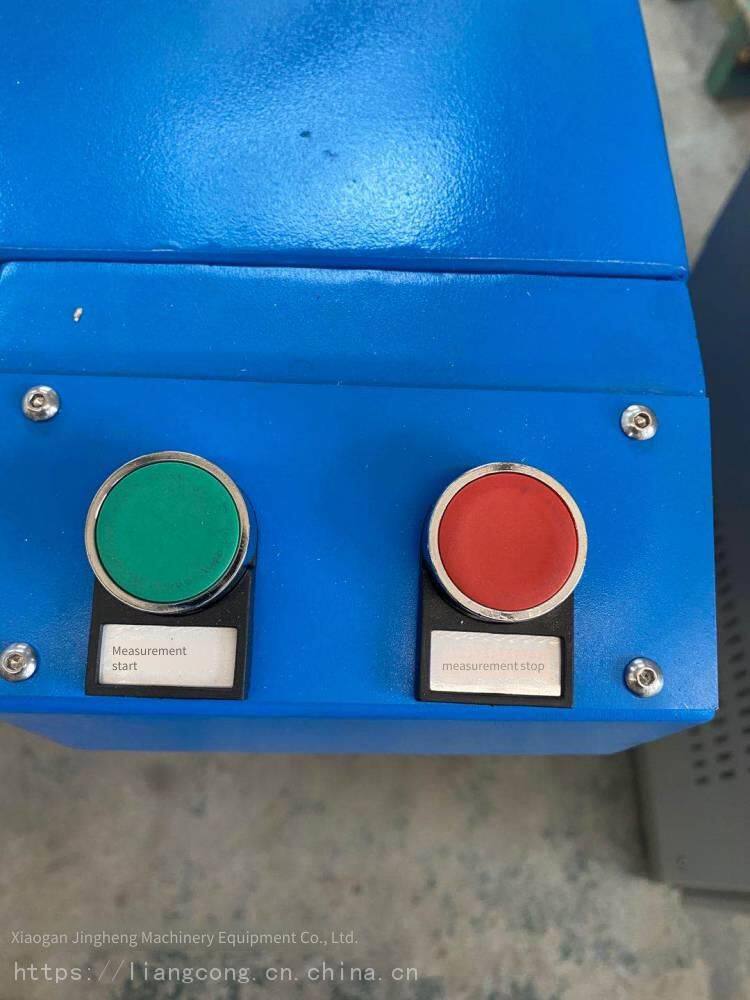

Place the workpiece on the measuring fixture - Press the measurement start button to start the measurement (automatically clamp) - After the measurement is completed, find the position dial on the screen to locate the deburring position - Manually operate the progressive drill press (the drill press starts automatically, and this equipment is equipped with a chip suction system) - Press the measurement start button for re-inspection (re-inspection is optional)
I. Workpiece usage parameters:
1.1、Workpiece name: Pulleys, flywheels, clutches
1.2、Workpiece weight: ≤500Kg
1.3、Workpiece diameter ≤1000mm
1.4、Balancing plane Vertical balancing
1.5、Balancing speed Variable frequency speed adjustable
1.6、Measurement cycle 6s
1.7、Unbalance reduction rate per time ≥95%
1.8, Minimum residual unbalance of the balancing machine host 1g·mm/kg
1.9, Drilling and pinning depth According to the requirements of the drawing process
1.10, Diameter of the balance positioning hole According to the requirements of the drawing process
1.11, Number of drill holes According to the requirements of the flange process
1.12, Power of the dust suction device 2200w
1.13、Wind pressure 30kpa
1.14、Air volume 210m3/h
1.13、Main motor power 7500w
1.14、Air pressure 0.4mpa-0.6mpa
1.15、Voltage 380vAC

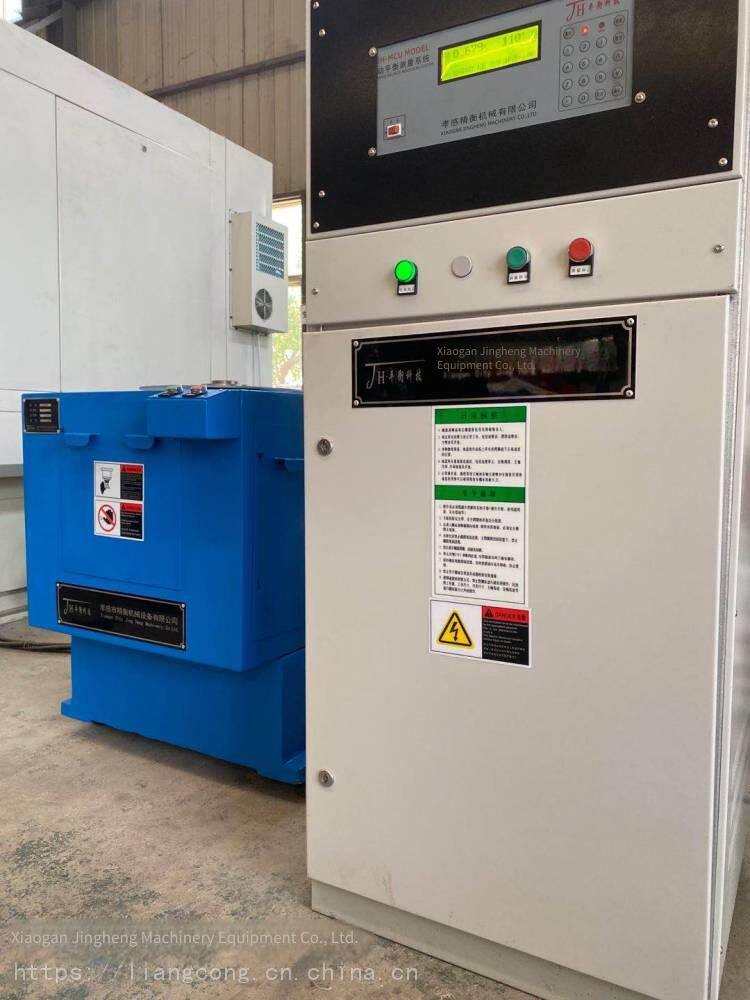

2. Equipment composition:

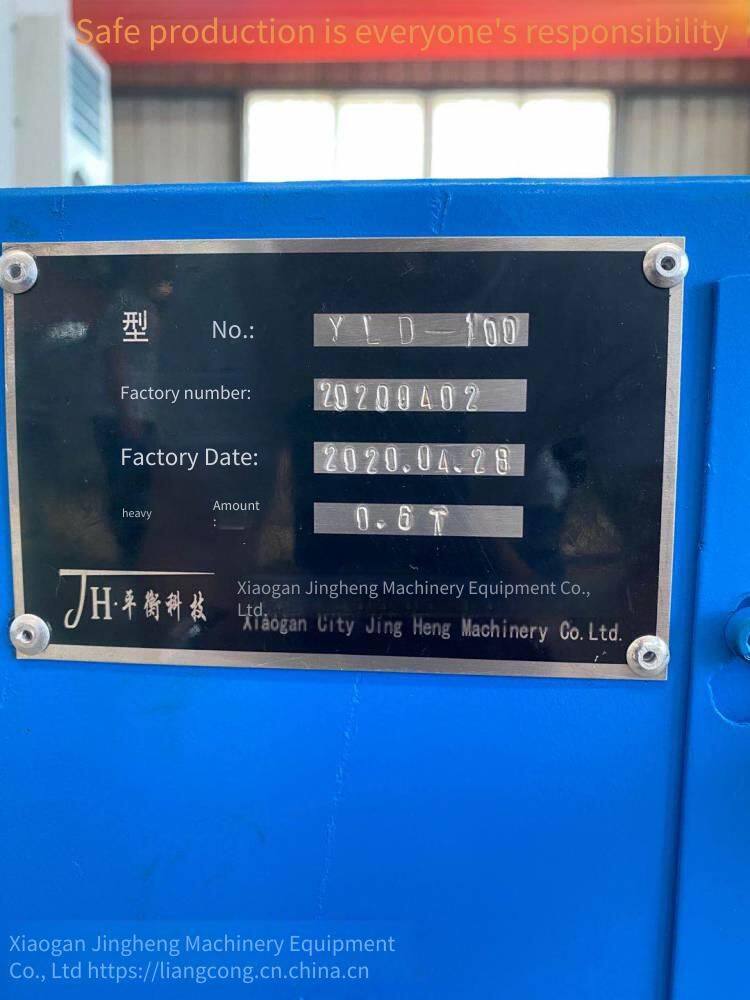

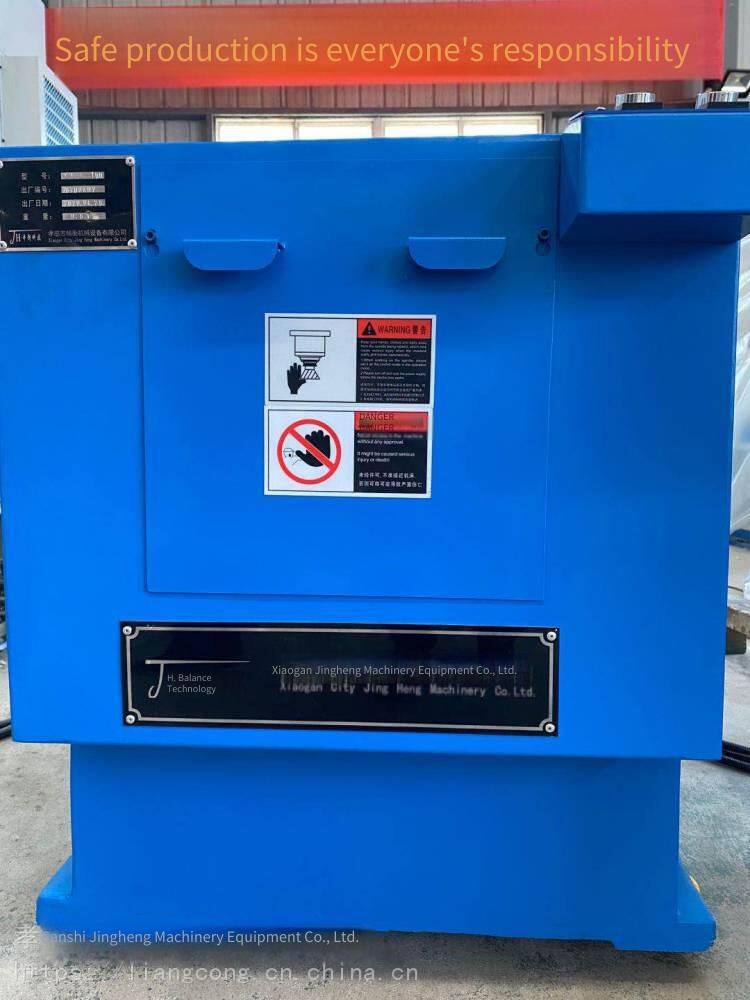

2.1、YLD-10Dynamic balancing host part 1unit
2.2、Computer and high-voltage control part 1unit
2.3、DrillingDuplication removalPart 1Set
III. Main parts and technical requirements

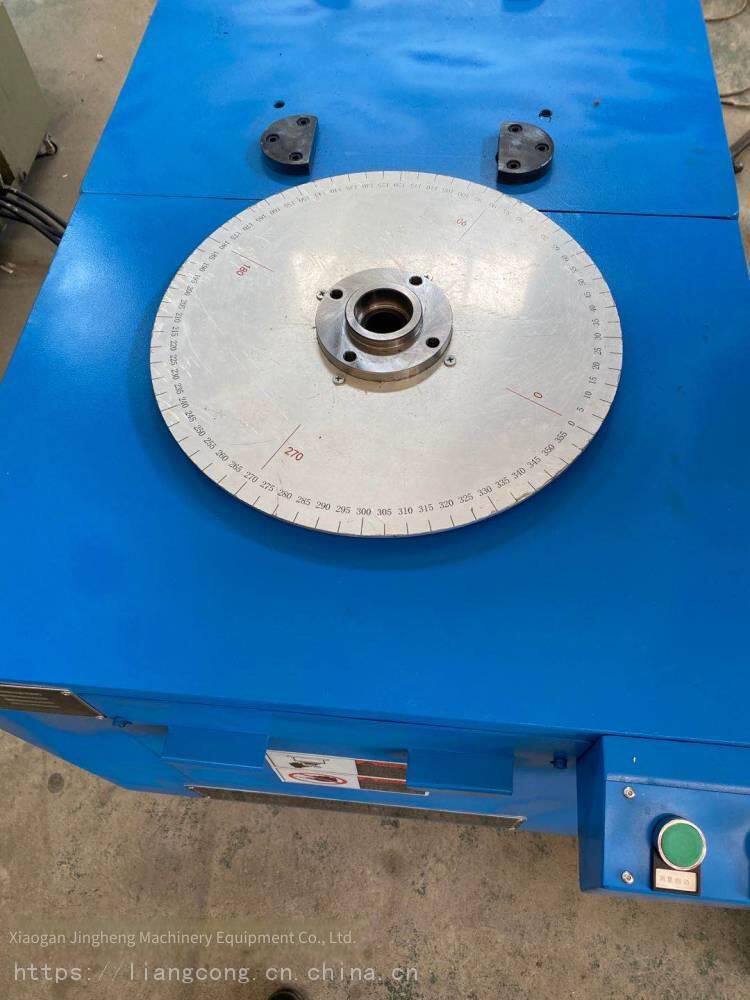

3.1,VerticalBalancing machine
1) Vibration detection method: Hard bearing type
2) Sensor: Piezoelectric sensor
3) Phase reference: Proximity switch
4) Balancing speed: 200-2000rpm(Speed adjustable)

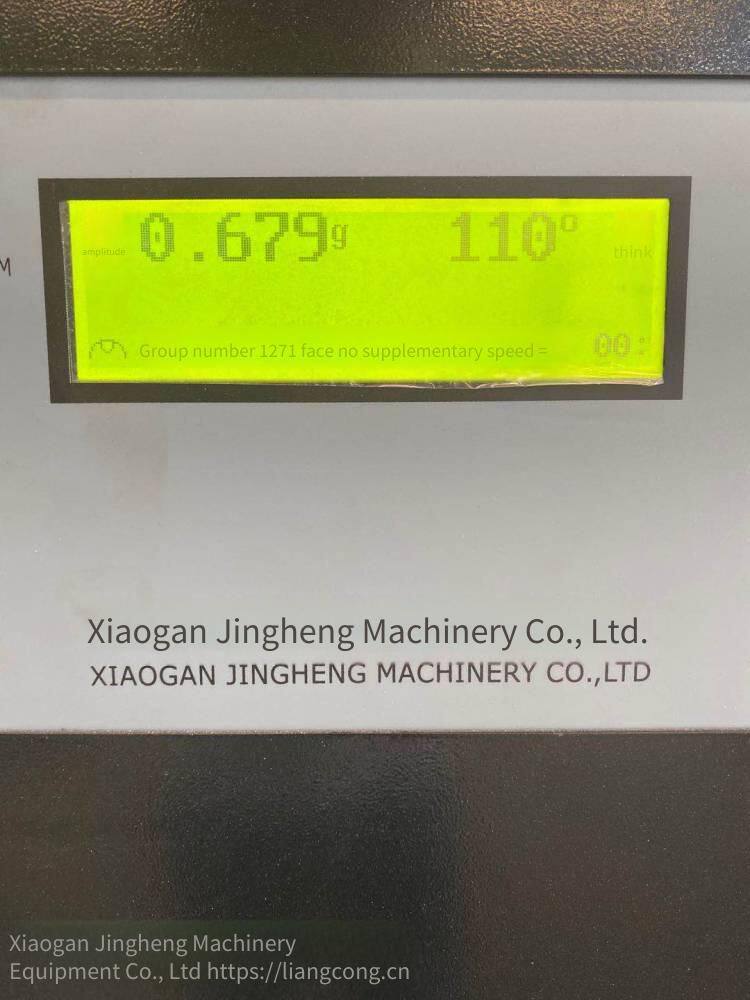

5) Display mode: Display the unbalance amount in Chinese characters and numbers

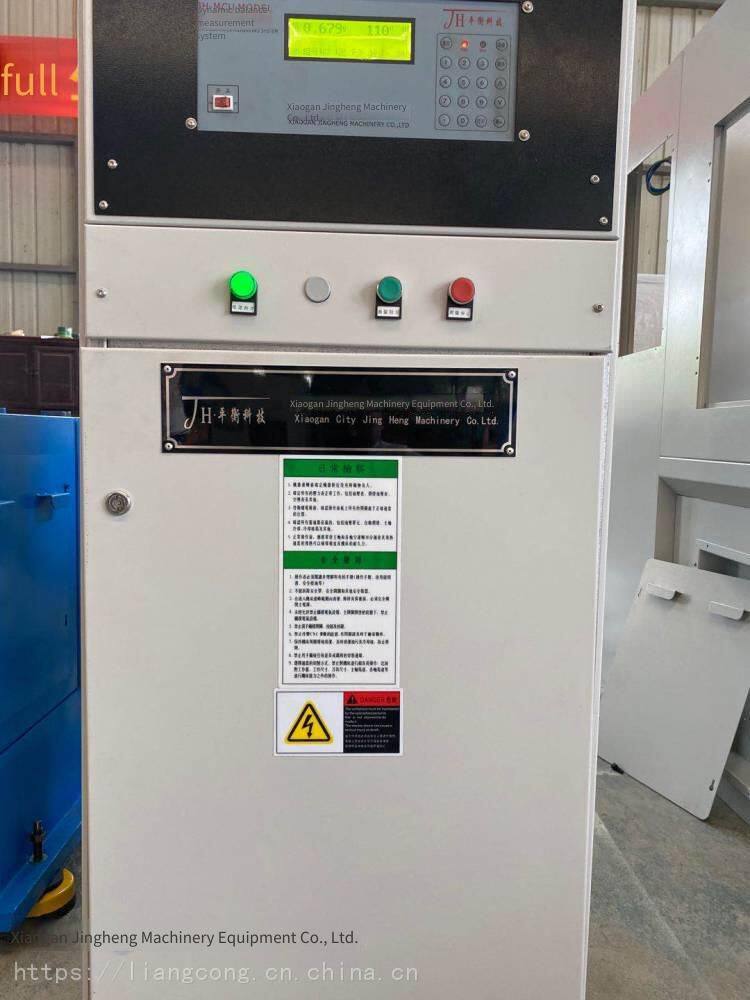

3.2, Computer measurement and high-voltage control part
1) Calculation method: Influence coefficient method, automatically performed by the computer
2) Electrical compensation: Automatically compensated by the computer
3.3, Dust collection system
1) Adopt a high-power scroll air pump three-phase asynchronous motor to ensure that no iron filings remain on the workbench after weight removal.
2) Connect and communicate with the dust collection device through the contact switch, and the dust collection device will automatically start while drilling.
3.4, Drilling and weight removal part
1) Control the stroke of the drilling power head to leave the origin, and the drilling machine will start automatically. The operator only needs to advance the power head to achieve drilling and weight removal.
2) Equipped with an unloading device to ensure that the spindle accuracy is not affected by the drilling force during horizontal drilling and weight removal.
2) Replace the appropriate drill bit by yourself with the key provided by the machine tool.
3.3, Power supply: Three-phase four-wire system 380V 220V 50HZ
