Factory Genyond Tomato Sauce Paste Ketchup Pulp Extraction Pulping Making Machine Fruit Jam Production Plant Processing Line
US$ 75000.00
1 Set
US$ 69000.00
≥2 Set
Key Specifications
Get Latest Price
video outgoing-inspection:
Provided
machinery test report:
Provided
core components:
Pump
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Genyond Machinery for Milk Carton Box With Screw CapUS$ 20110.00MOQ: 1 Set -
Industrial Cold Press Belt Juicer Extractor MachineUS$ 10600.00 - 11000.00MOQ: 1 Set
-
Commercial Automatic Sugar Cane Juice Machine/sugar Cane Juicer Machine PriceUS$ 2200.00MOQ: 1 Set
-
Hight Efficient Industrial Ginger Screw Press JuicerUS$ 2500.00MOQ: 1 Set
-
500kg Mango Paste Screw Press JuicerUS$ 2500.00MOQ: 1 Set
video outgoing-inspection
Provided
machinery test report
Provided
core components
Pump
place of origin
Shanghai, China
brand name
genyond
type
Paste maker
voltage
220V/380V
power(w)
55 Kw
weight
2000 KG
dimension(l*w*h)
Accoridng to the capacity
warranty
12 Months
After-sales Service Provided
Engineers available to service machinery overseas
Name
tomato paste processing machine
Application
Fruit paste/jam making machine
Material
304 Stainless Steel
Capacity
100kg/h to 2 ton/h
Color
Customers' Requirements
Feature
Wilder application
Feeding material
fresh fruit or fruit concentrate
Water required
1.5 ton/h
Certification
ISO 9001
Applicable Industries
Hotels, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Food Shop
Showroom Location
United States, Algeria, Nigeria, Australia
Marketing Type
Ordinary Product
Warranty of core components
2 Years
Condition
New
Process flow:

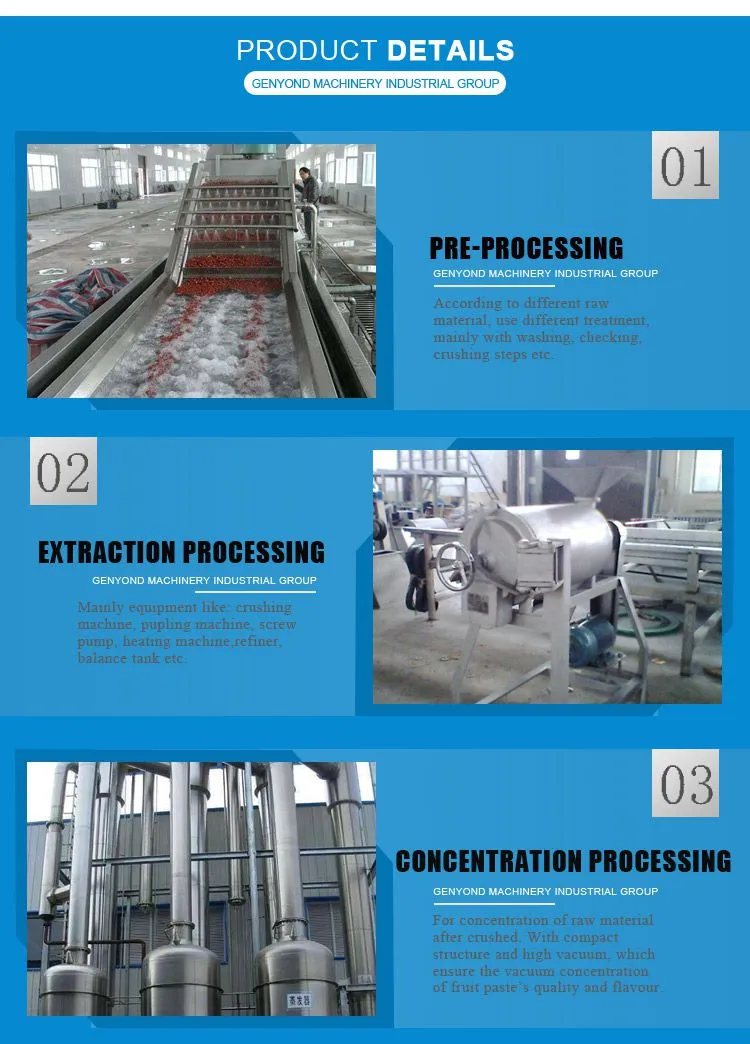

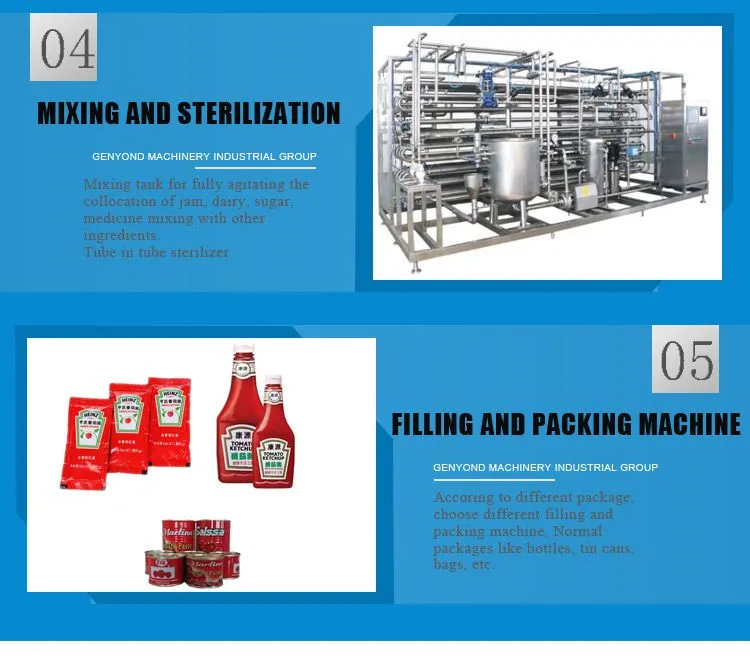

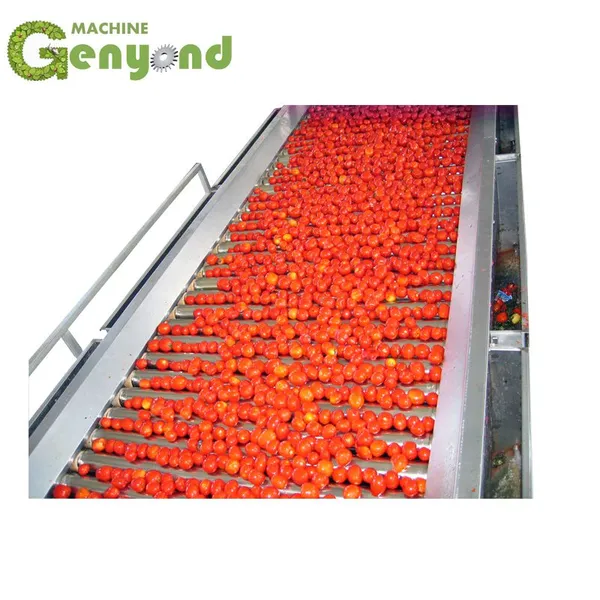

Fresh fruit-washing-sorting-crushing-pre-heating-refining-vacuum evaporation-sterilizing-filling-fruit paste
Supporting facilities:(take 1000kg input fresh tomato as example)
a. Tap water dosage : 10 T/H; water pressure of: ≥ 0.15 Mpa ;
b. Water drainage facility: the workshop should be equipped with enough floor drain device;
c. Re-cycle cooling water pressure: ≥0.2-0.3Mpa, temperature to be around 18℃,cooling tower: 5 t/h;
d. Compress air pressure: ≥0.6 MPa, consumption: 10 m3/h; ( 0.6 m3/min without water and oil)
e. Saturated steam pressure: ≥0.6 Mpa , boiler capacity: 1T/H;
f. Recommended capacitance: 250 KVA;(including the whole line, the boiler, recycling water,convey system and lighting)
g. Power supply: three phase 380 V 50 HZ; Independent distribution box.
