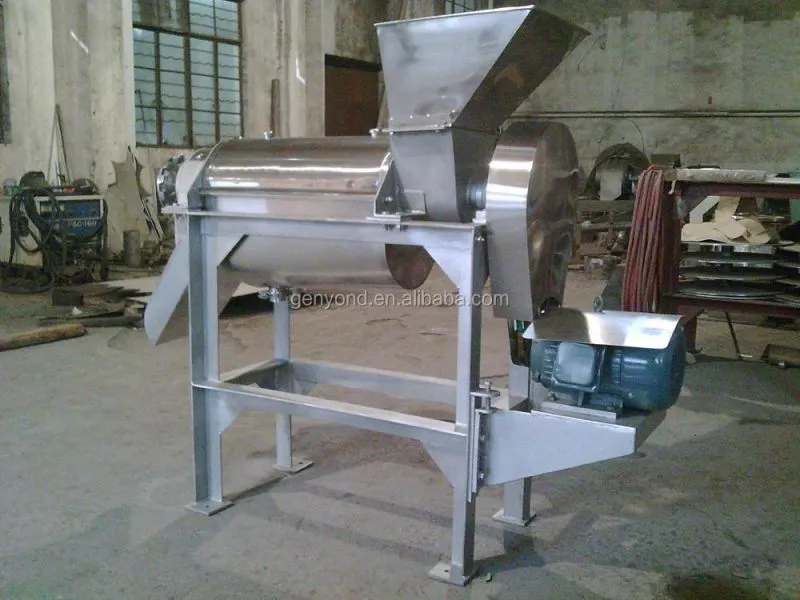

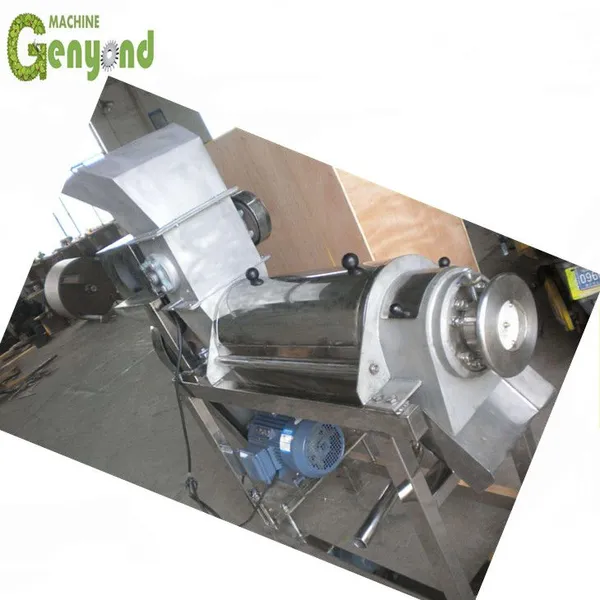

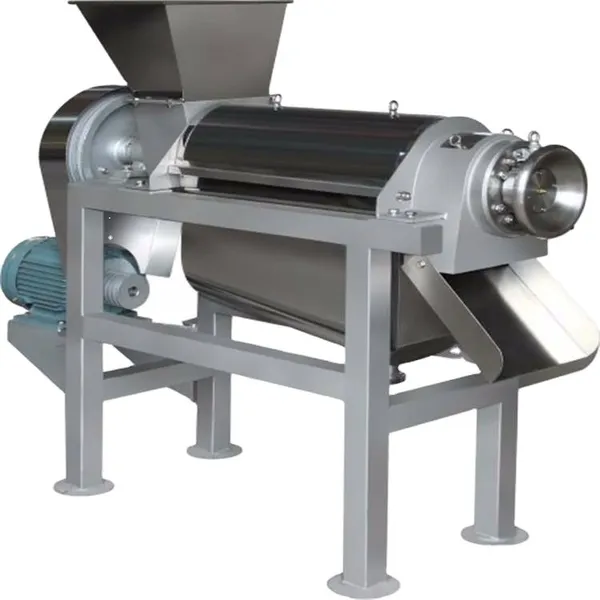

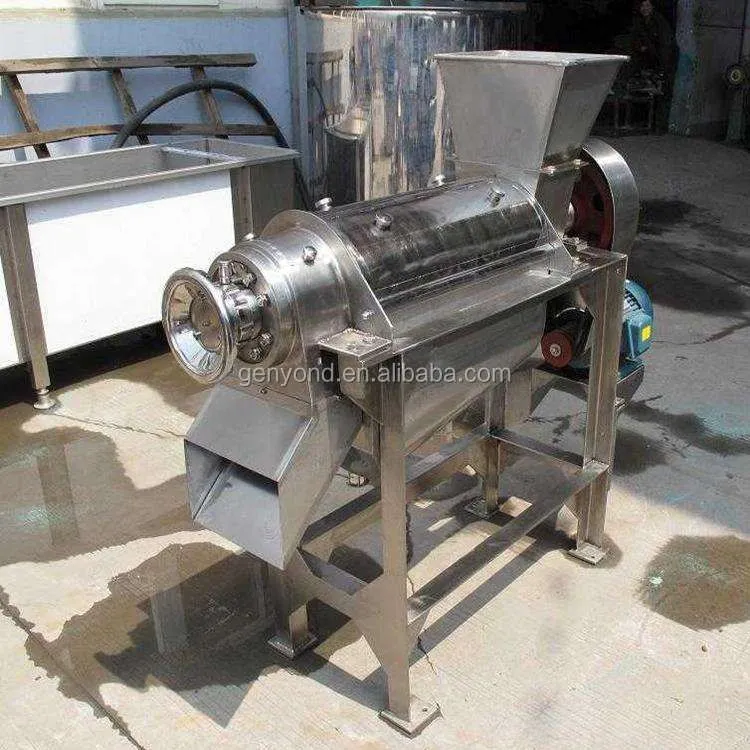

Help Center500kg Mango Paste Screw Press Juicer
Related Products
-
Fruit Juicer Extractor MachineUS$ 2000 - 4000MOQ: 1 Set -
500kg Per Hour Industrial Tomato Fruit Juicer MachineUS$ 2900.00MOQ: 1 Set
-
Citrus Juice Extractor Machine Commercial Orange JuicerUS$ 520.00MOQ: 1 Set
-
Water Bar Orange JuicerUS$ 500.00MOQ: 1 Set
-
Automatic Commercial Orange Juicer / Orange Juice Extraction MachineUS$ 450.00MOQ: 1 Set

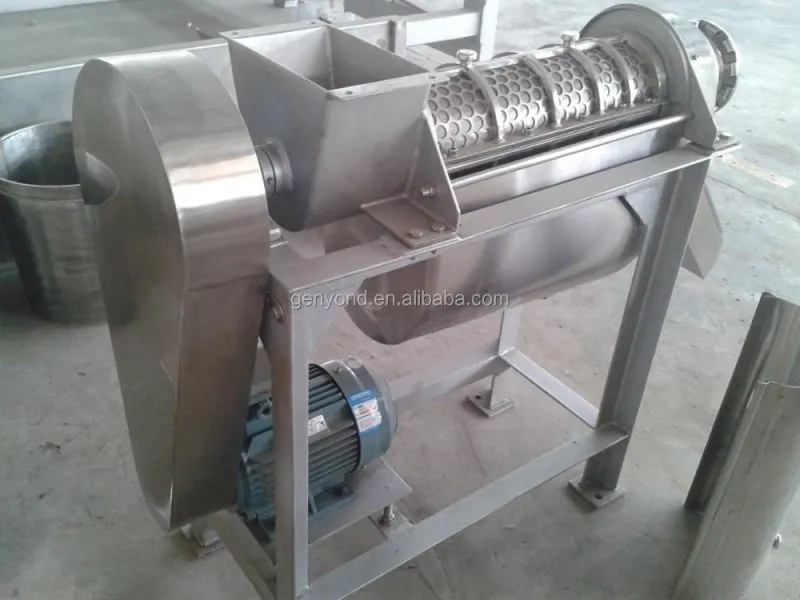

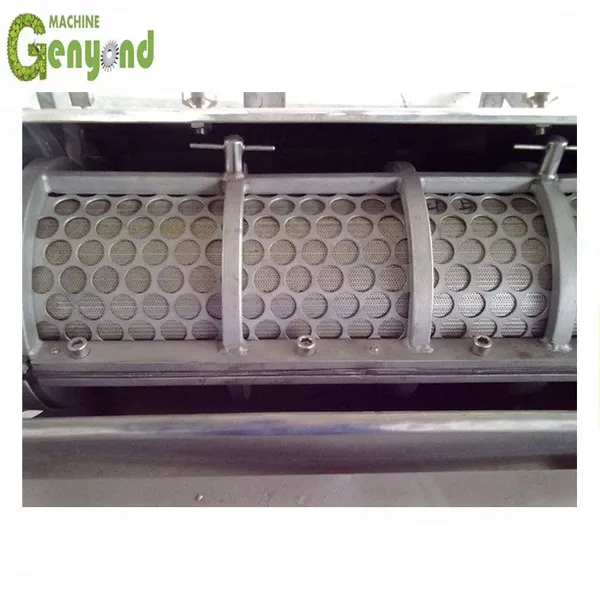

Working principle is broken after the pulp, juice, skin through the hopper into the double screw juicer, because the spiral along the slag export direction gradually increase the diameter and pitch gradually reduced, when the material is screwed, The volume is reduced to form a squeeze on the material. The direction of rotation of the helical spindle is viewed from the feed hopper to the slag groove direction and is counterclockwise. The raw material is fed into the hopper and is pressed under the advance of the screw, and the pressed juice flows into the bottom of the juice through the filter, and the waste is discharged through the annular voids formed between the helical and the tapered portions, The pressure head moves axially and is directly controlled by the hydraulic system.
Adjust the pressure of the hydraulic system, that is, adjust the resistance of the slag, you can change the juice rate, but if the hydraulic system pressure is too large, under strong squeeze, part of the particles and the juice will be squeezed together through the filter, Increase, but the relative quality of the juice decreased, the size of the hydraulic system pressure should be based on user specific process requirements. So as to achieve the purpose of automatic separation of juice and slag.
Parameters
| Model | GY-0.5 | GY-1.0T | GY-1.5T | GY-2.5T |
| Capacity | 500kg/h | 1000kg/h | 1500kg/h | 2500kg/h |
| Screw diameter | 87.5mm | 120mm | 175mm | 200mm |
| Filter screen aperture | 0.6mm | 0.6mm | 0.6mm | 0.6mm |
| Power | 1.5kw | 2.2kw | 4kw | 11kw |
| Voltage | 220v | 220v | 380v | 380v |
| Weight | 105kg | 175kg | 250kg | 480kg |
Send Inquiry to This Supplier
