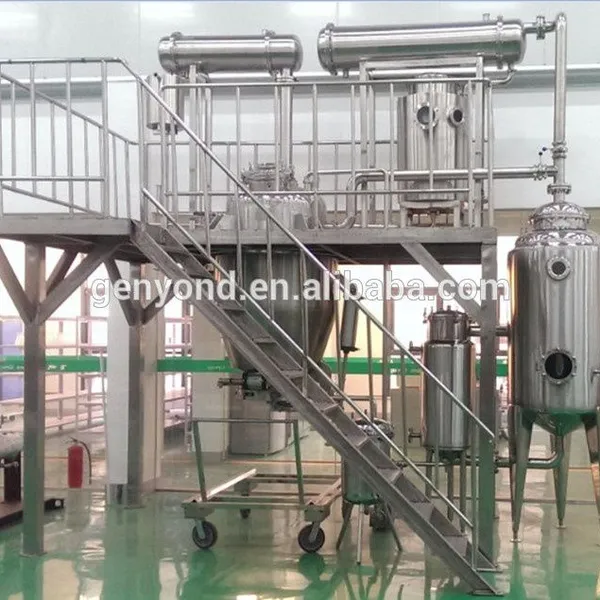

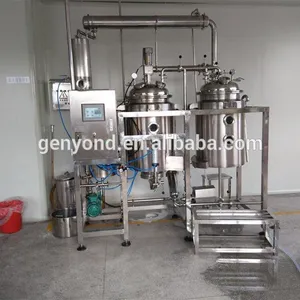

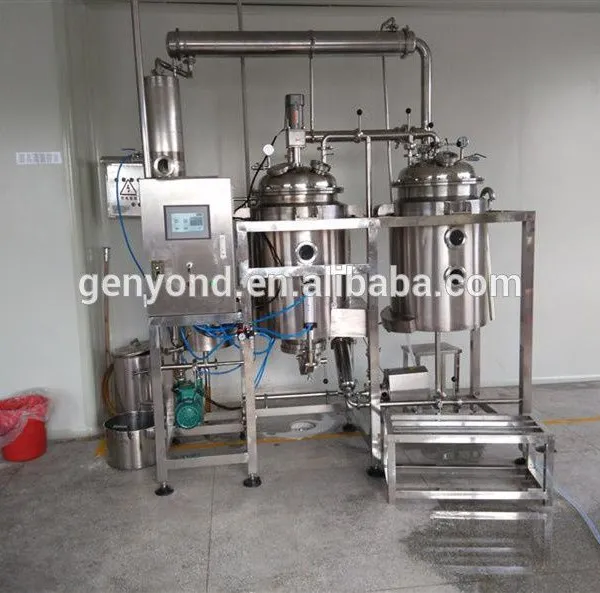

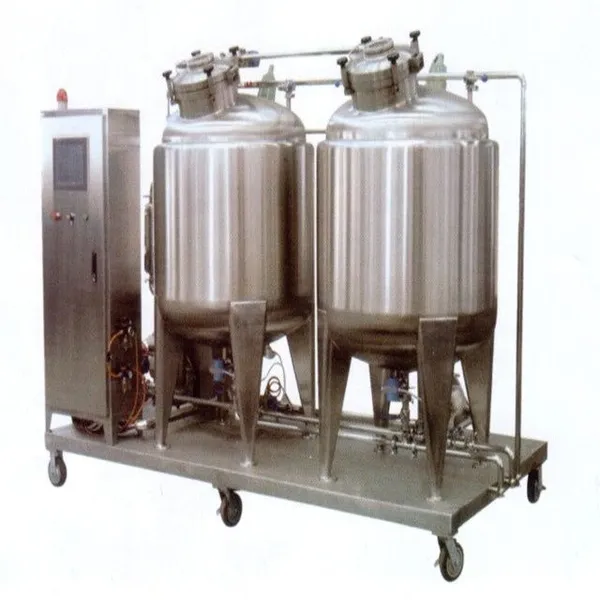

Kiwi Fruit Vinegar 1Ton Per Day Fruit Vinegar Liquid Fermentation Plant

Kiwi Fruit Vinegar 1Ton Per Day Fruit Vinegar Liquid Fermentation Plant thumbnail-1
Kiwi Fruit Vinegar 1Ton Per Day Fruit Vinegar Liquid Fermentation Plant thumbnail-2
Kiwi Fruit Vinegar 1Ton Per Day Fruit Vinegar Liquid Fermentation Plant thumbnail-3
Kiwi Fruit Vinegar 1Ton Per Day Fruit Vinegar Liquid Fermentation Plant thumbnail-4
Kiwi Fruit Vinegar 1Ton Per Day Fruit Vinegar Liquid Fermentation Plant thumbnail-5
Kiwi Fruit Vinegar 1Ton Per Day Fruit Vinegar Liquid Fermentation Plant thumbnail-6
Kiwi Fruit Vinegar 1Ton Per Day Fruit Vinegar Liquid Fermentation Plant photo-1
Kiwi Fruit Vinegar 1Ton Per Day Fruit Vinegar Liquid Fermentation Plant photo-2
Kiwi Fruit Vinegar 1Ton Per Day Fruit Vinegar Liquid Fermentation Plant photo-3
Kiwi Fruit Vinegar 1Ton Per Day Fruit Vinegar Liquid Fermentation Plant photo-4
Kiwi Fruit Vinegar 1Ton Per Day Fruit Vinegar Liquid Fermentation Plant photo-5
Kiwi Fruit Vinegar 1Ton Per Day Fruit Vinegar Liquid Fermentation Plant photo-6
US$ 2000.00 1 Set
US$ 1900.00 ≥2 Set
Key Specifications
Get Latest Price
place of origin:
Shanghai, China
brand name:
GENYOND
type:
whole line
Contact Supplier Request Quote Chat Now
Zhangjiagang Genyond Machine Co Ltd.
Gold Verified Supplier
1Yr
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
place of origin Shanghai, China
brand name GENYOND
type whole line
voltage 380/440v
power(w) different power
weight different weight
dimension(l*w*h) different size
warranty 12 month
After-sales Service Provided Engineers available to service machinery overseas
GRADE FOOD GRADES
Certification ISO 9001
Condition New

Fruit vinegar liquid fermentation process line





Process: juice(choose by client)--enzyme alcohol fermentation -- --mixing - acetic acid fermentation-- --vinegar machine----mixing----filtration sterilization(choose by client) - packing(choose by client).







  1. Tanks system : rotating axis and horizontal tanks , SUS316L material is used, and it is processed by polishing inside and outside. Designed pressure is 0.25Mpa, operating pressure is 0.01-0.07Mpa, heat is transmit- ted by inner bushing with big vaccination, out-off-band jacket, special security ventilation, exhaust and sample port.
  2. Mixing system : mechanical agitation, double propellers blades; speed control: timed positive --negative operation , 0-99 minutes adjustable.
  3. Temperature control : Cooling water +5°C. Pt--100 temperature and electrode, fuzzy PID intelligent controller.
  4. Ventilation flow : 0--1VVM (rotermeter.) 0.2μm asepsis air filter, tank pressure: 0-0.3Mpa, pressure gauge indication, manually operation adjustment.
  5. Regnant vaccination and blending : Uniform vaccination by regnant tinder and flame. Stable and even fermentation happens with blending material in the tank and crushing system in the biochemical reaction process
  6. Disinfection and smoked grains : Steam is accepted externally and manually controlled, mature vinegar grains is ventilated with steam directly in fermentation tank with special mixing system in order to reach regnant disinfection and smoked grains.



•♦C2H5OH+[O]→CH3CHO+H2O •♦       CH3CHO+H2O→CH3CH(OH)2 •♦                CH3CH(OH)2+[O]→CH3COOH+H2O

Kiwi Fruit Vinegar 1Ton Per Day Fruit Vinegar Liquid Fermentation PlantKiwi Fruit Vinegar 1Ton Per Day Fruit Vinegar Liquid Fermentation Plant





Item



300T/year

600T/year

1000T/year

2000T/year

3000T/year

sugaring equipment

FVPL--1500

FVPL--2500

FVPL--3500

FVPL--6500

FVPL--10000

Enzymolysis equipment

FVPL--1500

FVPL--2500

FVPL--3500

FVPL--6500

FVPL--10000

Alcohol fermentation equipment

FVPL--1500

FVPL--2500

FVPL--3500

FVPL--6500

FVPL--10000

Alcohol fermentation equipment

FVPL--1500

FVPL--2500

FVPL--3500

FVPL--6500

FVPL--10000

Vinegar equipment

FVPL-1000

FVPL-1000

FVPL-1000

FVPL-1000

FVPL-1000

storage tank

5m3

5m3

5m3

6.5m3

10m3



 Kiwi Fruit Vinegar 1Ton Per Day Fruit Vinegar Liquid Fermentation PlantKiwi Fruit Vinegar 1Ton Per Day Fruit Vinegar Liquid Fermentation PlantKiwi Fruit Vinegar 1Ton Per Day Fruit Vinegar Liquid Fermentation Plant Kiwi Fruit Vinegar 1Ton Per Day Fruit Vinegar Liquid Fermentation Plant Kiwi Fruit Vinegar 1Ton Per Day Fruit Vinegar Liquid Fermentation PlantKiwi Fruit Vinegar 1Ton Per Day Fruit Vinegar Liquid Fermentation PlantKiwi Fruit Vinegar 1Ton Per Day Fruit Vinegar Liquid Fermentation Plant
