Brief introduction:
This production line can finish raw material mixing, disinfection, even quality, cooling, aging, ,congealment, filling and hardening.

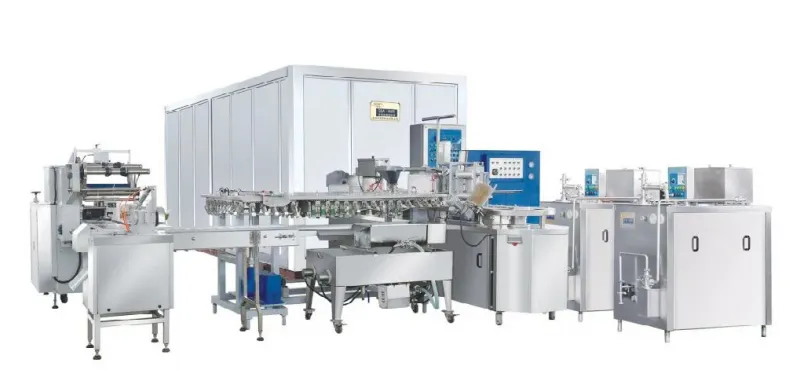

This production line is the automatic model, which can finish automatically from feeding to finished products.
Electrical equipment art controlled in a centralized way, which doesn’t need steam boiler and other cooling equipment

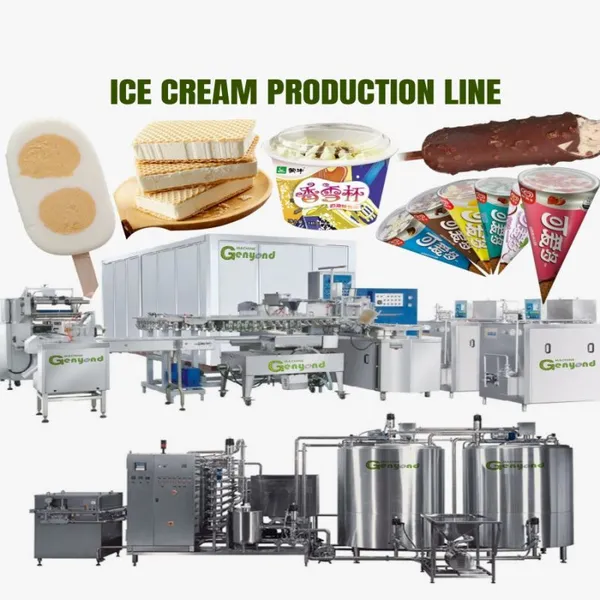

This production line can produce kinds of ice cream, such as cup ice cream,egg-tray ice cream,stick ice cream,chocolate-coated ice cream,kernel ice cream and ice sucker, etc, by only changing the filling equipment.
Process:

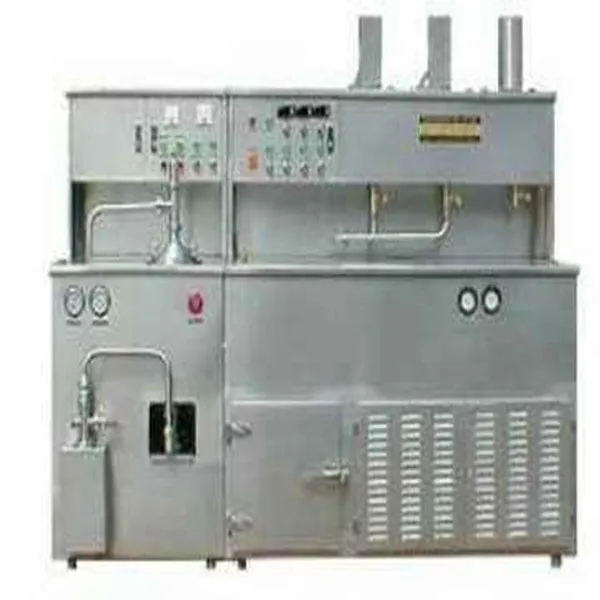

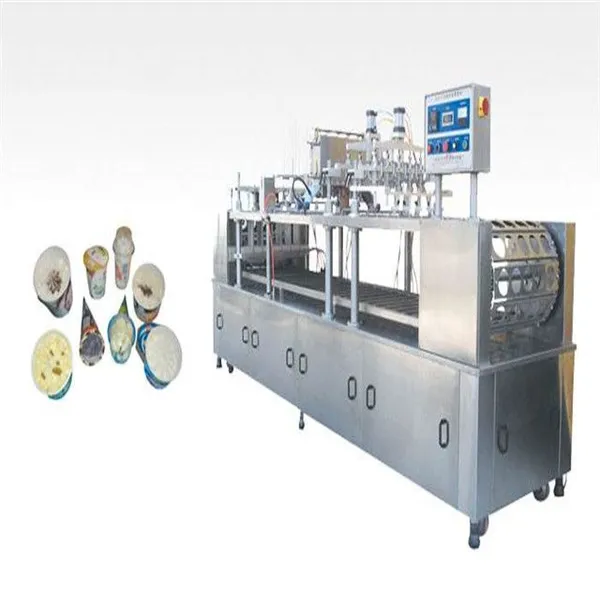

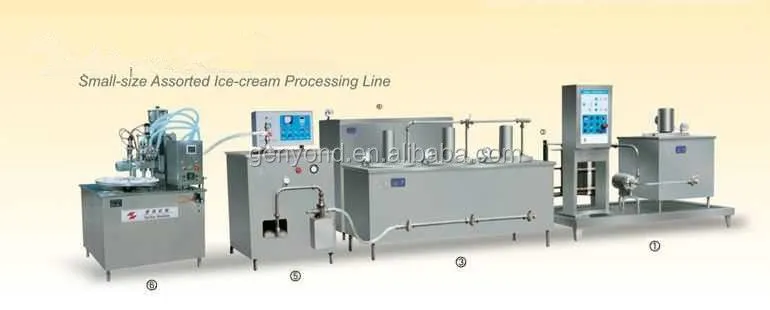

Mixing, disinfection, viscolizer machine------plate heat exchanger-----aging barrel-----cooling machine group------congealment machine-------automatic filling machine
Technical data:
|
Model |
Capacity |
Water consumption |
Expansibility |
refrigerating fluid |
Power |
Voltage |
dimension |
|
GGBQL-500 |
500kg/8h |
6t vadose water |
90-100% |
R-22 |
27KW |
380V 50Hz |
9200*3500*1500mm |
|
GGBQL-1000 |
1000kg/8h |
6t vadose water |
90-100% |
R-22 |
46KW |
380V 50Hz |
12000*3200*1800mm |
Feature:
Complete in Set: Electrical equipment art controlled in a centralized way, no need to have steam boiler and other cooling equipment.
Rich in Varieties: The production line can realize the changes of many varieties only by replacing its feeding head. It can produce cup ice cream, egg-tray ice cream, stick ice cream, chocolate-coated ice cream,kernel ice cream and ice sucker.
Perfect in Service: We can install, adjust and test our equipment, train personnel, provide technology and prescriptions, all free of charge, until qualified products are made so as to ensure your investment is perfectly safe.
GENYOND MACHINERY INDUSTRIAL GROUP
It has 6 factories in China for food machine and packing machine.
Shanghai Genyond Technology Co Ltd; Zhangjiagang Genyond Machinery Co Ltd
Shanghai Jou Yu industrial Co Ltd; Shanghai Keyfood Machinery Co Ltd
Sino topone machinery; Nantong Yihai Machinery; Kunshan Kpack Machinery
Our products have been exported to more than 160 countries with Annual sales reaching 80 millions in 2022 and it raises by yearly average 10% above.
Genyond machine has more than 100 engineers for the installation of oversea projects.
You just need to give us your idea on final product to be made, processing capacity, way of packing, we will make the proposals for your checking. You can also give us your budget, we can also design a line to meet your budget accordingly.
A satisfying project will be given; A long-term cooperation will come.
