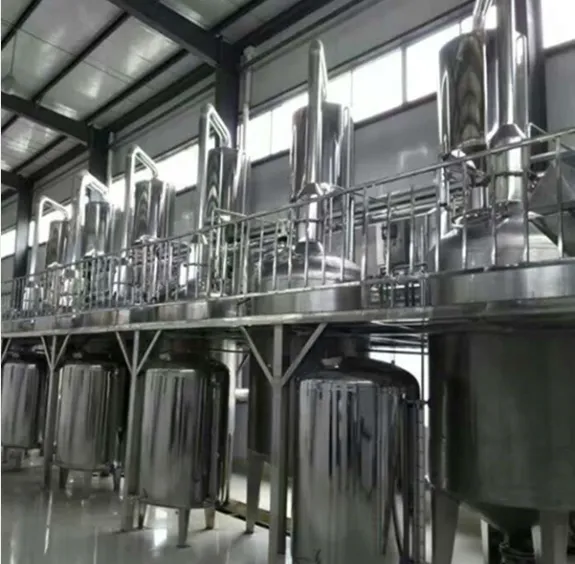

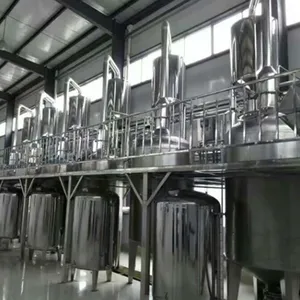

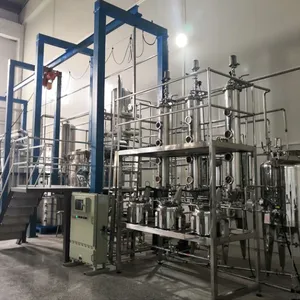

1000-4000L essential oil distillation plant
This machine is suitable for medicine, health care products, bio-pharmaceuticals, cosmetics, food and other industries to extract, collect plant volatile oils. This machine uses special structure of the water vapor distillation unit can efficiently extract the plant essential oils. Relatively similar products can significantly increase essential oil collection rate
Description
To watch more videos about this machine, please check our youtube channel:
/channel/UCs-MbMT4Pu0HseoNwFjWCgQ
For big size essential oil distillation machine, we have two types for customers choice:
up loading and up discharging
up loading and down discharging
1000L essential oil distiller Technical Parameter:
1. Heating type:Steam generator
2. Volume of extracting tank: 1000L
3. Distillation basket:600L
4. Condenser: Coil type, 300 mesh,condensing area 0.85 square meters
5. Extracting temperature: Indoor temperature to 100℃
6. A Electric heating power: 15.5kw(conducting oil heating system)
7. Pipeline Filter: Filtering capacity: 1000kg / h;filtration precision: 150 to 250 mesh
8. Cooling media:Water,3T/h(customers can choose 3P chiller as needed)
9. Temperature transducer: PT-1000
10. Temperature control module: Taiwan LAHO
11. B Temperature control system: Siemens temperature control steam proportional valve group
12. Temperature control:A with automatic control and B through shutoff valve manual control or proportional valve automatic control
13. Equipment Material:Whole equipment using excellent stainless steel SUS304,thickness 3mm
14. Distillation tank: 2 layers stainless steel(electric heating 3 layers)
15. Water separator material: Borosilicate glass
16. Size:L7600xW9500xH4300m
