Rosemary Oil Extraction Machine/essential Extraction Equipment
US$ 2000.00
≥1 Set
Key Specifications
Get Latest Price
Material:
Stainless Steel, SUS304/316
video outgoing-inspection:
Provided
machinery test report:
Provided
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Tea-tree Oil Extraction Machine Essential Oil Processing Equipment Nuts Processing MachineryUS$ 6000.00MOQ: 1 Set -
Destilador De AlcoholUS$ 20000.00MOQ: 1 Set
-
Shanghai Cinnamon Essential Oil Extraction MachineUS$ 8500.00MOQ: 1 Set
-
Lemongrass Oil Extraction MachineUS$ 100000.00MOQ: 1 Set
-
Pure and Natural Essence CO2 Distillation Equipment Distiller Essential Oil Myrrh Extraction MachineUS$ 10000.00MOQ: 1 Set
video outgoing-inspection
Provided
machinery test report
Provided
core components
PLC, Bearing, Motor
Power Source
Electric
Processing
Vacuum Distillation
place of origin
Shanghai, China
brand name
Genyond
voltage
380V/220V
Power(w)
5KW
dimension(l*w*h)
1500*950*1800mm
warranty
1 Year
key selling points
Long Service Life
Weight (KG)
200
Name
Plant essential oil distillation equipment
Raw material
Flowers, grass, plants, leaves, resins, seeds...
Capacity
50L-2000L
Product name
Plant essential oil
Voltage
380V/220V
Extraction Type
Liquid-Solid Extraction
After-sales Service Provided
Online Service Provided
Advantage
Low Consumption High Efficiency
Product Description
Essential oil extraction machine

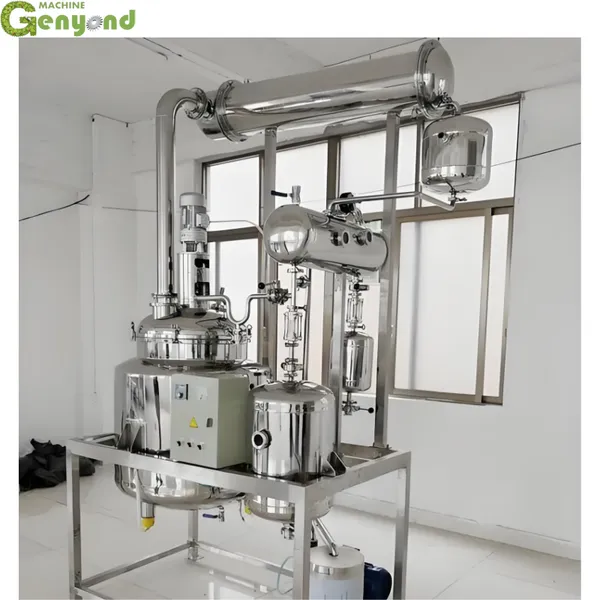

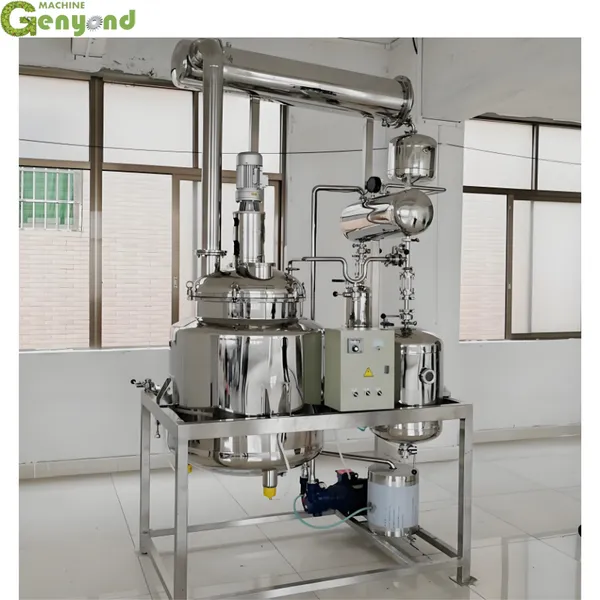

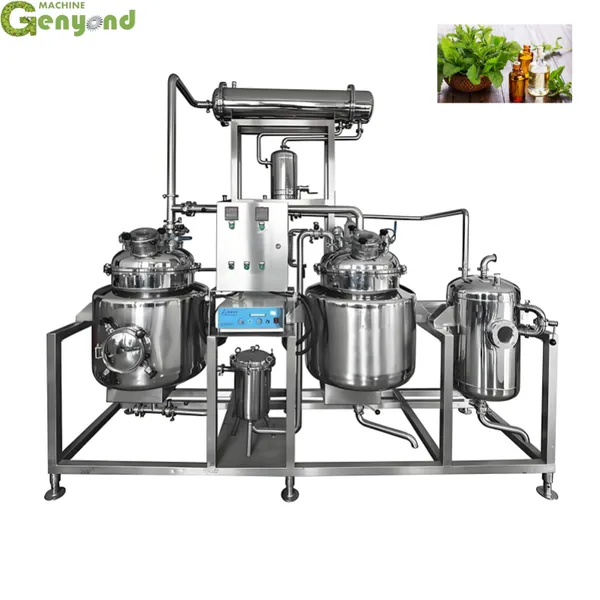

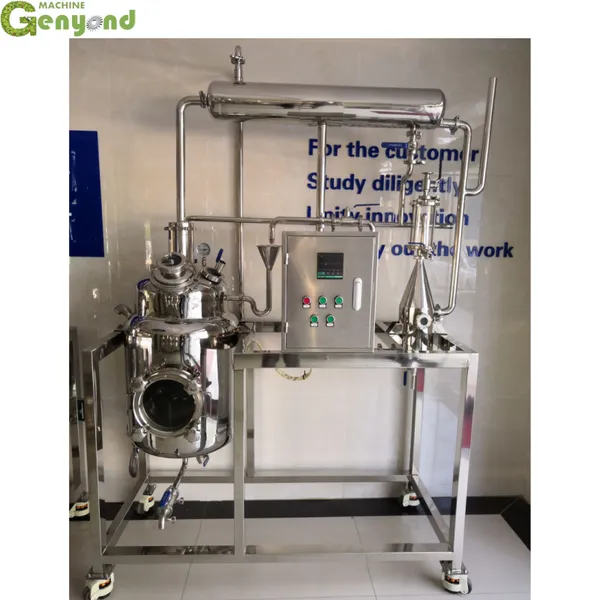

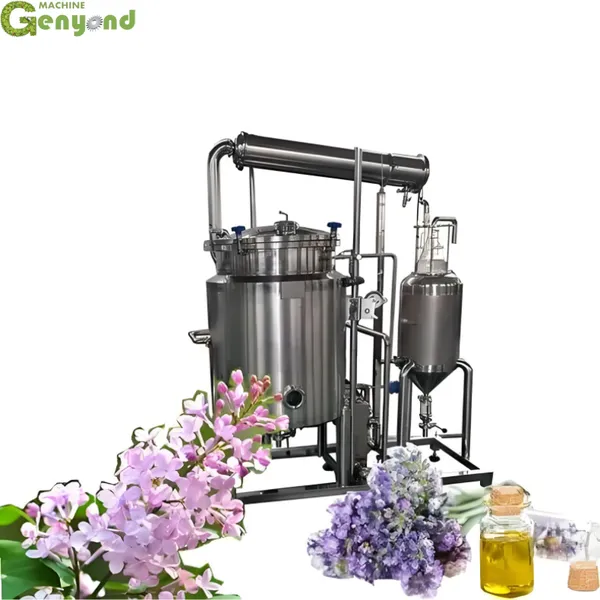

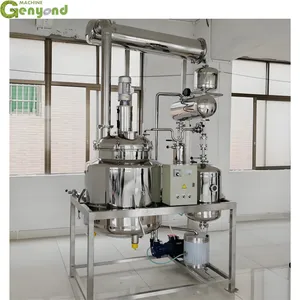

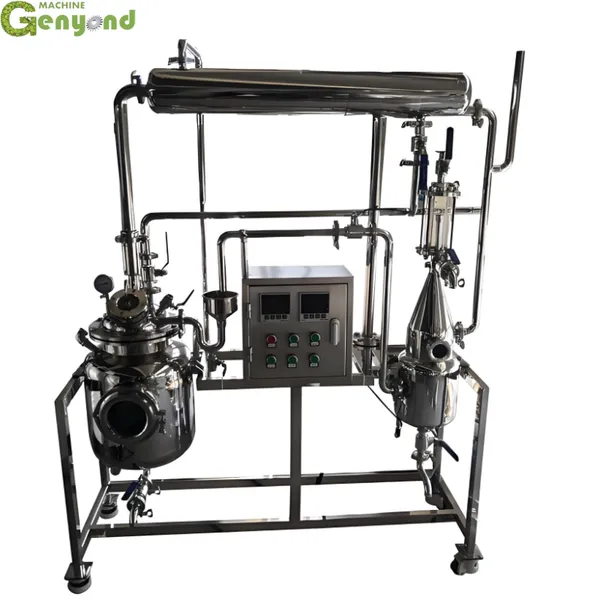

Essential oil extraction equipment is a mechanical tool specially used to extract essential oils from plants. Its invention provides people with a more efficient and convenient way to obtain the essence of plants. These devices are usually composed of multiple parts, including boilers, distillation devices, condensers, etc.
When using essential oil extraction equipment, the plant is first placed in the boiler and then heated to release the essential oil. Next, the released essential oil is distilled out through the distillation device and cooled in the condenser to finally obtain pure essential oil. Compared with traditional manual extraction methods, these devices have higher efficiency and quality. In modern industrial production, essential oil extraction equipment is widely used in cosmetics, condiments and other fields. It not only improves production efficiency, but also retains the nutrients and aroma of the plant, making the product more pure and natural.
The flow chart of the extraction processing:
Chracters of Essential oil extraction machine:
1) By steam-distillation to reach the extraction of essential oils.
2) Easy operation. One people can operate this machine easily.
3) High efficiency. Using indirect heating of heat transfer oil, it can quickly reach 100℃ high temperature under the conditions of cleanness,safety and atmospheric pressure. If required, with vacuum pump, the extraction speed of essential oils will be more faster.
4) Compact structure. It covers only about 1.5 square meter.
5) Raw materials of Essential oil steam distillation:
Plant leaves and flowers: roses, osmanthus,chrysanthemum,lavender,
sagebrush, rosemary, wintersweet, sophora japonica, mint, thyme,etc.
Plant roots: aloes, ginger, aloe, clove,etc.
Plant fruit, passion fruit, castor, aniseed, grape seeds, etc.
Plant leaves and flowers: roses, osmanthus,chrysanthemum,lavender,
sagebrush, rosemary, wintersweet, sophora japonica, mint, thyme,etc.
Plant roots: aloes, ginger, aloe, clove,etc.
Plant fruit, passion fruit, castor, aniseed, grape seeds, etc.
Main Parts:
1.Extracting tank 2.Distillation basket 3.Condenser 4.Oil-water separator 5.Glass audition 6.Digital Display Control System 7.Operation platform 8.Pipes 9.Valves
Production Specification
Model |
Capacity |
Power |
Dimension |
Weight |
GY-EO20 |
20L |
6.5kw/380v/220v |
1200*800*1600mm |
150kg |
GY-EO30 |
30L |
9kw/380v/220v |
1250*850*1600mm |
180kg |
GY-EO50 |
50L |
12kw/380v/220v |
1300*900*1650mm |
200kg |
GY-EO100 |
100L |
18kw/380v/220v |
1500*950*1800mm |
260kg |
GY-EO200 |
200L |
18kw/380v/220v |
1650*1050*1800mm |
300kg |
