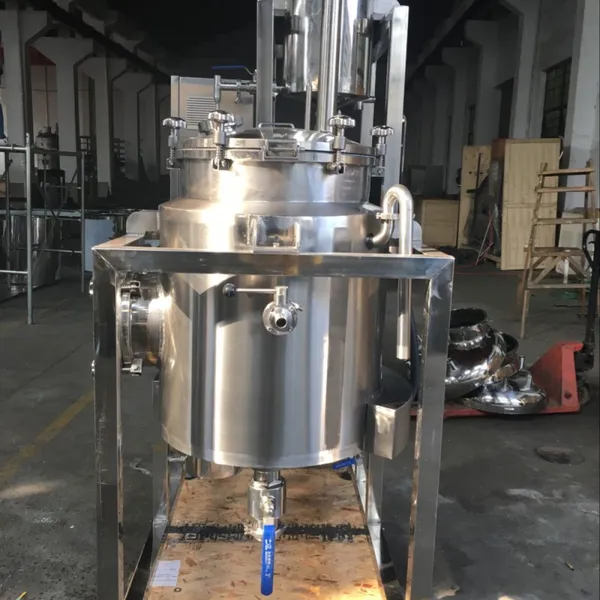

Multipurpose essential oil distillation equipment
This unit is popular in production of Chinese medicines, health products, Biological drugs, cosmetics and food, it use technology of biological and chemical separation, can extract Plant components efficiently by steam distillation, have good effect in collecting essential oil from plants.

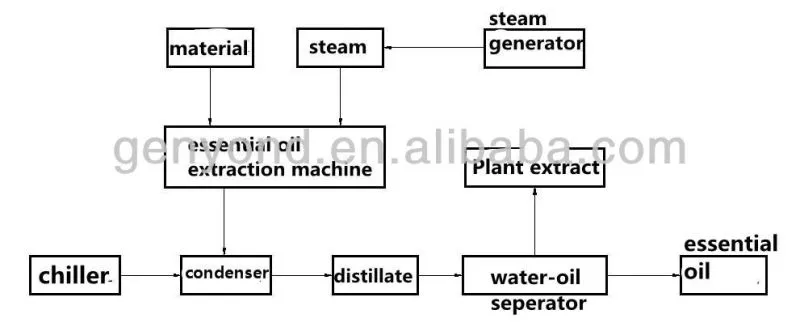

The simple flow chart of essential oil production process

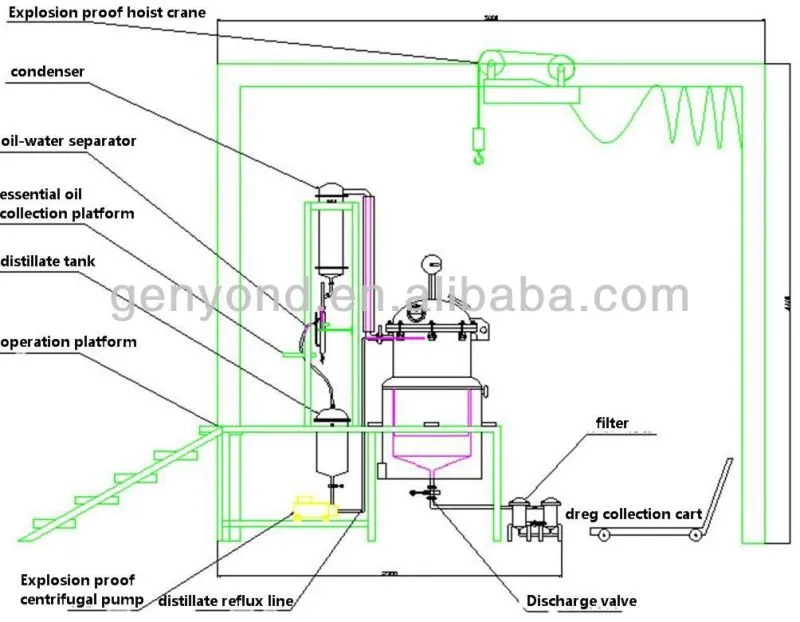

Herbs Essential Oil Distillers Main equipment
1, Extracting tank 2, Oil-water separator 3, Receiver 4, Oil cooling system 5, Plate distillation system
6, Vacuum system 7, Frame 8, Pipes 9, Valves 10, Digital temperature sensor.
GENYOND Herbs Essential Oil Distillers Advantage
1. This equipment is made of SUS304 stainless steel with special frame.
2. It has three layers SS Plate distillation system which can extract the oil efficiently.
3. This machine equips Digital control system and Touch screen display control system.
4. Easy operation,one people can operate this machine easily.
5. Compact structure,it covers only about 1.5 square meter.
6. We can also make it according to your request.
Herbs Essential Oil Distillers Models for our small machine
| Model |
Capacity (L/3-4hr) |
Power (KW/H) |
Supply Power | Dimension(mm) | |||
| Voltage | Phase | Length | Width | Height | |||
| EO-10 | 10 | 4.5 | 380/220 | 3 | 1300 | 550 | 1800 |
| EO-20 | 20 | 5.5 | 380/220 | 3 | 1200 | 700 | 1700 |
| EO-30 | 30 | 6 | 380/220 | 3 | 1300 | 800 | 1700 |
| EO-40 | 40 | 7.3 | 380/220 | 3 | 1400 | 700 | 1800 |
| EO-50 | 50 | 7.5 | 380/220 | 3 | 1600 | 850 | 1800 |
| EO-60 | 60 | 8 | 380/220 | 3 | 1600 | 850 | 1850 |
| EO-80 | 80 | 9 | 380/220 | 3 | 1700 | 850 | 1900 |
| EO-100 | 100 | 12 | 380/220 | 3 | 1700 | 900 | 2100 |
| EO-150 | 150 | 18 | 380/220 | 3 | 1800 | 900 | 2100 |
| EO-200 | 200 | 25 | 380/220 | 3 | 1800 | 1000 | 2100 |
| EO-300 | 300 | 38 | 380/220 | 3 | 1900 | 1000 | 2100 |
|
Note: Besides the above model, we also have 500L,1000L,1500L,2000L 3000L and above. | |||||||
Raw material can be use to extract essential oil as below for reference:
Conventional plant mosaic: roses, osmanthus, Wild chrysanthemum, lavender, wormwood, rosemary, bloom, SJ, see the May grass, mint, thyme;
Plant roots: aloes, ginger, aloe vera, cloves, Atractylodes;
Plant fruit: passion fruit, pepper, castor bean, star anise, grape seed, lemon, Litsea, pine nuts.

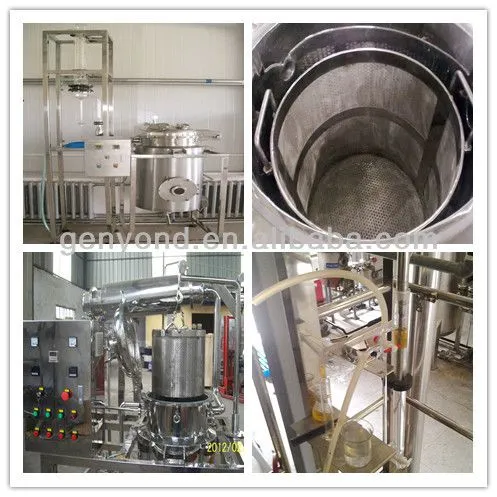

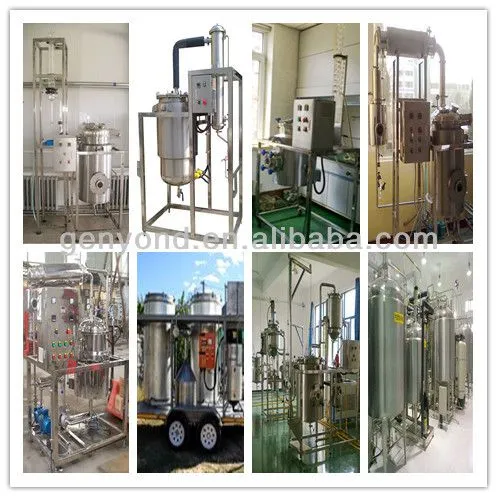

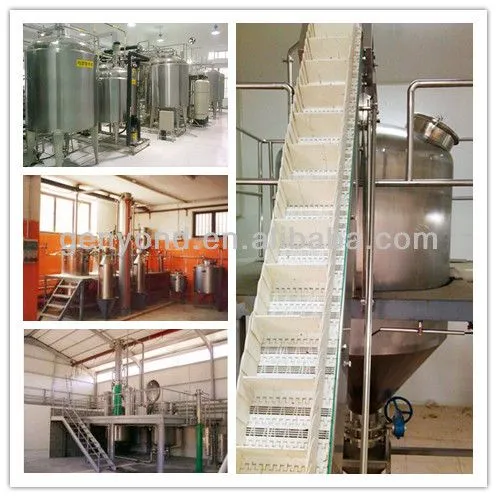

Herbs Essential Oil Distillers More pictures for reference
Package of Herbs Essential Oil Distillers : wooden case package
PAYMENT: 30% as deposit and 70% before shipment.
DELIVERY: 30 days after the order confirmation, the receipt of the down-payment.
INSTALLATION:
1. We will assemble and test the machine before packing,and provide English manual.
2. If customer need, we will send one or two engineers for assembling and training of workers.The buyer shall bear the engineers round-trip tickets fees, basic accommodation and Transportation,the allowance shall be 70usd/day/person.
GUARANTEE: 12 months.
Please kindly inform us your requested processing capacity, raw material,so that
we can offer you accordingly based on your requirement.
We will stand at your point to suggest low cost and suitable production line for you.We sincerely want to cooperate with you.
