Industrial Herbs and Flower Essential Oil Distillation Distilling Equipment Hydrosol Plant Extracting Unit Extraction Machine
US$ 2600.00
≥1 Set
Key Specifications
Get Latest Price
usage:
Plant
brand name:
Genyond
place of origin:
Shanghai, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Thyme Stainless Steel Essential Oil Distiller Distillation Machine Equipment PriceUS$ 12000.00MOQ: 1 Set -
Tobacco Extraction Machine Nicotine Extraction EquipmentUS$ 25000.00 - 30000.00MOQ: 1 Set
-
Automatic Nicotin Tobacco Extraction Machine/ EquipmentUS$ 2460.00 - 2860.00MOQ: 1 Set
-
Industrial Ginger Essential Oil Hydrosol Extract Extractor Equipment Distilling Distillation Distiller Machine for Flower PlantUS$ 4600.00MOQ: 1 Set
-
Vetivert Essential Oil Distiller /distillation Machine/ Extract MachineUS$ 9500.00 - 10000.00MOQ: 1 Set
usage
Plant
brand name
Genyond
place of origin
Shanghai, China
automatic grade
Automatic
condition
New
dimension(l*w*h)
1700*1100*1600mm
key selling points
Multifunctional
max capacity
1000 kg/h
oil type
essential oil
production capacity
100%
type
Cold & Hot Pressing Machine
voltage
220V/380V
warranty
1 Year
weight
1200 KG
After-sales Service Provided
Engineers available to service machinery overseas
Name
essential oil machine
Raw material
plant, rose, lavender, lemon, wormwood
Function
Making Essential Oil
Application
healthy skin care
Advantage
Simple Operation
Material
304 Stainless Steel
End product
various essential oil
Vacuum Degree
-0.05~-0.08
Applicable Industries
Manufacturing Plant, Food & Beverage Factory
Showroom Location
None
Marketing Type
Ordinary Product
Machinery Test Report
Provided
Video outgoing-inspection
Provided
Warranty of core components
2 Years
Core Components
Motor, Pressure Vessel, Pump
Product Description
Product Introduction
Herbs and flower essential oil extraction machine uses distillation technology and chemical separation,which can extract plant components efficiently by steam distillation,and have good effect in collecting essential oil from plants.
The material information
Plant leaves and flowers: roses, osmanthus,chrysanthemum,lavender,
sagebrush, rosemary, wintersweet, sophora japonica, mint, thyme,etc.
Plant roots: aloes, ginger, aloe, clove,etc.
Plant fruit, passion fruit, castor, aniseed, grape seeds, etc.
Processing flow

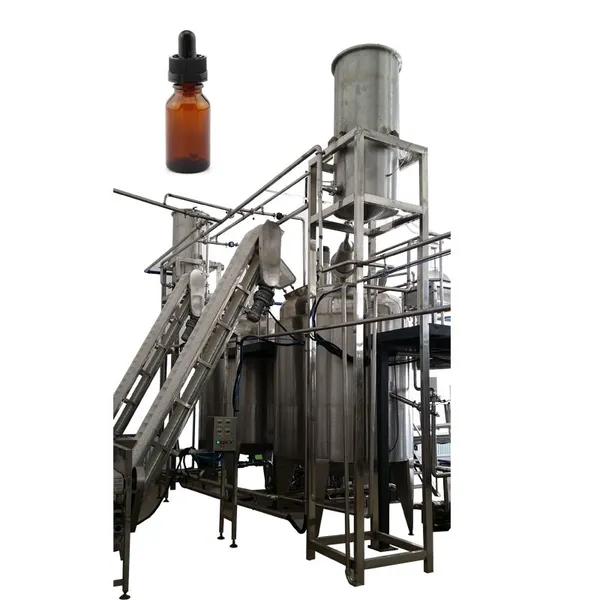

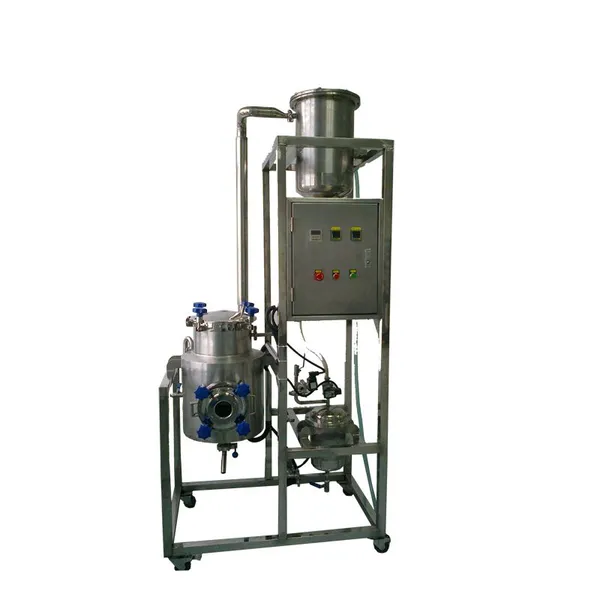

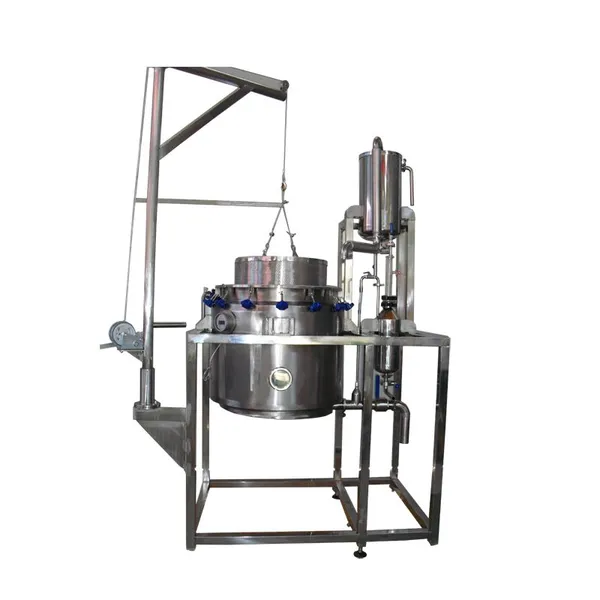

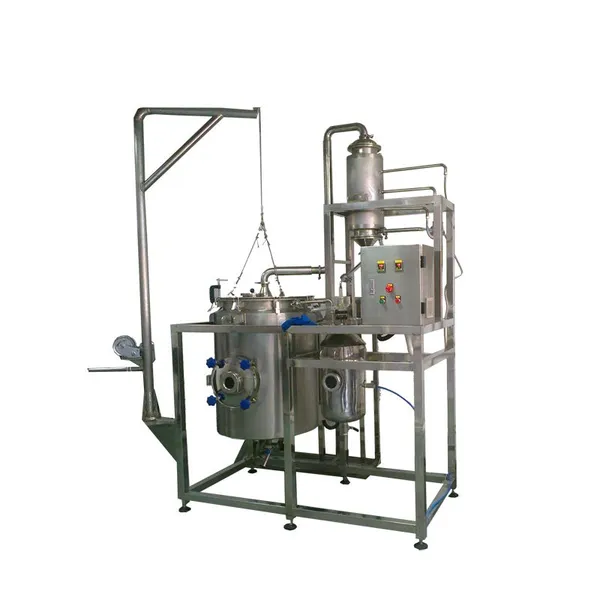

Machine picture
Parameter
Small & Medium size Essential Oil Distiller (Electricity or steam) |
||||||||||||
Model |
Capacity |
Power |
Diameter of Condenser |
Material |
Heating Area of Extraction Tank |
Condensing Area of Condenser |
||||||
GYC10 |
10L |
4KW |
102mm |
SUS304 |
0.3M2 |
0.7M2 |
||||||
GYC20 |
20L |
4.5KW |
102mm |
SUS304 |
0.4M2 |
0.75M2 |
||||||
GYC30 |
30L |
5KW |
133mm |
SUS304 |
0.45M2 |
0.8M2 |
||||||
GYC50 |
50L |
11KW |
133mm |
SUS304 |
0.5M2 |
0.85M2 |
||||||
GYC100 |
100L |
15KW |
133mm |
SUS304 |
1.05M2 |
0.95M2 |
||||||
GYC150 |
150L |
17KW |
133mm |
SUS304 |
1.45M2 |
1.25M2 |
||||||
GYC200 |
200L |
20KW |
133mm |
SUS304 |
1.85M2 |
1.50M2 |
||||||
HEC300 |
300L |
25KW |
133mm |
SUS304 |
1.95M2 |
2.00M2 |
||||||
Large Customized Machines (steam ) |
||||||||||||
Model |
Capacity |
Temperature display |
Cooling water circulation pump |
Crane system |
Console |
Boiler |
||||||
GYC500 |
500L |
Digital temperature control system, with steam stop valve,drain valves, steam traps, etc. |
Cooling water circulation pump, 20tons/H, the cooling water through the pipe into the condenser |
750kg |
Carbon steel rust treatment table |
The gas coal electric boilers according customer local conditions to select |
||||||
GYC1000 |
1000L |
1000kg |
||||||||||
GYC1500 |
1500L |
1000kg |
||||||||||
GYC2000 |
2000L |
1000kg |
||||||||||
GYC3000 |
3000L |
1500kg |
||||||||||
GYC4000 |
4000L |
2000kg |
||||||||||
GYC5000 |
5000L |
2000kg |
||||||||||
Structure: A: up charging and up discharging (Crane system needed) B: up charging and side discharging C: up charging and bottle discharging |
||||||||||||
