Product Introduction

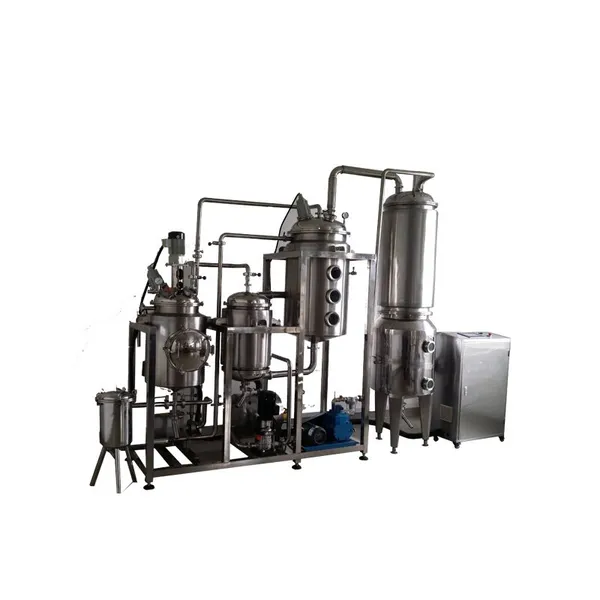

The essential oil steam distillation unit uses distillation technology and chemical separation,which can extract plant components efficiently by steam distillation,and have good effect in collecting essential oil from plants.
Our essential oil distiller equipment adopts the method of steam distillation. This method is as below: put the plants into the container, add water and heat container.The the steam and oil will enter the condenser through the top outlet to cool down.
Because of the relative lighter density,essential oil float on the water surface,then we get the highest quality essential oi extracted for the first time. Since essential oils are slightly melted in water, a bit essential oil will remain in the cooling water ,which is called "hydrosol" or "flower water".
Equipment advantages:
1. The quality oil-water separator is very good, equipped with oil-water separators for both light oil and heavy oil.
2. Equipped with a precision demister, the essential oil is very good without any impurities.
3. Distillation method: in-water distillation and on-water distillation are available,, which can adapt to different types
of aromatic plants.
4. Various heating methods are available to save energy.
The material information
Plant leaves and flowers: roses, osmanthus,chrysanthemum,lavender,
sagebrush, rosemary, wintersweet, sophora japonica, mint, thyme,etc.
Plant roots: aloes, ginger, aloe, clove,etc.
Plant fruit, passion fruit, castor, aniseed, grape seeds, etc.
Small & Medium size Essential Oil Distiller (Electricity or steam) |
||||||||||||
Model |
Capacity |
Power |
Diameter of Condenser |
Material |
Heating Area of Extraction Tank |
Condensing Area of Condenser |
||||||
GYC10 |
10L |
4KW |
102mm |
SUS304 |
0.3M2 |
0.7M2 |
||||||
GYC20 |
20L |
4.5KW |
102mm |
SUS304 |
0.4M2 |
0.75M2 |
||||||
GYC30 |
30L |
5KW |
133mm |
SUS304 |
0.45M2 |
0.8M2 |
||||||
GYC50 |
50L |
11KW |
133mm |
SUS304 |
0.5M2 |
0.85M2 |
||||||
GYC100 |
100L |
15KW |
133mm |
SUS304 |
1.05M2 |
0.95M2 |
||||||
GYC150 |
150L |
17KW |
133mm |
SUS304 |
1.45M2 |
1.25M2 |
||||||
GYC200 |
200L |
20KW |
133mm |
SUS304 |
1.85M2 |
1.50M2 |
||||||
HEC300 |
300L |
25KW |
133mm |
SUS304 |
1.95M2 |
2.00M2 |
||||||
Large Customized Machines (steam ) |
||||||||||||
Model |
Capacity |
Temperature display |
Cooling water circulation pump |
Crane system |
Console |
Boiler |
||||||
GYC500 |
500L |
Digital temperature control system, with steam stop valve,drain valves, steam traps, etc. |
Cooling water circulation pump, 20tons/H, the cooling water through the pipe into the condenser |
750kg |
Carbon steel rust treatment table |
The gas coal electric boilers according customer local conditions to select |
||||||
GYC1000 |
1000L |
1000kg |
||||||||||
GYC1500 |
1500L |
1000kg |
||||||||||
GYC2000 |
2000L |
1000kg |
||||||||||
GYC3000 |
3000L |
1500kg |
||||||||||
GYC4000 |
4000L |
2000kg |
||||||||||
GYC5000 |
5000L |
2000kg |
||||||||||
Structure: A: up charging and up discharging (Crane system needed) B: up charging and side discharging C: up charging and bottle discharging |
||||||||||||
Shanghai Genyond Technology Co Ltd; Zhangjiagang Genyond Machinery Co Ltd
Shanghai Jou Yu industrial Co Ltd; Shanghai Keyfood Machinery Co Ltd
Sino topone machinery; Nantong Yihai Machinery; Kunshan Kpack Machinery
Our products have been exported to more than 160 countries with Annual sales reaching 80 millions in 2022 and it raises by yearly average 10% above.
You just need to give us your idea on final product to be made, processing capacity, way of packing, we will make the proposals for your checking. You can also give us your budget, we can also design a line to meet your budget accordingly. A satisfying project will be given; A long-term cooperation will come.
