Home > Manufacturing & Processing Machinery > Agricultural Machinery > Oil Presser > Lemon Essential Oil Extraction Equipment Extractor Steam Distillation Plant Distiller Machine Essence Extracting Machine

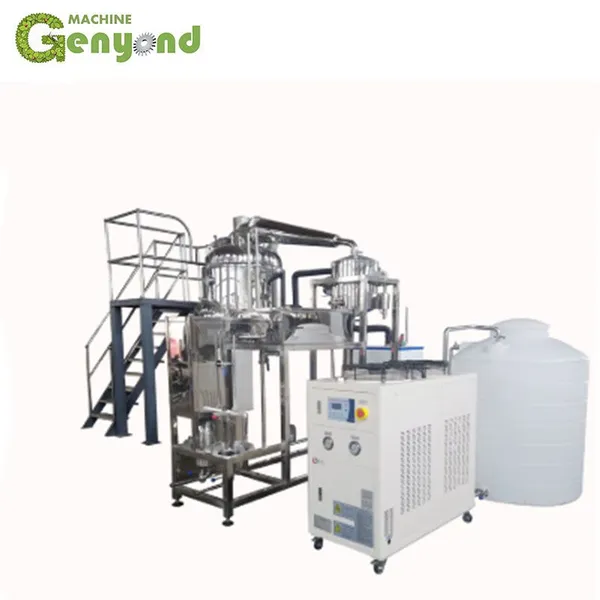

Lemon Essential Oil Extraction Equipment Extractor Steam Distillation Plant Distiller Machine Essence Extracting Machine
US$ 14500.00
1 Set
US$ 9800.00
2 - 9 Set
US$ 7600.00
≥10 Set
Key Specifications
Get Latest Price
Warranty:
12 Months
usage:
Plant
brand name:
Genyond
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Steam Distilling Essential Oil Distillation Machine for Herbs and PlantUS$ 35500.00 - 40000.00MOQ: 1 Set -
Lavender Essential Oil Distillation Machine Extraction Equipment Making EquipmentUS$ 5800.00MOQ: 1 Set
-
High Efficiency Herb/Medical Ultrasonic Extracting Extraction Concentration Equipment Extractor Machine With Factory PriceUS$ 8888.00 - 9999.00MOQ: 1 Set
-
Industrial Eucalyptus Leaves Essence Essential Oil Distiller Distillation Machine Extractor Extraction Equipment PlantUS$ 3600.00MOQ: 1 Set
-
Agal Wood Essential Oil DistillerUS$ 2300.00 - 2800.00MOQ: 1 Set
Warranty
12 Months
usage
Plant
brand name
Genyond
place of origin
Shanghai, China
automatic grade
Automatic
condition
New
dimension(l*w*h)
1700*1100*1600mm
key selling points
Multifunctional
max capacity
1000 kg/h
oil type
essential oil
production capacity
100%
type
Cold & Hot Pressing Machine
voltage
220V/380V
warranty
2 Years
weight
1200 KG
Raw material
plant
Function
Making Essential Oil
Application
healthy skin care
Material
304 Stainless Steel
End product
various essential oil
Vacuum Degree
-0.05~-0.08
Certification
CE ISO
Applicable Industries
Hotels, Food & Beverage Factory, Farms, Home Use, Food & Beverage Shops
Showroom Location
None
Marketing Type
Ordinary Product
Machinery Test Report
Provided
Video outgoing-inspection
Provided
Warranty of core components
2 Years
Core Components
Pressure Vessel
The essential oil steam distillation unit uses distillation technology and chemical separation,which can extract plant components efficiently by steam distillation,and have good effect in collecting essential oil from plants.
The essential oil steam distillation unit uses distillation technology and chemical separation,which can extract plant components efficiently by steam distillation,and have good effect in collecting essential oil from plants.
Extraction machine support frame, extraction tank, extraction basket, heating device, condenser, hoist, collection tank, water and oil separation, control cabinet, etc.
steam distillation or water distillation, the steam passes through plants material and vapourises oil,mixtures of steam and oil vapors go into the condenser. After the cooling,oil formed.This is the ideal device for you to make essential oil no matter for laboratory use or batch production.
The material information
Plant leaves and flowers: roses, osmanthus,chrysanthemum,lavender,
sagebrush, rosemary, wintersweet, sophora japonica, mint, thyme,etc.
Plant roots: aloes, ginger, aloe, clove,etc.
Plant fruit, passion fruit, castor, aniseed, grape seeds, etc.
The essential oil steam distillation unit uses distillation technology and chemical separation,which can extract plant components efficiently by steam distillation,and have good effect in collecting essential oil from plants.
Extraction machine support frame, extraction tank, extraction basket, heating device, condenser, hoist, collection tank, water and oil separation, control cabinet, etc.
steam distillation or water distillation, the steam passes through plants material and vapourises oil,mixtures of steam and oil vapors go into the condenser. After the cooling,oil formed.This is the ideal device for you to make essential oil no matter for laboratory use or batch production.
The material information
Plant leaves and flowers: roses, osmanthus,chrysanthemum,lavender,
sagebrush, rosemary, wintersweet, sophora japonica, mint, thyme,etc.
Plant roots: aloes, ginger, aloe, clove,etc.
Plant fruit, passion fruit, castor, aniseed, grape seeds, etc.
Processing flow
Raw material processed
Product Description
Parameter
Small & Medium size Essential Oil Distiller (Electricity or steam) |
||||||||||||
Model |
Capacity |
Power |
Diameter of Condenser |
Material |
Heating Area of Extraction Tank |
Condensing Area of Condenser |
||||||
GYC10 |
10L |
4KW |
102mm |
SUS304 |
0.3M2 |
0.7M2 |
||||||
GYC20 |
20L |
4.5KW |
102mm |
SUS304 |
0.4M2 |
0.75M2 |
||||||
GYC30 |
30L |
5KW |
133mm |
SUS304 |
0.45M2 |
0.8M2 |
||||||
GYC50 |
50L |
11KW |
133mm |
SUS304 |
0.5M2 |
0.85M2 |
||||||
GYC100 |
100L |
15KW |
133mm |
SUS304 |
1.05M2 |
0.95M2 |
||||||
GYC150 |
150L |
17KW |
133mm |
SUS304 |
1.45M2 |
1.25M2 |
||||||
GYC200 |
200L |
20KW |
133mm |
SUS304 |
1.85M2 |
1.50M2 |
||||||
HEC300 |
300L |
25KW |
133mm |
SUS304 |
1.95M2 |
2.00M2 |
||||||
Large Customized Machines (steam ) |
||||||||||||
Model |
Capacity |
Temperature display |
Cooling water circulation pump |
Crane system |
Console |
Boiler |
||||||
GYC500 |
500L |
Digital temperature control system, with steam stop valve,drain valves, steam traps, etc. |
Cooling water circulation pump, 20tons/H, the cooling water through the pipe into the condenser |
750kg |
Carbon steel rust treatment table |
The gas coal electric boilers according customer local conditions to select |
||||||
GYC1000 |
1000L |
1000kg |
||||||||||
GYC1500 |
1500L |
1000kg |
||||||||||
GYC2000 |
2000L |
1000kg |
||||||||||
GYC3000 |
3000L |
1500kg |
||||||||||
GYC4000 |
4000L |
2000kg |
||||||||||
GYC5000 |
5000L |
2000kg |
||||||||||
Structure: A: up charging and up discharging (Crane system needed) B: up charging and side discharging C: up charging and bottle discharging |
||||||||||||
GENYOND MACHINERY INDUSTRIAL GROUP
It has 6 factories in China for food machine and packing machine.
Shanghai Genyond Technology Co Ltd; Zhangjiagang Genyond Machinery Co Ltd
Shanghai Jou Yu industrial Co Ltd; Shanghai Keyfood Machinery Co Ltd
Sino topone machinery; Nantong Yihai Machinery; Kunshan Kpack Machinery
Our products have been exported to more than 160 countries with Annual sales reaching 80 millions in 2022 and it raises by yearly average 10% above.
Shanghai Genyond Technology Co Ltd; Zhangjiagang Genyond Machinery Co Ltd
Shanghai Jou Yu industrial Co Ltd; Shanghai Keyfood Machinery Co Ltd
Sino topone machinery; Nantong Yihai Machinery; Kunshan Kpack Machinery
Our products have been exported to more than 160 countries with Annual sales reaching 80 millions in 2022 and it raises by yearly average 10% above.
Genyond machine has more than 100 engineers for the installation of oversea projects.
You just need to give us your idea on final product to be made, processing capacity, way of packing, we will make the proposals for your checking. You can also give us your budget, we can also design a line to meet your budget accordingly. A satisfying project will be given; A long-term cooperation will come.
You just need to give us your idea on final product to be made, processing capacity, way of packing, we will make the proposals for your checking. You can also give us your budget, we can also design a line to meet your budget accordingly. A satisfying project will be given; A long-term cooperation will come.
