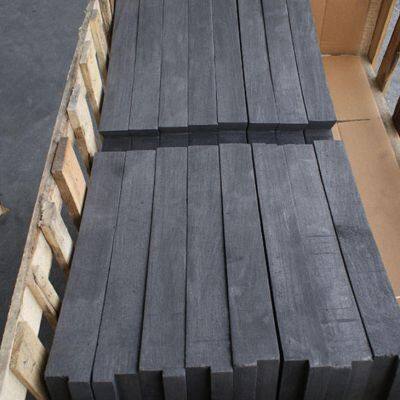

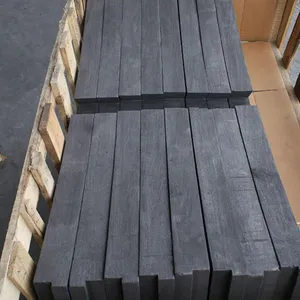

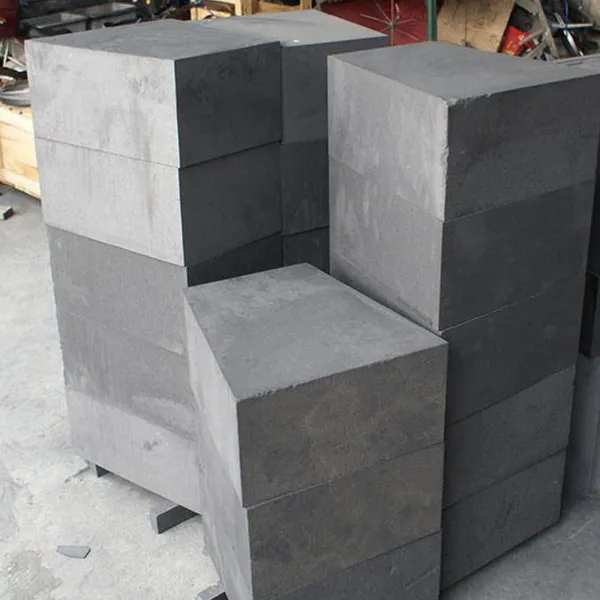

High Quality High Purity High Density Temperature Resistant Graphite Block for Industrial Applications
graphite brick and carbon brick are widely used as the lining material in various of high temperature furnace or chemical equipment. In many chemical processes, the equipment and reaction vessels must be protected against the acidic and caustic materials used in the processes. The linings made from ceramic or synthetic plastic type materials are often unsuitable, since they may not withstand chemical attack, high temperature or sudden temperature changes. Alkaline solutions and hydrofluoric acid are of great importance in chemical technology, but they rapidly destroy equipment linings not made of carbon containing materials.

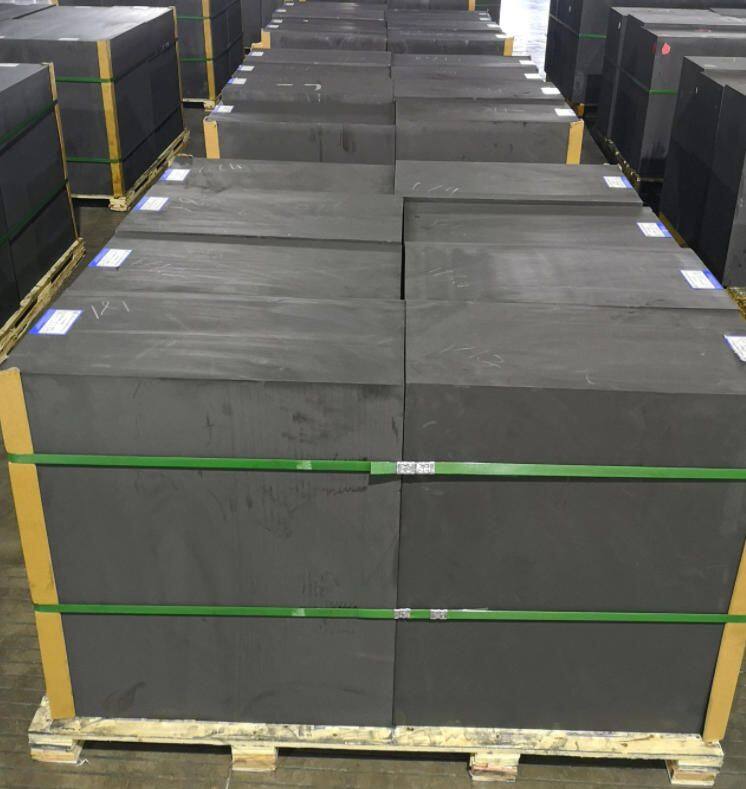

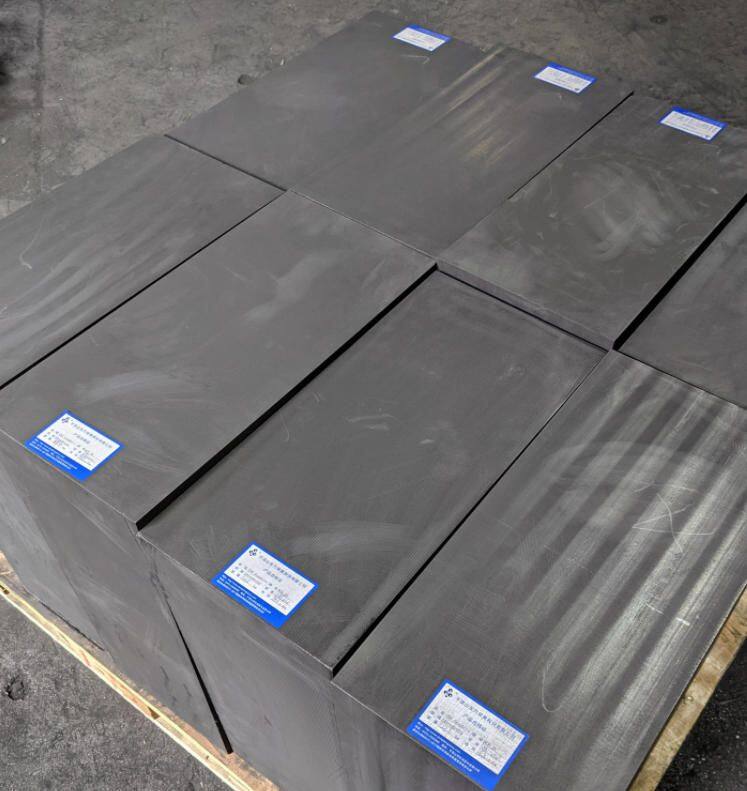

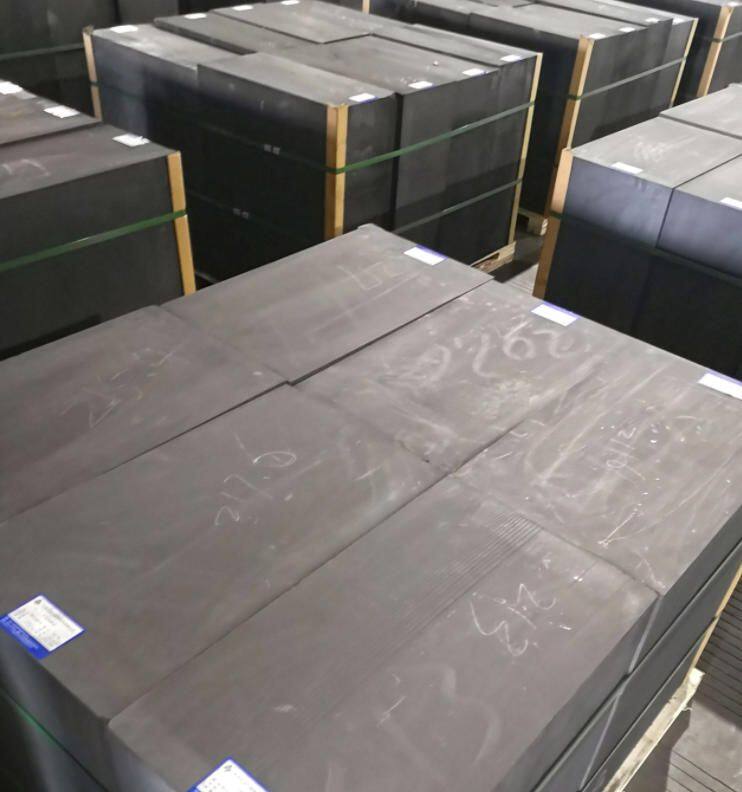

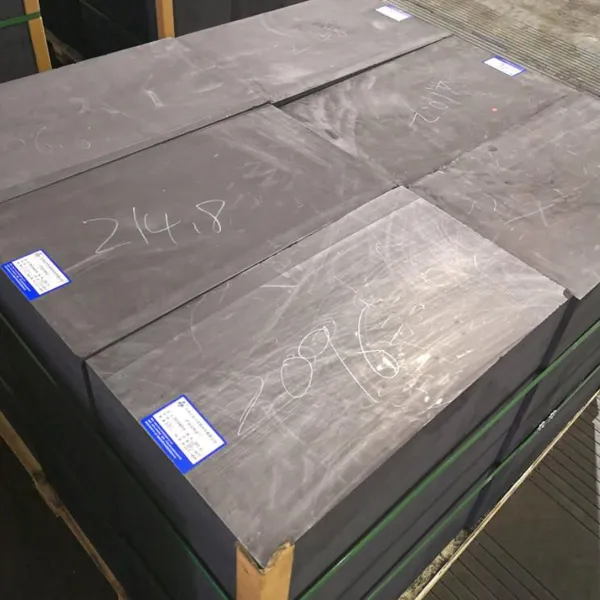

The company supply Isostatic pressing graphite and molded graphite blocks were tested at the national electrical carbon products quality supervision and inspection center. we have more different sizes and grades material, like 10μm,8μm,6μm,4μm and others. its contain isostatic graphite block, molded graphite block, graphite rod,graphite tube, graphite plate, graphite parts,graphite crucible and carbon brush too.
φ620*620 |
φ950*770 |
1300*520*160 |
690*390*190 |
860*350*350 |
φ560*520 |
φ910*750 |
1000*550*300 |
600*500*200 |
600*500*200 |
φ560*420 |
φ740*740 |
1400*650*300 |
500*500*400 |
1150*600*230 |
φ750*700 |
φ590*460 |
1000-2100*500*300 |
400*400*300 |
1850*650*400 |
φ589*550 |
φ650*655 |
700*421*212 |
645*503*210 |
442*440*338 |
Model No |
Unit |
SG-E20 |
SG-E30 |
SG-E40 |
Bulk Density |
g/cm³ |
1.85 |
1.8 |
1.92 |
Grain Size |
μm |
2-4 |
1-2 |
1 |
Electricial Resisitance |
μΩm |
11-15 |
15-19 |
13-15 |
Thermal Conductivity |
W/m.k |
110 |
80 |
100 |
Thermal Expansion Coefficient |
10-6/℃ |
4 |
5.8 |
5.5 |
Hardness(shore) |
HSD |
65 |
80 |
80 |
Flexural Strength |
Mpa |
50 |
43 |
75 |
Compressive Strength |
Mpa |
110 |
130 |
155 |
Elasticity Modulus |
Gpa |
11 |
7.5 |
12.5 |
Gas Porosity |
% |
11 |
12 |
8 |
Ash |
ppm |
50 |
50 |
50 |
Application |
EDM |
EDM /Enhard EDM |
EDM graphite for special purpose |
TECHNICAL PROPERTY FOR CARBON BRICK
SPECIFICATION |
UNIT |
Non-impregnated |
Impregnated |
|
Bulk Density |
g/cm3 |
1.5-1.65 |
1.65-1.8 |
|
Porosity |
% |
10to20 |
≤8 |
|
Compressive Strength |
Mpa |
45-65 |
≥80 |
|
Bending Strength |
Mpa |
18 |
≥26 |
|
Tensile Strength |
Mpa |
8 |
≥12.5 |
|
Ash Content |
% |
≤3 |
≤3 |
|
Using Temperature |
℃ |
800-1000 |
≤180 |
|
Acid Resisting |
HCL+H2SO4, 20% |
≥98 |
≥99 |
|
Alkali Resisting |
% |
≥98 |
Nil |
|

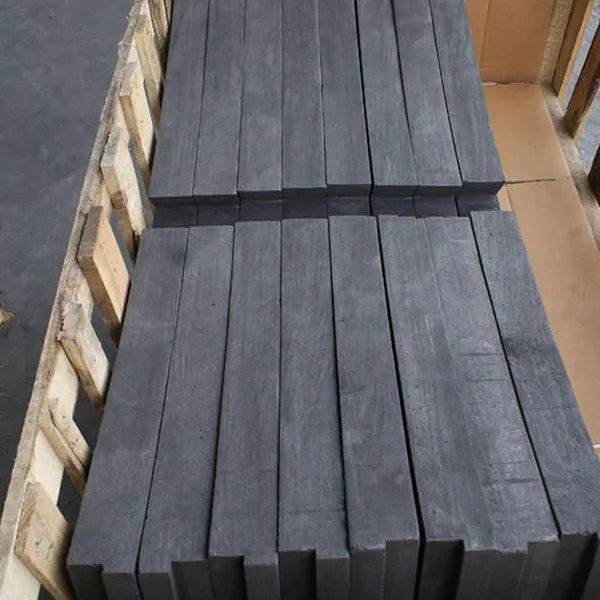

SIZE |
240 x 115 x 20mm (Thick: 30mm 40mm 50mm 65mm 80mm 100mm) |
|||
PACKAGE |
Carton on wooden pallet or by negotiation. |
