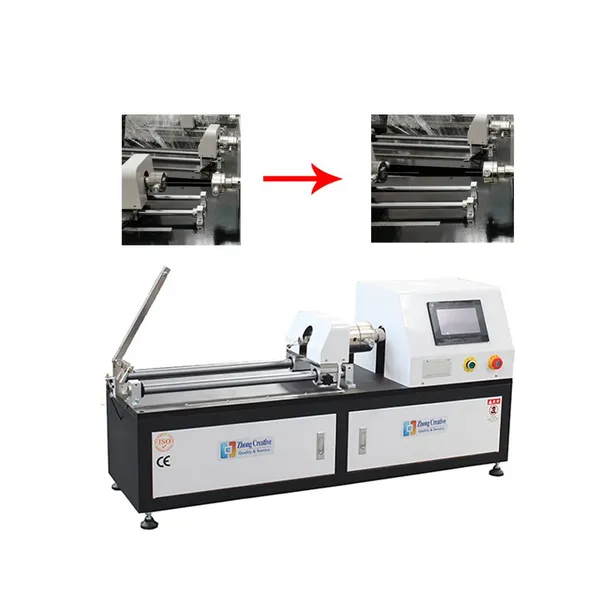

The 3mm Wire Rod / Copper WireTorsion Testing Machine is applicable to the People's Republic of China standard GB/T 239.1-2012 Metal Material Wire Part One One-way Torsion Test Method,GB/T 239.2-2012 Metal Material Wire Part Two Two-way Torsion Test Method, also applicable to the International Standard ISO 7800:2003 Metal Wire One-way Torsion Test Method and ISO 9649:1990 Metal Wire Two-way Torsion Test Method.
Product name |
3mm Wire Rod / Copper WireTorsion Testing Machine |
Model |
ZCXC-3 |
Working type |
Automatic loading |
Display type |
LCD English Menu display |
Specifications: |
|
Diameter of clamping metal wire |
1.0≤d(D)≤3.0 |
Space between two fixtures |
500mm |
Clamping range of jaws |
1.0-3.0mm |
Torsion speed |
15,30,60r/min |
Speed error |
|
Min reading value of turns number |
0.1 |
Size of testing machine(length*width*height) |
1250×430×600mm |
Weight of testing machine(Net weight) |
140kg |
Power supply |
AC220V 50 Hz |
Noise |
|
Assembly quality |
Conform to national standard GB/T2611 |
Packing and transportation |
Conform to national standard JB/T6147 |
List with testing machine |
|
Tools, and farmars |
1set |
Technical documents etc |
1piece |
