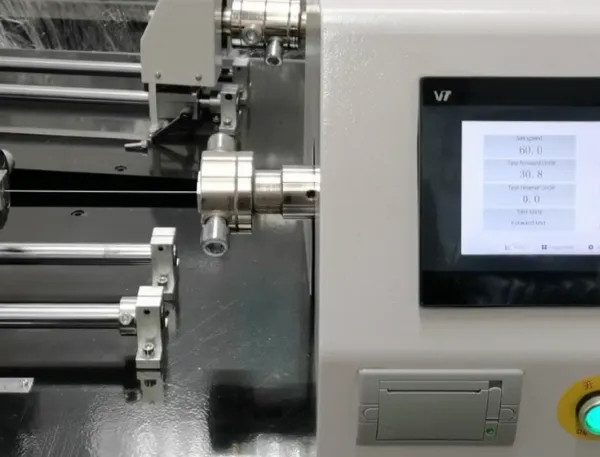

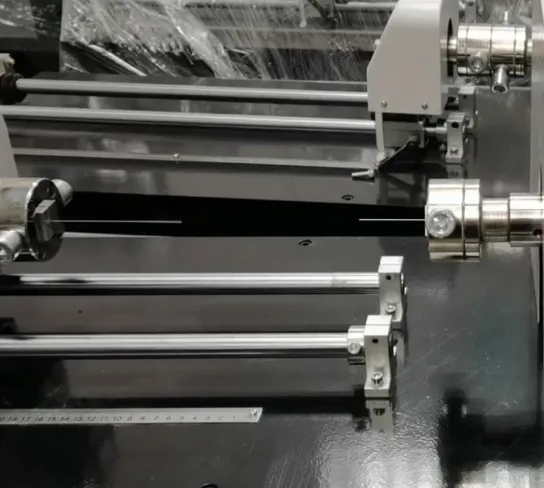

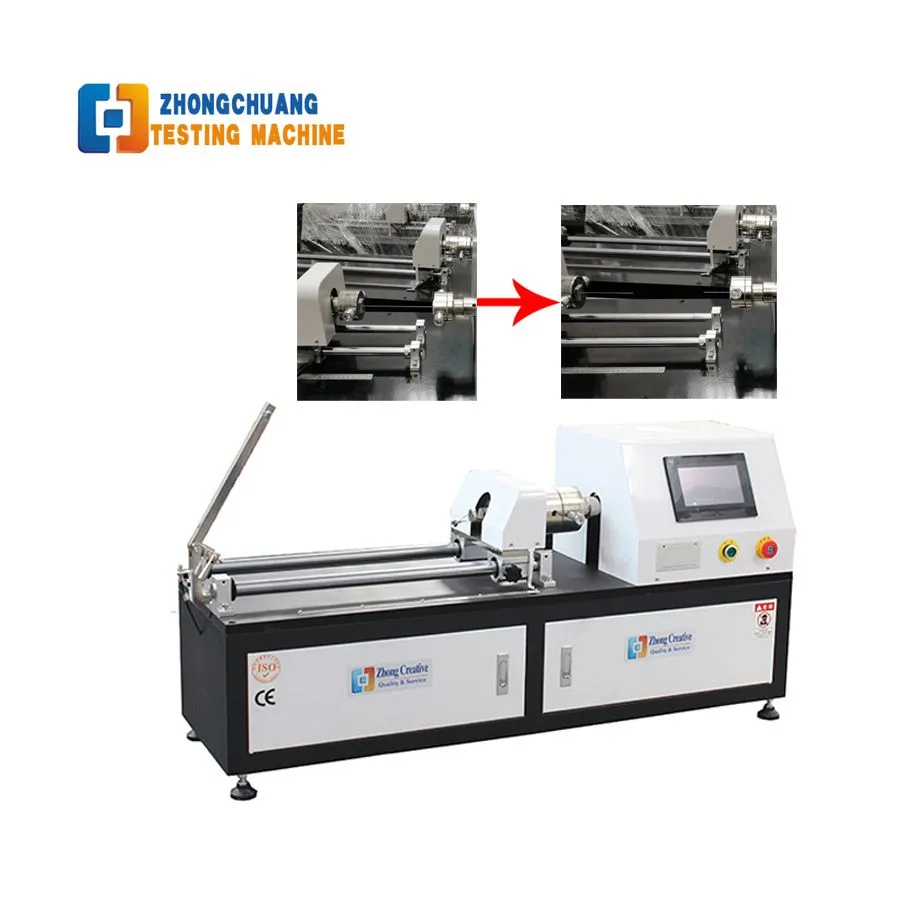

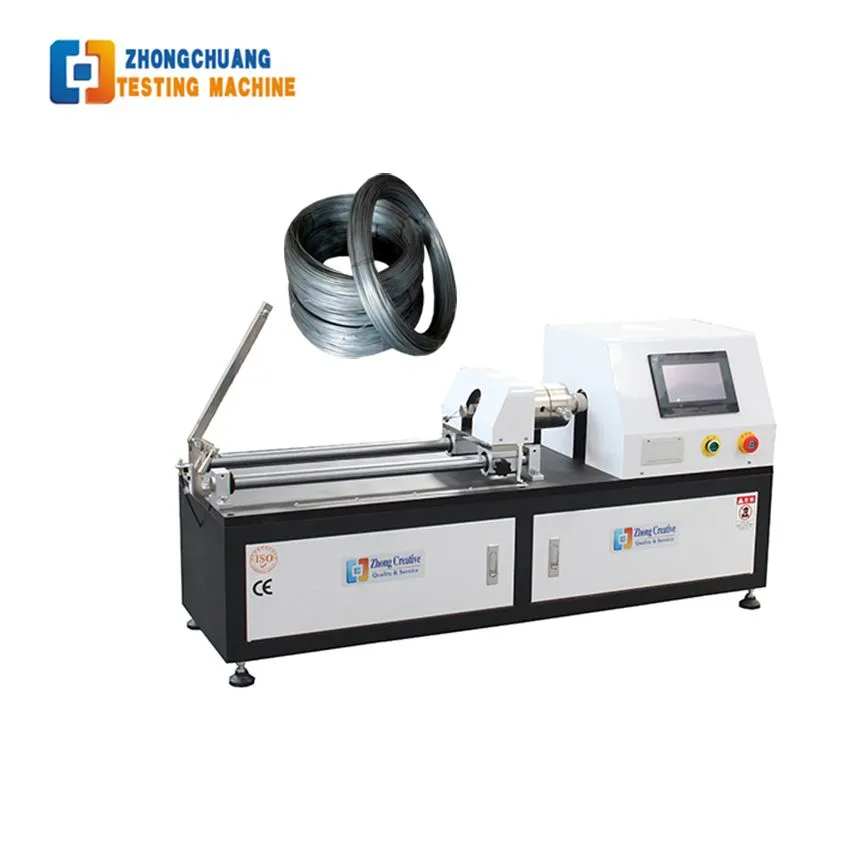

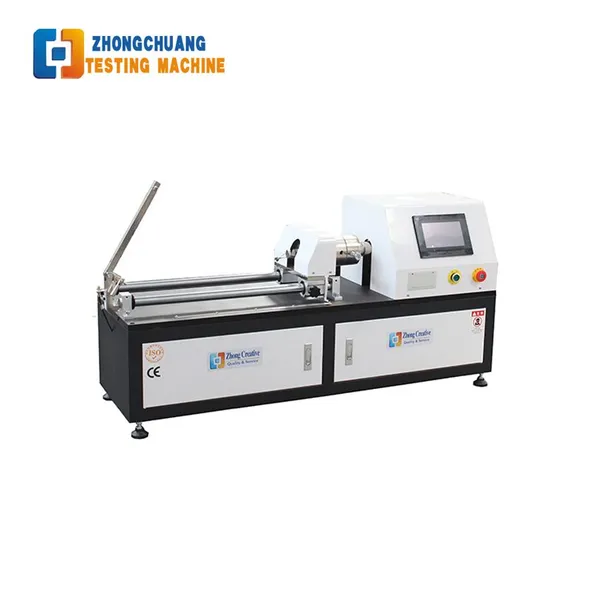

The Metal Wire Torsion Testing Machine is mainly used for measuring the ability of metal wire in the one-way or two-way reverse to withstand the plastic deformation and display wire surface and internal defects.

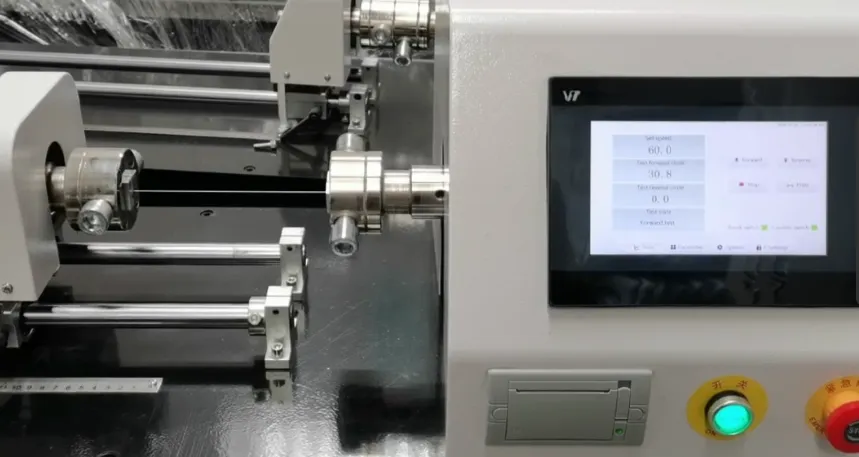

The control system adopts imported Atmel microprocessor. Independent research and development, combined with mature control methods, ensure that the control unit is guaranteed in terms of control accuracy and operational stability. The display uses industrial-grade LCD screen, which has the characteristics of long life, stable performance and wide viewing angle. The counter is a Hall sensor with strong anti-interference ability. The counter also has high sensitivity and good dynamic performance. The machine has the function of automatically judging the wire breakage, the test results can be saved and printed, which is convenient for data retention.
Model |
ZCXC-10 |
Working type |
Automatic loading |
Display type |
LCD English Menu display |
Diameter of clamping metal wire |
1.0≤d(D)＜10.0 |
Space between two fixtures |
500mm |
Clamping block hardness |
＞55HRC |
Clamping range of jaws |
1.0-10.0mm |
Torsion speed |
15-120r/min(Stepless speed regulation) |
Min reading value of turns number |
0.1 |
Max number of turns |
999999999 |
Size of testing machine |
1360*430*600mm |
Weight of testing machine |
140kg |
Power supply |
AC 220V 50 Hz |
