HAWKER EV24-200 LiFePO4 AGV BATTERY 24V200Ah BMS AGV Safe Iithium battery
HAWKER EV24-200 LiFePO4 AGV BATTERY 24V200Ah BMS AGV Safe Iithium battery
Introduction
Hawker AGV SAFE EV series of power battery,is the international advanced level of lithium iron phosphate(LiFePO4)power battery system.With high energy density,long cycle life,excellent charge and discharge performance,good temperature performance,is a new generation of high security and high reliability of the green power supply.
This series of batteries is the use of the latest development of the battery management system(BMS),specifically for mobile mechanical equipment,online charging and wireless charging and design and production of power batteries,with advanced battery self-management,communication,alarm and short-term fast charge Complete function.
Product Features
●Excellent charge and discharge overvoltage and undervoltage protection
●provide analog output AO,SOC analog output 0~5V,user-friendly power monitoring
Note:SOC can only be used as a reference,can not be used as a decision.
●Provides a highly efficient passive equalization system
●Charge/discharge are all with short circuit insurance
●Panel LED power,system status display
●Rich interface,through the digital IO and 485 interface to achieve information exchange
●professional industrial design and material selection,sustainable work in the harsh industrial environment
●support high-power charge and discharge,to meet the needs of a variety of different industrial conditions
●wide temperature working environment conditions,-20 degrees-60 degrees
●small size
Dimensions specifications
Types
Battery size
Long*wide*high（mm）
Charge continuous current
Discharge continuous current
EV24-40
315*237*165mm
80A
20A
EV24-60
315*240*215mm
320*237*188mm
460*220*150mm
120A
30A
EV24-80
355*330*215mm
160A
40A
EV24-100
355*330*215mm
200A
50A
EV24-120
400*275*245mm
180A
60A
EV24-200
550*210*425mm
200A
100A
EV48-30
345*238*200mm
60A
30A
EV48-60
590*240*240mm
120A
30A
EV48-80
585*345*230mm
160A
40A
EV48-100
585*345*230mm
200A
50A
EV48-160
605*435*255mm
160A
80A
EV48-200
615*650*250mm
160A
100A
EV48-250
605*290*480mm
200A
125A
Performance specifications
project
Features
Overvoltage protection
3.7V(single string)
Undervoltage protection
2.8V(single string)
Charging parameters
Maximum 2C lasts for 10 minutes,1C continues
Discharge parameters
Up to 1C continuous
Charge and discharge port form
Charge and discharge
fuse
Have
RS-485 communication
Have
Analog output AO
Have
Configurable DO output
Have
Power LED display
Have
Master switch
Have
Operating temperature
-20℃~60℃
Storage temperature
-20℃~70℃
Working humidity
Relative humidity of 10%to 80%,no condensation
cooling system
Passive natural cooling
Charger requirements
Lithium iron phosphate battery charger
Battery shell color
Toyota White(customizable)
Detailed description

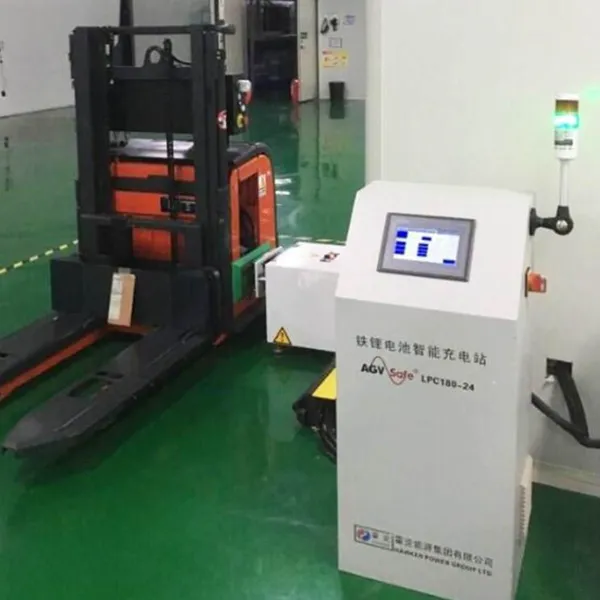

Mobile machines,including all kinds of mobile intelligent robots and AGV vehicles,the power of its own source is the battery.In order to ensure that the mobile machinery can be continuous,stable,safe and reliable work,reasonable configuration of power supply,choose to use high efficiency,and low cost battery,it is very important.
Hawker Power Group Limited is the world's most advanced power supply manufacturer.To meet the requirements of emerging applications,with its advanced manufacturing equipment and processes,the latest patented technology and materials,designed for mobile mechanical power supply adsorption(AGM)AX series maintenance-free lead-acid sealed batteries.The series of batteries in strict compliance with the international standard battery production,not only to strengthen the deep cycle discharge and fast charge capacity,but also improve the use of security and reliability,no damage to equipment and the environment,no pollution.
Follow the standard
●Product design in line with international standards IEC 60896/21-22
●In accordance with the Eurobat guidelines issued in 1999,this series of products belong to the"long life"category
●Complies with Telcordia SR-4228
●UL certification(UL standard 1989)
●According to the US"DOT Regulation 49"and the ICAO ICAO and IATA"Packaging Directive 806",it was approved as a non-dangerous goods suitable for land,sea and air transport
●certified by ISO 9001:2000 and ISO 14001:2004 certified Hawker factory production
Specifications and technical specifications
Types
parameter
AGM(Adsorption)AX Series
AX12-18
AX12-26
AX12-33
AX12-45
AX12-60
AX12-75
AX12-100
AX12-120
AX12-150
AX12-180
AX12-200
Single voltage
12V
Rated Capacity
（25℃）
18AH
26AH
33AH
45Ah
60Ah
75Ah
100Ah
120AH
150AH
180AH
200AH
Internal resistance(mΩ)
10.0
8.0
9.0
7.0
6.5
6.0
5.0
4.5
4.0
4.0
3.8
Single
size
Length
(mm)
181
166
195
198
260
260
308
408
485
530
522
width
(mm)
77
175
130
166
170
170
170
177
170
210
240
height
(mm)
168
125
180
170
185
235
215
225
240
215
225
weight(kg)
5.9
9.0
10.2
14.6
20.2
23.5
30
36.5
47.0
53.0
63.0
Short circuit current
(A)
900
900
1150
1250
1450
1750
2300
2420
2950
3350
3750
Maximum discharge
Current(A)
180
260
330
450
600
765
1025
1200
1510
1850
2100
Maximum charge current(A)
3.6
5.2
6.6
9
12
15
20
24
30
36
40
Charging voltage：Temperature:25℃,float:13.62V;fast charge:14.2V
proper temperature：-10℃～40℃
Recommended temperature:20℃~25℃
Number of deep cycle discharges：More than 1200 times 50%DOD;more than 800 times 80%DOD
Terminal
M5
M5
M6
M6
M6
M6
M8
M8
M8
M8
M8
