Product Description

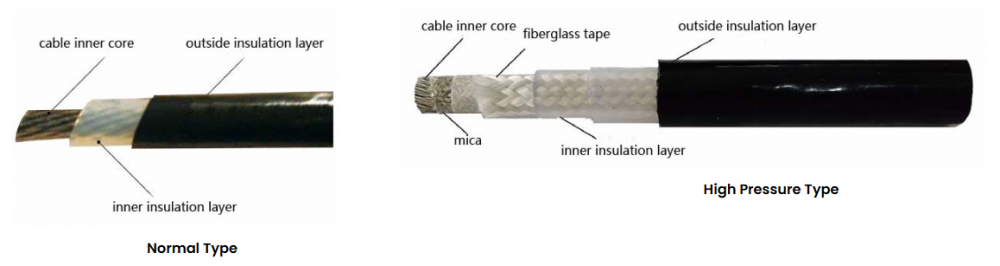

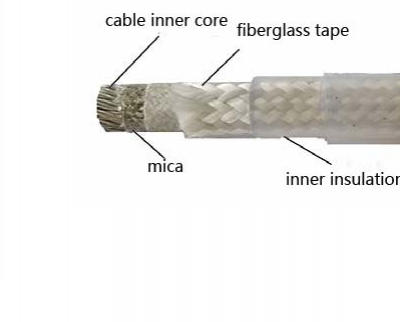

Specification
No. |
Item |
Silane Crosslinking |
FEP Fluoroplastics |
PFA High Temp.Temp. Fluoroplastics |
Steel Armored SkinCable |
1 |
Cable Type |
JFHCL1-J2 |
JFHCL1-J3 |
JFHCL1-J4 |
JFHCL1-J5 |
2 |
Nominal Cross Section (mm²) |
5-90 |
5-90 |
5-90 |
5-30 |
3 |
Insulation Jacket |
2-5 |
2-5 |
2-5 |
1 |
4 |
Power Supply Voltage |
220-35000 |
220-35000 |
220-35000 |
220-35000 |
5 |
Working Voltage |
0.5-15 |
0.5-15 |
0.5-15 |
0.5-6 |
6 |
Working Frequency |
50-4000 |
50-4000 |
50-4000 |
50-4000 |
7 |
20℃ Insulation |
2500 |
2500 |
2500 |
2500 |
8 |
Puncture Test |
15 |
15 |
15 |
15 |
9 |
Working Temp. |
-40-110 |
-40-180 |
-40-230 |
0-500 |
10 |
Overall Breaking Force |
20000 |
20000 |
20000 |
50000 |
11 |
Min. Bending Radius mm |
260 |
260 |
260 |
260 |
12 |
Heating Power |
3-270 |
3-270 |
3-270 |
3-90 |
Principle

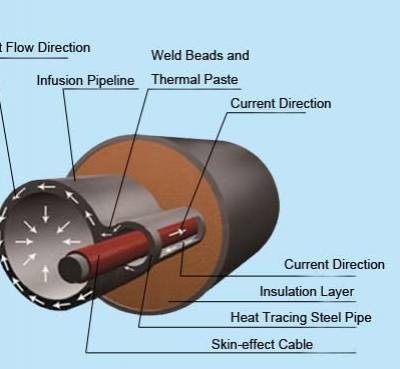

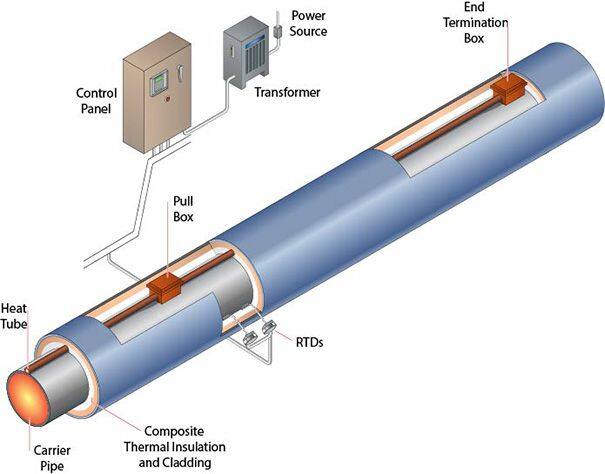

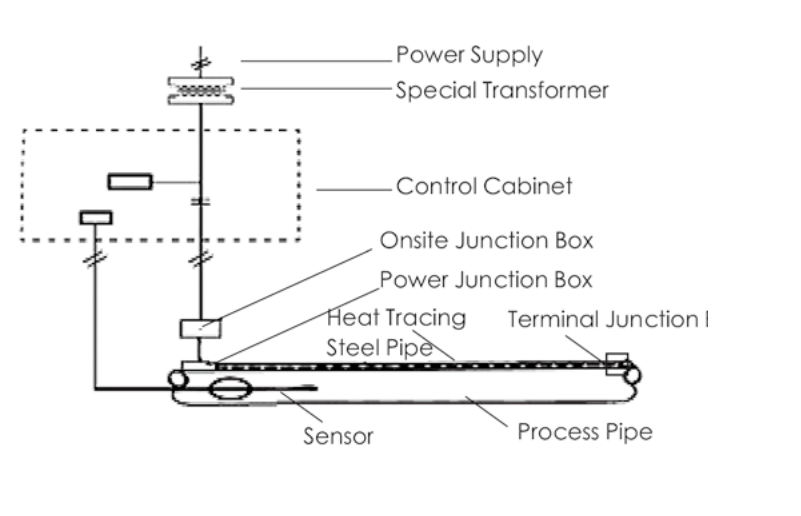

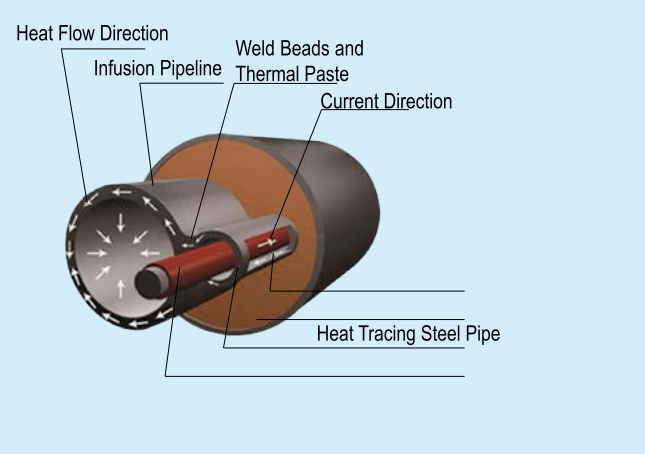

The principle of SETS is based on the "skin effect" and "proximity effect" of alternating current. Since steel pipes have extremely strong magnetic permeability, significant skin effects will occur even under power frequency voltage. The so-called skin effect is a phenomenon that occurs when an alternating current passes through a carbon steel conductor and the current gradually approaches the surface of the conductor, while the proximity effect is an electromagnetic phenomenon between a pair of electrical bodies carrying opposite equal currents. In the heating tube When a current passes between the cable and the heat pipe, the current on the heating pipe gradually flows to the inner wall of the heating pipe, and it is the Joule heat generated by this thin inner wall that meets the need for heat tracing. The Joule heat generated by the skin effect electric heating system mainly comes from three parts:
Strong adaptability
1). When the skin cable is energized, the heat emitted from the carbon steel pipe is the main heat source of the skin electric heating system.
2). The heat generated by the cables inside the carbon steel pipe.
3). Hysteresis loss in the carbon steel pipe generates some heat.
It is suitable for heat tracing and heating of all long, medium and short distance metal infusion pipelines. It is suitable for different laying methods of pipelines and in any place; such as: direct underground burial, underwater, and overhead ground; suitable for outdoor or mines, factories, flammable Explosive places.
Contrast with other heat tracing system | ||||
No. |
Characteristics |
Skin-effect Heat Tracing |
Electric Heat Tracing |
Steam Heat Tracing |
1 |
Heating Trace Distance |
Long |
Short |
Short (Low Terminal Temperature) |
2 |
Power Supply Point |
Few |
More |
No need |
3 |
Heating Tracing Power |
Big |
Small |
Small |
4 |
Heat Tracing Effect |
good |
good |
common |
5 |
Heat Tracing Pipe Laying |
Weld or Bundle |
Bundle |
Bundle |
6 |
Automatic Control |
Convenient |
Convenient |
Cannot realize |
7 |
Repair |
Convenient |
Convenient |
Difficult |
8 |
Local Heating |
Common |
Good |
Good |
9 |
Safety&Reliability |
Good |
Good |
Good |
10 |
Construction Cost |
Higher |
Higher |
Lower |
11 |
Running Cost |
Low |
Low |
High |
12 |
Repair Cost |
Low |
Low |
Low |
13 |
Manage |
Convenient |
Convenient |
Not Convenient |
14 |
Service Lift |
20-30 Year |
5-15 Year |
2-3 Year |
15 |
Underground Pipeline |
Suitable |
Suitable |
Not Suitable |

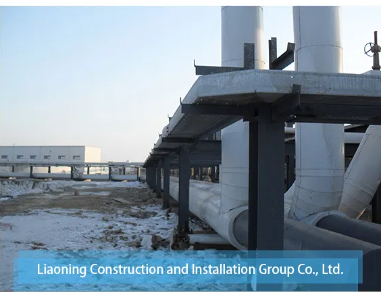

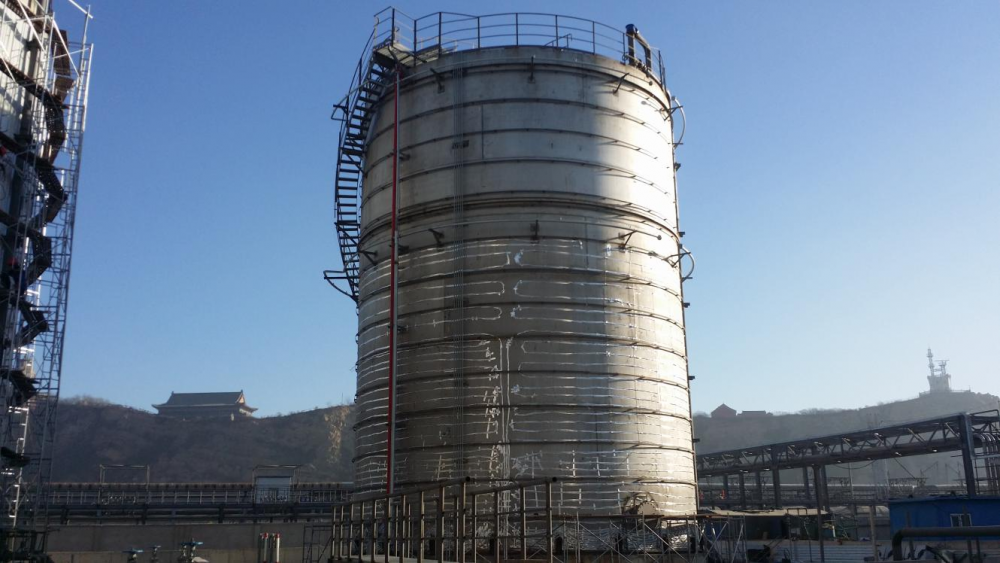

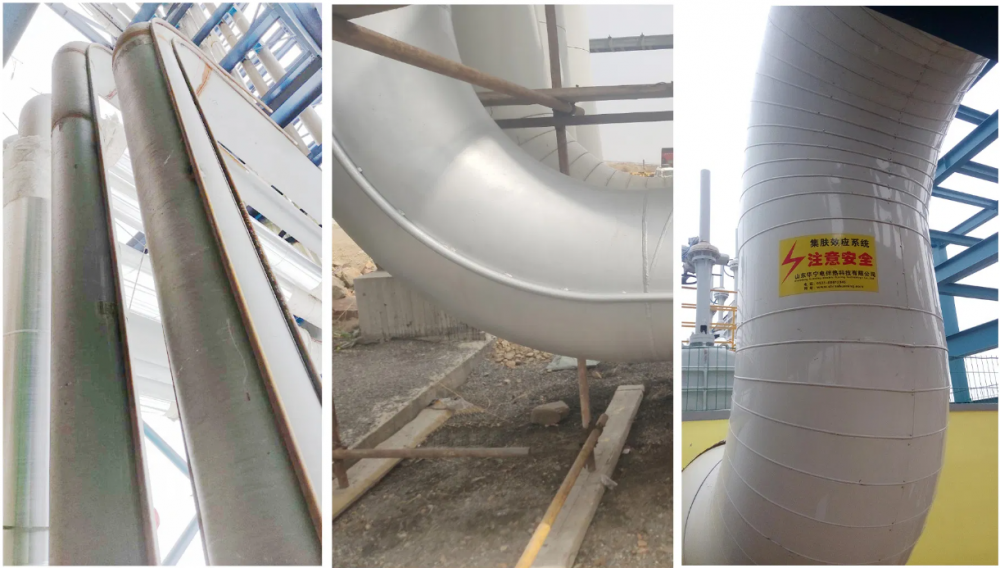

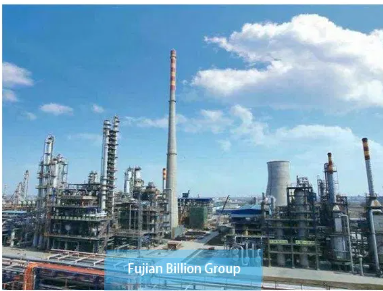

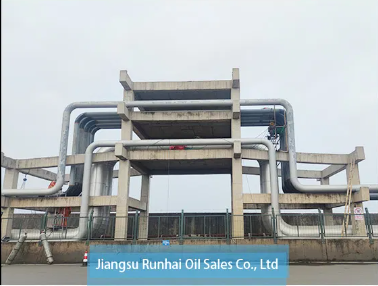

Installation and Construction |
