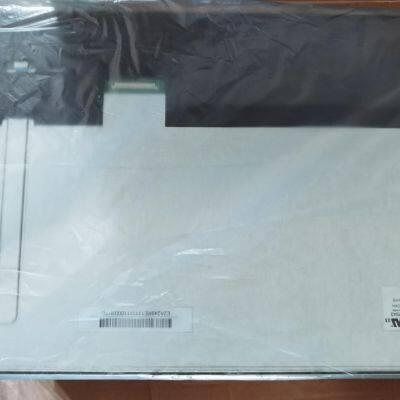

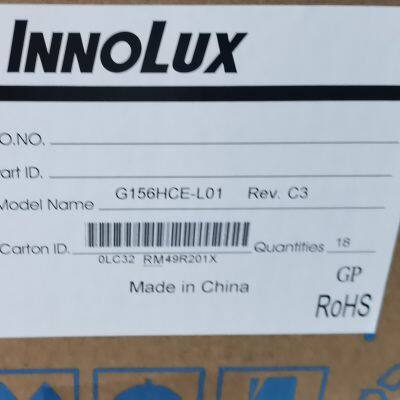

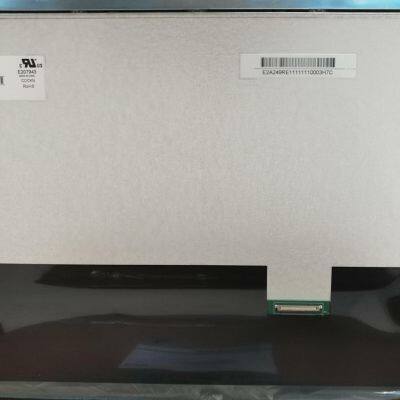

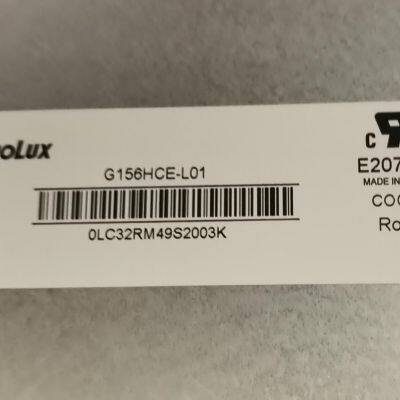

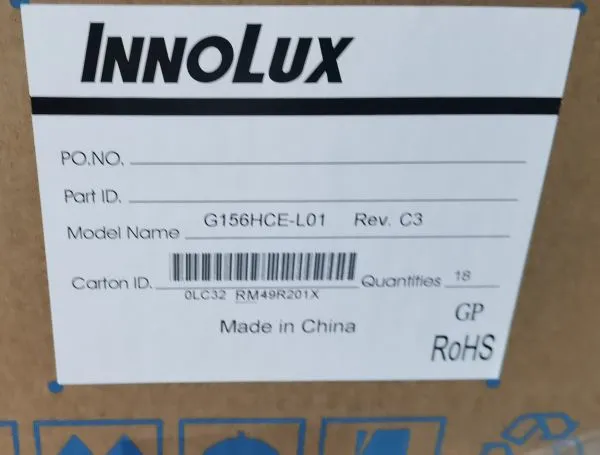

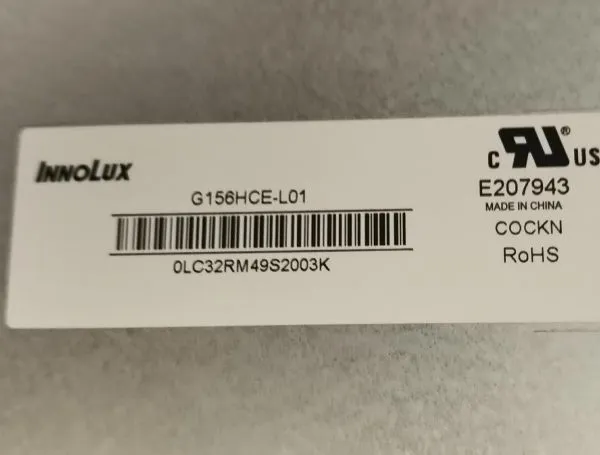

G156HCE-L01 is a 15.6-inch LCD module product launched by Innolux, with the main parameters as follows:
- Basic Parameters: The diagonal size is 15.6 inches, it is an a-Si TFT-LCD liquid crystal module. The operating temperature range is -30~85°C, and the storage temperature range is -40~90°C. It has a vibration resistance of 1.5G (14.7m/s2) and complies with the RoHS standard.
- Display Parameters: The resolution is 1920×1080 (FHD). The dot pitch is 0.05975×0.17925mm, and the pixel pitch is 0.17925×0.17925mm. The display area is 344.16×193.59mm, with an aspect ratio of 16:9. The display brightness is 450cd/m2, and the contrast ratio is 800:1. The viewing angle is 85/85/85/85 (CR≥10). The display mode is AAS, with normally black display and transmissive type. The response time is 13/12ms (Tr/Td). It supports 16.2 million colors, with a color temperature of 6485K. The NTSC ratio is 73%, the sRGB coverage rate is 93%, the Adobe RGB coverage rate is 72%, the DCI-P3 coverage rate is 75%, and the Rec.2020 coverage rate is 54%. The frame rate is 60Hz.
- Structural Parameters: The overall dimension is 363.8×215.98mm, and the thickness is 9.3±0.3mm. It has a flat rectangular physical shape, with a weight of 1.06/1.1Kgs (Typ./Max.). The surface treatment is matte with Hard coating (3H).
- Electrical Parameters: The total power consumption is 16W (Typ.). The supply voltage is 3.3V (Typ.), and the supply current is 1.22/1.5A (Typ./Max.). The power consumption is 4.0/5.0W (Typ./Max.). The signal type is LVDS (2 ch, 8-bit). The light source type is edge-lit WLED, with a lamp life of 50K (Min.) hours. The backlight driver includes an LED driver. The backlight supply voltage is 12.0±1.2V, the backlight supply current is 1.0±0.2A, and the backlight power consumption is 12.0W (Typ.).
Chimei 15.6-inch LCD industrial control screen
Model: G156HCE-L01
Resolution: 1920*1080
Brightness: 450cd/m2
Viewing angle: 85/85/85/85
Contrast ratio: 800:1
Operating temperature: -30~85°C
Storage temperature: -40~90°C
