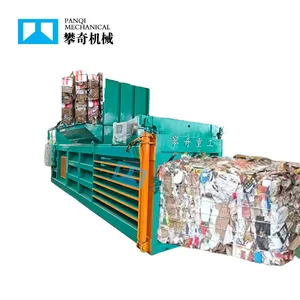

Help CenterMultifunctional Horizontal Hydraulic Waste Paper Baler Fully Automatic Textile Waste Baler for Recycling Centers
Product Spotlights
Related Products
-
160T Horizontal Hydraulic Waste Paper Baler Textile Waste Baler for Recycling CentersUS$ 14666MOQ: 1 Set -
Automatic Horizontal Hydraulic Waste Paper Baler Textile and Cardboard Recycling PressUS$ 12616 - 12666MOQ: 1 Set
-
Automatic Horizontal Hydraulic Waste Paper Baler Textile and Cardboard Recycling PressUS$ 12550 - 12600MOQ: 1 Set
-
160T Horizontal Hydraulic Waste Paper Baler Textile Waste Baler for Recycling CentersUS$ 1466MOQ: 1 Set
-
Automatic Horizontal Hydraulic Waste Paper Baler Textile and Cardboard Recycling PressUS$ 11900 - 12000MOQ: 1 Set
Product Description

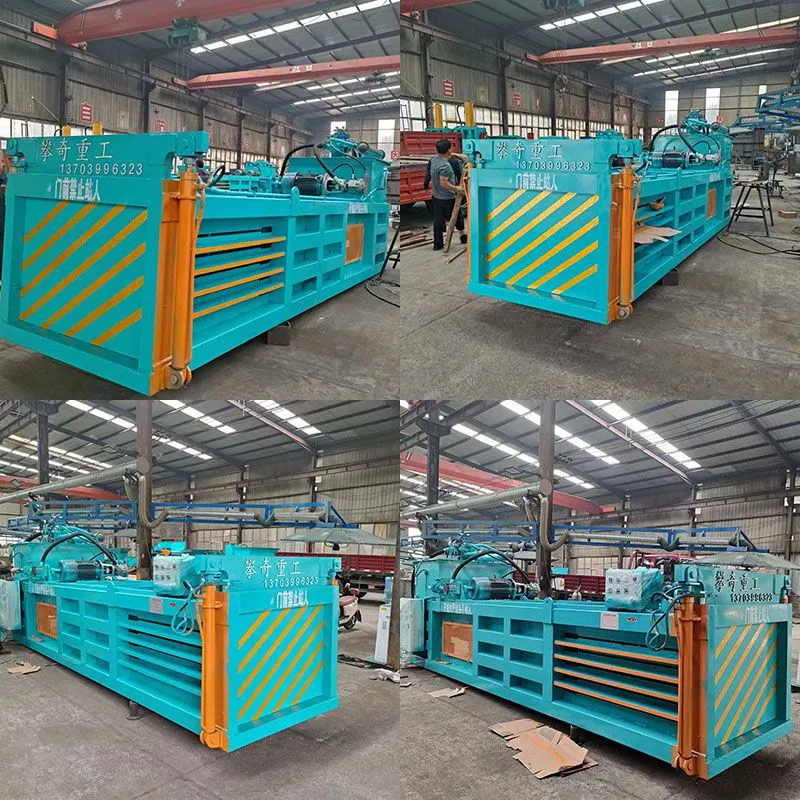

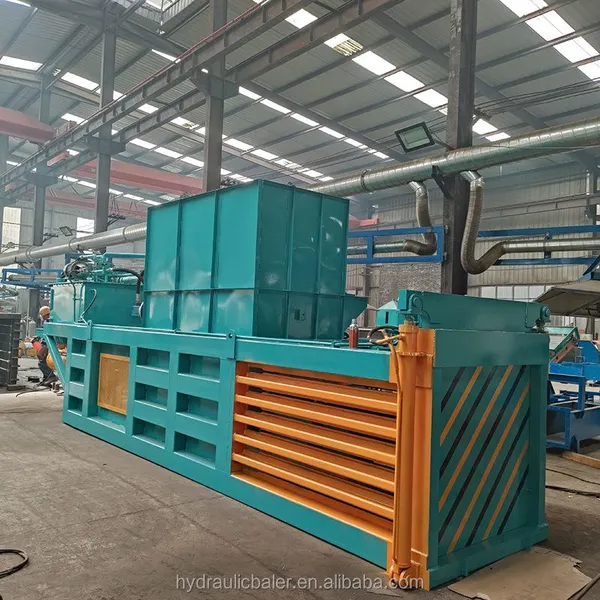

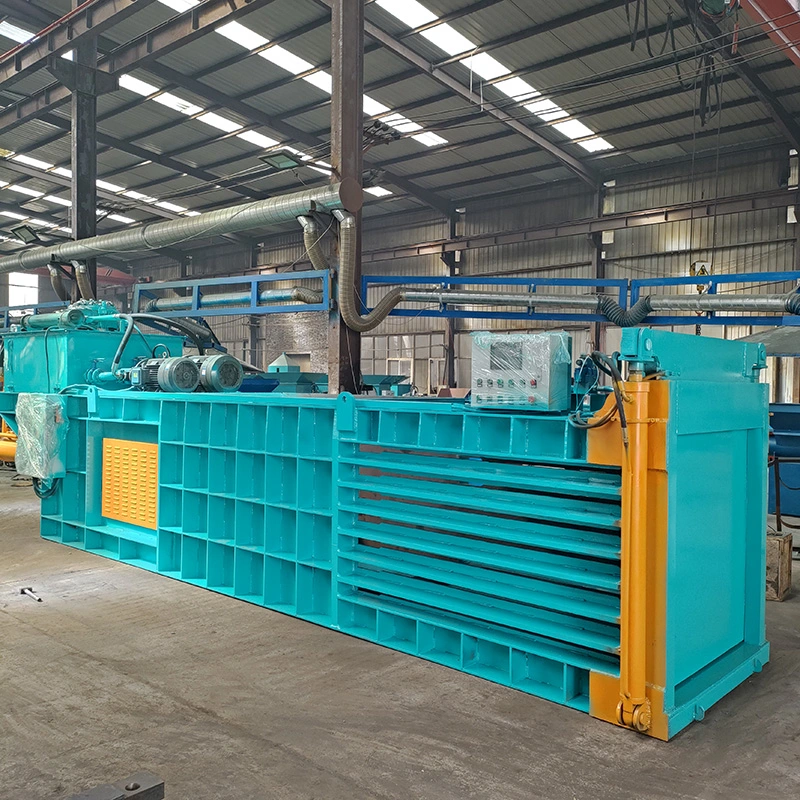

Horizontal Hydraulic Waste Paper Bale
This multifunctional horizontal hydraulic baler is a fully automatic waste processing machine, ideal for recycling centers. It efficiently compresses waste paper, textiles, and other recyclable materials into compact bales, greatly reducing storage and transportation costs.
Basic Info.
Key Advantages
1. Stable hydraulic system ensures smooth and reliable operation with low failure rate.
2. Fully automatic control reduces labor input and improves work efficiency.
3. High compression ratio maximizes material density, making storage and shipping more economical.
4. Customizable parameters to adapt to different material types and production needs.
5. CE certified, with durable structure and easy maintenance for long service life.
Full Model Core Parameters Overview (Customized Selection for Your Needs)
| Model | 100T | 125T (Small Bale Mouth) | 125T (Standard) | 160T | 200T | 250T |
| Oil Cylinder | 220/273 | 250/299 | 250/299 | 280/351 | 320/377 | 340/426 |
| Power | 22KW | 30KW | 45/22*2KW | 30+22KW | 30+30KW | 45+45KW |
| Oil Pump | HY200 | HY200 | HY200 | HY160+4535VQ Q75 | HY200+4535VQ Q75A10 | HY200+4535VQ 75+HY200 4535VQ75A |
| Bale Size | 1500*1100*850mm | 1500*1100*850mm | 1100*1250mm (W*H*L, adjustable) | 1100*1250mm (W*H*L, adjustable) | 1100*1250mm (W*H*L, adjustable) | 1100*1250mm (W*H*L, adjustable) |
| Cooling Method | Water Cooling | Water Cooling | Water Cooling/Air Cooling | Water Cooling/Air Cooling | Water Cooling/Air Cooling/Oil Chiller | Water Cooling/Air Cooling/Oil Chiller |
| Lifting Door Oil Cylinder | 70/90 | 70/90 | 90/121 | 90/121 | 90/121 | 125/121 |
| Valve Block | Plate Valve 2532 | Plate Valve 2540 | Cartridge Valve 3240 | Cartridge Valve 4050 | Cartridge Valve 4050 | Dual-system Cartridge Valve 4050+4050 Large Diameter |
| Feeding Port | 1500*1100 | 1500*1100 | 2000*1100 | 2000*1100 | 2200*1100 | 2200*1100 |
| Hourly Output | 6-8 bales | 6-8 bales | 6-8 bales | 6-8 bales | 6-8 bales | 8-10 bales |
| Main Machine Dimensions | 7300*1500*2200mm | 7300*1500*2200mm | 9600*1600*2400mm | 9600*1600*2800mm | 9800*1600*2400mm | 9800*1600*2800mm |
| Hydraulic Oil | #46 | #46 | #46 | #46 | #46 | #46 |
| Operation Mode | Automatic, Manual, Remote Control | Automatic, Manual, Remote Control | Automatic, Manual, Remote Control | Automatic, Manual, Remote Control | Automatic, Manual, Remote Control | Automatic, Manual, Remote Control |
| Bale Discharge Platform | None | None | 2200*700mm | 2200*700mm | 2200*700mm | 2200*700mm |
| Weight | 9T | 10T | 15T | 18T | 22T | 27T |
(Note: We support customized bale size and automation configuration. We can provide a free exclusive selection plan according to your daily processing capacity, site size and budget.)
Applicable Raw Materials
After-Sales & Service Guarantee
Worry-Free Full-Service, More Assured Cooperation
✅ Direct Supply from Source Factory: Henan Panqi Heavy Industry has its own production base, no middlemen, more favorable prices
✅ Customized Service: Customize equipment model, bale size and automation configuration according to requirements
✅ Professional Installation & Commissioning: Free installation guidance and operation training, on-site service optional
✅ Perfect After-Sales Guarantee: 1-year warranty for core components, 24-hour online technical support, quick response
