Product Description

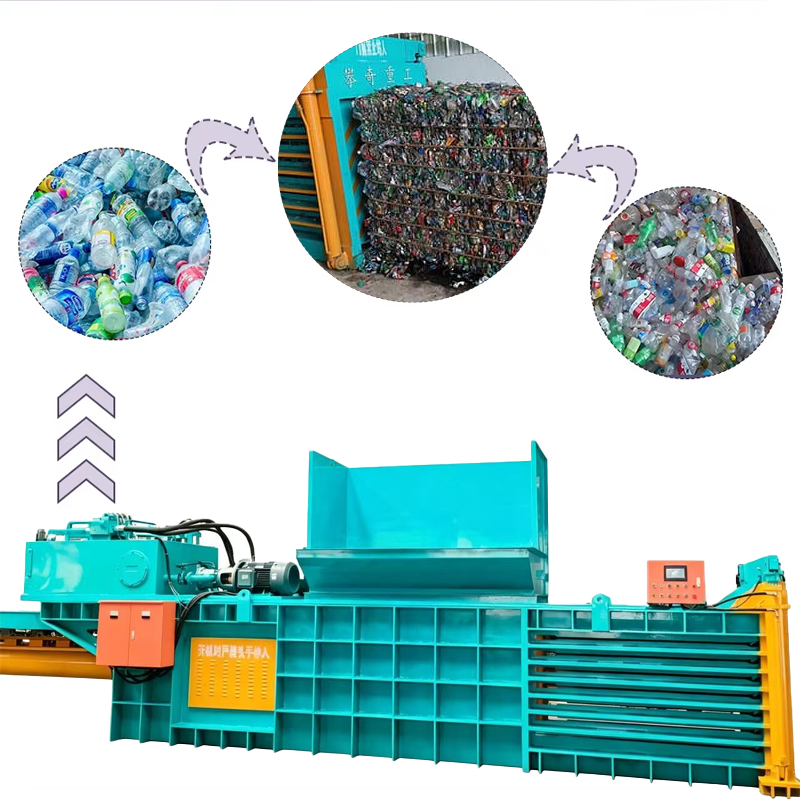

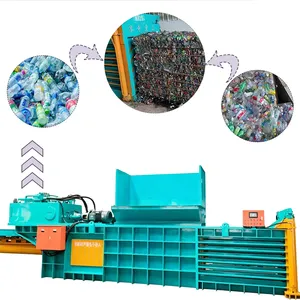

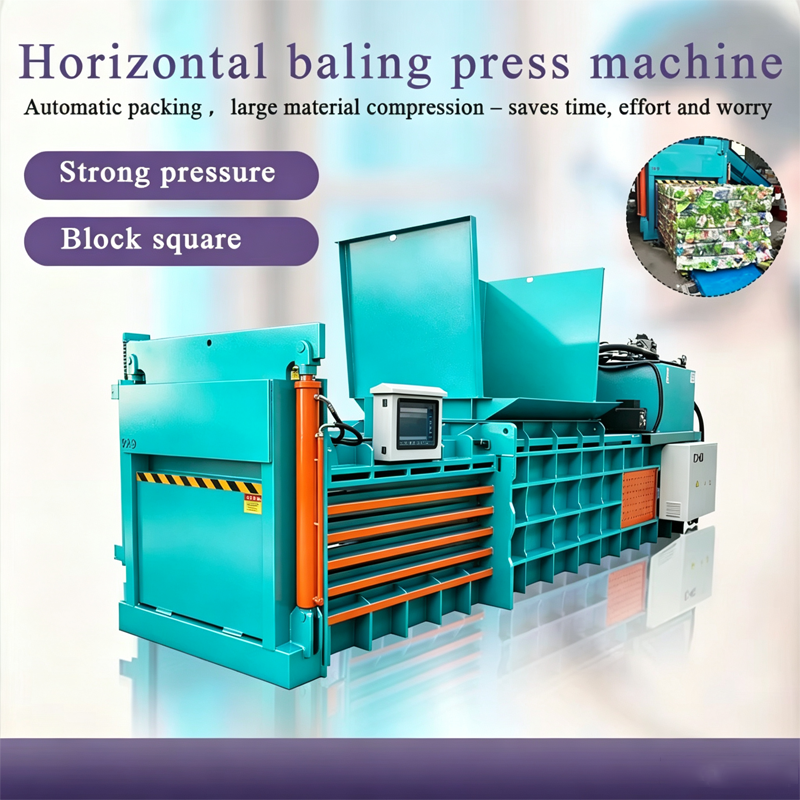

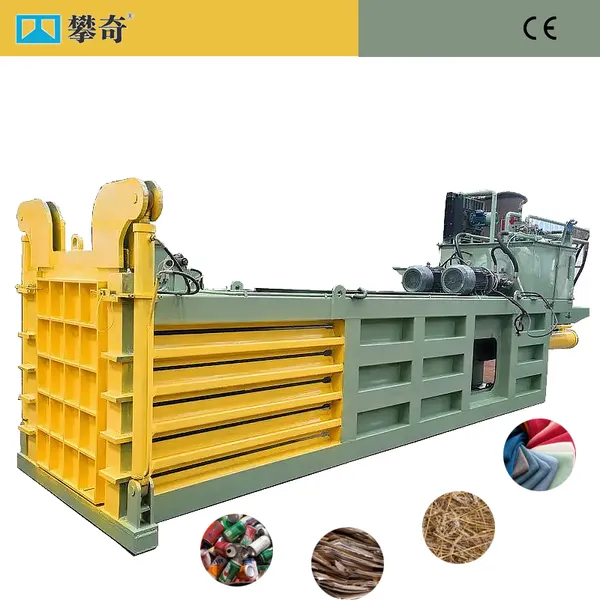

Horizontal Hydraulic Waste Paper Bale
This multifunctional horizontal hydraulic baler is a fully automatic waste processing machine, ideal for recycling centers. It efficiently compresses waste paper, textiles, and other recyclable materials into compact bales, greatly reducing storage and transportation costs.
1. Stable hydraulic system ensures smooth and reliable operation with low failure rate.
2. Fully automatic control reduces labor input and improves work efficiency.
3. High compression ratio maximizes material density, making storage and shipping more economical.
4. Customizable parameters to adapt to different material types and production needs.
5. CE certified, with durable structure and easy maintenance for long service life.

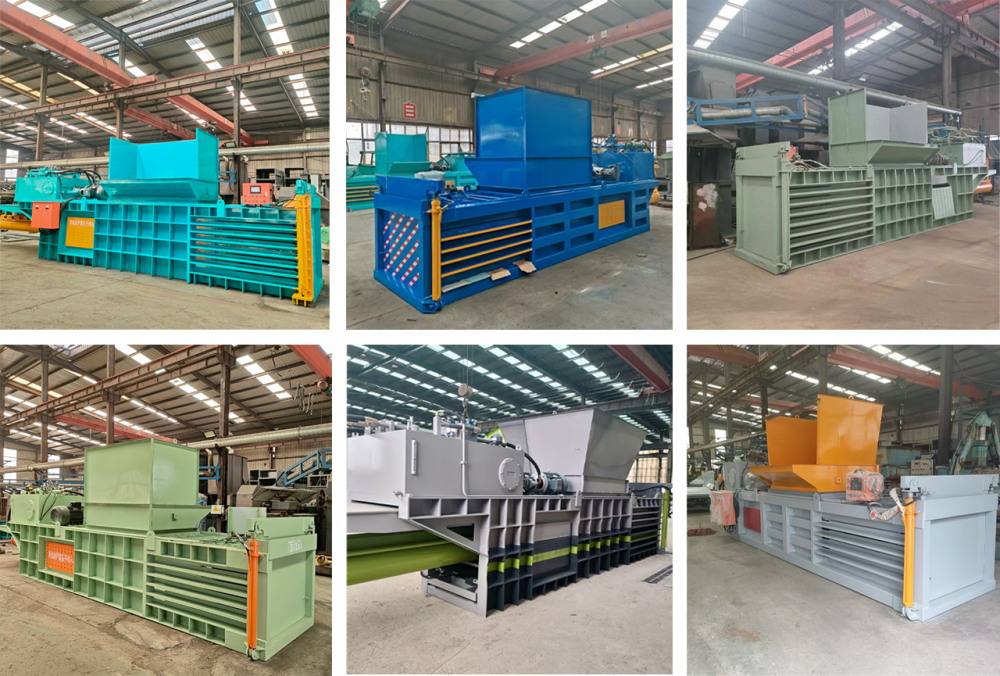

Various Colors Available for Customization
Basic Info.

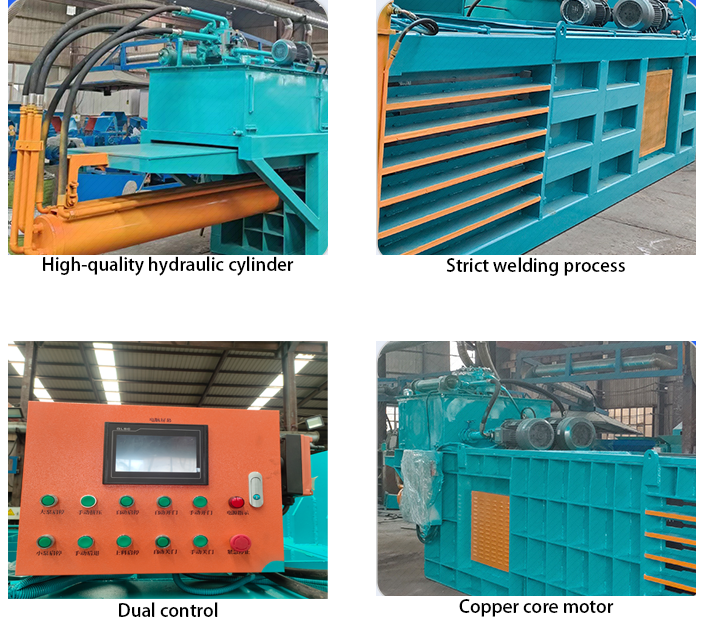

Key Advantages
1. High-Quality Hydraulic Cylinder
Adopts high-pressure-resistant thick-walled tube with excellent sealing performance. It prevents oil leakage and pressure loss, ensuring long-lasting durability.
2. Strict Welding Process
Features a more robust structure compared to ordinary machines. The exterior boasts neat and aesthetic welding without any cracking.
3. Dual Control
Equipped with two convenient and efficient control modes, including a handle controller, ensuring safer and more user-friendly operation.
4. Copper-Core Motor
Delivers strong power for long-lasting efficient operation. The integrated Tai Chi turbine rotation effectively reduces noise levels.
Full Model Core Parameters Overview (Customized Selection for Your Needs)
| Model | 100T | 125T (Small Bale Mouth) | 125T (Standard) | 160T | 200T | 250T |
| Oil Cylinder | 220/273 | 250/299 | 250/299 | 280/351 | 320/377 | 340/426 |
| Power | 22KW | 30KW | 45/22*2KW | 30+22KW | 30+30KW | 45+45KW |
| Oil Pump | HY200 | HY200 | HY200 | HY160+4535VQ Q75 | HY200+4535VQ Q75A10 | HY200+4535VQ 75+HY200 4535VQ75A |
| Bale Size | 1500*1100*850mm | 1500*1100*850mm | 1100*1250mm (W*H*L, adjustable) | 1100*1250mm (W*H*L, adjustable) | 1100*1250mm (W*H*L, adjustable) | 1100*1250mm (W*H*L, adjustable) |
| Cooling Method | Water Cooling | Water Cooling | Water Cooling/Air Cooling | Water Cooling/Air Cooling | Water Cooling/Air Cooling/Oil Chiller | Water Cooling/Air Cooling/Oil Chiller |
| Lifting Door Oil Cylinder | 70/90 | 70/90 | 90/121 | 90/121 | 90/121 | 125/121 |
| Valve Block | Plate Valve 2532 | Plate Valve 2540 | Cartridge Valve 3240 | Cartridge Valve 4050 | Cartridge Valve 4050 | Dual-system Cartridge Valve 4050+4050 Large Diameter |
| Feeding Port | 1500*1100 | 1500*1100 | 2000*1100 | 2000*1100 | 2200*1100 | 2200*1100 |
| Hourly Output | 6-8 bales | 6-8 bales | 6-8 bales | 6-8 bales | 6-8 bales | 8-10 bales |
| Main Machine Dimensions | 7300*1500*2200mm | 7300*1500*2200mm | 9600*1600*2400mm | 9600*1600*2800mm | 9800*1600*2400mm | 9800*1600*2800mm |
| Hydraulic Oil | #46 | #46 | #46 | #46 | #46 | #46 |
| Operation Mode | Automatic, Manual, Remote Control | Automatic, Manual, Remote Control | Automatic, Manual, Remote Control | Automatic, Manual, Remote Control | Automatic, Manual, Remote Control | Automatic, Manual, Remote Control |
| Bale Discharge Platform | None | None | 2200*700mm | 2200*700mm | 2200*700mm | 2200*700mm |
| Weight | 9T | 10T | 15T | 18T | 22T | 27T |
(Note: We support customized bale size and automation configuration. We can provide a free exclusive selection plan according to your daily processing capacity, site size and budget.)

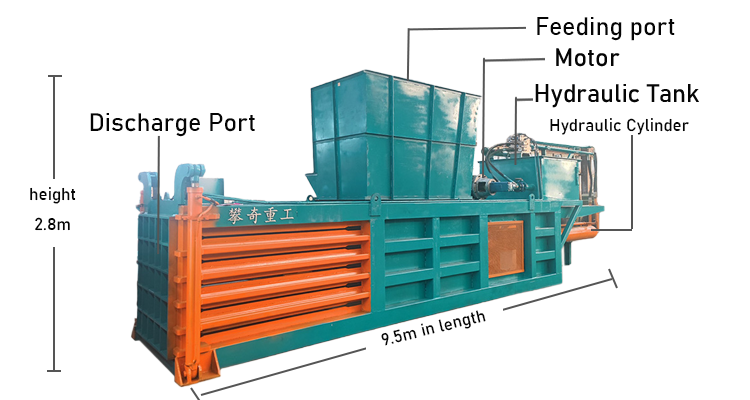

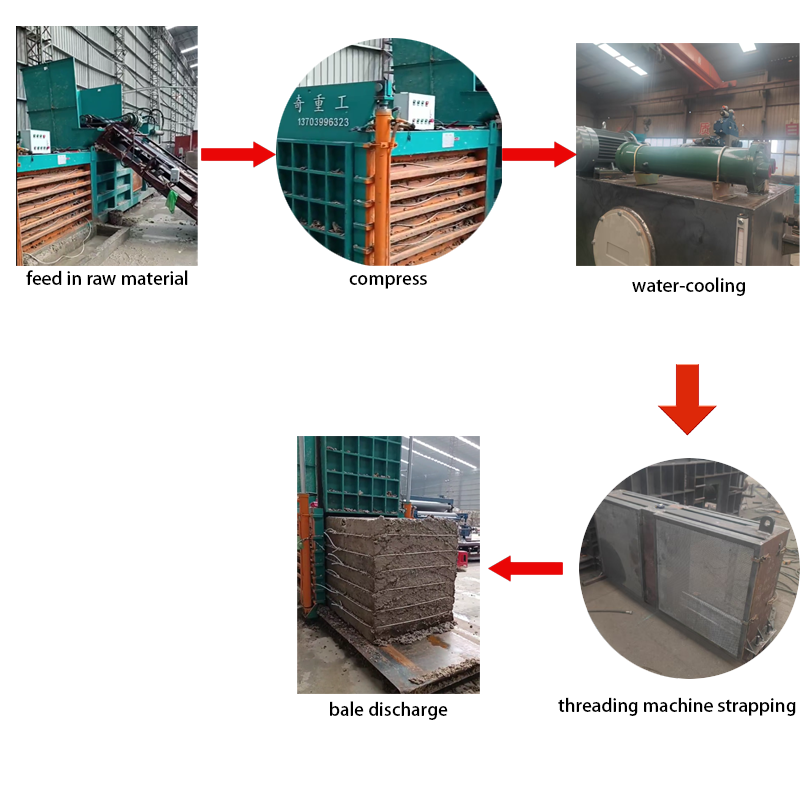

Working Process
Feeding
Load loose waste paper, cartons, or other recyclable materials into the large feeding hopper of the baler manually or via a conveyor belt.
2. Door Locking & Compression
The feeding door closes and locks automatically. The main hydraulic cylinder pushes the pressing head forward, applying high pressure to compress the materials into a dense block in the compression chamber.
3. Multiple Compression (Optional)
For higher density bales, the system can perform repeated compression cycles: the pressing head retracts, new materials are added, and compression is repeated until the set density is reached.
4. Bale Strapping
Once the bale reaches the required size and density, the operator manually or automatically threads steel wires/PP straps through the reserved strapping channels and tightens them to secure the bale.
5. Bale Ejection
The discharge door opens automatically. The ejector cylinder pushes the finished bale out of the compression chamber onto the discharge platform for easy collection and transportation.

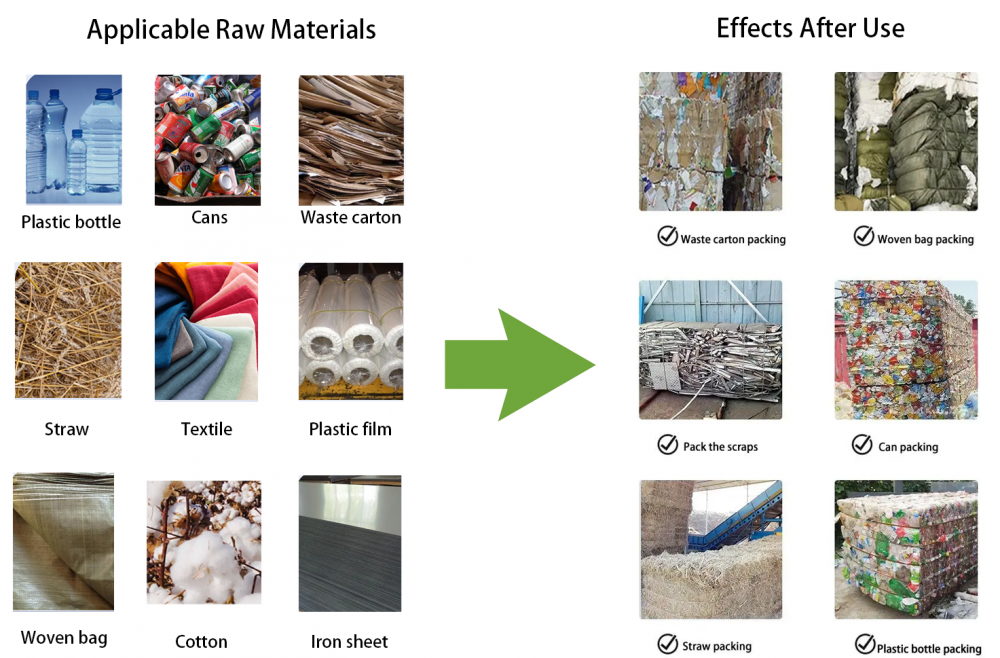

Applicable Raw Materials
The automatic horizontal hydraulic baler machine also can baling the waste paper, cardboard, carton, waste plastic, cans, aluminum, coconut, used clothes, cotton, straw, tire and other loose material compressed into a block, so that we can store, transport and utilize them easily expediently.
1.Baler for the paper: Corrugated cardboard, Sanitary paper, Tissue paper, Newspaper, Printing paper.
2. Baler for the plastics: PP/PE film, PET bottles, HDPE bottles, Stiff plastic.
3. Baler for the metals: Aluminum cans, Steel cans.
After-Sales & Service Guarantee
Worry-Free Full-Service, More Assured Cooperation
✅ Direct Supply from Source Factory: Henan Panqi Heavy Industry has its own production base, no middlemen, more favorable prices
✅ Customized Service: Customize equipment model, bale size and automation configuration according to requirements
✅ Professional Installation & Commissioning: Free installation guidance and operation training, on-site service optional
✅ Perfect After-Sales Guarantee: 1-year warranty for core components, 24-hour online technical support, quick response
