Product Description

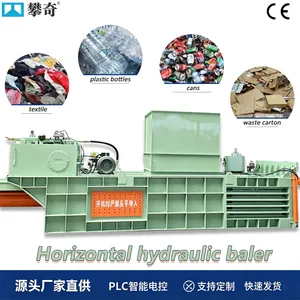

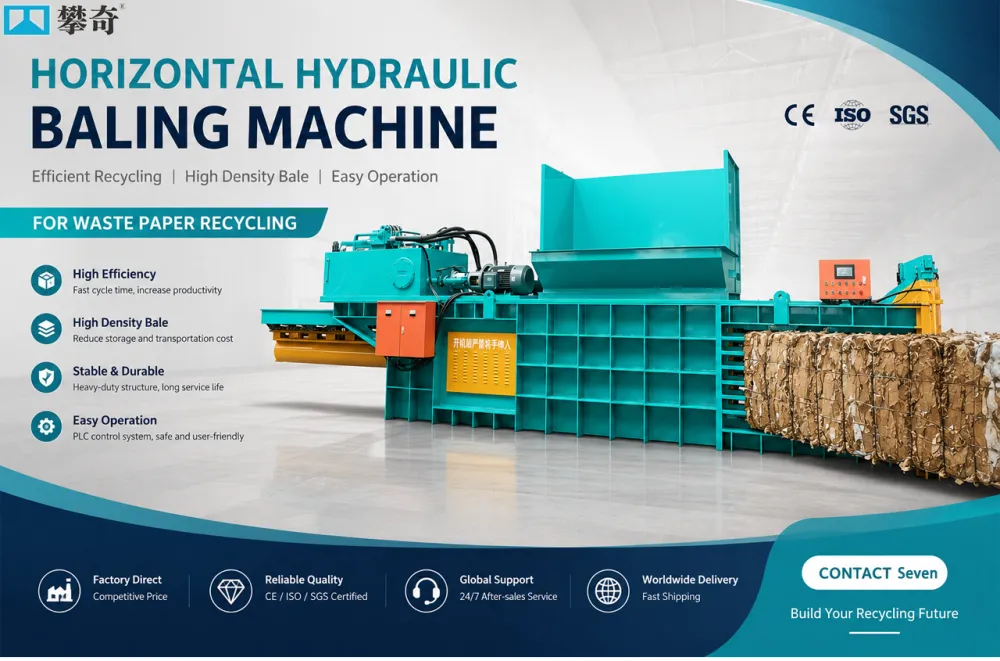

Horizontal Hydraulic Waste Paper Baler
PanQi horizontal hydraulic baler is equipped with PLC automatic intelligent control system, standard air cooling radiator, supporting 24-hour non-stop industrial operation. Multiple tonnage models 100T /125T small feed /125T standard /160T optional, hourly output 4-5 tons. It can compress waste paper, cartons, plastic bottles, films, straw, textiles, industrial waste and other materials with tight bales, greatly reducing storage and logistics cost. The whole machine is welded with thickened manganese steel plate, flange hydraulic pipeline prevents oil leakage. Direct manufacturer, custom service available.
1. Stable hydraulic system ensures smooth and reliable operation with low failure rate.
2. Fully automatic control reduces labor input and improves work efficiency.
3. High compression ratio maximizes material density, making storage and shipping more economical.
4. Customizable parameters to adapt to different material types and production needs.
5. CE certified, with durable structure and easy maintenance for long service life.

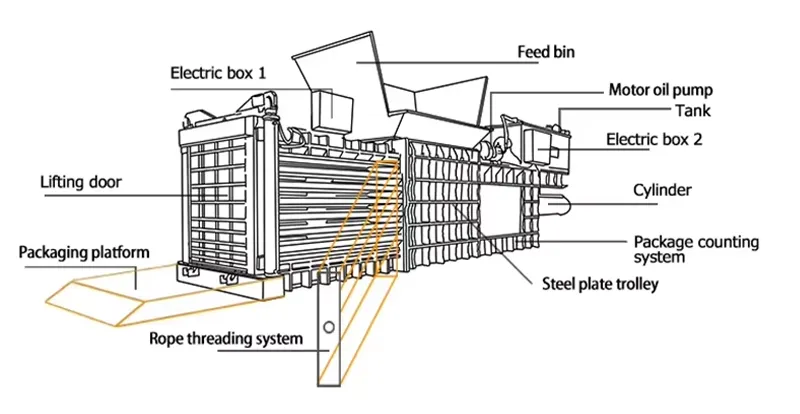

Product Structure
| Model | 100T | 125T(small) | 125T(big) | 160T | 200T | 250T |
|---|---|---|---|---|---|---|
| Hydraulic cylinder | 220/273 | 250/299 | 250/299 | 280/351 | 320/377 | 340/425 |
| Power | 22KW | 30KW | 45/22*2KW | 30+22KW | 30+30KW | 45+45KW |
| Bale size | 1100*850 mm | 1100*850 mm | 1100*1250 mm | 1100*1250 mm | 1100*1250 mm | 1100*1250 mm |
| Type of cooling | water-cooling | water-cooling | water-cooling | water-cooling | water-cooling | water-cooling |
| Lift the door cylinder | 70/90 | 70/90 | 90/115 | 90/115 | 90/115 | 125/152 |
| Feed opening | 1500*1100 | 1500*1100 | 2000*1100 | 2000*1100 | 2000*1100 | 2000*1100 |
| Hourly output | 6-8packs | 6-8packs | 8-10packs | 8-10packs | 8-10packs | 8-12packs |
| Dimension | 6500*1500*2200mm | 7300*1500*2200mm | 9000*1600*2400mm | 9000*1600*2800mm | 9200*1600*2400mm | 9500*1800*2800mm |
| Operating mode | Automatic, manual, remote control | Automatic, manual, remote control | Automatic, manual, remote control | Automatic, manual, remote control | Automatic, manual, remote control | Automatic, manual, remote control |
| Weight | 9T | 10T | 15T | 18T | 22T | 27T |
Note: We support customized bale size and automation configuration. We can provide a free exclusive selection plan according to your daily processing capacity, site size and budget.

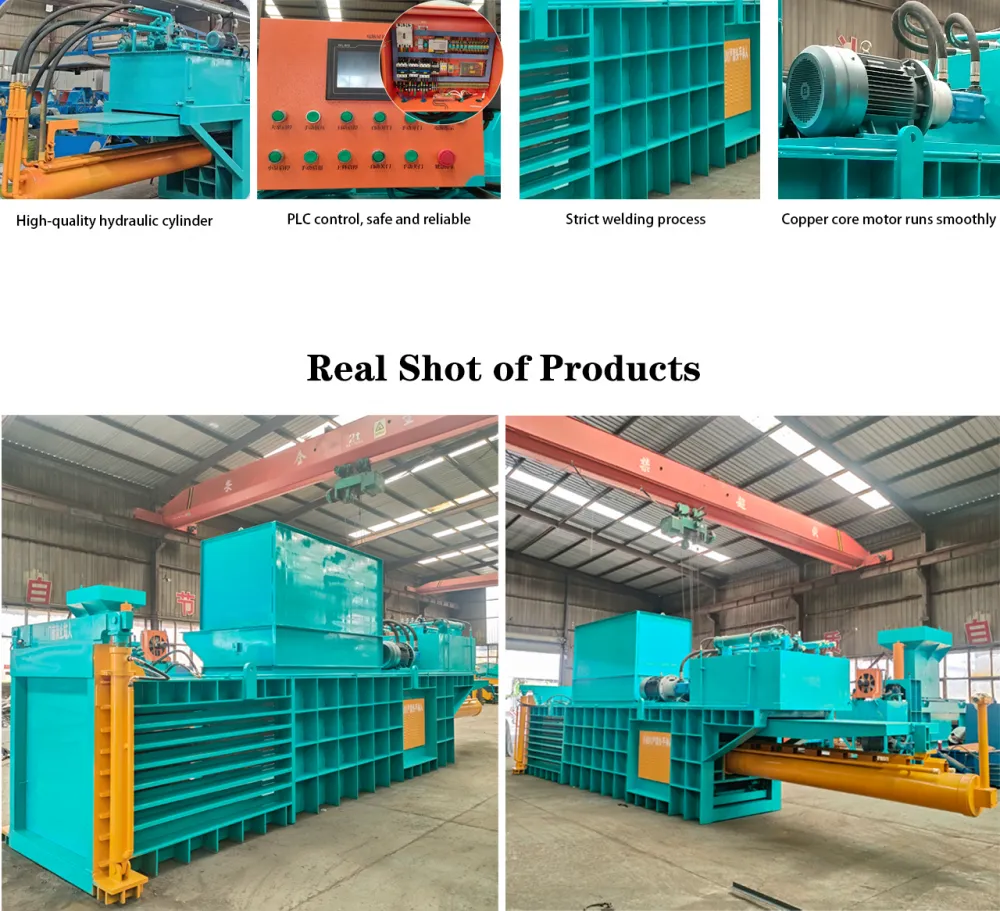

Key Advantages
1. High-Quality Hydraulic Cylinder
Adopts high-pressure-resistant thick-walled tube with excellent sealing performance. It prevents oil leakage and pressure loss, ensuring long-lasting durability.
2. Strict Welding Process
Features a more robust structure compared to ordinary machines. The exterior boasts neat and aesthetic welding without any cracking.
3. Dual Control
Equipped with two convenient and efficient control modes, including a handle controller, ensuring safer and more user-friendly operation.
4. Copper-Core Motor
Delivers strong power for long-lasting efficient operation. The integrated Tai Chi turbine rotation effectively reduces noise levels.

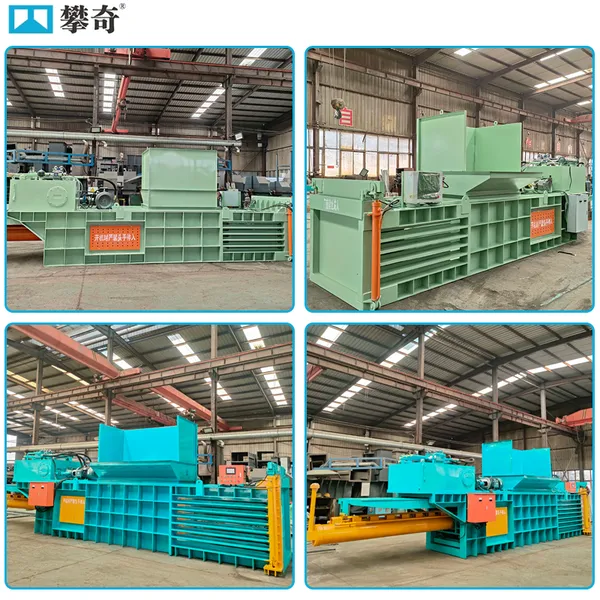

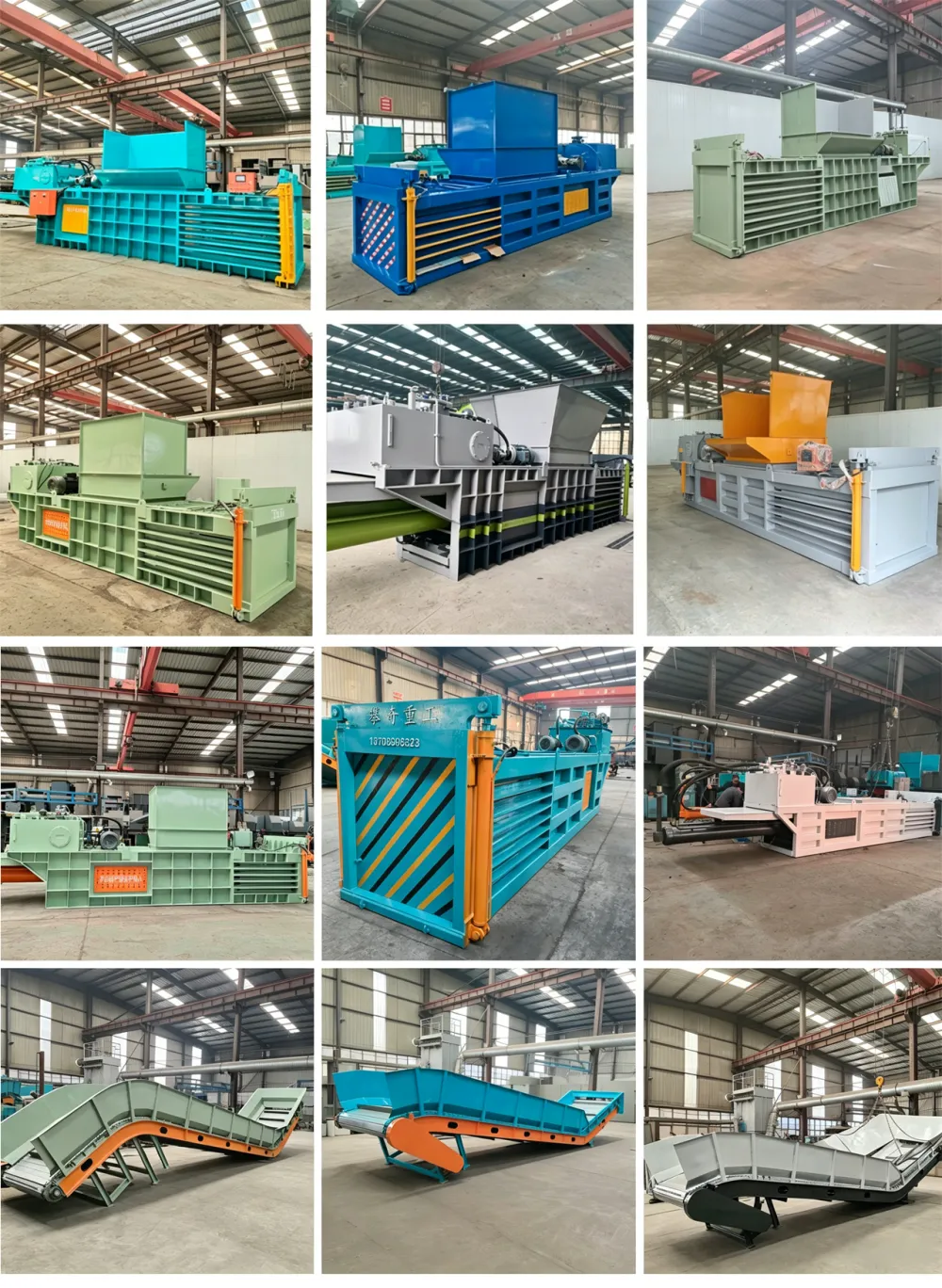

Product Show

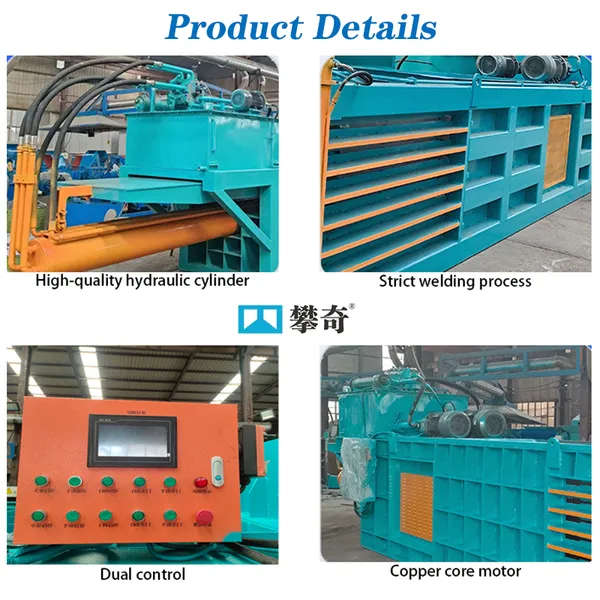

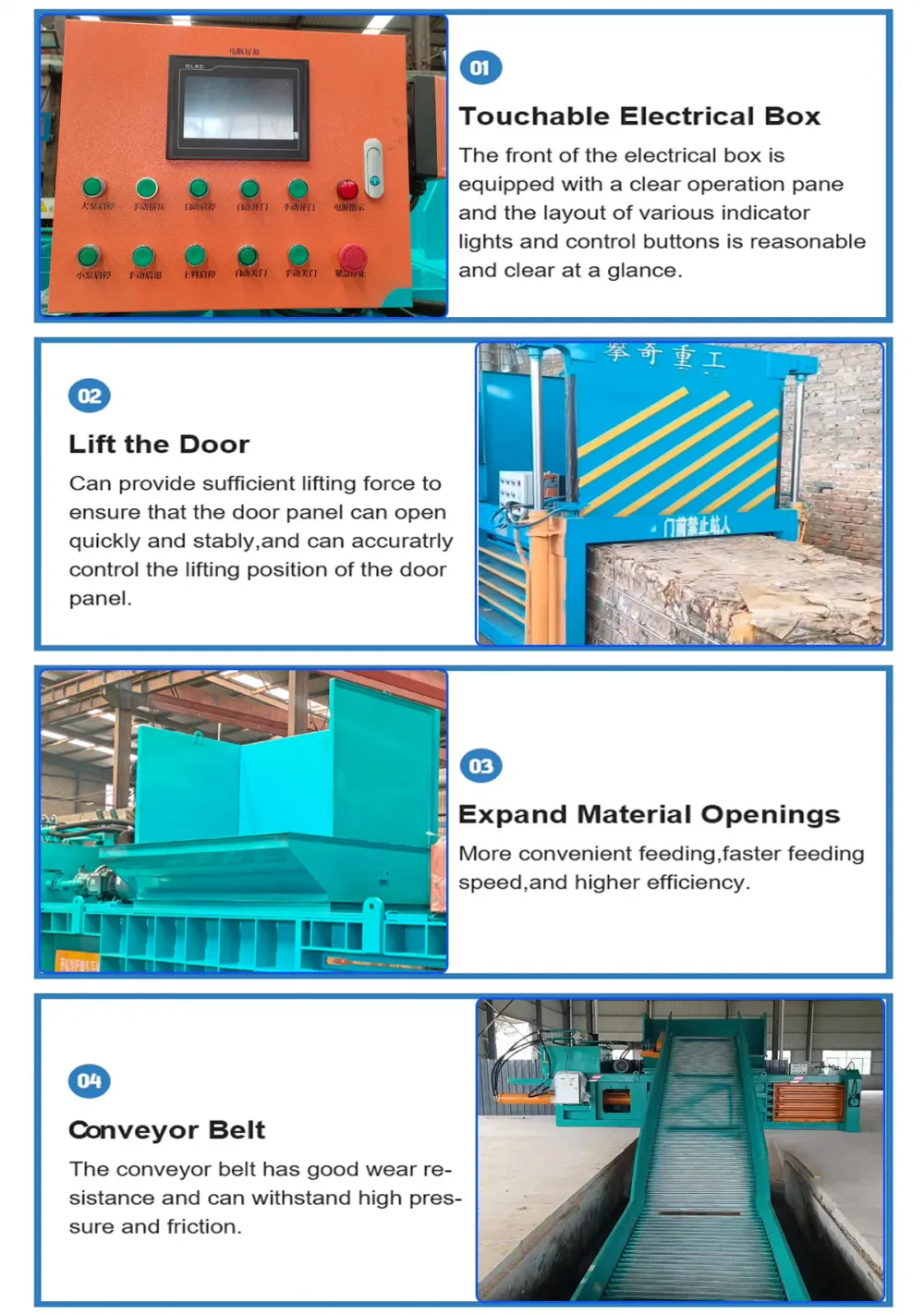

Product Details

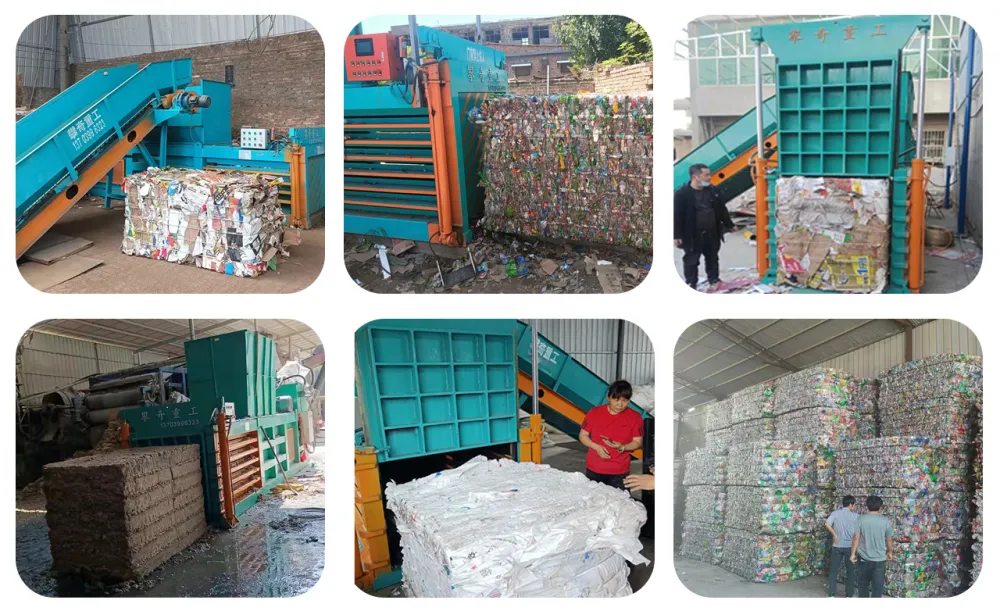

Customer On-site Case Feedback
Real-world customer case studies showcase the operation of Panqi Heavy Industry's hydraulic balers in a waste recycling plant, covering the entire baling process of various materials such as waste paper, plastic bottles, cardboard boxes, straw, and plastic film. This visually demonstrates the equipment's stability, durability, and wide material compatibility.
PACKAGING & SHIPPING
✅ Direct Supply from Source Factory: Henan Panqi Heavy Industry has its own production base, no middlemen, more favorable prices
✅ Customized Service: Customize equipment model, bale size and automation configuration according to requirements
✅ Professional Installation & Commissioning: Free installation guidance and operation training, on-site service optional
✅ Perfect After-Sales Guarantee: 1-year warranty for core components, 24-hour online technical support, quick response
Company Profile
Henan Panqi Heavy Industry Technology Co., Ltd. is a well-known enterprise specializing in the production of various types of crushing machinery. Over the past decade, we have continuously introduced advanced technologies from home and abroad, equipped with professional technical teams and experienced production personnel. We have developed a series of products including can baler, waste plastic bottle baler, carton baler, vertical hydraulic baler, square straw baler, metal briquetting machine, etc. Our products are complete in specification and model, and can meet the needs of different users. We are committed to cooperating wholeheartedly with global users.
Certificate Display
Frequently Asked Questions
Q1: What materials can this horizontal baler compress?
A: It can handle waste cardboard, plastic film, plastic bottles, straw, cotton, textile, aluminum scraps, iron scraps, copper chips and all kinds of recyclable waste materials.
Q2: What tonnage models do you supply?
A: We provide 100T, 125T(small), 125T(big), 160T, 200T and 250T horizontal balers. Different tonnage machines match different compression demands and raw materials.
Q3: Can the machine work 24 hours continuously?
A: Yes. All models are equipped with water cooling hydraulic system to keep stable oil temperature, which supports long-time non-stop factory production.
Q4: Can I customize bale size and machine color?
A: Absolutely. Bale dimension, feeding opening size, overall machine dimension and painting color can all be customized to fit your factory space and requirements.
Q5: What operation modes are available?
A: Three control modes are optional: fully automatic cycle, manual jog operation and wireless remote control, which is safe and easy for new workers to operate.
Q6: What’s the hourly output of these balers?
A: 100T & small 125T: 6-8 bales per hour; 125T big,160T,200T: 8-10 bales per hour; 250T heavy model: 8-12 bales per hour.
Q7: What about your after-sales service?
A: We offer 24-hour online technical support, machine installation guidance, long-term spare parts supply and complete warranty service for all balers.
Q8: Are you a real factory or trading company?
A: We are a professional manufacturing factory with independent production workshops. Customers are welcome to arrange factory inspection at any time.
