Product Description:
Work Principle:

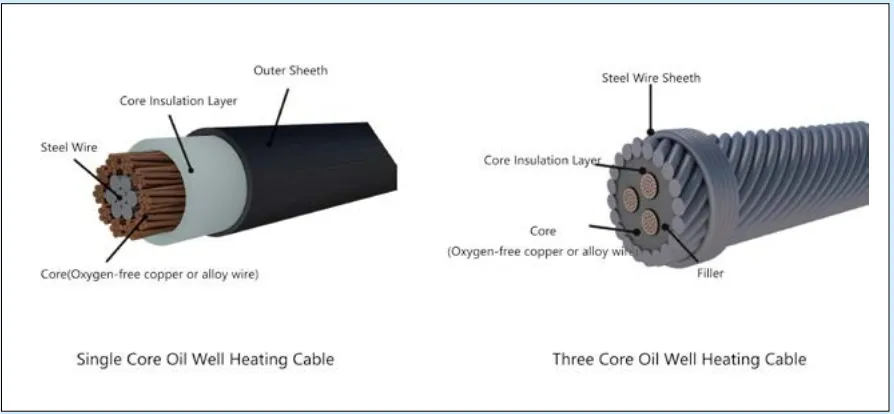

The hollow rod electric heating system inserts a cable into the inner hole of the hollow sucker rod and forms a loop with the hollow rod body. It passes alternating current of different frequencies and uses the internal skin effect to generate heat energy on the hollow rod wall . Through heat conduction, it heats the inside of the oil pipe. The crude oil is heated throughout the process to increase the temperature of the crude oil in the oil pipe, reduce the viscosity of the crude oil, and improve its fluidity, so as to effectively exploit high-viscosity, high-freezing-point, and high- wax crude oil. When the inner cable of the hollow sucker rod is supplied with alternating current, an internal skin effect occurs. Current flows on the inner wall of the hollow rod and there is basically no current on the outer wall. It can be regarded as an insulator to ensure work safety. See picture When the inner cable of the hollow sucker rod is supplied with alternating current, an internal skin effect occurs. Current flows on the inner wall of the hollow rod and there is basically no current on the outer wall. It can be regarded as an insulator to ensure work safety.
Technical parameters:
| Conductor Cross-Sectional Area mm² | 30 | 35 |
| Max Outside Diameter mm | 17 | |
| Max Outside Diameter mm | 120℃, 150℃, 205℃ | |
| Tensile Strength T | ≥18 | |
| Rated Voltage KV | 1-6 | |
Product Characteristic:
1. Good corrosion resistance, can withstand the corrosion of most chemicals;
2. Good flexibility, can be bent at will and will not be brittle;
3. Good pressure resistance;
4. Easy to install.
Company Profile:
Shandong Huaning Electric Heating Technology Co., Ltd.
It is located in the famous Spring City — Jinan. It is a comprehensive high-tech manufacturing enterprise integrating research and development, design, sales, system integration, and operation & maintenance services for electric heating, heating, and integrated control. The company has obtained qualifications in building electromechanical installation and waterproof, anti-corrosion, and thermal insulation engineering. As a leader in the domestic Electric Heating field, our company has long been committed to providing complete electric heating solutions for industrial, commercial, and civil markets.
Certifications
Our Customers
Packing & Delivery
FAQ
Q: What's the lead time for orders?
A: Standard models ship in 10–15 days; customized units require 30–45 days.
Q: Do you have international certification?
A: Yes, we have EAC,IECEX,ATEX,CE,ISO,etc.
Q: Do you have past performance list overseas?
A:Yes,we have participated many oversea projects now.
Q: How do you assure the product quality?
A: we have international sandard laboratory and each batch cargo will be inspected.
Q: How do I place an order?
A: Contact us via email/phone for a quote, then confirm with a PO.
