Product Description
Purpose
This product is suitable for supporting power supply for oil submersible pump units with rated voltage less than 3KV or less than 6KV.
Usage Characteristics
Conductor long-term working temperature is 150-232°C, with good oil resistance, heat resistance, and corrosion resistance.
Model

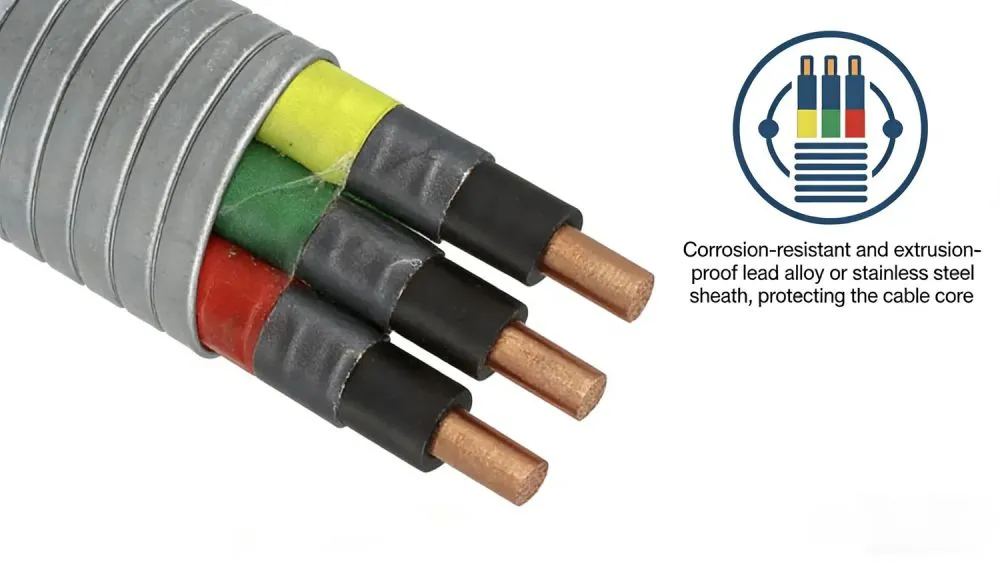

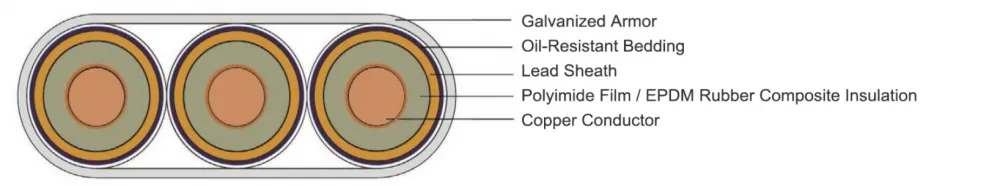

Polyimide - F46 composite film sintering / fluoropolymer combined insulation, fluoropolymer sheath, fiber tape winding, galvanized (stainless steel, Monel) steel tape armored flat submersible pump power cable.
Production Range
Voltage: 3KV, 4KV, 5KV, 6KV
Temperature: 150-232°C
Execution Standard: GB/T16750-2015, API RP 11S6

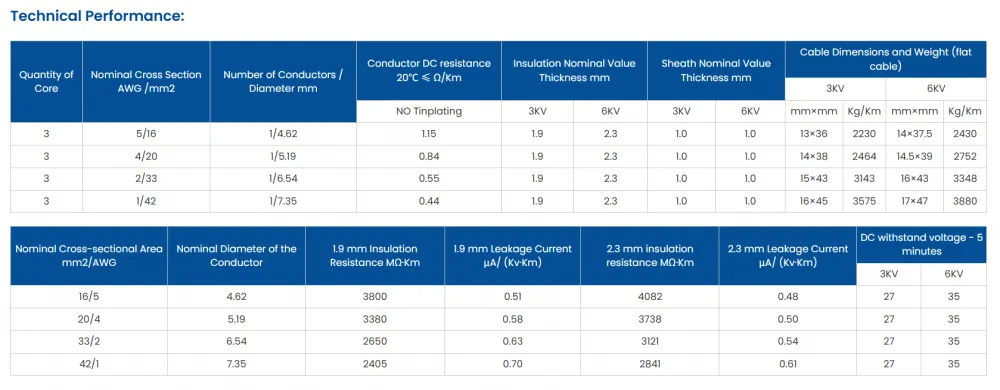

Technical Performance:
Company Profile
Shandong Huaning Electric Heating Technology Co., Ltd.
It is located in the famous Spring City — Jinan. It is a comprehensive high-tech manufacturing enterprise integrating research and development, design, sales, system integration, and operation & maintenance services for electric heating, heating, and integrated control. The company has obtained qualifications in building electromechanical installation and waterproof, anti-corrosion, and thermal insulation engineering. As a leader in the domestic Electric Heating field, our company has long been committed to providing complete electric heating solutions for industrial, commercial, and civil markets.
Certifications
Our Customers

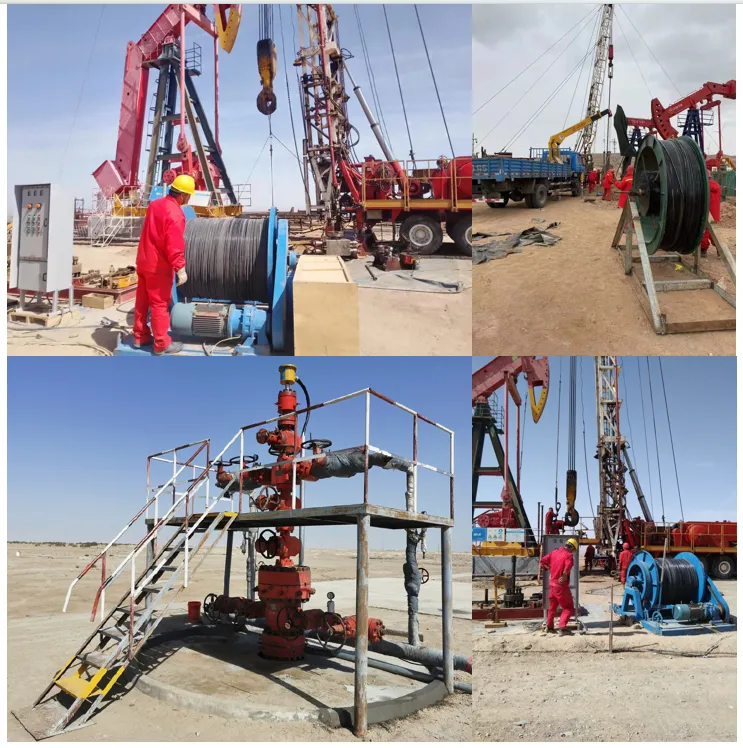

Application
FAQ
Q: What is the typical operational lifespan of an ESP cable, and what factors most affect it?
A: The typical lifespan is 3-5 years, but it heavily depends on downhole conditions (temperature, H2S, installation quality) and electrical stress. Proper sizing and operation are key
Q: What are the temperature and pressure ratings for your cable models, and how are they tested?
A: Ratings vary by model. Standard cables operate up to 205°C (400°F) and 5000 psi. All ratings are validated through testing per API 11S5 or equivalent standards.
Q: What are the critical do's and don'ts during cable installation and handling to prevent damage?
A: DO use proper handling equipment and follow bend radius rules. DON'T drag the cable, crush it, or make sharp bends. Always follow the manufacturer's specific installation guide.
Q: What international standards and certifications (e.g., API, ATEX) do your cables comply with?
A: Our cables comply with API 11S5, ATEX/IECEx for hazardous areas, and RoHS. Specific certifications (e.g., UL, CSA) are available per customer requirements and regional standards.
Q:What is the standard lead time for orders, and do you offer expedited support for urgent field failures?
A: Standard lead time is 4-6 weeks. We offer expedited production and maintain regional stock for critical failure situations to support urgent field operations.
