Supply BTLY 3*16mm2 flexible inorganic mineral insulated and fire - resistant cables, BTLY 16mm2 mineral cables from Guangdong Shuangli Cable Co., Ltd.
The BTLY 16 flexible inorganic mineral insulated and fire - resistant cables from Guangdong Shuangli Cable Co., Ltd. are suitable for explosion - proof systems and equipment, that is, fire - hazard areas, facilities with high safety requirements.
When selecting cables for fire - fighting lines, the voltage drop index should be considered. When the cable is in operation, there will be a voltage drop, which is caused by the cable and impedance. The impedance of the cable conductor is the vector sum of the DC resistance and AC reactance of the conductor. The DC resistance is much larger than the AC reactance, and sometimes the influence of the AC impedance can even be ignored. When the temperature changes, the AC reactance of the cable changes little, while the DC resistance increases with the rise of temperature.

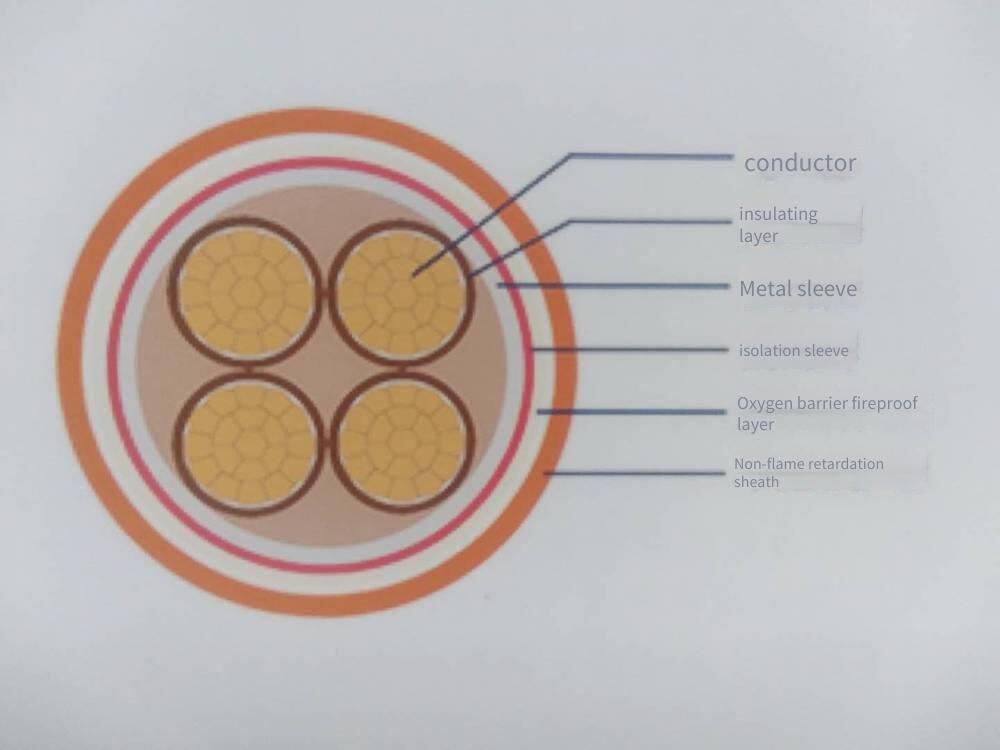

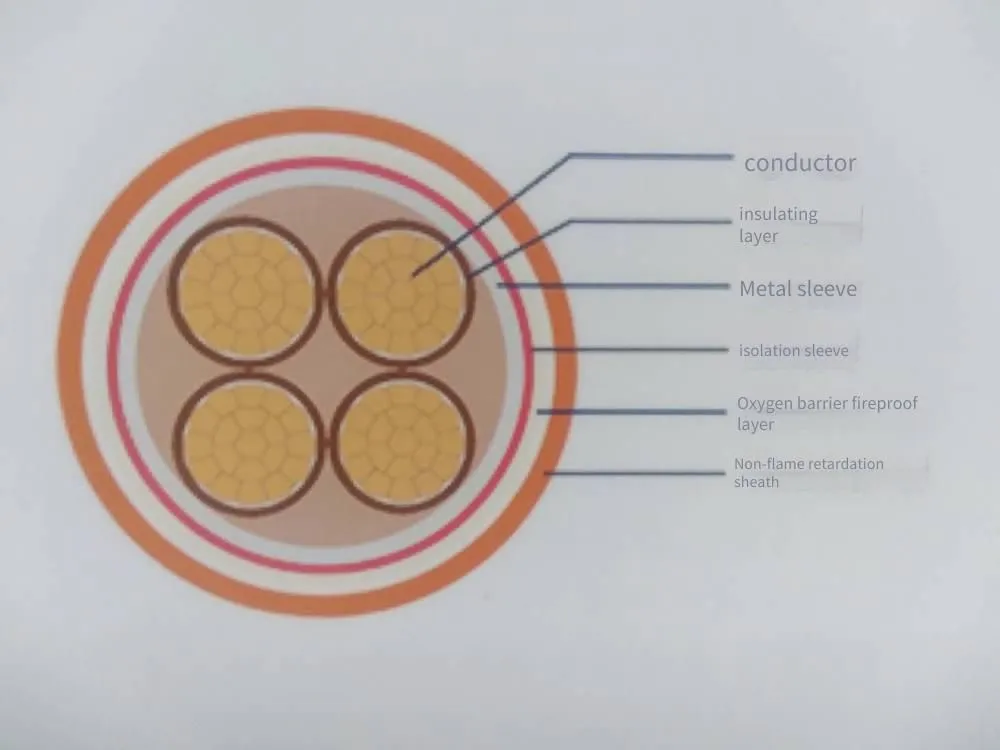

The product structure is shown in the following figure
Product characteristics of Guangdong Shuangli BTLY fire - resistant cables:
1. The fire - resistance standard fully meets the assessment standard of BTT in terms of fire - resistance performance.
2. For the products with a specification of 1.5 - 6mm2, 1 - 37 cores can be produced; for the specification of 10 - 185mm2, 1 - 5 cores can be produced; for the specification of 10 - 630mm2, single - core can be produced. The length can be delivered in a whole coil without joints according to customer requirements.
3. There is no need to wear additional pipes during installation, and it has the same waterproof and anti - impact functions as BTT.
4. Explosion - proof
5. It has high corrosion resistance.
6. It has good functions of preventing rats, termites and radiation, which can ensure the cable's stability, long service life and durability.
7. It has a low working temperature, small line loss, strong overload resistance, long service life and high safety, and is especially suitable for applications with environmental protection requirements.
