Building Materials Galvanized steel grating weight per square meter

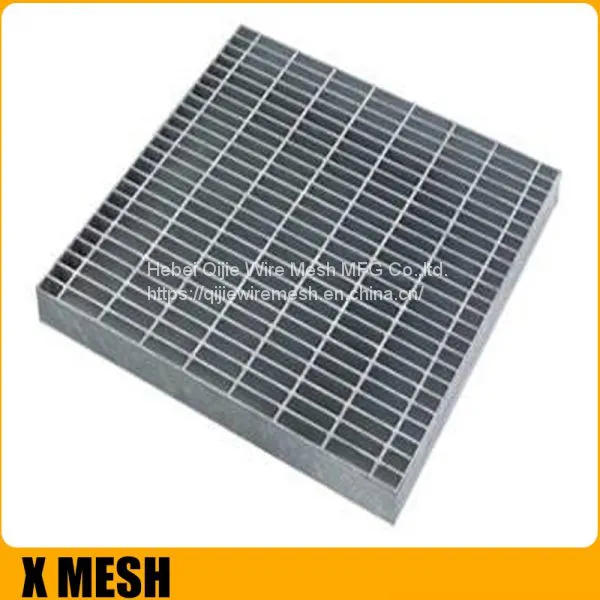

Steel Grating /grate floor made by welding with flat steel and cross/round bars with certain distances. Our Steel Grating enjoy the feature of high strength, light structure, high bearing, convenience for loading and other properties. The hot dipped zinc coating gives the product excellent anti-corrosion.
Carbon Steel Bar Grating is an ideal option when your project requires a strong material that will not be exposed to an expressly corrosive environment. we suppliy both smooth and serrated bar grating. Bar gating is available in galvanized, painted black, plain steel, light duty, and heavy duty.
1) Material: Mild Steel Q235 or Stainless Steel such as ss304 ss304L ss316 ss316L...
2) Surface Treatment: Hot dip galvanized , Painted , Untreated.
3) Shape of bearing bars: Plain bar style , Serrated bar style , I Bar style
4) Market: USA , Middle East ---Kuwait, UAE, Saudi Araia; Australia, Europe and Southeast

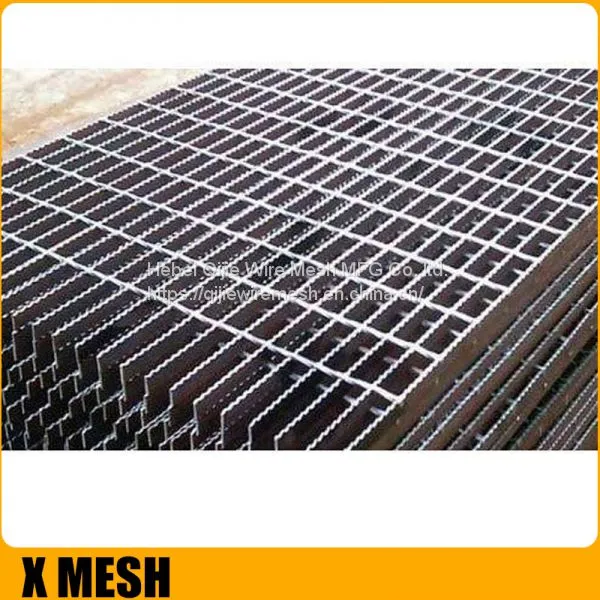

Specifications of serrated welded steel grating
Materials: low carbon steel, stainless steel.
Surface treatment: galvanized, powder coating, painted color.
Height of bearing bar: 20 mm, 30 mm, 40 mm, 50 mm, 60 mm, 70 mm.
Thickness of bearing bar: 2 mm, 3 mm, 4 mm, 5 mm.
Mesh size: 34 mm × 38 mm

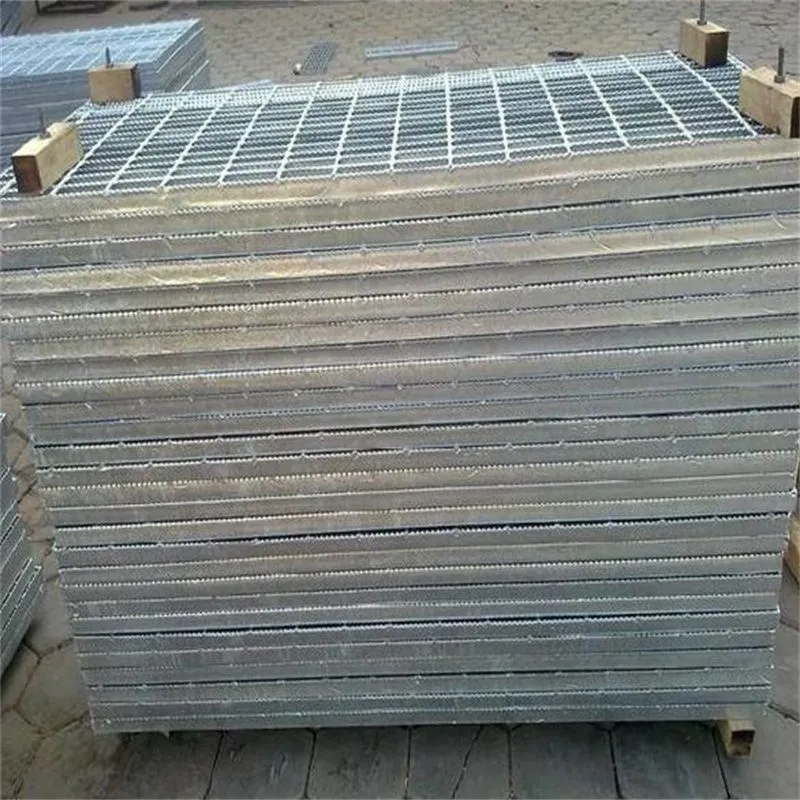

Packaging:Strap packing.
Pallet packing.
Screw rod fixation.

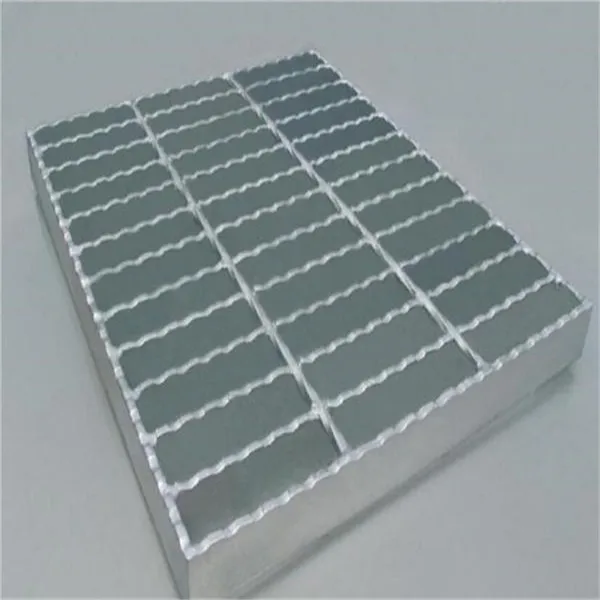

Features of serrated welded steel grating
TOP SURFACE
Typically supplied with a plain surface. On our most popular products a Serrated surface (S) is also available. Please refer to the loading charts in this section of the catalogue to see which Mild Steel grating types are available with a Serrated surface.
Learn Steel Grating
Specification of Steel Grating
Steel Grating Common Size Table List:
Cross Rod |
load Bar |
Steel Bar Grating load Bar Specification(Width×Thickness) | |||||
| 20×3 | 25×3 | 32×3 | 40×3 | 20×5 | 25×5 | ||
| 30 | 100 | G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 |
| 50 | G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50 | |
| 40 | 100 | G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100 |
| 50 | G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50 | |
Cross Rod |
load Bar |
steel bar grating load Bar Specification(Width×Thickness) | |||||
| 32×5 | 40×5 | 45×5 | 50×5 | 55×5 | 60×5 | ||
| 30 | 100 | G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100 |
| 50 | G325/30/50 | G405/30/50 | G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50 | |
| 40 | 100 | G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100 |
| 50 | G325/40/50 | G405/40/50 | G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50 |
Recommended length table:
| Max length(mm) | ||||
| Flat Steel section size | 25×3 | 25×5 | 32×5 | 40×5 |
| Series 1 | 550 | 900 | 1300 | 1600 |
| Series 2 | 450 | 750 | 1200 | 1500 |
| Series 3 | — | 550 | 850 | 1350 |
