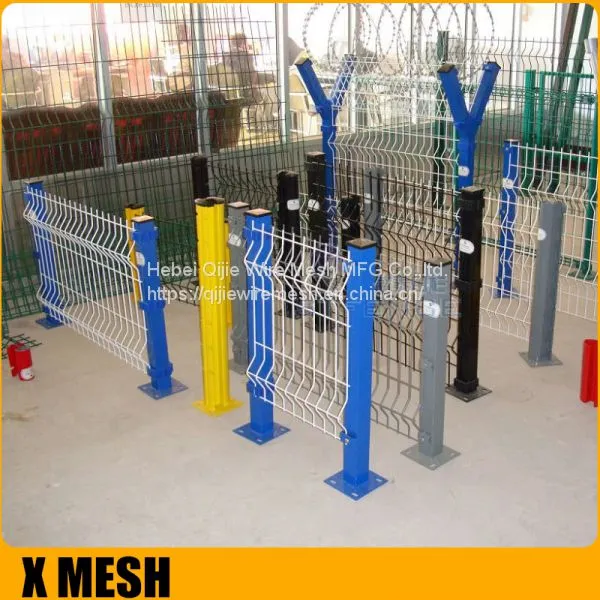

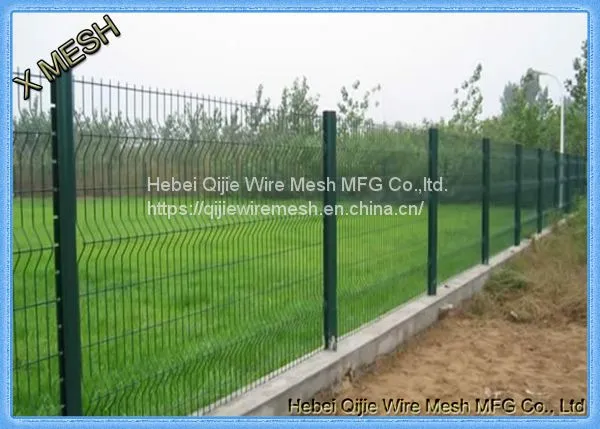

Curved Welded Mesh Bend Security Fence Panel Triangle Bend Fence 3D Fence for Garden
Triangle bend fence is also known as curvy welded fencing, triangle mesh fence,3D fence, etc. Triangle bend fence is pretty light and durable, its composition is simply wire welded mesh panel, post and connection hardwares. The surface treatment of Welded wire mesh fence includes: hot-dipped galvanized, PVC coated, powder coated.
3D Curved Wire Mesh Fence Panel is a kind of welded steel wire mesh. It is made of high quality low carbon steel wire, galvanized steel wire and metal column connected. 3D guardrail has the characteristics of high strength, good rigidity, beautiful appearance, wide field of vision, convenient installation, and good anti-theft effect, which ensures the safety of the fence.
| Specification of Triangle Bend Fence | |||||||
| Mesh Opening | Wire Thickness | Panel Width | Panel Height | Number of Folds | Post Type | ||
| 50x100mm 50x150mm 50x200mm 55x200mm 75x150mm etc. |
3.0mm or 3.5mm or 4.0mm or 4.50mm or 5.00mm |
2.0m or 2.50m or 2.9m |
630mm | 2 | Round Post 48x1.5/2.0mm 60x1.5/2.0mm |
Square Post(SHS) 50X50x1.5/2.0mm 60x60x1.5/2.0mm 80x80x1.5/2.0mm |
Rectangular Post(RHS) 40x60x1.5/2.0mm 40x80x1.5/2.0mm 60x80x1.5/2.0mm 80x100x1.5/2.0mm |
| 830mm | 2 | ||||||
| 1030mm | 2 | ||||||
| 1230mm | 2 | ||||||
| 1430mm | 2 | ||||||
| 1530mm | 3 | ||||||
| 1630mm | 3 | ||||||
| 1730mm | 3 | ||||||
| 1830mm | 3 | ||||||
| 1930mm | 3 | ||||||
| 2030mm | 4 | ||||||
| 2230mm | 4 | ||||||
| 2430mm | 4 |
Welded Wire Fencing the panel use high quality low carbon steel wire and welded by computer controlled machine.Welded point have high tensile strength.and better planeness. Making V-beam that can enhanced the anti wallop. The panel became solid .The fence surface after PVC or Powder coating will be brightness and comfortable.
Fence posts
Material: high grade steel for maximum strength and rigidity.
Post section: 60 × 60 mm, 80 × 80 mm, 100 × 100 mm or 120 × 120 mm.
Post Plate thickness: 2.5/3.0/4.0/5.0 mm.
Finish: inside and outside galvanized (Min. 275 g/m2), subsequently covered with a polymer powder (Min. 60 micron ).
Colors: Green RAL 6005, or Black RAL 9005.
Post cap: metal caps or plastic cap.
Metal clips and clamps are hot dip galvanised then powder coating in green or black color.
| Height (m) | Width (m) | Curves | Clamps |
| 1.0 | 2.5 | 2 | 2 |
| 1.5 | 2.5 | 3 | 3 |
| 2 | 2.5 | 4 | 4 |
| 2.5 | 2.5 | 5 | 5 |
| 3 | 2.5 | 6 | 6 |
