SGS Hot Dip Galvanized Razor Wire Concertina Barbed Wire 2.0m-10.0m Length

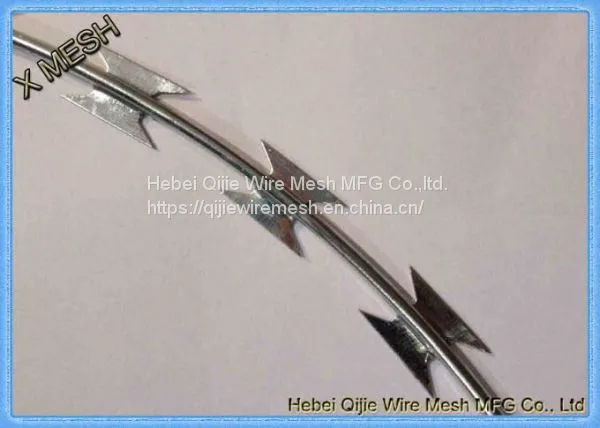

Razor Barbed Wire is also named concertina razor wire, razor fencing wire, razor blade wire or dannert wire. It is a kind of modern security fencing materials with better protection and fencing strength made of hot-dipped galvanized steel sheets or stainless steel sheets. With sharp blades and strong core wire, razor wire has the features of secure fencing, easy installation, age resistance and other properties.
Outside Diameter |
No. of Loops |
Standard Length per Coil |
Razor Type |
Notes |
450mm |
33 |
7M-8M |
CBT-60, 65 |
Single Coil |
500mm |
56 |
12M-13M |
CBT-60, 65 |
Single Coil |
700mm |
56 |
13M-14M |
CBT-60, 65 |
Single Coil |
960mm |
56 |
14M-15M |
CBT-60, 65 |
Single Coil |
450mm |
56 |
8M-9M (3clips) |
BTO-10, 12, 18, 22, 28, 30 |
Cross Type |
500mm |
56 |
9M-10M (3clips) |
BTO-10, 12, 18, 22, 28, 30 |
Cross Type |
600mm |
56 |
10M-11M (3clips) |
BTO-10, 12, 18, 22, 28, 30 |
Cross Type |
600mm |
56 |
8M-10M (5clips) |
BTO-10, 12, 18, 22, 28, 30 |
Cross Type |
700mm |
56 |
10M-12M (5clips) |
BTO-10, 12, 18, 22, 28, 30 |
Cross Type |
800mm |
56 |
11M-13M (5clips) |
BTO-10, 12, 18, 22, 28, 30 |
Cross Type |
900mm |
56 |
12M-14M (5clips) |
BTO-10, 12, 18, 22, 28, 30 |
Cross Type |
960mm |
56 |
13M-15M (5clips) |
BTO-10, 12, 18, 22, 28, 30 |
Cross Type |
980mm |
56 |
14M-16M (5clips) |
BTO-10, 12, 18, 22, 28, 30 |
Cross Type |
Application of concertina razor barbed wire
Razor Barbed Wire is widely used in airport , prison, government, bank, and also in living wall, personal house, villatic wall, window, autobahn, railway and border of the fence.
Packing of concertina razor barbed wire

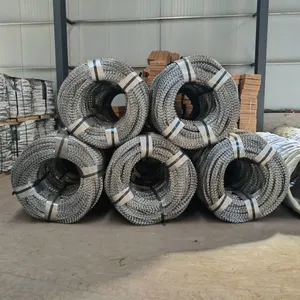

compression rolls, water-proof paper inside, woven bag outside or in carton
Weave characteristics of concertina razor barbed wire
twist and weave, fastness ,beautiful; galvanizing after weaving, galvanizing before weaving. It is divided to electrical galvanized ,hot - dipped galvanized, plas-tic coating, stainless steel, etc.
Advantages of concertina razor barbed wire
Razor barbed wire mesh is a new kind of protective fencing with such advantages as beautiful appearance,economical cost and practicality.
Welded razor mesh fence:
The razor wire can welded to mesh panel with a frame as the fence installed on the prison wall, the hole shape can be rectangle and diamond.
1>Square Hole Size:100mmx100mm,150mmx150mm,200mmx200mm.
2>Diamond Hole Size:75mmx150mm,100mmx200mm,150mmx300mm.
| Hole shape | Mesh width | Suited blade specifications |
| Square hole, diamond | 1.2m ~ 2.4m | BTO-10.12.22.28.30 |
| Square hole, diamond | 1.2m ~ 2.4m | BTO-10.12.22.28.30 |
| Square hole, diamond | 1.2m ~ 2.4m | BTO-10.12.22.28.30 |
| Square hole, diamond | 1.2m ~ 2.4m | BTO-10.12.22.28.30 |
