Galvanized Security Fencing Concertina Price Anti Climb Blade Barbed Wire Prison Razor Barbed Wire

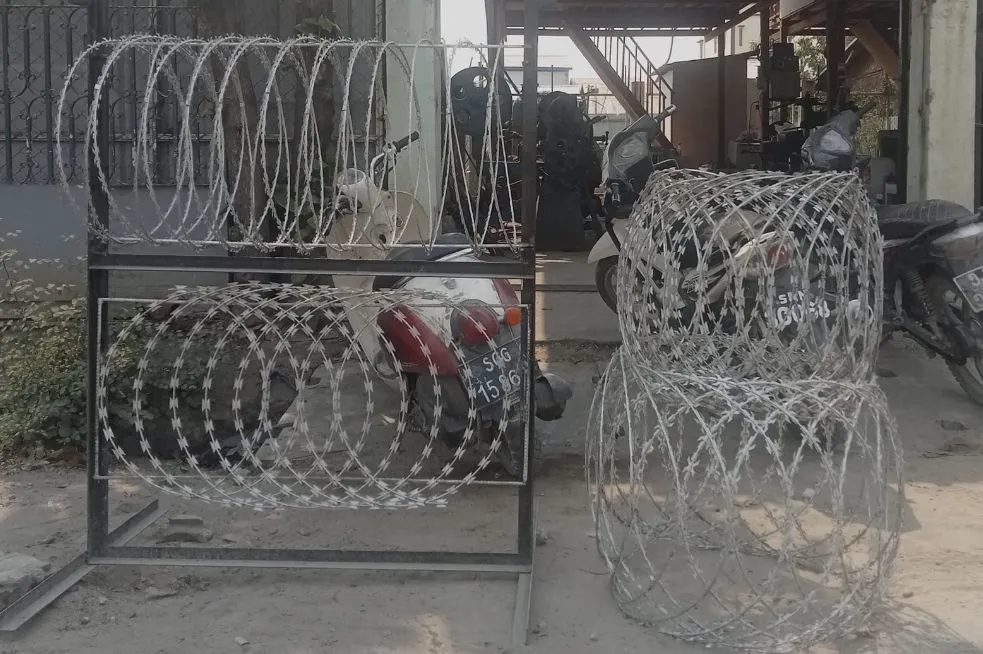

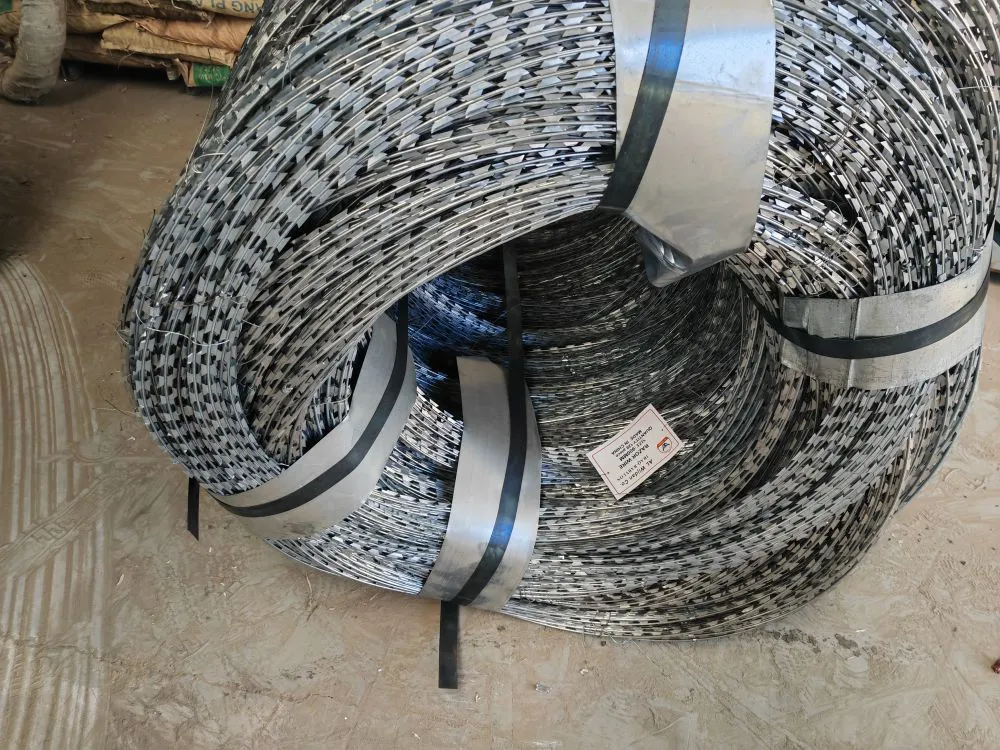

Razor wire is called The concertina barbed wire, it is barrier equipment, which is made of hot-dip galvanized steel sheet or stainless-steel sheet punched out of sharp blade shape, high-tensile galvanized steel wire or stainless-steel wire as the core wire. Because of the unique shape of the gillnet and it is not easy to touch, it can achieve an excellent protective isolation effect.
Material:
Galvanized wire and plate
Heavy Zinc coated wire and plate
Stainless steel wire and plate
Process: galvanized steel plate or stainless steel plate punched into certain forms then attached to the steel wire in sharp angle to form the blades.
Barbed Types: BTO-10 BTO-18 BTO-22 CBT-60 CBT-65
| Sepcification for Razor wire | |||||
| Reference Number | Thickness | Wire Dia | Barb | Barb | Barb |
| Length | Width | spacing | |||
| BTO-10 | 0.5±0.05 | 2.5±0.1 | 10±1 | 13±1 | 26±1 |
| BTO-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 26±1 |
| BTO-18 | 0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 | 33±1 |
| BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 |
| BTO-28 | 0.5±0.05 | 2.5 | 28 | 15 | 45±1 |
| BTO-30 | 0.5±0.05 | 2.5 | 30 | 18 | 45±1 |
| CBT-60 | 0.6±0.05 | 2.5±0.1 | 60±2 | 32±1 | 100±2 |
| CBT-65 | 0.6±0.05 0 | 2.5±0.1 | 65±2 | 21±1 | 100±2 |
| Sepcification for Welded Razor Wire Mesh | |||
| Razor wire type | Mesh opening | Height | Length |
| BTO-10 | 50x50mm | 1m | 6m |
| BTO-12 | 100x100mm | 1.5m | 10m |
| BTO-18 | 75x100mm | 2m | 15m |
| BTO-22 | 75x150mm | 2.5m | 20m |
| BTO-28 | 75x75mm | 30m | |
| BTO-30 | as your require | ||
| CBT-60 | |||
| CBT-65 |
| Outside Diameter | No. of Loops | Standard Length per Coil | Type | Notes |
| 450mm | 33 | 8M | CBT-65 | Single coil |
| 500mm | 41 | 10M | CBT-65 | Single coil |
| 700mm | 41 | 10M | CBT-65 | Single coil |
| 960mm | 53 | 13M | CBT-65 | Single coil |
| 500mm | 102 | 16M | BTO-10.15.22 | Cross type |
| 600mm | 86 | 14M | BTO-10.15.22 | Cross type |
| 700mm | 72 | 12M | BTO-10.15.22 | Cross type |
| 800mm | 64 | 10M | BTO-10.15.22 | Cross type |
| 960mm | 52 | 9M | BTO-10.15.22 | Cross type |
Razor Barbed Wire Feature:
1. Razor barbed is a kind of modern security fencing materials fabricated with razor-sharp steel blade and high-
tensile wire.
2. Visual and psychological deterrent.
3. Resistance to corrosion.
4. Low price and easy to install.
5. It can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders, with
piecing and cutting razor blades mounted at the top of the wall, its special designs making climbing and touching
extremely difficult.
