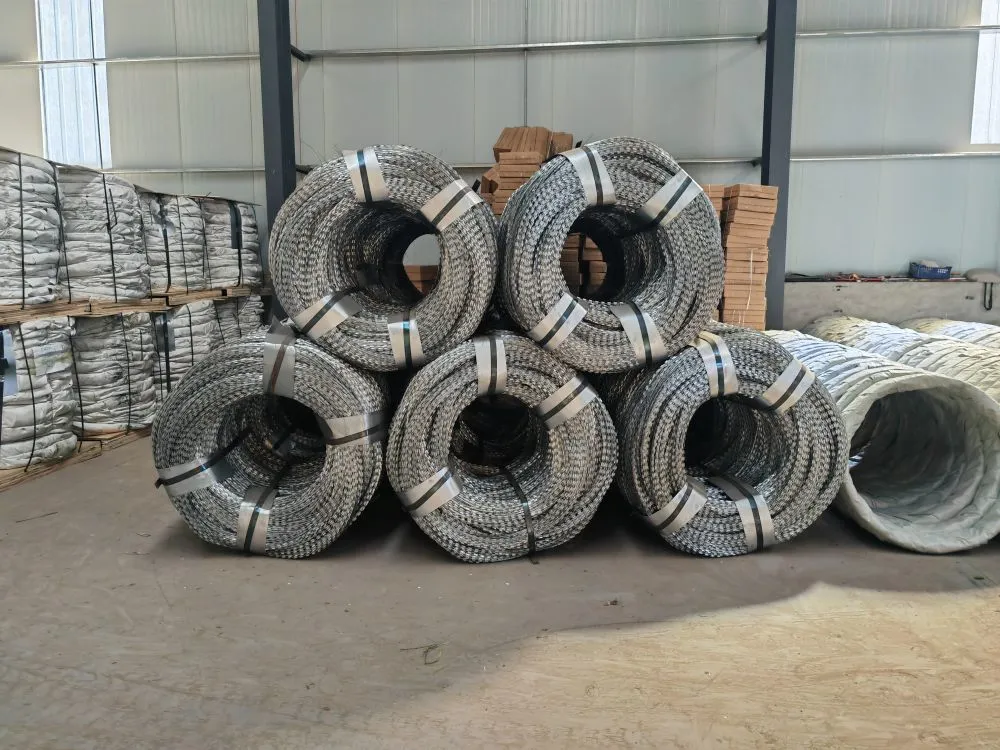

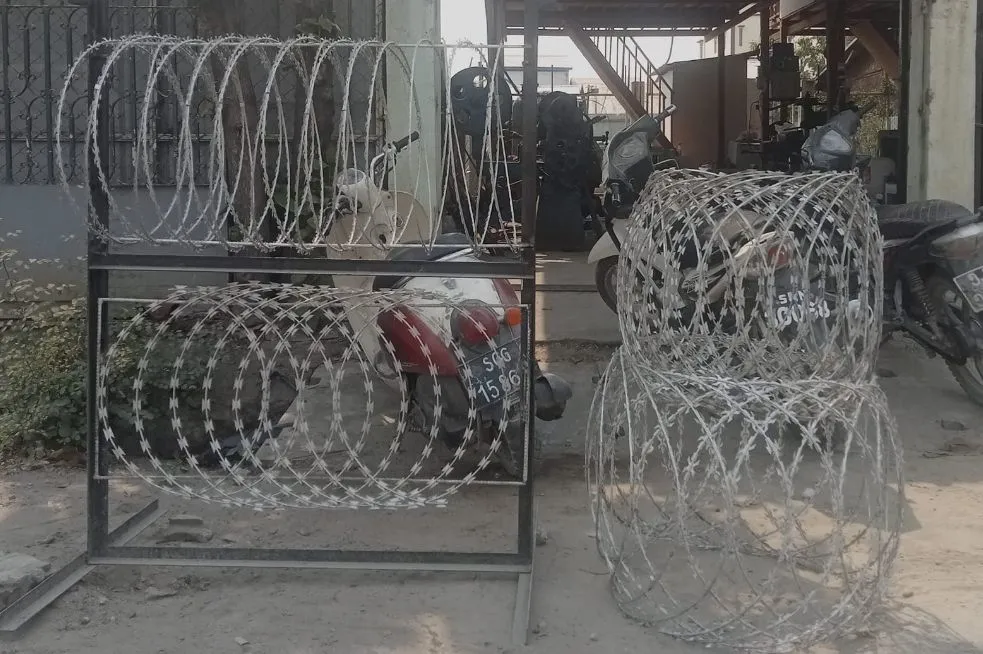

1meter Diameter Hot Dipped Galvanized Concertina Razor Wire with clips
Razor wire is also called concertina wire or concertina coil, It consists of sharp blades and metal cored wires. Usually used to prevent people or animals from passing through, it is a very effective and deterrent protective device. Razor wire or concertina coil has been widely used in residential walls, factory walls, bases and warehouses, prisons, mining areas, and border walls, etc.
1)Materials:Hot-dipped galvanized,electro galvanized,stainless steel,iron wire,PVC coated Wire
2)Type A: CBT-65(Concertina Barbed Tape ) and BTO(Barbed Tape Obstacle)
3)Type B: BTO-10,BTO-12,BTO-15,BTO-18,BTO-22,BTO-30,CBT-60,CBT-65 etc
Outside 450mm,500mm,700mm,600mm,980mm,1000mm etc as customers request
Razorwire Specs – Stainless Steel 304
| RAZORWIRE DIAMETER | 730MM | 500MM |
| LENGTH EXT | 10M | 10M |
| RAZOR WIRE DESIGN | CONCERTINA | CONCERTINA |
| MATERIAL | STAINLESS STEEL 304 | STAINLESS STEEL 304 |
| BLADE STYLE | BTO 22 | BTO 22 |
| BLADE THICKNESS | 0.5MM | 0.5MM |
| WIRE DIAM | 2.5MM | 2.5MM |
| BARB LENGTH | 22MM | 22MM |
| BARB WIDTH | 15MM | 15MM |
| BARB SPACING | 34MM | 34MM |
| LOOPS PER COIL | 54/55 | 54/55 |
| CLIPS PER LOOP | 5 | 3 |
Razorwire Specs – Galvanised Steel 200g/m2
| RAZORWIRE DIAMETER | 900MM | 730MM | 450MM |
| LENGTH EXT | 10M | 10M | 10M |
| RAZOR WIRE DESIGN | CONCERTINA | CONCERTINA | CONCERTINA |
| MATERIAL | GALVANISED 200G/M2 | GALVANISED 200G/M2 | GALVANISED 200G/M2 |
| BLADE STYLE | CBT65 | CBT65 | CBT65 |
| BLADE THICKNESS | 0.6MM | 0.6MM | 0.6MM |
| WIRE DIAM | 2.5MM | 2.5MM | 2.5MM |
| BARB LENGTH | 65MM | 65MM | 65MM |
| BARB WIDTH | 21MM | 21MM | 21MM |
| BARB SPACING | 100MM | 100MM | 100MM |
| LOOPS PER COIL | 54/55 | 54/55 | 54/55 |
| CLIPS PER LOOP | 5 | 5 | 3 |
Choosing your Razor wire
The bigger the diameter the more of an obstacle and deterrent the Razor wire is. 450mm diameter is the smallest size we recommend for domestic type applications. This size is normally an adequate deterrent and also the easiest to fit as standard support brackets will generally do for this diameter and weight of razor wire. 730mm or even 900mm diameter will require specially made brackets for the installation.
If fitting to the ground then we would recommend a size that cant be vaulted over, then the suggested options would be to install a single run of 900mm diameter Razorwire or alternatively stack smaller diameter Razorwire on top of each other either vertically or in a fashion.
