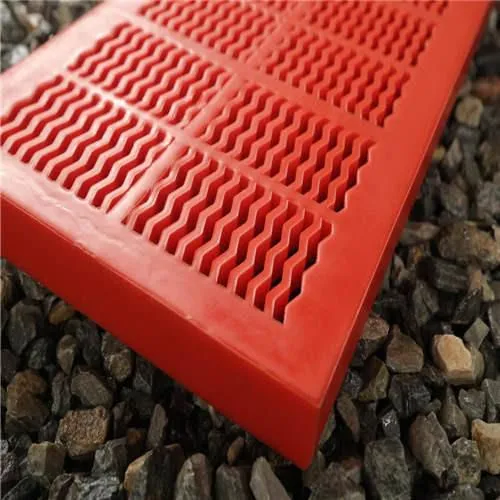

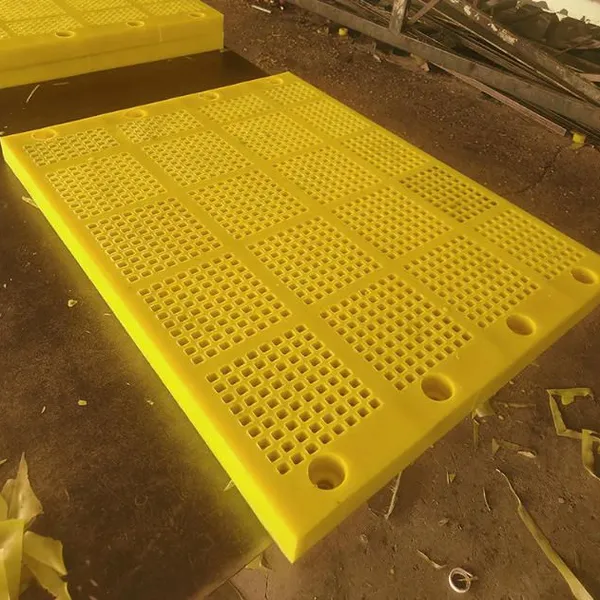

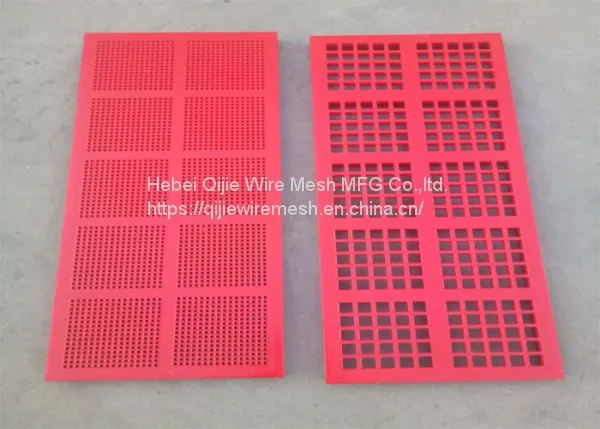

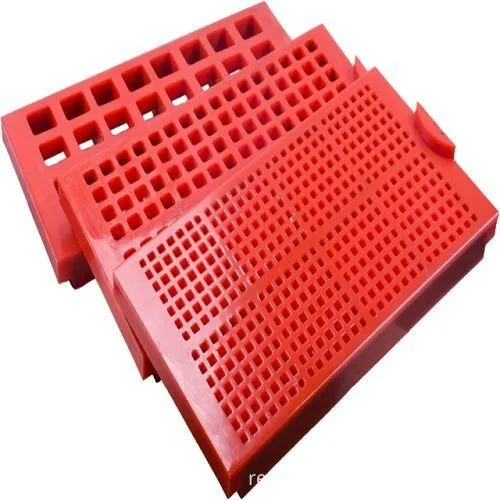

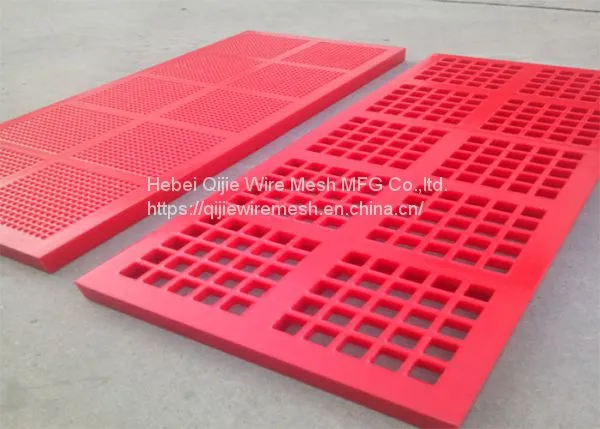

Polyurethane Modular Screen Panels 305*305
Polyurethane Dewatering Screen Panels are widely used for dehydration and demineralization in metal ( such as iron, copper, tungsten, lithium) and non-metal materials(sand, sillicon), coal slime and other mining.
Thousands of molds are available, such as 305x305mm, 305x610mm, 610x610mm, also there are mold processing machines in our workshop, ensuring the quality and delivery time. All sizes can be designed as clients' requests.
| size | 305*305 |
|---|---|
| Standard overall size | 305*305, 305*610, others |
| hole size | 0.1*12,0.15*12 0.2*12,,0.25*12, 0.3*12, 0.5*12,0.7*12,0.8*12,1*12,1.5*12, 2*12, 2.5*19,3*16,3.5*12, 4*12, 5*12mm |
| Standard service life | 6~12 months |
| Customization | Available |
| Material | Polyurethane, pu, urethane, rubber |
Standard Sizes Available
| Model No. | Size |
| PSM30 | 300x300mm |
| PSM30.5 | 305x305mm |
| PSM61/30.5 | 610x305mm |
| PSM63/30 | 630x300mm |
| PSM30/50 | 300x500mm |
| PSM30/80 | 300x800mm |
| PSM1.22/30 | 1220x300mm |
Customization of polyurethane screen panel for sale
Frame, Opening, Installation style, and dimensions are customizableas per the drawing or requirements.
Product Parameters
| Specification(MM) | Aperture(MM) | Weight(KG) |
| 300*610 | 0.2 0.3 0.5 0.7 0.8 1.0 1.2 1.5 2.0 2.5 3 The aperture can be customized |
5kg/m2-10kg/m2 |
| 305*610 | ||
| 300*800 | ||
| 300*1220 | ||
| 610*610 | ||
| Mark: Other size can be customed |
Features
1.Polyurethane linear dewatering screen panels have the advantages of light weight, small load, small power consumption of screen machine, good dehydration effect, high processing capacity, high production efficiency, low noise, high efficiency, energy saving, environmental protection, high opening rate, etc.
2.It is a suitable product for dehydration and medium removal.
3.Polyurethane products can save energy, reduce consumption and increase benefit for the enterprises.
Advantages
Multiple fixing systems
Modular design with apertures ranging from 0.2mm to 100mm
Cross tensioned
Multiple panel configurations such as solid, slotted, square, round, ribbed, rectangular, S-modular and VR
Available with options such as L shape, carrier bars, flow restrictions and drainage deflectors
Manufactured in range of custom color options
Over 250 modular panel variations
Custom options available. Equivalents to most OEM suppliers.
Available in varying thicknesses from 30mm to 80mm.
