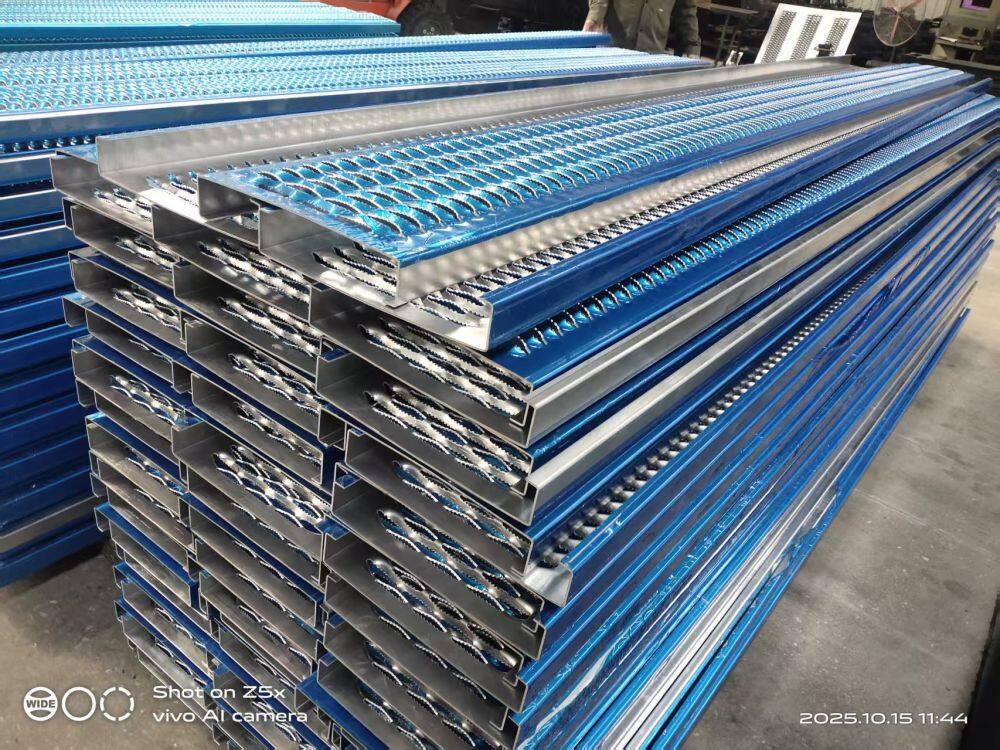

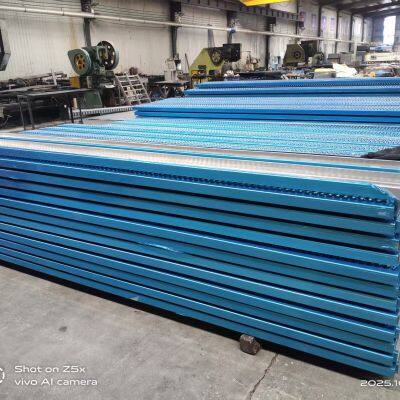

Modern Anti-Skid Safety Walkway Grating Durable Perforated Grip Strut Platform with Stainless Steel for Building Use
Product Description
Anti-slip perforated safety grating is a type of metal plate that is manufactured using a CNC punching machine. This process allows us to create stamped and formed holes, giving the grating its unique design. One notable feature of this grating is that the edges of the holes are either raised or concave, providing a non-slip surface. That's why it is also known as anti-slip perforated metal plate.
We offer a wide variety of perforated metal safety grating products to suit your needs. Our range includes Perf-O grip safety grating, grip-strut safety grating, traction thread safety grating, interlocking safety grating, various patterns of anti-slip hole safety grating, and their corresponding accessories.
Grip Strut Safety Plank Grating Advantages
√ Reducing accident rates by providing a tiny serrated surface in all directions when walking
√ Meet American Federal Standard RR-G-1602D and OSHA requirements
√ Lightweight to assemble easily
√ High strength to provide enough load capacity and longer spans
√ Professional grating devices in different applications for you
√ Right angle channel bending to enlarge the higher strength and long life
√ Open Diamond design allowing a clean surface out of fluids, mud, chips, and debris.
√ No need to maintain
Product Features
1. Varied material types
2. Greatly increased safety with a special non-slip serrated edge surface
3. Maintenance-free open diamond design with the self-cleaning feature
4. Heavy load-carrying capacity with minimal deflection
5. Easy to install with low erection cost
6. Versatile in applications
Product Features |
|
Product Name |
Anti Skid Perforated Slip-Resistant safety grating walkway grip strut |
Hole type |
Diamond ,Perf-O ,rectangular ,Embossed , Round ,Fish scalled |
Width |
Max 1250mm |
Length |
Max 6000mm |
Bend Depth |
50+20mm 35+20mm 75+20mm customized |
MOQ |
20pcs |
Special Services |
Site CAD Drawing , Free Samples , Installation Guide , Solid Packages |
Loading Port |
Tian Jin Port or Any Chinese Port |
| Item No. | Item Description | Standard Width | Standard Channel Depth | Standard Length |
| 1 | 2-Diamond Plank | 4.75'' (120.65mm) |
1.5'', 2'' and 2.5'' (38.1mm, 50.8mm and 63.5mm) |
10' and 12' (3048mm and 3657.6mm) |
| 2 | 3-Diamond Plank |
7'' (120.65mm) |
1.5'', 2'', 2.5'' and 3'' (38.1mm, 50.8mm, 63.5mm and 76.2mm) |
10' and 12' (3048mm and 3657.6mm) |
| 3 | 4-Diamond Plank |
9.5'' (241.3mm) |
1.5'', 2'', 2.5'' and 3'' (38.1mm, 50.8mm, 63.5mm and 76.2mm) |
10' and 12' (3048mm and 3657.6mm) |
| 4 | 5-Diamond Plank |
11.75'' (298.45mm) |
1.5'', 2'', 2.5'' and 3'' (38.1mm, 50.8mm, 63.5mm and 76.2mm) |
10' and 12' (3048mm and 3657.6mm) |
| 5 | 8-Diamond Plank |
18.75'' (476.25mm) |
1.5'', 2'', 2.5'' and 3'' (38.1mm, 50.8mm, 63.5mm and 76.2mm) |
10' and 12' (3048mm and 3657.6mm) |
| 6 | 10-Diamond Plank |
24'' (609.6mm) |
2'' and 3'' (50.8mm and 76.2mm) |
10' and 12' (3048mm and 3657.6mm) |
| 7 | 10-Diamond Walkway |
24'' (609.6mm) |
4.5'' (114.3mm) |
10' and 12' (3048mm and 3657.6mm) |
CAUTION:
Custom lengths, widths and channel depths are available upon request!
Diamond plank grating has a wide range of widths - from 4 3/4" (2-Diamond) to 24" (10-Diamond) for different applications. For example, standard walkway grating is usually 10-Diamond, and stair treads is available from 2-Diamond to 5-Diamond. Custom widths are welcome.
Features
Features: Anti-skid, anti-rust and anti-corrosion, uniform hole size, durable, without burs and broken holes, and lightweight design providing high strength-to-weight ratio and virtually maintenance free.

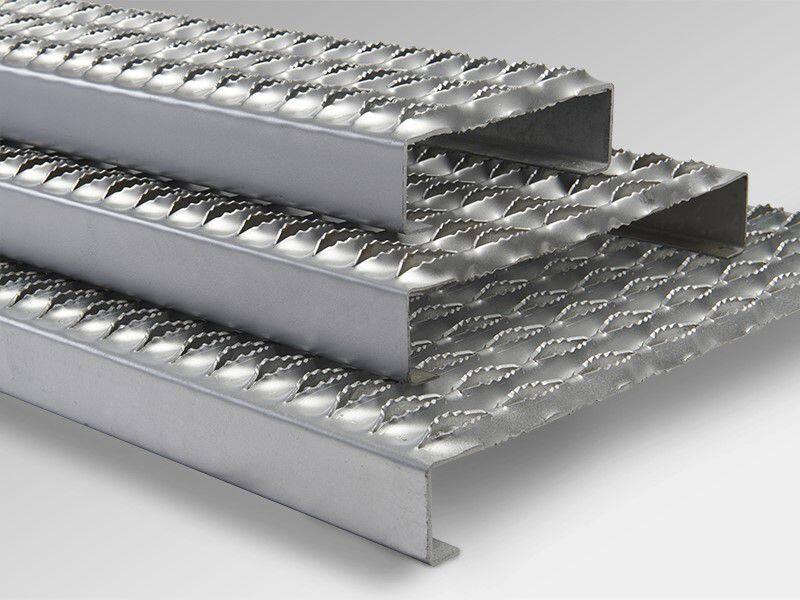

Surface pattern: Raised diamond pattern configuration in metal struts offering slip resistance in all directions of the steel grating.
Applications
Industrial walkways and platforms
Rooftop walkways and mezzanine flooring
Stair treads and ladders
Rack decking and work platforms
Signboard walkways
Advantages
1.Easy to maintain ,installation .2.Liquid slurry, ice ,snow in fast filtration channels .
3.High bearing capacity --High strength to weight ratio
4.Longer life than similar products
5.Light weight--easy to install and manufacturer
