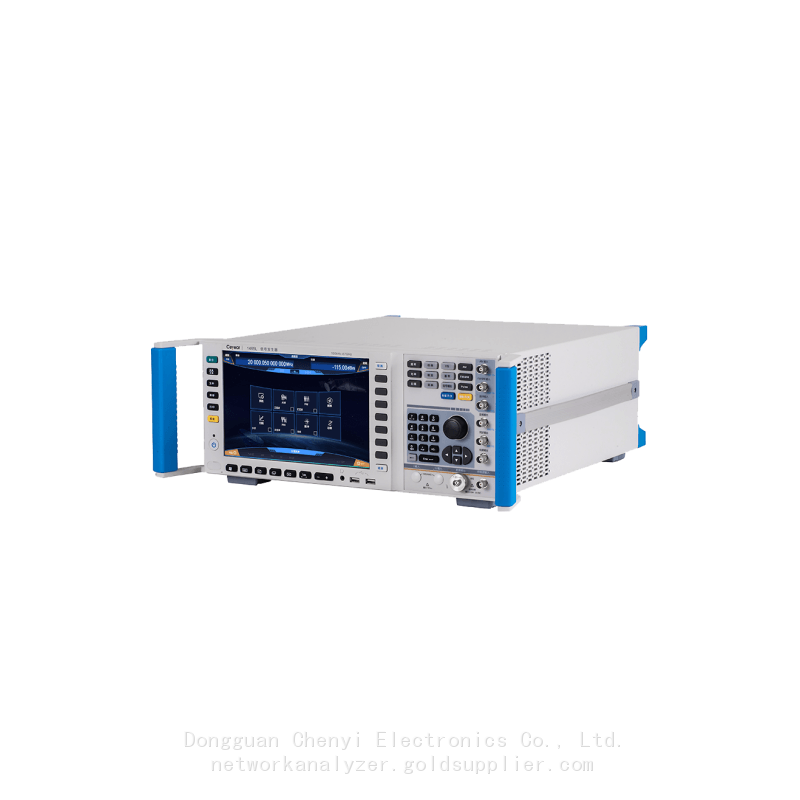

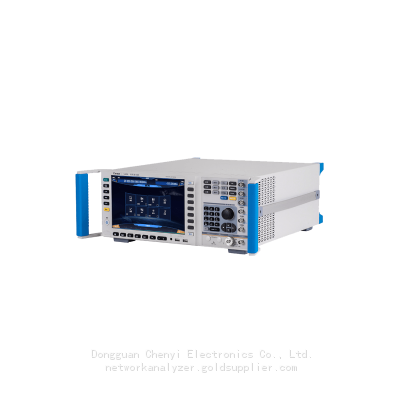

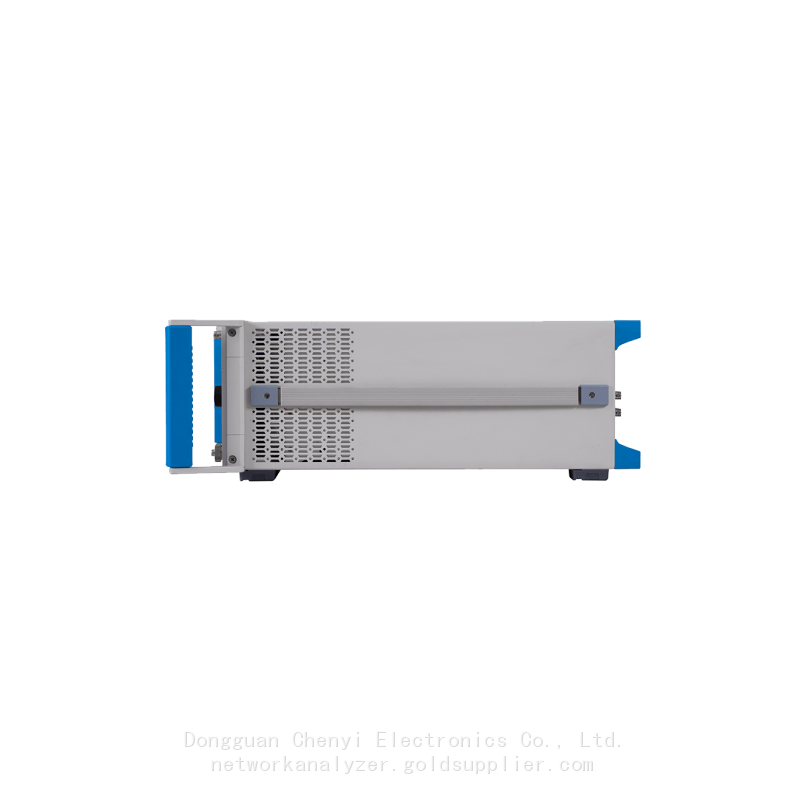

Ceyear 1465F Signal Generator，100kHz to 40GHz
Signal Generator 1465A ：100kHz to 3GHz
Signal Generator 1465B ：100kHz to 6GHz
Signal Generator 1465C ：100kHz to 10GHz
Signal Generator 1465D ：100kHz to 20GHz
Signal Generator 1465F ： 100kHz to 40GHz
Signal Generator 1465H ：100kHz to 50GHz
Signal Generator 1465L ：100kHz to 67GHz
Product overview
1465 series signal generators, with the frequency range of 100kHz ~ 67GHz, are provided with high
purity spectrum and high output power. The single side band phase noise at 10GHz carrier and 10kHz
frequency offset is -126dBc/Hz. The maximum output power reaches up to 1W at 20GHz carrier, and the
dynamic output power range gets 150dB. All these specifications can meet the high-end requirements of
electromagnetic signal tests. In addition, 1465 signal generators own the functions of high-precision
analog sweep and high-performance analog and pulse modulation, with maximum bandwidth of
internally modulated signal generator up to 10MHz, various signal waveforms, the minimum pulse width
of 20ns and flexible pulse trains, which can meet the test requirements of analog and pulse modulations.

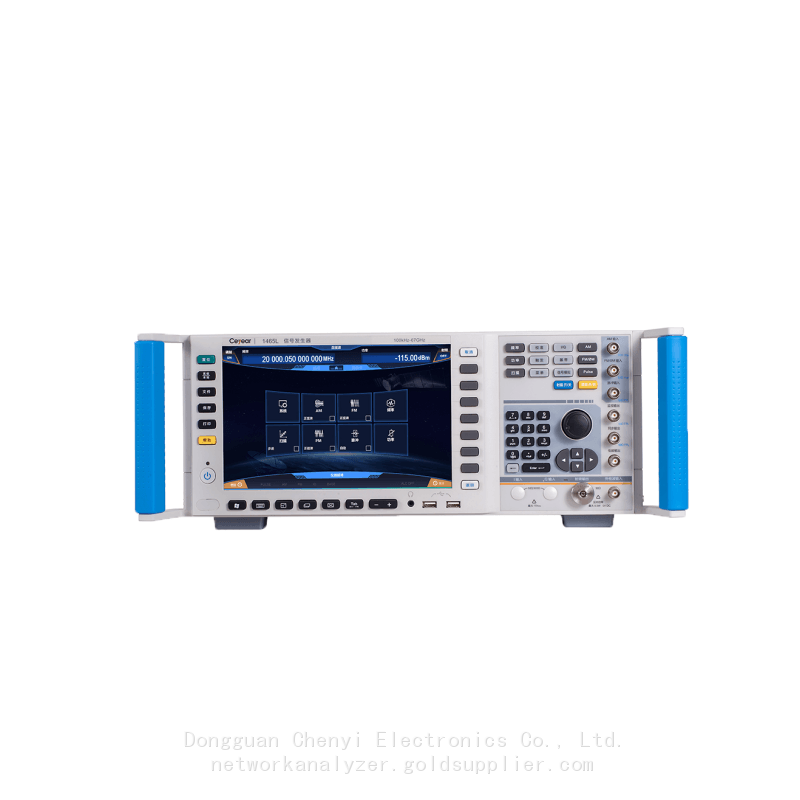

A 10.1-in. display screen of 1280×800 resolution as well as a number of independent operation styles,
such as buttons, mouse and touch screens are equipped so as to improve user experience and test
efficiency. 1465 signal generators can generate high-quality continuous-wave or modulated signals,
which are not only ideal local oscillation source and clock source, but also high-performance analog
simulation signal source. They are mainly used in the radar performance evaluation, high-performance
receiver test and components parameter test etc., and applicable to aviation, aerospace, radar,
communication and navigation equipment etc.
Main characteristics
● High purity spectrum
● Broadband and high-power output
● High stability frequency and power output
● Convenient touch screen control
● Complete frequency band serialization
● High-precision analog sweep
● Super-high power dynamic range
● Excellent analog modulation
● High-performance pulse modulation
● Multiple control and function extension interfaces
High purity spectrum
1465 series signal generators are able to output extremely pure signal spectrum, typical single side band
phase noise at 10GHz carrier and 10kHz frequency offset of -126dBc/Hz, and at 1GHz carrier and
10kHz frequency offset of -142dBc/Hz. This performance can be used in Doppler radar,
high-performance receiver blocking and adjacent channel selectivity tests, and are ideal alternatives to
local oscillator and low-jitter clock.
Broadband and high-power output
For H05 high-power options, typical values for the maximum output power are +22dBm for 20GHz,
+20dBm for 40GHz, and +10dBm for 67GHz. For H06 enhanced high-power option, the output power is
+30dBm (1W). When high-power input signals are required in your test, the required test signals can be
obtained, with no external amplifier, and higher power accuracy and stability will be achieved.
High stability frequency and power output
The stability is high for both the frequency and power of an output signal. Time-base aging rate is
±5×10-8/year, and for 10MHz high stability time-base, variation per year is not more than 0.5Hz. Both
output power accuracy and stability are quite remarkable, i.e. after 15-day continuous power-on in the
environment for a temperature cycle of 0ºC-50ºC, the power variation is less than 0.2dB at the same
temperature, and rate of temperature change for the power is less than 0.01dB/ºC.

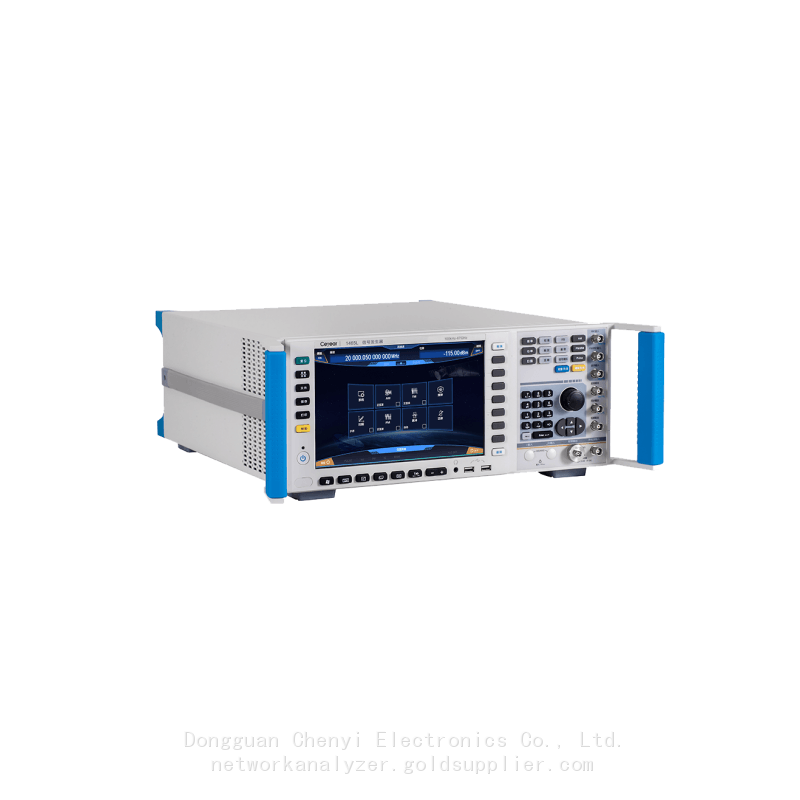

Convenient touch screen control
A 10.1-inch LED display screen of 1280×800 resolution shows the instrument status information clearly.
Conspicuous color matching, proper function division and various function panel buttons provide a fresh
sight of vision, easy operation and higher test efficiency for you. Besides with the panel buttons, the
instrument can be controlled independently by operating with enter knob, sliding or clicking on the touch
screen, and using external keyboard or mouse.
Complete frequency band serialization
For 1465A/B/C/D/F/H/L signal generators, the frequency ranges are 100kHz-3GHz/6GHz/10GHz
/20GHz/40GHz/50GHz/67GHz. In this 7 serialized models, the minimum selectable output frequency is
9kHz for 1465A/B, and for 1465L, the maximum selectable output frequency is 70GHz. Each model has
various options available for function and performance extension. There is always one model suitable for
you, no matter for metrology solutions or basic signal generators, only radio-frequency range test signals
or millimeter-wave for signal frequency.
High-precision analog sweep
Full-band high-precision analog sweep function allows rapid sweep in your broadband test. In addition,
step sweep and list sweep are provided for your other test requirements.
Super-high power dynamic range
A 150dB power dynamic range of -130dBm - +20dBm is provided as the best choice for testing a
high-sensitivity receiver.
Excellent analog modulation
With the functions of AM, FM and ΦM, it supports internally and externally modulated resource input. For
both the FM and ΦM, the modulation bandwidth is from DC to 10MHz, while linear and exponential
modes are provided for AM, with the linear AM depth of more than 90%. An internally modulated signal
generator, with the frequency range from DC to 10MHz, 0.1Hz resolution and 7 modulated waveforms,
can output low-frequency signals directly.
High-performance pulse modulation
The depth of modulation is more than 80dB, with the rise and fall time of less than 10ns and the
minimum pulse width of 20ns. Clock gate and various external trigger modes are supported. A standard
internal pulse generator, with 6 pulse modes, pulse width from 20ns to 42s, and 10ns step, has the
function of pulse train required in radar test.
Multiple control and function extension interfaces

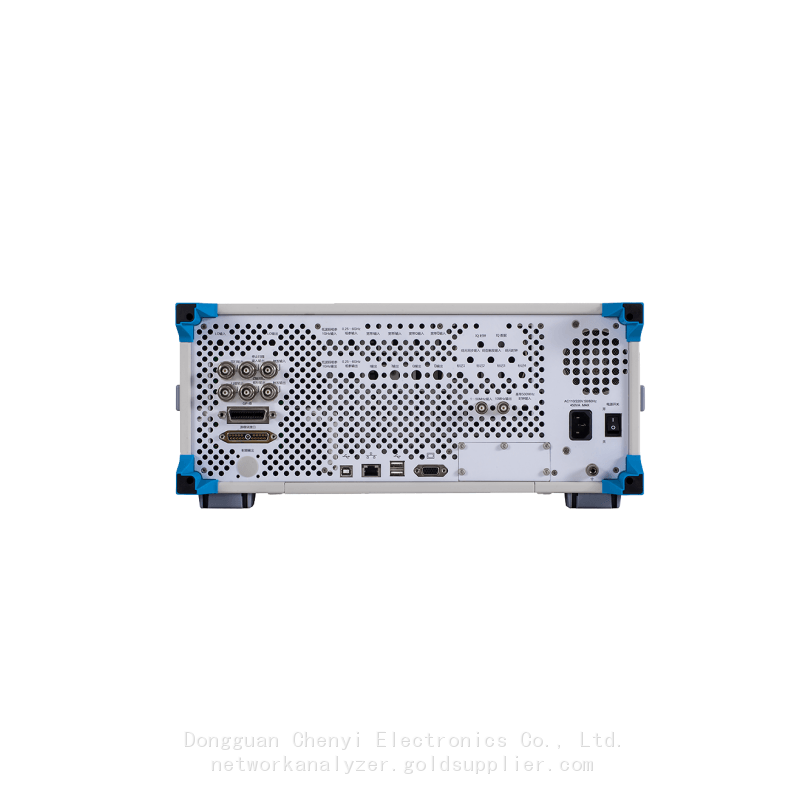

There are USB, LAN, GPIB, monitor interface and other auxiliary interfaces, in which USB is used to
transmit data, and connect with keyboard/mouse etc., while LAN and GPIB are used for program control,
and monitor interface for external display.
Typical applications
Comprehensive performance evaluation for electronic system
1465 series signal generators, with the frequency range from 100kHz to 67GHz, generate signals with
high purity spectrum, high power output and remarkable stability, which can be used for comprehensive
performance evaluation for such electronic systems as radar system, electronic warfare system,
communication equipment system, and for solving such index test problems as band width, sensitivity,
dynamic range and intermodulation distortion.
High-performance receiver test
1465 series signal generators, with extremely low single side band phase noise and excellent
non-harmonic suppression, can output perfect pure signals, used in phase noise, block and adjacent
channel selectivity test for a high-performance receiver in the radar, electronic warfare system or
communication equipment.
High-power device test
1465 series signal generators, with the maximum output power of 1W, can test a high-power device, with
no external amplifier, and overcome the loss of test system, with higher signal power accuracy and
stability.
Durability test of electric equipment
All 1465 series signal generators, with the operating temperature range of 0-50ºC, have high frequency
and power stability, and can be used in the durability test of electric equipment where the instrument
needs to be powered on for days.
Excitation signal and local oscillator substitution
1465 series signal generators, with extremely pure signal quality and high output power, can be used for
signal excitation for amplifiers, and as an ideal alternative for local oscillator in the tested equipment,
such as transmitter and receiver etc..
