Ceyear 1465D-V Signal Generator，100kHz to 20GHz
Signal Generator 1465C-V : 100kHz to 10GHz
Signal Generator 1465D-V : 100kHz to 20GHz
Signal Generator 1465F-V : 100kHz to 40GHz
Signal Generator 1465H-V : 100kHz to 50GHz
Signal Generator 1465L-V : 100kHz to 67GHz
Main Characteristics
Broadband vector signal generation
Large vector modulation bandwidth
High compatible arbitrary wave data format download
High purity spectrum
Broadband and high-power output
Metrology grade vector modulation accuracy
Complete universal digital modulation format
Convenient touch screen control
Multiple control and function extension interfaces
Product Overview
1465-V series signal generators has excellent vector modulation performance within the frequency

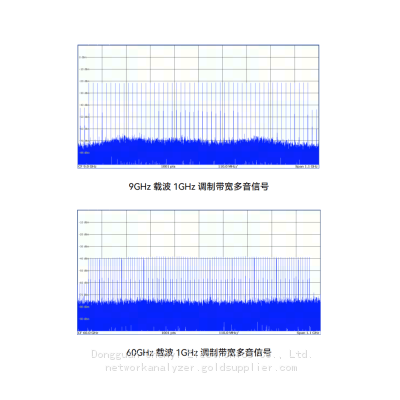

range of 100 kHz to 67GHz. It has 1GHz internal modulation bandwidth and 2GHz external
modulation real-time bandwidth, which can meet various modulation needs of wideband signals.

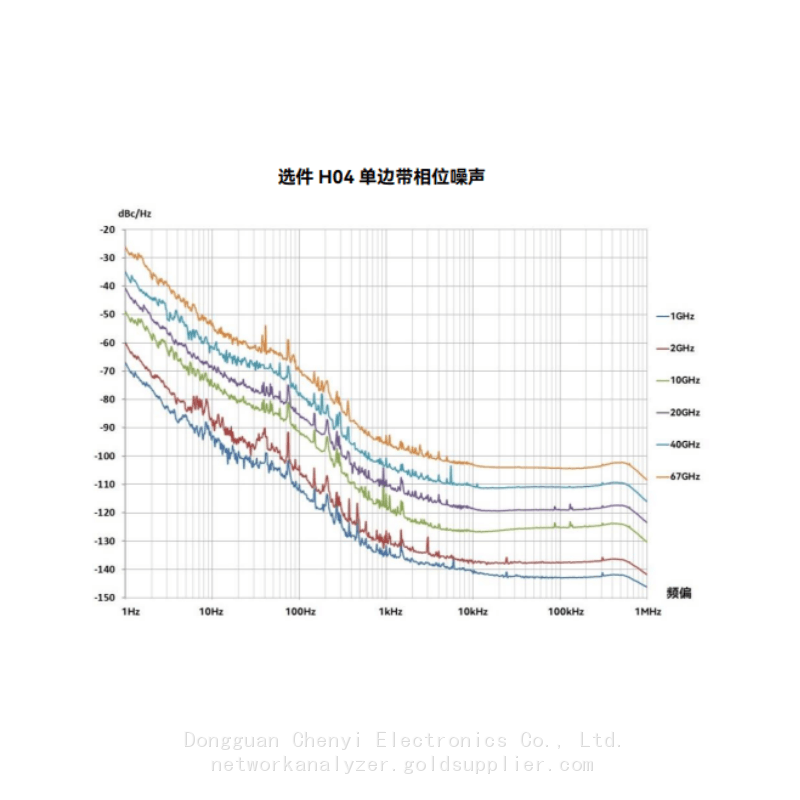

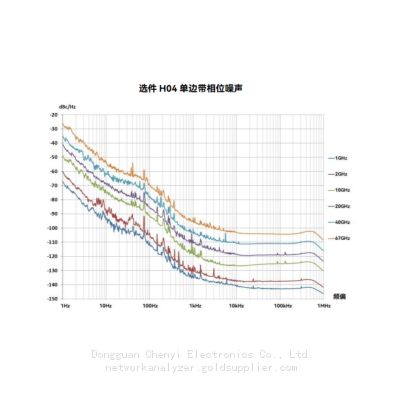

The generator has excellent spectrum purity and output power specifications. The phase noise of
10GHz carrier@10kHz frequency offset can be reached to -126dBc/Hz, to meet high-level test
needs which have strict requirements of testing signals. The generator also has excellent vector
modulation accuracy and at the full frequency range the EVM is less than 1.4% (4Msps), which
makes the generator be used in metrology purpose. The baseband signal generator can be set
easily with flexible performance and many modulation formats. More than 20 kinds of common
modulation formats are supported, such as PSK, QAM, and FSK, ASK and so on. The arbitrary
wave modulation support 5 kinds of download file format, users can edit and download the
waveform according to their own requirement. Thus various signal modulation can be
accomplished and complex signals can be generated. Besides，the airspace capsule operation
interface design and 10.1 inch high-brightness touch screen can bring a brand-new operation
experience to users.
With wide frequency band and modulation bandwidth, 1465-V series signal generator can not only
provide user with analog and vector modulated signal with great spectrum purity and modulation
types, but also can help user edit arbitrary waves flexibly. It’s an ideal choice for performance test
of components, modules, communications, navigation, radar, and other electronic systems.
Convenient touch screen control

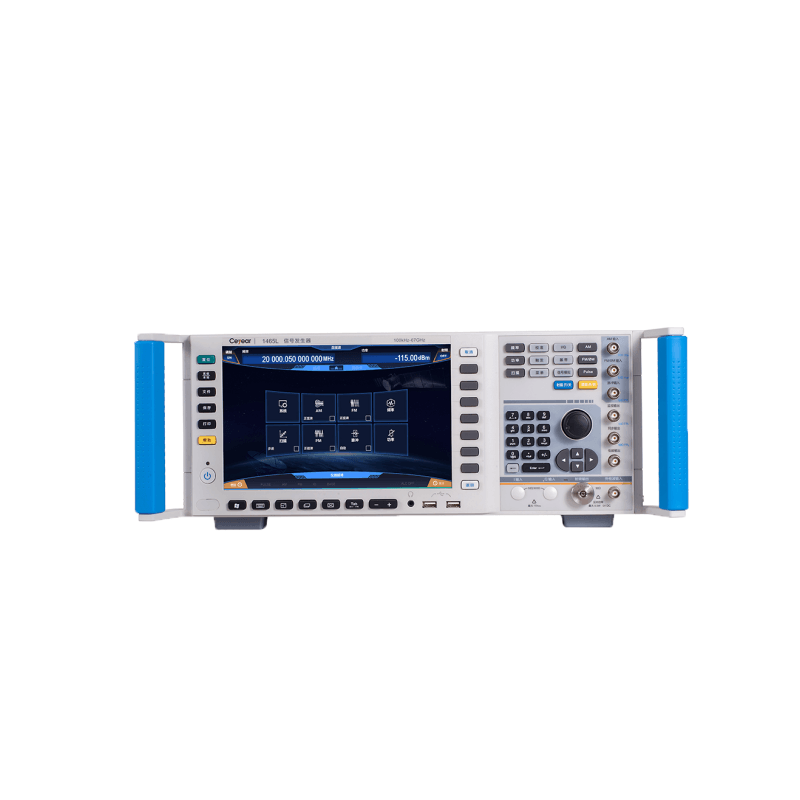

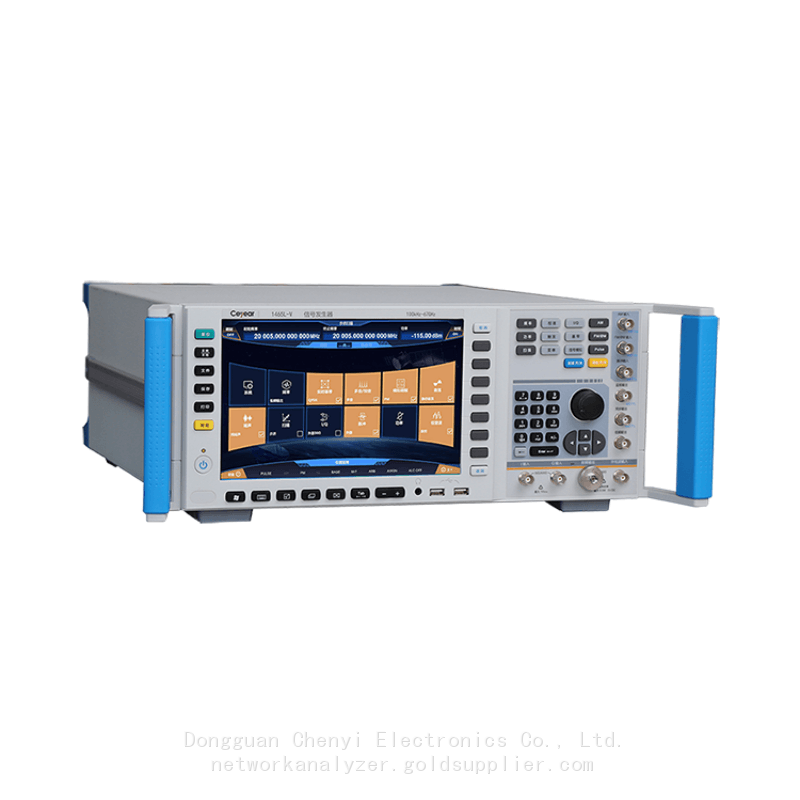

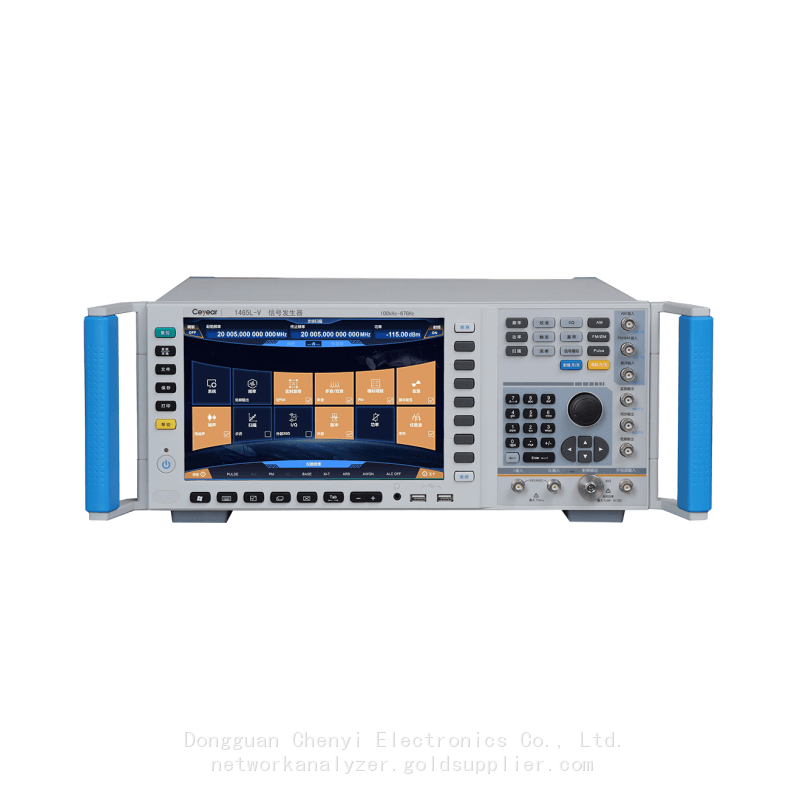

A 10.1-inch LED display screen of 1280×800 resolution shows the instrument states information
clearly. Conspicuous color matching, proper function division and various function panel buttons
provide a fresh sight of vision, easy operation and higher test efficiency for you. Besides with the
panel buttons, the instrument can be controlled independently by operating with enter knob,
sliding or clicking on the touch screen, and using external keyboard or mouse.
Multiple Control and Function Extension Interfaces

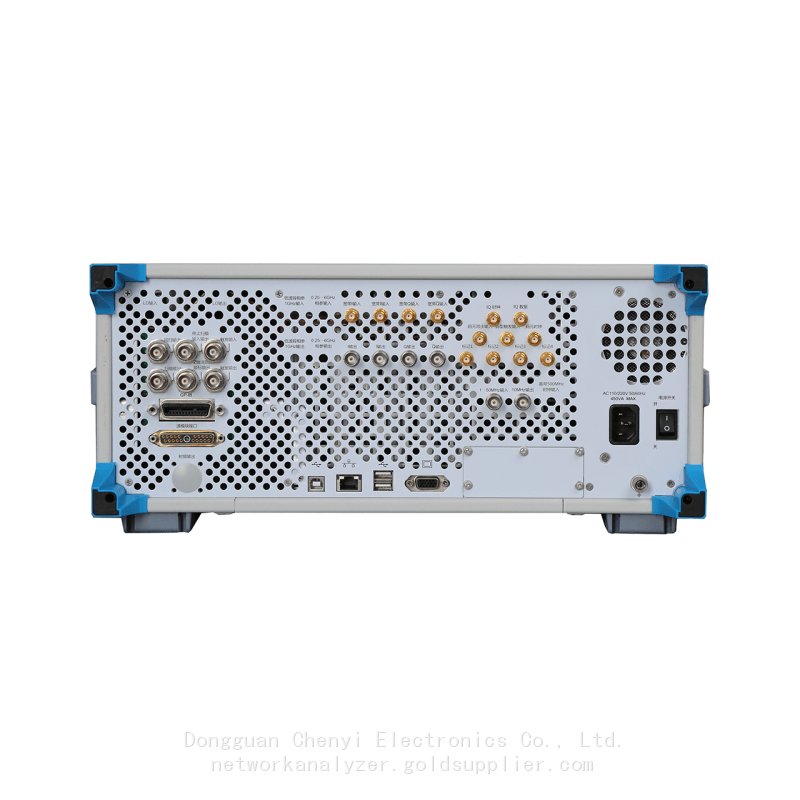

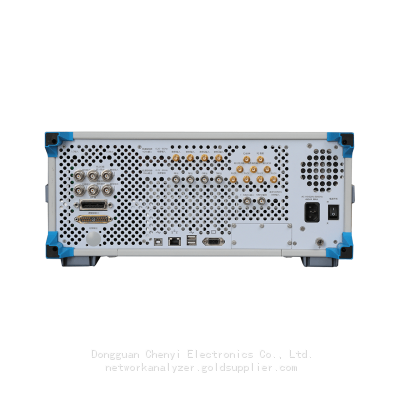

Support various auxiliary interfaces such as USB, LAN, GPIB, Monitor. The USB interface can be
used for data transmission and external keyboard/mouse. LAN and GPIB can be used for
programmable control. The monitor connector can be used for external display when using a CRT
or LCD.
Typical Applications
High-reliability Communication system Test
1465-V series signal generator can generate high-performance user-defined modulation and basic
digital modulation signal within frequency range of 100kHz～67GHz. The instrument can provide
repeatable and reliable test signals for satellite communication. Its external wide bandwidth vector
modulation and user-defined data features as well as additive noise function can create a
real-world signal and help users to make product performance confirmation.
To Simulate Various Application Scenes for Radar and EM Environment
1465-V series signal generator has wide frequency range and high resolution(16bit)as well as
powerful signal simulation function. It can generate complex sequences of various modulation
formats by editing waveform segment under different scenes. Together with abundant functional
synchronous trigger interface, it can simulate complex interference signal under actual
environment and accomplish anti-interference test of radar equipment.
Provide Accurate Arbitrary Wave Modulation Signal
1465-V series signal generator has 2G sampling point waveform storage capacity. This feature can
allow designer to generate a long-time test data, which may be more close to the reality. User can
create one of the kinds of arbitrary wave data using the third party tools or software.
High-performance Receiver Test
1465-V series signal generator has a 140dB output dynamic range and extremely high frequency
stability as well as 0.001Hz frequency resolution. It can output high-accuracy standard test signal
which can solve parameter test problem such as sensitivity, dynamic range and channel selectivity
to accomplish test of high-performance receiver used in radar, electronic warfare and
communication equipment.
Local Oscillator Substitution
1465-V series signal generator has extremely high signal quality, thus can be used as an ideal
device to substitute LO when testing transmitter and receiver and other systems. It will guarantee
your test accuracy and creditability by avoiding negative influences that low-quality LO brings in.
