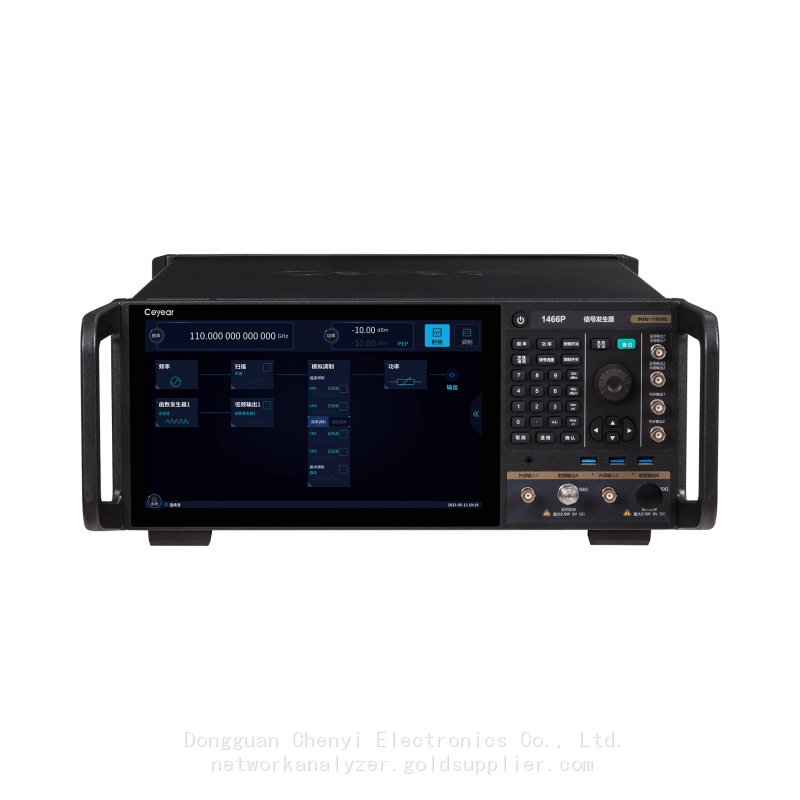

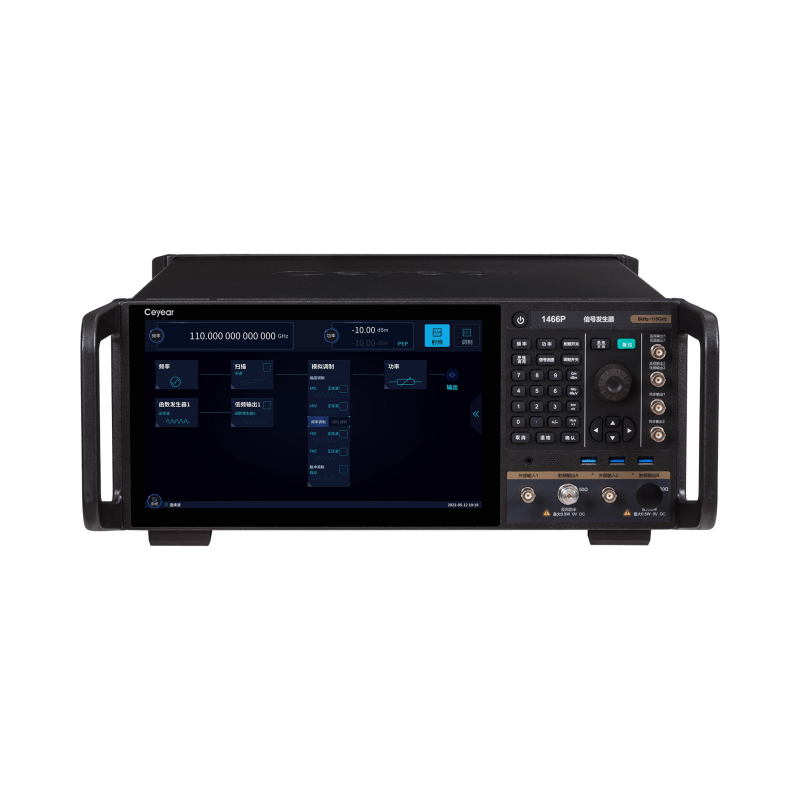

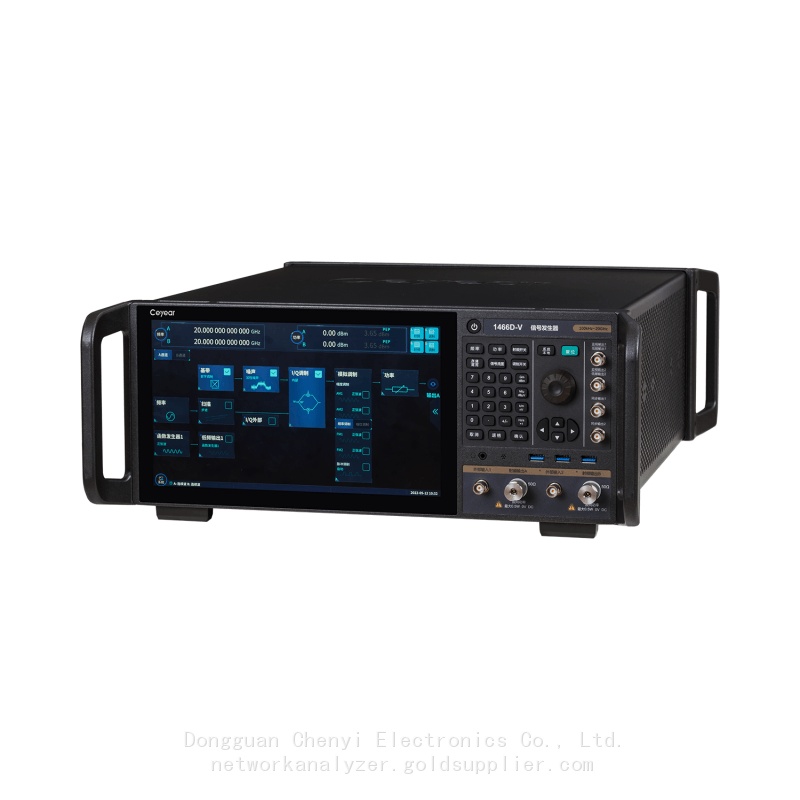

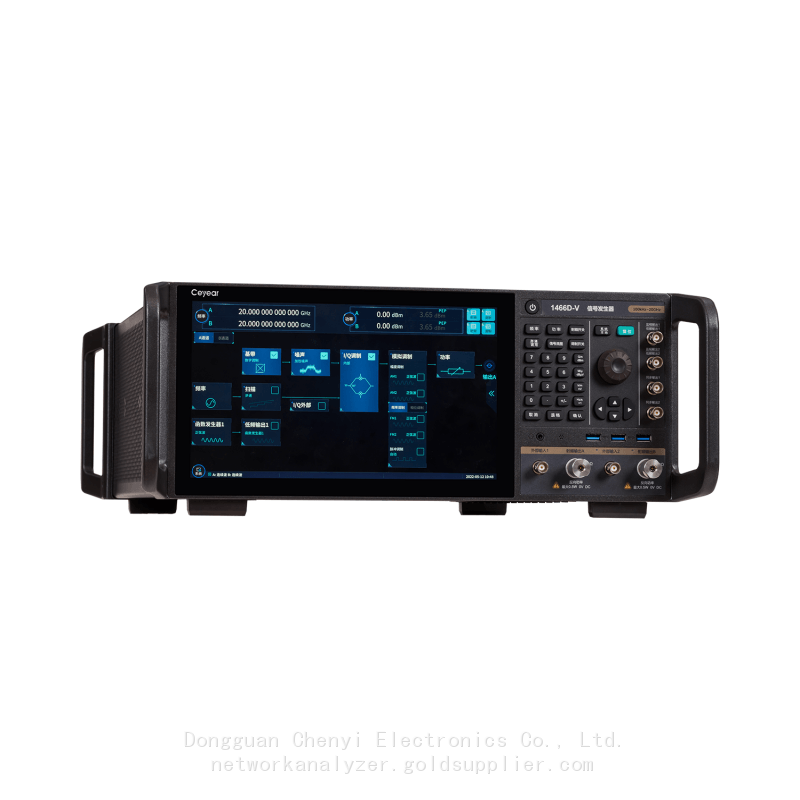

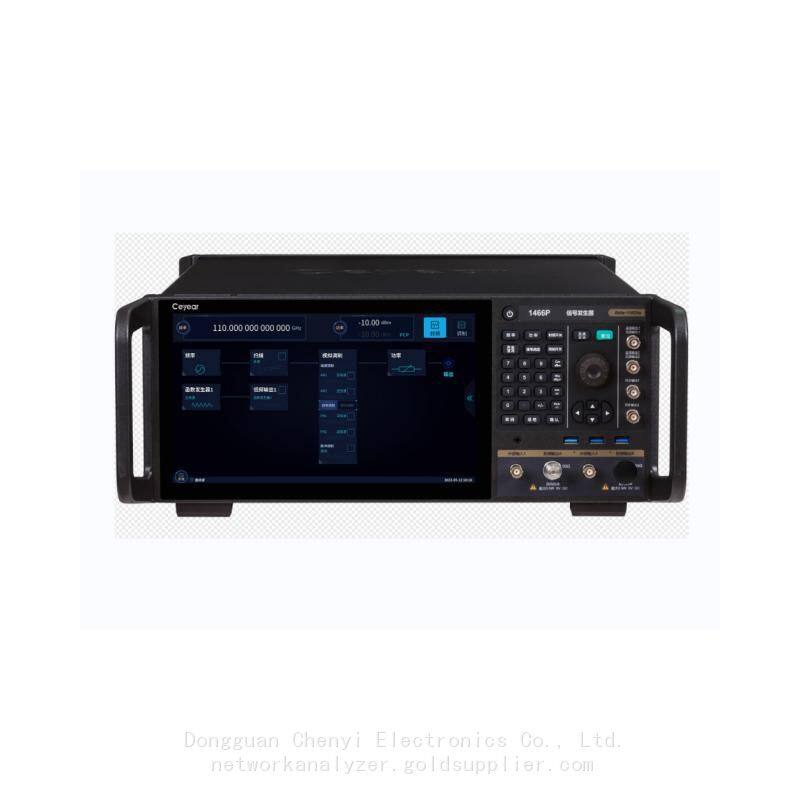

Ceyear 1466D Analog Signal Generator，6KHZ to 20GHZ
Analog Signal Generator 1466C ：6KHZ to 13GHZ
Analog Signal Generator 1466D ：6KHZ to 20GHZ
Analog Signal Generator 1466E ：6KHZ to 33GHZ
Analog Signal Generator 1466G ：6KHZ to 45GHZ
Analog Signal Generator 1466H ：6KHZ to 53GHZ
Analog Signal Generator 1466L ：6KHZ to 67GHZ
Analog Signal Generator 1466N ：6KHZ to 90GHZ
Analog Signal Generator 1466P ：6KHZ to 110GHZ
Key Features
1466C／D／E／G／H／L／N／P Analog Signal Generator
• Frequency Resolution: 0.001Hz
• Single-Sideband Phase Noise (Typical Value): -132dBc/Hz @ 10kHz (10GHz Carrier);
-145dBc/Hz @ 10kHz (1GHz Carrier)
• Power Dynamic Range: -150dBm ~ +25dBm (Programmable)
• Scan Modes: Step Scan, List Scan, Analog Scan, Power Scan
• Supports Analog Modulation and Pulse Modulation Functions, Minimum Pulse Width for Pulse
Modulation is 20ns
Product Overview
Ceyear 1466 analog signal generator is created to meet the varied test requirements with top performance and functionality, especially in higher frequencies, higher signal spectral purity, higher output power, and dual-RF channels. Also rich built-in functions such as analog scanning, analog modulation and pulse modulation could bring more convenience to daily testing. Friendly designed human-computer interaction, including graphics guided operation, browser based remote control, power meter automatic connection and identification, SCPI command recording, as well as interface user customization could speed up the test operation. The Ceyear 1466 analog signal generator is an ideal choice for high standard testing in components, modules, machines and systems.
Features
Excellent spectral purity, making cutting-edge testing easier
Ceyear 1466 analog signal generator supports high spectral purity output signal, SSB phase noise: -145dBc/Hz @10kHz offset at 1GHz carrier, -132dBc/Hz @10kHz offset at 10GHz carrier, Wideband noise: -161dBc/Hz @30MHz offset at 20GHz carrier, spurious
Full range of analog modulation
Amplitude modulation, frequency modulation, phase modulation and pulse modulation are supported. It has complex pulse modulation functions such as double pulse, pulse train, PRF jittering, PRF staggering, and PRF sliding.
Touch screen display with graphics guided operation
The 11.6-inch high-resolution touch screen is used to clearly display the main parameters and instrument status information, and with the signal flow diagram guidance interface, the display is more intuitive and the interaction is more friendly.
Flexible user control interface
Support user-defined menus, tailor-made personalized user control interface according to test habits, realize multi-function operations in one window, and avoid the trouble of too deep menus and repeated searches.
SCPI command real-time recording and operation project automatic builder
Not only you can export recorded SCPI commands with one click, but also automatically generate VS (C++, C#), Qt, Matlab, LabView program control example projects, making program control easier.
10GHz coaxial frequency coverage, easier and more accurate testing
Ceyear 1466 analog signal generator frequency range covers 6kHz to 110GHz. Through integration with Ceyear 8240X analog signal source extender, frequency range can be expanded to 750GHz. It is an efficient tool for millimeter-wave 5G communication RF conformance testing .
Cross-platform web browser based remote control
Cross-platform client and browser access control. Support multiple clients to connect at the same time, and the working status of the instrument is refreshed synchronously. Support web browser based remote control for mobile devices.
