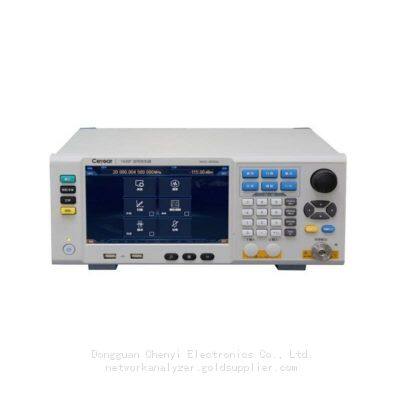

Ceyear 1435B Series Signal Generator，9kHz to 6GHz
Ceyear 1435A Series Signal Generator，9kHz to 3GHz
Ceyear 1435B Series Signal Generator，9kHz to 6GHz
Ceyear 1435C Series Signal Generator，9kHz to 12GHz
Ceyear 1435D Series Signal Generator，9kHz to 20GHz
Ceyear 1435F Series Signal Generator，9kHz to 40GHz
Main Features
Wide frequency coverage
High output power
Excellent SSB phase noise
Extremely short frequency switching time
High performance pulse modulation
Built-in multi-function function generator
Small size and light weight
High-sensitivity LED touch screen
Overview
Based on innovative technologies, the 1435 series signal generator achieves balance in terms of
performance, economy and volumetric weight. It also has excellent spectral purity, with a single side
band (SSB) phase noise of -136dBc/Hz (when the carrier is 1GHz and the frequency offset is 10kHz) or -116dBc/Hz (when the carrier is 10GHz and the frequency offset is 10kHz). It provides a high power
output and a large dynamic range, with the maximum output power up to 20dBm@20GHz and an output
power dynamic range greater than 150dB. It responds fast and switches to another frequency in only
1ms, which shortens the test time and improves test efficiency, meeting the needs of massive data
testing; in addition, it also has excellent analog modulation and pulse modulation functions. By adopting
advanced frequency synthesis and RF channel signal processing technologies, it can achieve high
performance while reducing the cost. Besides, it is equipped with a 7-inch high-sensitivity LED touch
screen, and supports operation by touch screen, panel buttons, rotary knobs, external mouse and
keyboard, etc., which fully upgrades the users’ operation experience. It adopts portable 3U chassis
structure and is featured by small size and light weight, and thus is easy to carry. The 1435 series signal
generator can meet both the test requirements for high performance in the R&D phase and the test
requirements for high efficiency in the production phase.
Wide frequency coverage
The1435A/B/C/D/F series signal generator provides a frequency range of 9kHz 3GHz/6GHz/12GHz/20GHz/40GHz. Its lowest frequency can be as low as 9kHz and its highest
frequency can be as high as 40GHz, which can meet the needs of wide frequency band testing.
High output power
When the H08 high-power output option is selected, the measured value of the full-band output power of
the 1435A/B/C/D series signal generator can be above 20dBm and the full-band output power of the
1435F series signal generator can be above 17dBm. In the test where high-power excitation signals are
required, the 1435 series signal generator can be used to obtain the required test signal without an
external amplifier.
Excellent SSB phase noise

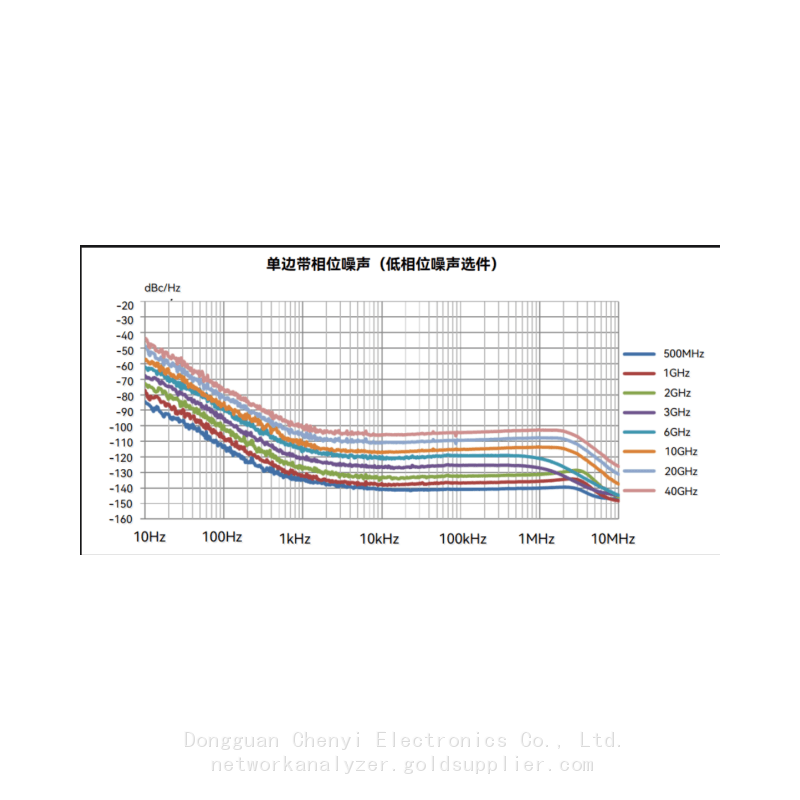

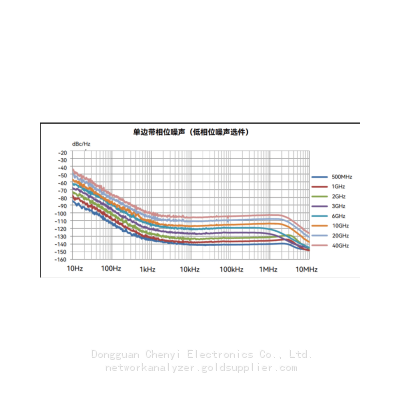

The 1435 series signal generator provides two steps of SSB phase noise for users. The standard SSB
phase noise is measured at -101dBc/Hz (10GHz@10kHz), and the SSB phase noise can be as low as
-116dBc/Hz (10GHz@10kHz) when the low phase noise option is selected. Users can select the phase
noise as required to achieve the optimal cost performance.
Extremely short frequency switching time

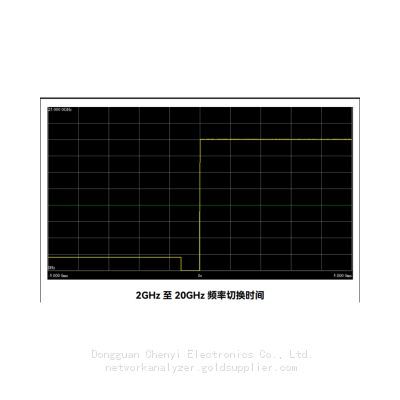

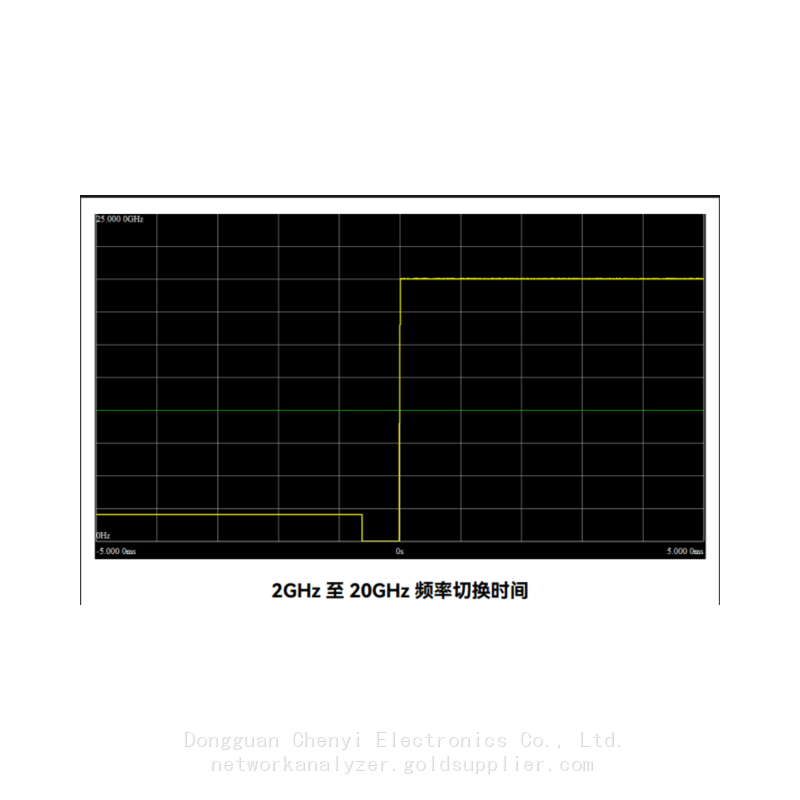

The 1435 series signal generator can realize fast frequency switching in the full frequency band, and the
measured frequency switching time is 0.67ms, which can meet the test requirements for high speed.

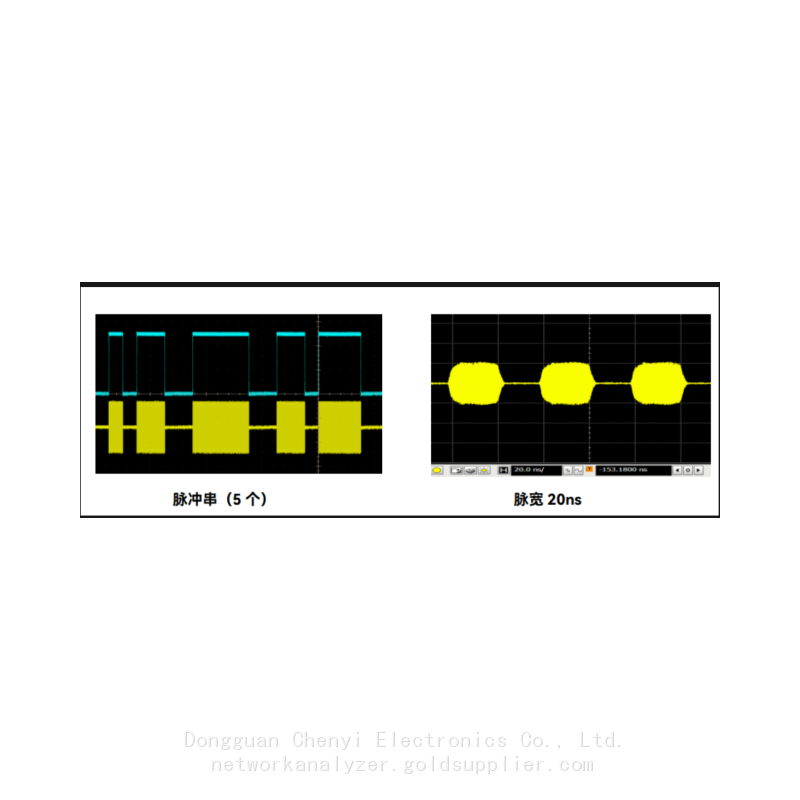

High performance pulse modulation
The pulse switch ratio is greater than 80dB, and the rise and fall time is shorter than 10ns. When the
narrow pulse option H04 with a minimum pulse width of 20ns, a pulse width range of 20ns~42s-10ns and
a step of 10ns is selected, it supports various triggering modes such as gating and external triggering.
It’s also equipped with the pulse string required in radar test.
Multi-function function generator
The multi-function function generator consists of seven waveform generators for generating AM/FM/ΦM
modulated signals and low-frequency output signals. Two waveform generators can generate a
dual-tone modulated signal by internal addition and are used for AM/FM/ΦM. The seven waveform
generators include two standard function generators, one double-function generator, one scan function
generator, two noise generators, and one DC generator. The DC generator generates DC levels, which
can only be used for low frequency output. For the waveform generator, its sine wave frequency range is
0.1Hz~10MHz, and its frequency range of triangle wave, square wave, sawtooth wave and pulse is
0.1Hz~1MHz, and the frequency resolution is 0.1Hz.
Small size and light weight

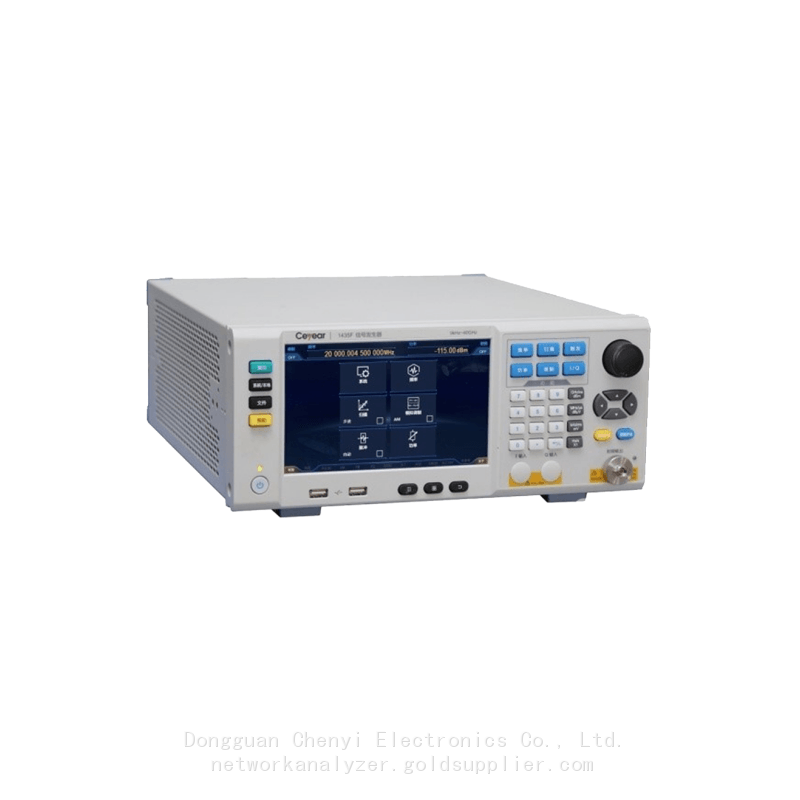

By adopting the portable 3U-high chassis design, the 1435ABCDF series signal generator has its weight
and volume greatly reduced (compared to bench instruments). The heaviest model of this series is
10.9kg, and the lightest model is 7.4kg.

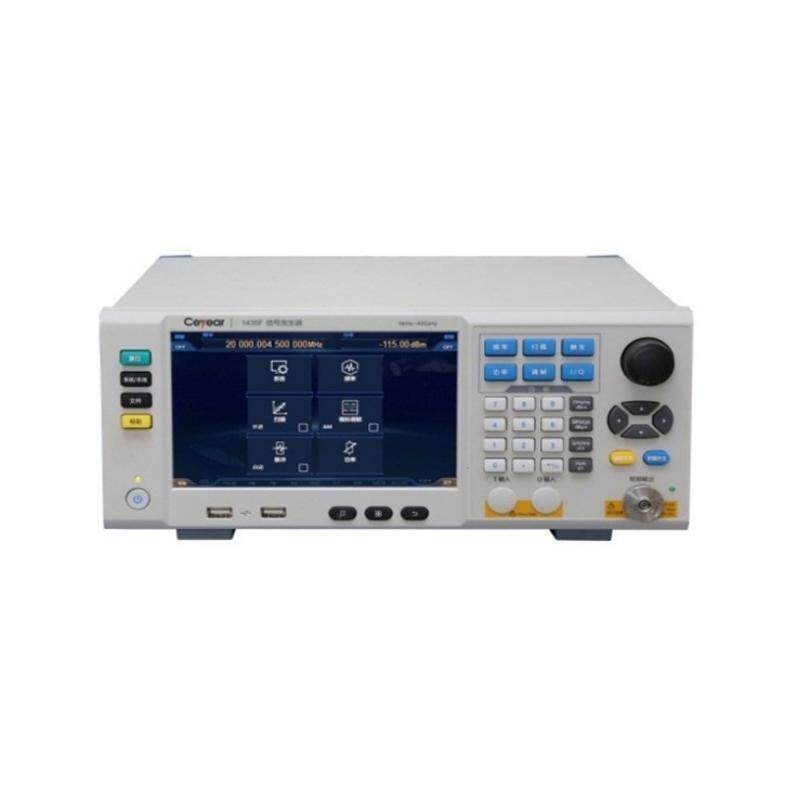

High-sensitivity LED touch screen
The 7-inch wide LED display which supports a resolution of 800 × 480 pixels clearly shows the
instrument status information. The combination of the capacitive screen and the tailored window
interface enables the 1435ABCDF series signal generator to respond sensitively and accurately to users’
touch operations. In addition to the touch screen, the user can also operate the instrument by the panel
buttons, the rotary knobs (with the Enter function), and the external keyboard and mouse conveniently
and quickly.
Typical Applications
General Test
The 1435 series signal generator provides complete functions and a frequency range of 9kHz~40GHz. It
provides AM, FM, ΦM, and PM analog modulation functions and supports step scan and list scan. Also,
it has excellent performance. By adopting a design which realizes the balance between performance,
economy and volumetric weight, it supports free configuration of various options, which makes it widely
available. In respect of cost, it can be used for teaching; in respect of performance, it can be used in
laboratory tests.
Defense Test
The 1435 series signal generator supports high-performance pulse modulation, with a
pulse-to-modulation switch ratio greater than 80dB, the rise and fall time less than 10ns, and the
minimum pulse width of 20ns. It supports various pulse patterns such as pri stagger, prf jittering and
pulse string, which is suitable for radar system testing. It has excellent phase noise performance and is
available for receiver testing. It has a small size and can be carried along for field testing.
Production line test
The 1435 series signal generator takes only 1ms to switch to another frequency. It provides a high test
speed, shortens the test time, and improves the test efficiency, thus meeting the requirements of
massive data test. It provides a high power output and needs no external power amplifier, thus saving
the space and cost. It supports multiple control interfaces such as USB, LAN and GPIB, which facilitates
the formation of an automated test system and is suitable for production line test.
