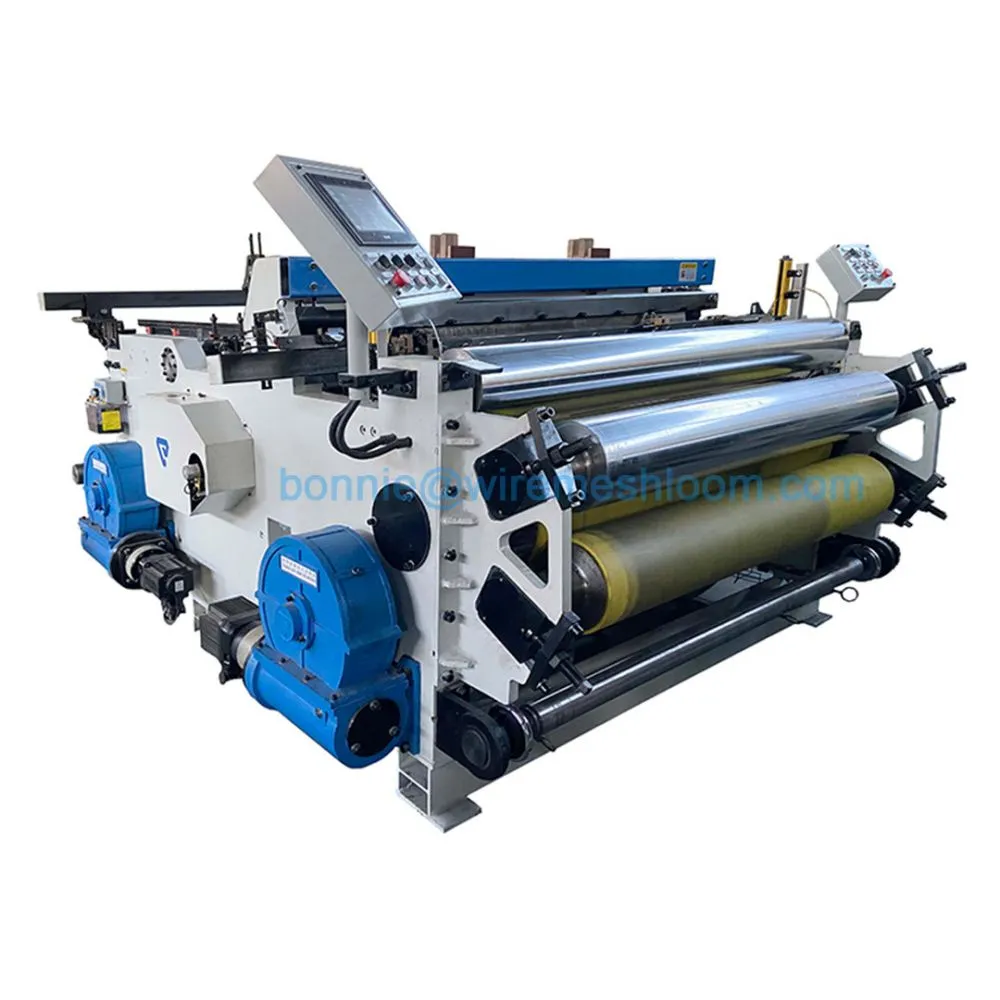

Help CenterLANYING Heavy Duty Coarse Metal Wire Woven Loom Machine Price
Related Products
-
PLC Servo Motor Control Full CNC Metal Woven Mesh Loom MachinesNegotiableMOQ: 1 Set -
MODERN WIRE MESH WEAVING MACHINES FROM LANYING FOR BRASS WIRE MESH WEAVINGUS$ 19000 - 35000MOQ: 1 Set
-
Wire Mesh Manufacturing MachineUS$ 23000 - 40000MOQ: 1 Set
-
LANYING Heavy Mesh Woven Loom MachineUS$ 23000 - 40000MOQ: 1 Set
-
LANYING Heavy Precision Mesh Woven Loom MachineUS$ 23000 - 40000MOQ: 1 Set
Hebei Lanying Technology Co., LTD is a technology-oriented enterprise that is composed of mechanical and automation professionals, with strong R&D capacity. We have been engaged in the manufacturing of metal wire mesh weaving looms since 20 years ago. We commit to improving the automation and efficiency of the metal wire mesh weaving. From self-developed special CNC system and algorithm for the metal wire mesh weaving loom to the fully CNC weaving loom and the fully CNC warping machine. We not only manufacture general use wire mesh weaving machine but also provide customized machines and effective overall solutions according to customer requirements.
Our products mainly include four series: SG100 series, SG130 series, SG160 heavy-duty series, SG180 super heavy-duty series which cover all-round weaving range from light and thin fabrics with a diameter of 0.016mm (not limited to) to heavy fabrics with a diameter of 2.1mm (not limited to). With reliable quality and after-sales services, our products not only win domestic customers trust, but also export to France, Japan, South Korea, India, Russia, Taiwan and other countries and regions.
Lanying technology, which is progressing with the times, is committed to researching and developing high-precision and high performance looms. We will satisfy customers' arbitrary needs for metal wire weaving fabrics with our best products!
anying technology, which is progressing with the times, is committed to researching and developing high-precision and high performance looms. We will satisfy customers' arbitrary needs for metal wire weaving fabrics with our best products!
Product Series |
SG100 Series |
SG130 Series |
SG160 Series |
SG180 Series |
|
Standard weaving width (Special width on request)
|
1300mm 1600mm 2000mm |
1300mm 1600mm 2000mm 2500mm 3000mm |
1300mm 1600mm 2000mm 2500mm 3000mm |
1300mm 1600mm 2000mm 2500mm 3000mm 4000mm |
Wire diameter range |
0.016-0.3mm |
0.06-0.45mm |
0.1-0.7mm |
0.2-2.1mm |
Plain weave square hole (mesh/inch) |
40-400 |
20-260 |
10-100 |
6-60 |
Twill weave (mesh/inch) |
≤600 |
≤400 |
≤350 |
≤260 |
Wire material |
Stainless steel, iron, copper, aluminum, platinum, nickel, polyester |
Stainless steel, iron, copper, aluminum, |
Stainless steel, iron, copper, aluminum, |
Stainless steel, iron,copper, aluminum, |
Speed |
100 rpm |
100 rpm |
50-70 rpm |
35-50 rpm |
Our woven mesh making loom machines could weave various metal wires such as: stainless steel mesh, copper mesh, nickel mesh, platinumn mesh, aluminium mesh, iron mesh, galvanized mesh, high carbon steel mesh, low carbon steel mesh, etc.
Please contact us to know more details.
